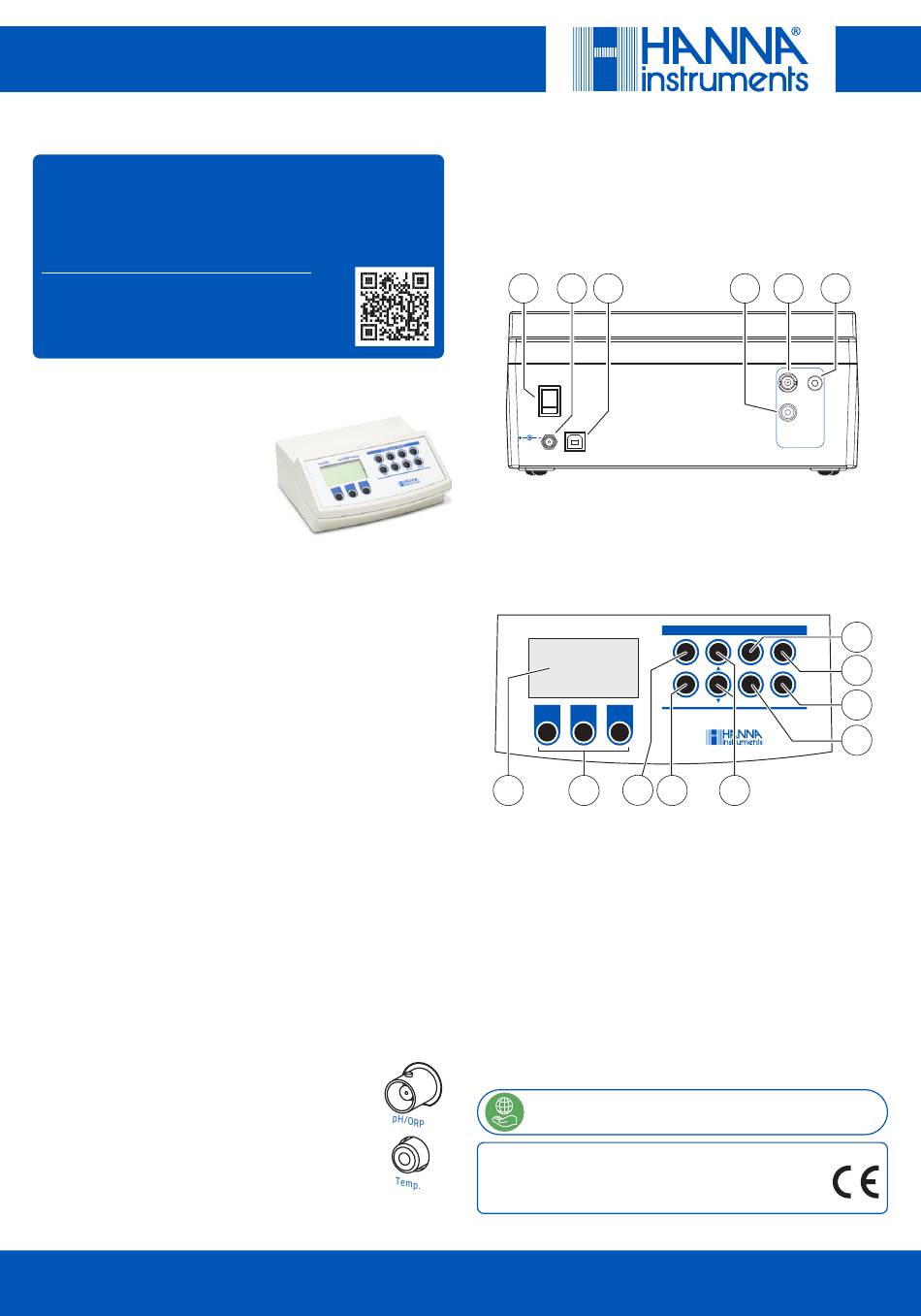

Hanna Instruments HI3220-01 Quick Reference Manual

QUICK REFERENCE GUIDE
HI3220 Calibration Check pH, ORP Benchtop Meter
Dear Customer, thank you for choosing Hanna Instruments.
For more information about Hanna Instruments and our products, visit
www.hannainst.com or e-mail us at sales@hannainst.com. For technical
support, contact your local Hanna Instruments office or e-mail us at
tech@hannainst.com.
Please scan the QR code or use the link below to
download the user manual.
https://manuals.hannainst.com/HI3220
Available Models
• HI3220-01 115 Vac, USA plug
• HI3220-02 230 Vac, EU plug
Package Contents
• Benchtop meter
• HI1131B pH electrode
• HI7662-TW Temperature probe
• HI76404W Electrode holder
• pH 4.01 buffer solution, 20 mL sachet
• pH 7.01 buffer solution, 20 mL sachet
• Cleaning solution, 20 mL, 2 sachets
• Electrolyte solution
• Capillary pipette
• 12 Vdc Power adapter
• Instrument quality certificate with quick reference guide
• pH electrode quality certificate and quick reference guide
Note: Save all packing material. Any damaged or defective item must
be returned in its original packing material with the supplied accessories.
Main Features
• Reliable performance guaranteed by pH calibration check
• Calibration with Hanna/NIST, custom, and millesimal pH buffers
• Context-sensitive help and on-screen tutorial
Brief Operational Overview
Place the meter face down and attach the electrode holder base plate.
BNC probe connection » pH, ORP
Connection to the unit is secured through a galvanically
isolated BNC connection.
• Connect the probe to the BNC connector port (5).
RCA probe connection » temperature
• Plug the temperature probe connector into socket (4).
Note: Always turn the meter off before connecting the electrode/probe.
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, RI 02895 USA
www.hannainst.com
Power connection
• Plug the 12 Vdc power adapter in to power.
• Press the power button (1) to turn the device on.
Rear view
1 2 3
OFF
ON
Power USB
12Vdc
1. Power button
2. Input for power cable
3. Input for PC interface via USB
Front view

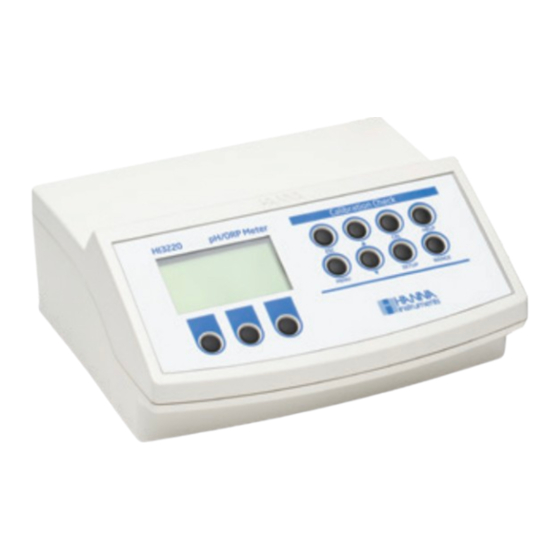

HI3220 pH/ORP Meter
3
1 2
1. LCD display
2. Virtual keys
3. ESC
4. MENU (log recall, GLP)
5. Forward/Backward navigation
Other Accessories
Probes and electrodes can be ordered from your local sales office
or from www.hannainst.com.
Hanna Instruments is committed to developing and deploying digital
solutions with a positive impact on the environment and climate.
All Hanna instruments conform to the CE European Directives, and our
production facilities are ISO 9001 certified. HI3220 is warranted for a period
of two years against defects in workmanship and materials when used for its
intended purpose and maintained according to instructions.
Please retain for future use.
4 5 6
pH/ORP Ref.
Temp.
4. Temp. probe connection port
5. pH/ORP electrode port
6. Reference electrode port
Calibration Check
ESC CAL HELP
RANGE
MENU SETUP
4 5
6. SETUP (meter)
7. RANGE (measure mode)
8. HELP (context sensitive)
9. CAL (calibration mode)
QR3220 03/25
9
8
7
6
