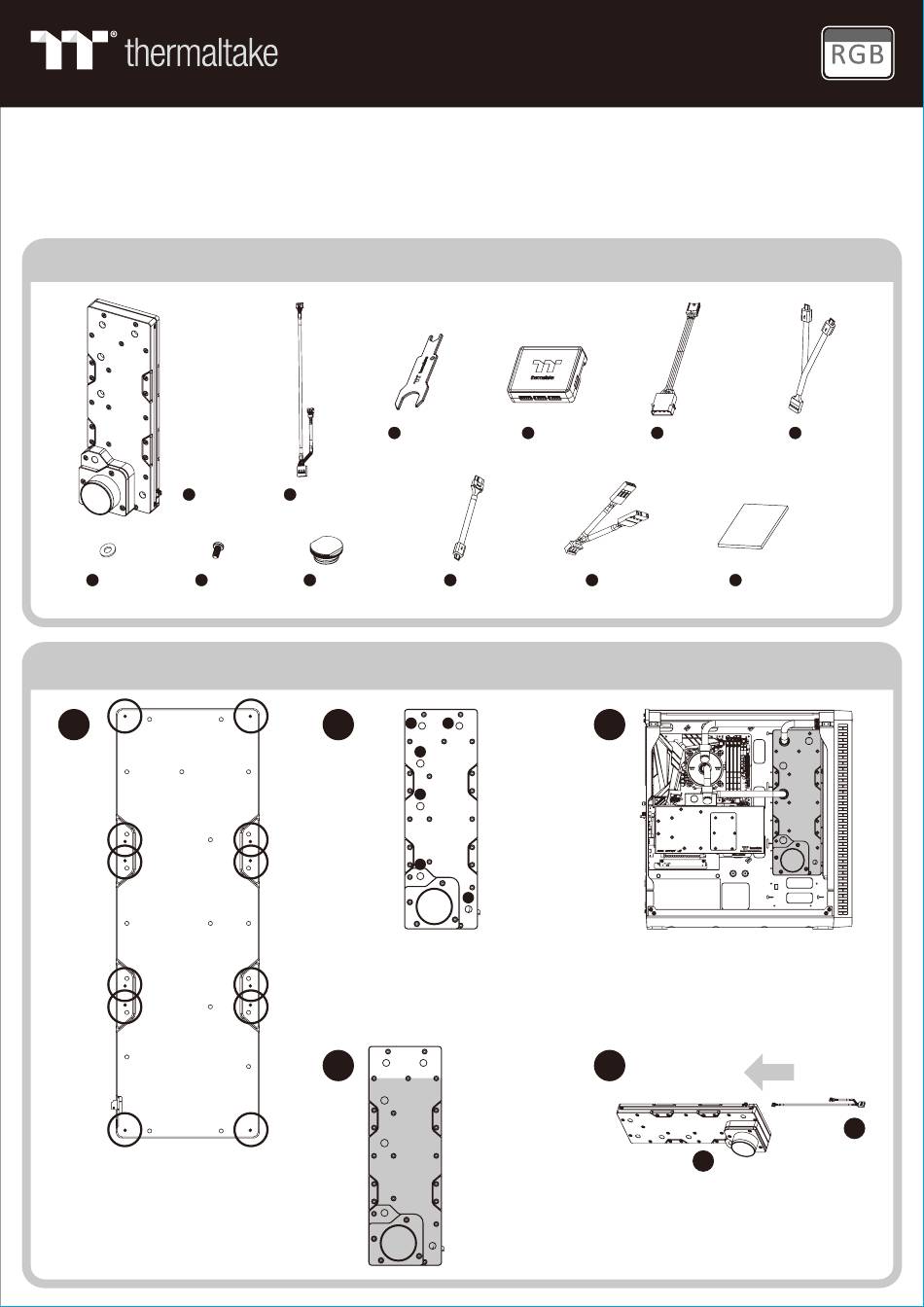

Thermaltake Pacific DP100-D5 Plus Installation Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.
Improper installation may result in damage to your equipment.
1. Please carefully read the manual before beginning the installation process !
2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.
3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack and fail ! Do not clean it using alcohol either !
A
Distro Plate
C x 12
Washer
1
To install the DP100 in your
chassis, placing a screw and
washer that comes with the DP100
on every screw hole that matches
the circles in below picture.
Pacific
x 1 B x 1
LED Y-Cable
D x 12 E x 4
Screw G1/4 Stop Plug
Installation Guide
2
Circle 1 is designed for liquid outlet, you may
choose one of the ports to use.
Circle 2 is designed for liquid inlet/fill, you may
choose one of the ports to use.
Circle 3 is the drain port.
4
DP 1 00-D5
Parts List
F x 1 G x 1
Wrench Controller
J x 1
Bridge Cable
2 2
1
1
1
3
To avoid air bubble
during liquid cooling
system working, please
fill the reservoir with
coolant to the line
(Normal coolant level)
Plus
H x 1
Power Cable
K x 1 L
MB SYNC Cable Velcro
3
Assembly example can refer to
the following figure.
5
A
Connect the LED Y-Cable onto
the Distro Plate.
Patented
16.8
Million Color
I x 1
Controller Cable
x 1
B
