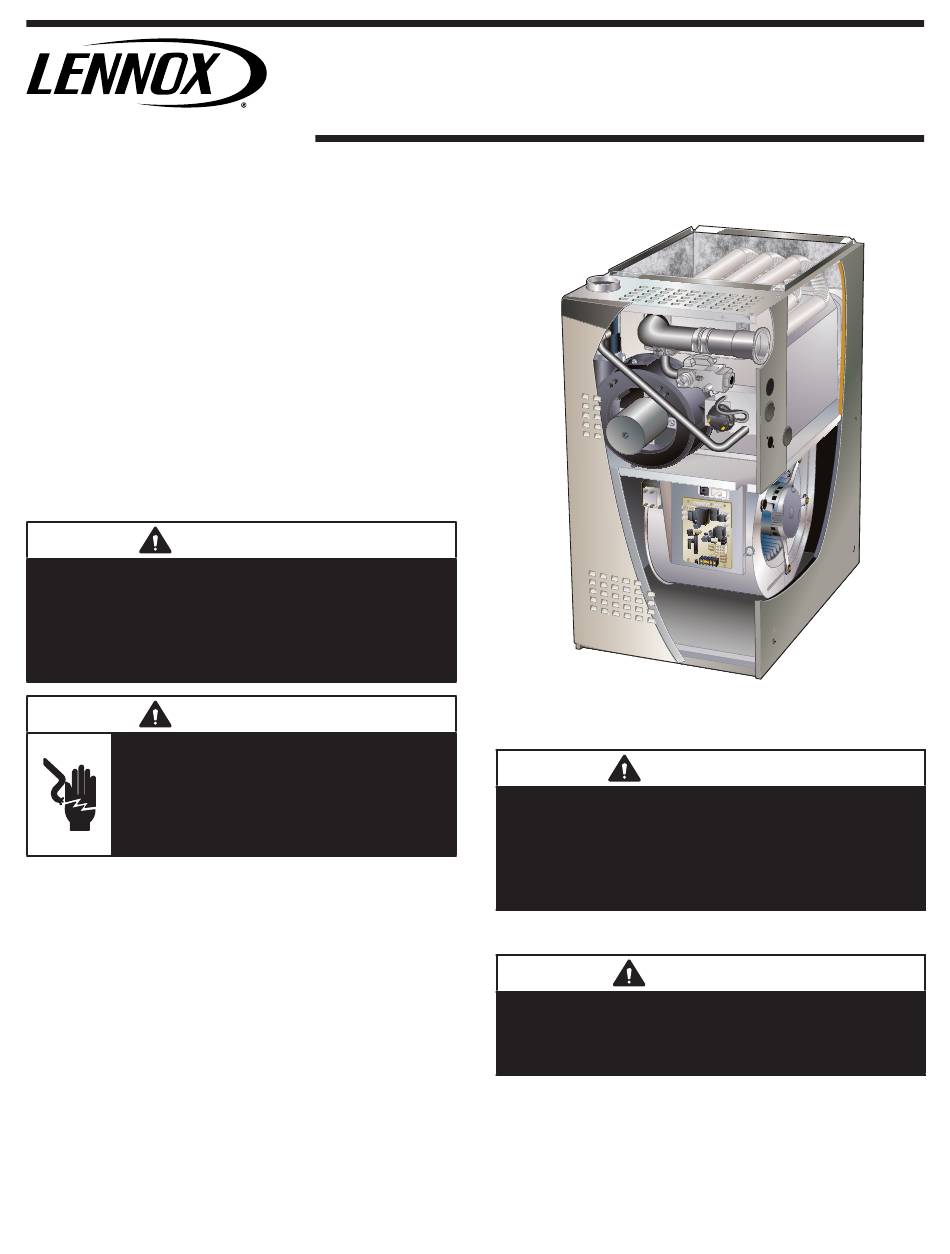

S e r v i c e L i t e r a t u r e
EL195UHEK series units are high-efficiency gas furnaces
available in heating input capacities of 40,000 to 100,000
Btuh and cooling applications from 2 through 5 tons.
Refer to Engineering Handbook for proper sizing.
Units are factory equipped for use with natural gas. All
EL195UHNEK units are equipped with a hot surface igni-
tion system. The gas valve is redundant to assure safety
shut-off as required by C.S.A.
The heat exchanger, burners and manifold assembly can
be removed for inspection and service. The maintenance
section gives a detailed description on how this is done.
All specifications are subject to change. Procedures out-
lined in this manual are presented as a recommendation
only and do not supersede or replace local or state codes.
WARNING
This furnace is equipped with an ignition control
factory enabled for use with Lennox A2L refrigerant
systems.
Disabling
functionality on A2L system is prohibited by safety
codes. Refer to furnace installation instructions for
refrigerant system setup.
WARNING
Electric shock hazard. Can cause injury
or death. Before attempting to perform
any service or maintenance, turn the
electrical power to unit OFF at disconnect
switch(es). Unit may have multiple power
supplies.
Table of Contents
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . 3
Blower Performance Data . . . . . . . . . . . . . . . . . . . . . . 4
Twinning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
I-Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
II Placement and Installation . . . . . . . . . . . . . . . . . . . . 22
III-Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
IV-Heating System Service Checks . . . . . . . . . . . . . . 44
V-Typical Operating Characteristics . . . . . . . . . . . . . . 50
VI-Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
VII- Low GWP Application . . . . . . . . . . . . . . . . . . . . . . . . . 54
VIII-Sequence of Operation and Flow Charts . . . . . . . . . 57
XI-Troubleshooting. . . . . . . . . .. . . . . . . . . . . . . . . . . . . . .58
UNIT INFORMATION
UNIT INFORMATION
EL195UHNEK SERIES UNITS With R454B
the
refrigerant
detection
100158
Improper
installation,
service or maintenance can cause property damage,
personal injury or loss of life. Installation and service
must
be performed by a licensed professional
HVAC installer or equivalent, service agency, or the
gas supplier.
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal
injury. Take care while handling this equipment and
wear gloves and protective clothing.
Page 1
EL195UHNEK
WARNING
adjustment,
CAUTION
alteration,
