SIMPLIHOME WyndenHall Brooklyn + Max AXCCOS72-WH Manual

Cosmopolitan / city / essex 72 inch wide tv media stand
Hide thumbs

Advertisement

Quick Links

Download this manual
Cosmopolitan / City / Essex
72 inch Wide TV Media Stand
Model # AXCCOS72-WH
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn + Max AXCCOS72-WH and is the answer not in the manual?

Questions and answers

Related Manuals for SIMPLIHOME WyndenHall Brooklyn + Max AXCCOS72-WH

Summary of Contents for SIMPLIHOME WyndenHall Brooklyn + Max AXCCOS72-WH

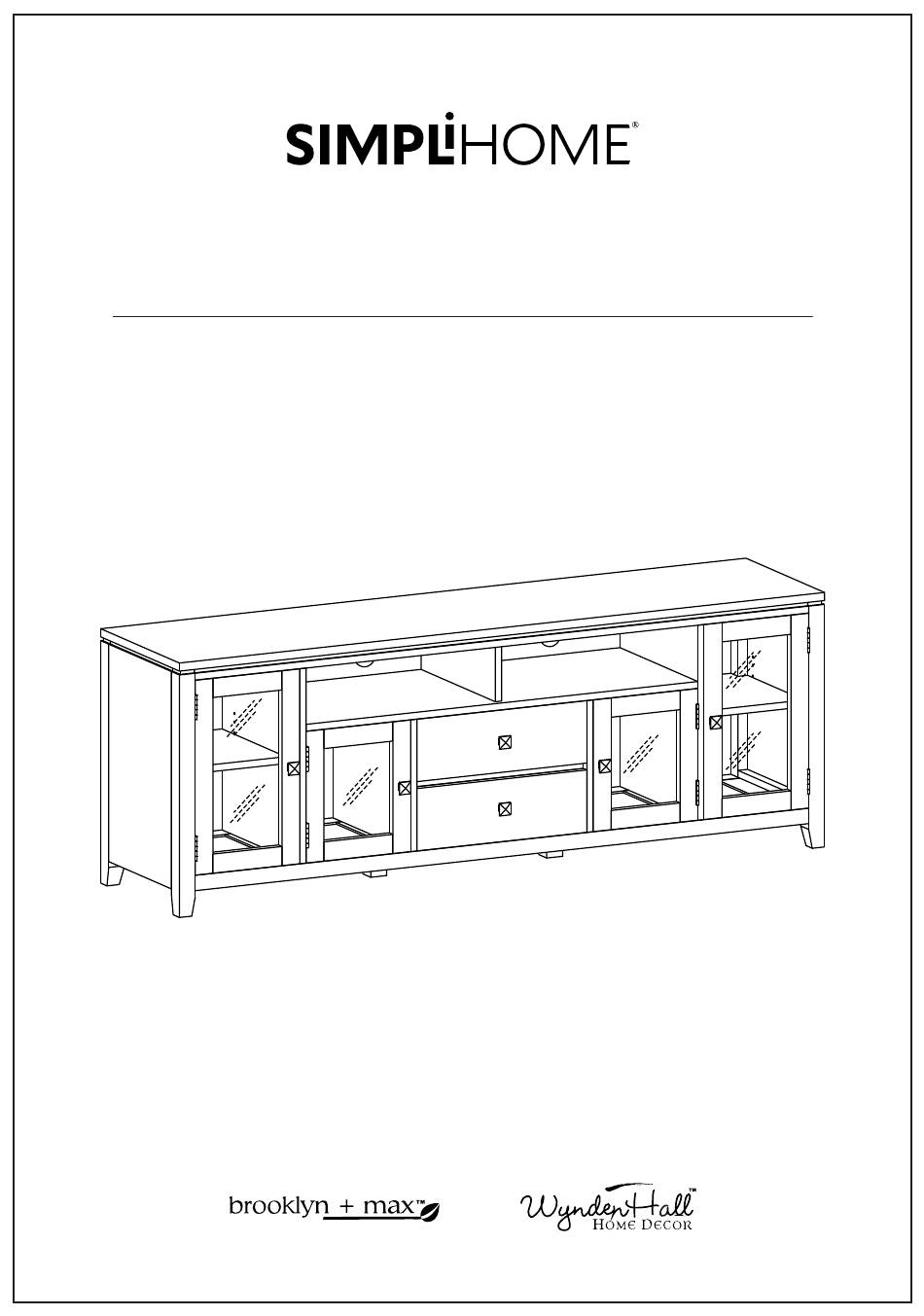

  • Page 1 Cosmopolitan / City / Essex 72 inch Wide TV Media Stand Model # AXCCOS72-WH...
  • Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Ac vate your 1-year warranty ü...
  • Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards. You may even receive store credit on your en re purchase! simpli-home.com/share-images...
  • Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order informa on and issue. Submit form.

  • Page 5: Safety Information

    IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 6: Care And Maintenance

    Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
  • Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 220 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death. The recommended maximum width of the television intended for use is 80 inch (203.2 cm).
  • Page 8 Pre-Assembly Information Model # AXCCOS72-WH Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF TOP SHELF CENTRE SHELF QTY 1 QTY 1 QTY 1 LEFT MIDDLE DIVIDER RIGHT MIDDLE DIVIDER TOP DIVIDER QTY 1 QTY 1 QTY 1...
  • Page 9 Pre-Assembly Information Model # AXCCOS72-WH Part Description LEFT SHELF LEFT DIVIDER RIGHT DIVIDER QTY 1 QTY 1 QTY 1 RIGHT SHELF SMALL DOOR (L&R Same) LARGE DOOR (L&R Same) QTY 1 QTY 2 QTY 2 Warning Label TOP BACK PANEL LEFT BACK PANEL RIGHT BACK PANEL QTY 1...
  • Page 10 Pre-Assembly Information Model # AXCCOS72-WH Part Description FLIP DOWN DOOR BOTTOM BACK PANEL BOTTOM SUPPORT LEG QTY 1 QTY 1 QTY 2 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM QTY 1 QTY 1...
  • Page 11 Pre-Assembly Information Model # AXCCOS72-WH Hardware Description CAM LOCK PIN ALLEN KEY SCREW HANDLE ALLEN KEY CAM LOCK M6 X 30 mm M4 X 25 mm QTY 1 QTY 22 SETS QTY 34 QTY 6 SETS PHILLIPS SCREW ROUND HEAD HINGE SHELF SUPPORT MAGNET AND PLATE...
  • Page 12 Components - Key Diagram Model # AXCCOS72-WH...
  • Page 13 Assembly Model # AXCCOS72-WH Step 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front O . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides PL , PR . 3. Insert 2 Cam Lock 2 into guide holes on each Drawer Side PL , PR . 4.
  • Page 14 Assembly Model # AXCCOS72-WH Step 3 1. Align Drawer Back Q with Drawer Bottom R and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen key 3 to tighten. Do not over tighten. Step 4 NOTE: The screwdriver is not included in the hardware pack.
  • Page 15 Assembly Model # AXCCOS72-WH Step 5 1. Insert 6 Dowels 12 into Centre Shelf E . 2. Use rubber mallet to tap Dowels 12 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align Dowels 12 with guide holes and attach Middle Divider GL , GR . Step 6 1.
  • Page 16 Assembly Model # AXCCOS72-WH Step 7 1. Attach 3 Cam Lock Pins 2 to each Divider HL , HR . 2. Align Cam Lock Pins guide holes and attach Top Shelf D . 3. Insert 6 Cam Lock 2 into guide holes on Top Shelf D . 4.
  • Page 17 Assembly Model # AXCCOS72-WH Step 9 1. Insert 4 Dowels 12 into Bottom Shelf C . 2. Use rubber mallet to tap Dowels 12 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Attach 3 Cam Lock Pins 2 to each Side BL , BR . 4.
  • Page 18 Assembly Model # AXCCOS72-WH Step 10 1. Insert 2 Dowels 12 into top corners of each Side BL , BR . 2. Use rubber mallet to tap Dowels 12 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
  • Page 19 Assembly Model # AXCCOS72-WH Warning Label Step 11 1. Attach Back Panels LL , LR , L1 , L2 to back of TV stand using Phillips Screws Round Head 5 into guide holes. 2. Use Phillips screwdriver to tighten screws.
  • Page 20 Assembly Model # AXCCOS72-WH Step 12 Last Step ( after adjust the door ) First Step 1. Attach hinges on Large Doors J to Sides BL , BR and attach hinges on Small Doors K to Dividers HL , HR using Phillips Screws 9 into pre-drill holes: - Using Phillips screwdriver to attach Screws 9 at middle hole of hinges for both top &...
  • Page 21 Assembly Model # AXCCOS72-WH Step 13 1. Attach Magnet Plates 7 to bottom corner of Doors J & K using Phillip Screw 10 into pre-drilled holes on Doors J & K . 2. Attach Magnets 7 using Phillip Screws 10 into pre-drilled holes Bottom Shelf C . 3.
  • Page 22 Assembly Model # AXCCOS72-WH Step 14 shelf level 1 shelf support anti - tipping shelf level 2 shelf level 3 1. Use 4 Shelf Supports 8 for each shelf IL , IR in desired location. 2. 2 Shelf Supports 8 may be used on back top of each shelf IL , IR as a tipping restraint.
  • Page 23 Assembly Model # AXCCOS72-WH Step 15 1. Insert assembled drawer into glides on assembled TV...
  • Page 24 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not Step 16 included in the hardware pack.
  • Page 25 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
