Summary of Contents for SIMPLIHOME Lowry

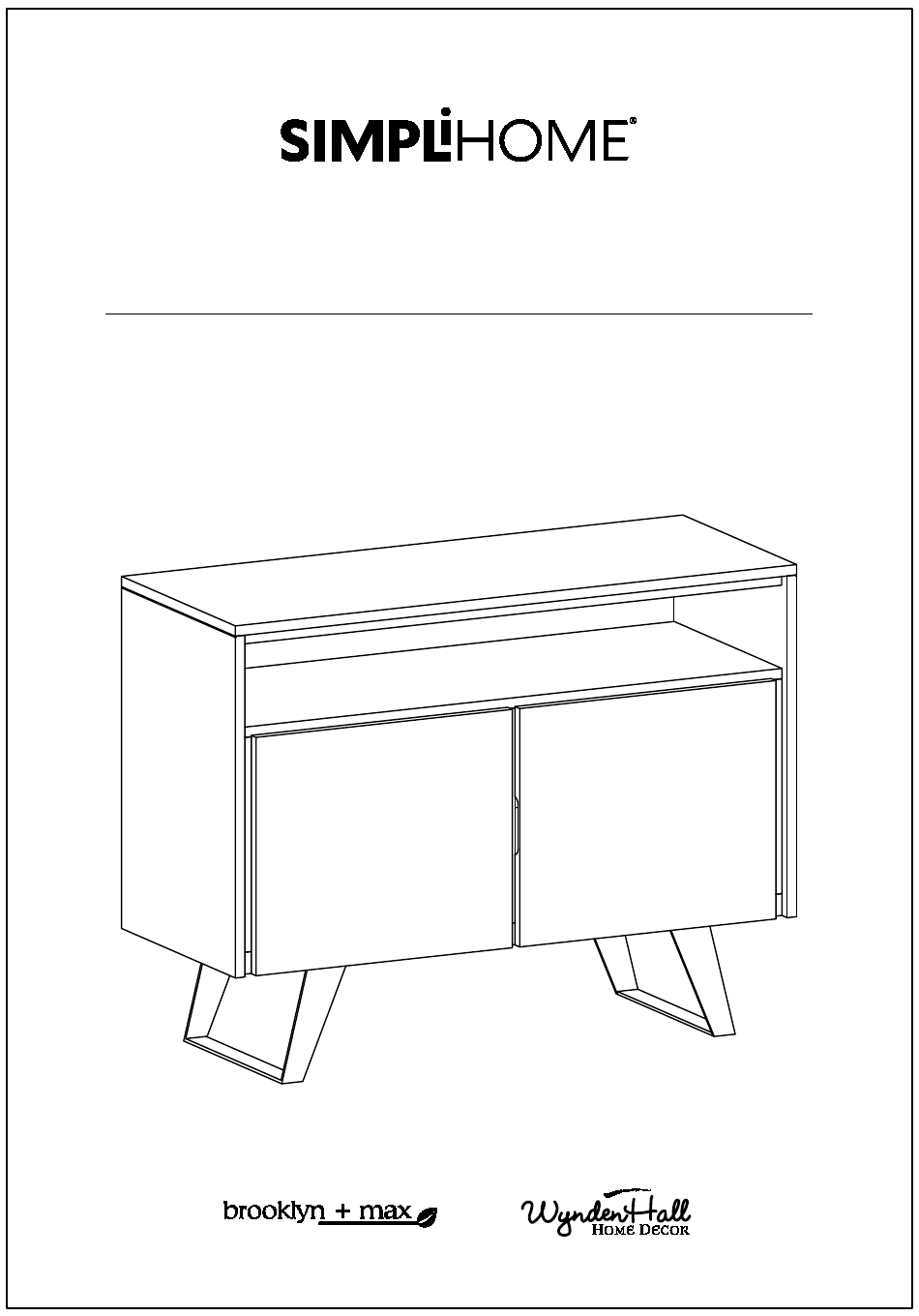

- Page 1 Lowry / Mitchell / Fulton 42 inch TV Media Stand Model # AXCLRY42-DCB...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty Automatic entry to win a $500 gift certificate ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
- Page 5 IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
-
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 7 WARNING The maximum diagonal CRT television screen size is 25 inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 150 lbs or less. Using larger or heavier televisions may cause instability or tip over which can lead to serious injury or even death.
- Page 8 Pre-Assembly Information Model # AXCLRY42-DCB Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM SHELF MIDDLE SHELF QTY 1 QTY 1 QTY 1 SHELF LEFT DOOR RIGHT DOOR QTY 2 QTY 1 QTY 1 Warning Label BOTTOM BACK PANEL TOP BACK PANEL QTY 1...
- Page 9 Pre-Assembly Information Model # AXCLRY42-DCB Hardware Description PHILLIPS SCREW ROUND HEAD WOOD DOWEL ALLEN KEY SCREW M4 X 15mm MAGNET AND PLATE M6 X 30mm Ø8 X 30mm QTY 27 QTY 2 SETS QTY 24 QTY 14 PHILLIPS SCREW PHILLIPS SCREW ADJUSTABLE HINGE M3 X 15mm M4 X 15mm...
- Page 10 Components - Key Diagram Model # AXCLRY42-DCB...
- Page 11 Assembly Model # AXCLRY42-DCB Step 1 1. Insert two Dowels 2 into drilled holes on Divider E . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Insert four Dowels 2 into drilled holes on Middle Shelf D . 4.
- Page 12 Assembly Model # AXCLRY42-DCB Step 2 1. Insert four Dowels 2 into drilled holes on Bottom Shelf C . 2. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed. 1. Insert two Dowels 2 into drilled holes on each Left Side BL and Right Side BR . 2.
- Page 13 Assembly Model # AXCLRY42-DCB Step 3 1. Align Wood Dowels with guide holes on Bottom Shelf C and attach Divider E to Bottom Shelf C . 2. Use three Allen Key Screws 1 to attach Divider E through guide holes. 3.
- Page 14 Assembly Model # AXCLRY42-DCB Step 4 1. Use three Allen Key Screws 1 to attach Middle Shelf D through guide holes. 2. Use Allen Key 12 to tighten Screws. Do not over-tighten.
- Page 15 Assembly Model # AXCLRY42-DCB Step 5 1. Align Wood Dowels with guide holes on Left Side BL and attach Middle Shelf D and Bottom Shelf C to Left Side BL . 2. Use three Allen Key Screws 1 to attach each part C , D through guide holes. 3.
- Page 16 Assembly Model # AXCLRY42-DCB Step 6 1. Repeat Step 5 for Right Side BR .
- Page 17 Assembly Model # AXCLRY42-DCB Step 7 1. Align Wood Dowels with guide holes on Top A and attach parts BL , BR to Top A . 2. Use three Allen Key Screws 1 to attach each part BL , BR through guide holes. 3.
- Page 18 Assembly Model # AXCLRY42-DCB Step 8 1. Attach Legs J to Bottom Shelf C . 2. Use twelve Allen Key Bolts 9 , twelve Lock Washers 10 and twelve Washers 11 to secure part J and C (six Blots, six Lock Washers and six Washers on each Leg). 3.
- Page 19 Assembly Model # AXCLRY42-DCB Step 9 Note: Warning Label 1. Attach the Back Panels H , I to back frame using Phillips Screws Round Head 3 through guide holes. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 20 Assembly Model # AXCLRY42-DCB Step 10 1. Attach Adjustable Hinges 6 to Doors GL , GR using Phillips Screws 7 into guide holes on Doors GL , GR . 2. Attach Adjustable Hinges 6 on Doors GL , GR to Sides BL , BR using Phillips Screws 7 into guide holes on Sides BL , BR .
-
Page 21: Important Note
Assembly Model # AXCLRY42-DCB Step 11 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 22 Assembly Model # AXCLRY42-DCB Step 12 shelf level 1 shelf support shelf level 2 anti - tipping shelf level 3...
- Page 23 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. Step 13 NOTE: The screwdriver is not included in the hardware pack.
- Page 24 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
