Summary of Contents for SIMPLIHOME SAWHORSE AXCSAWM04-WAL

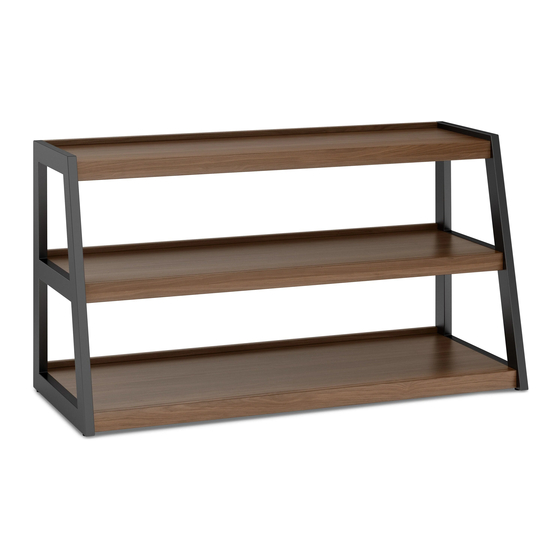

- Page 1 SAWHORSE / HAWKINS / SPOKANE METAL / WOOD TV MEDIA STAND MODEL # AXCSAWM04-WAL...
- Page 2 For Fastest Customer Service Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 3: Safety Information
IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
CARE and MAINTENANCE This furniture is designed for indoor use. Damage to furniture can come from temperature changes in relative humidity (RH) in our homes. Humid air oxidizes metal which results in rusting, corrosion, tarnishing and roughness. Wood absorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. - Page 5 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. WARNING The maximum diagonal CRT television screen size is 25 MAXIMUM LOAD 125 LBS inch to 27 inch (63.50 cm to 68.58 cm). For use with televisions weighing 125 lbs or less.
-
Page 6: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCSAWM04-WAL PART DESCRIPTION SHELF QTY 1 QTY 1 BOTTOM LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 HARDWARE DESCRIPTION ALLEN KEY BOLT WASHER M8 x 30 mm Ø 20 / Ø 8 x 23 mm QTY 18 QTY 18 M4 X 20 mm... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXCSAWM04-WAL...
- Page 8 ASSEMBLY MODEL # AXCSAWM04-WAL STEP 1 1. Align Left Side D and Right Side D with Top A , Shelf B and Bottom C .
- Page 9 ASSEMBLY MODEL # AXCSAWM04-WAL STEP 2 1. Attach Left Side D and D to Top A , Shelf B and Bottom C using Allen Key Bolts 1 and Washers 2 . 2. Use Allen Key 3 to tighten Bolts.
- Page 10 ASSEMBLY MODEL # AXCSAWM04-WAL STEP 3 NOTE: Levelers on the bottom of the sides can be adjusted if floor is uneven.
- Page 11 FURNITURE TIP-OVER RESTRAINT ASSEMBLY STEP 4 11 11...
- Page 12 FURNITURE ANTI-TIPPING RESTRAINT INSTRUCTIONS Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 13: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
