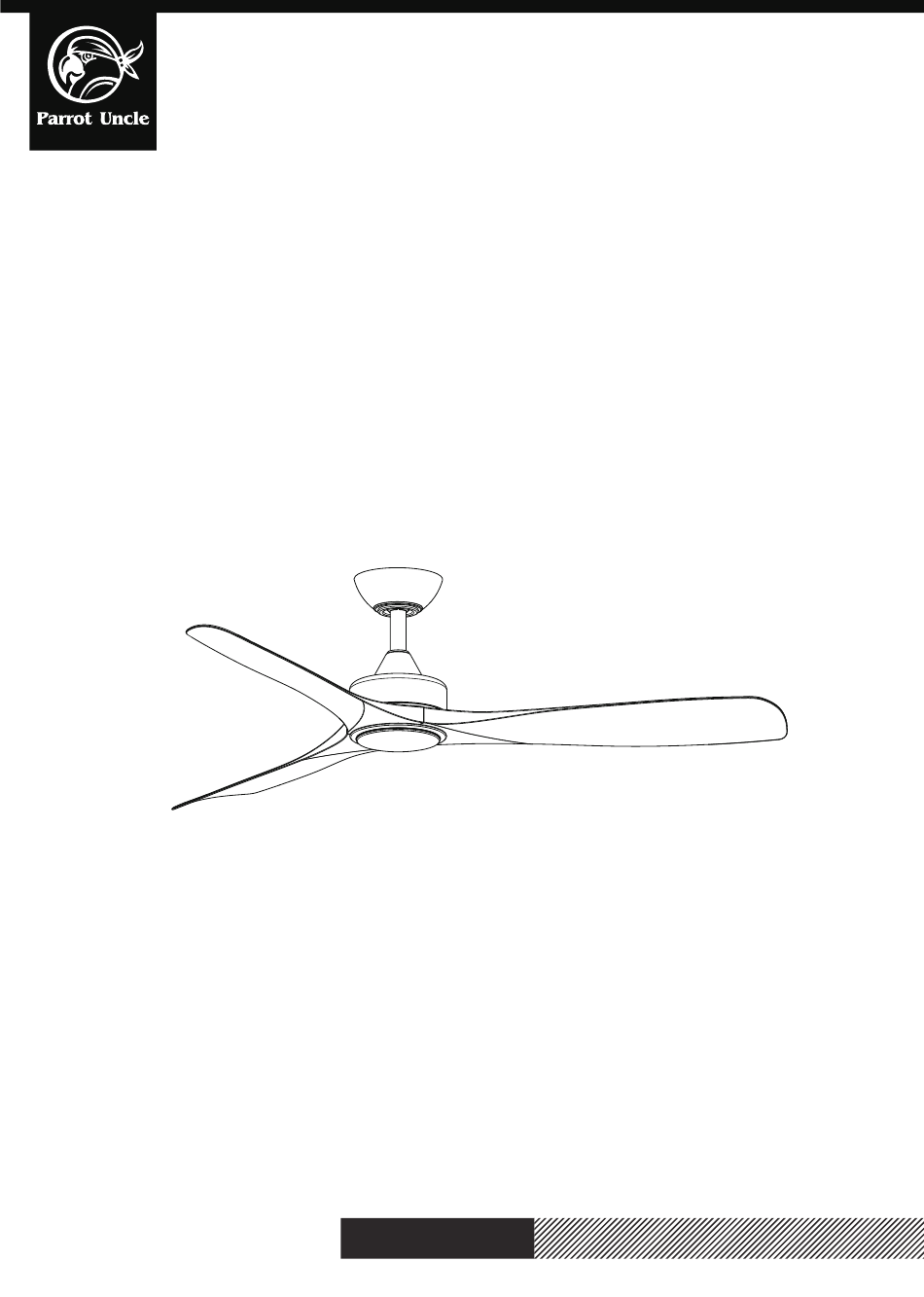

- Page 1 F6004BR/F6004BK www.parrotuncle.com...
- Page 2 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Safety Information 1.To reduce the risk of an electrical blow, electricity on the WARNING:To reduce the risk of injury, knife supports protective switch or the safety box went out before starting.
- Page 3 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Mounting screw (2PCS) Plastic wire nut (8PCS) Spring sasher (4PCS) Blade screw (7PCS) Washer (4PCS) Star washer(4PCS) Blade washer(7PCS) Wood screw (4PCS)
- Page 4 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Mount the mounting bracket to the outletbox using two self tapping screws, Outlet box two star washers and two washers.
- Page 5 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Install the fan-motor assembly into the mountingbracket, taking care to install it in place. Use the shoulder screw to lock the canopy to the mounting bracket.
- Page 6 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Use wire connecting nuts supplied with the fan FROM POWER SOURCE INPUT AC 110- 120 VOLT 60Hz GREEN 3.5AMPS. WHITE...
- Page 7 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Attach the fan blade to the fan motor assembly by using the two blade screws and two blade washer. Tighten all screws securely. Repeat same process for the other two blades.
- Page 8 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Thread the light wire coming from the bottom of the fan motor assembly through the hole in the Lamp panel.
- Page 9 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER If there are two or more ceiling fans installed in the same house, in order to prevent your ceiling fans from being affected by the remote control of the adjacent ceiling fans.
- Page 10 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Size of product Ø5.9in Ø60in...
- Page 11 F6004BR/F6004BK Installation & Operating Instructions for the Parrotuncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER AFTER INSTALLATION WOBBLE The fan blades have been adjusted in the factory to minimize any wobble. NOTE: CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE...
