Armada Technologies Pro95 Instruction Manual

True rms milliamp clamp meter
Hide thumbs Also See for Pro95:

Advertisement

Quick Links

Model: Pro95
TRUE RMS
MILLIAMP CLAMP
METER
1.800.561.8187
information@itm.com
www.
.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Armada Technologies Pro95

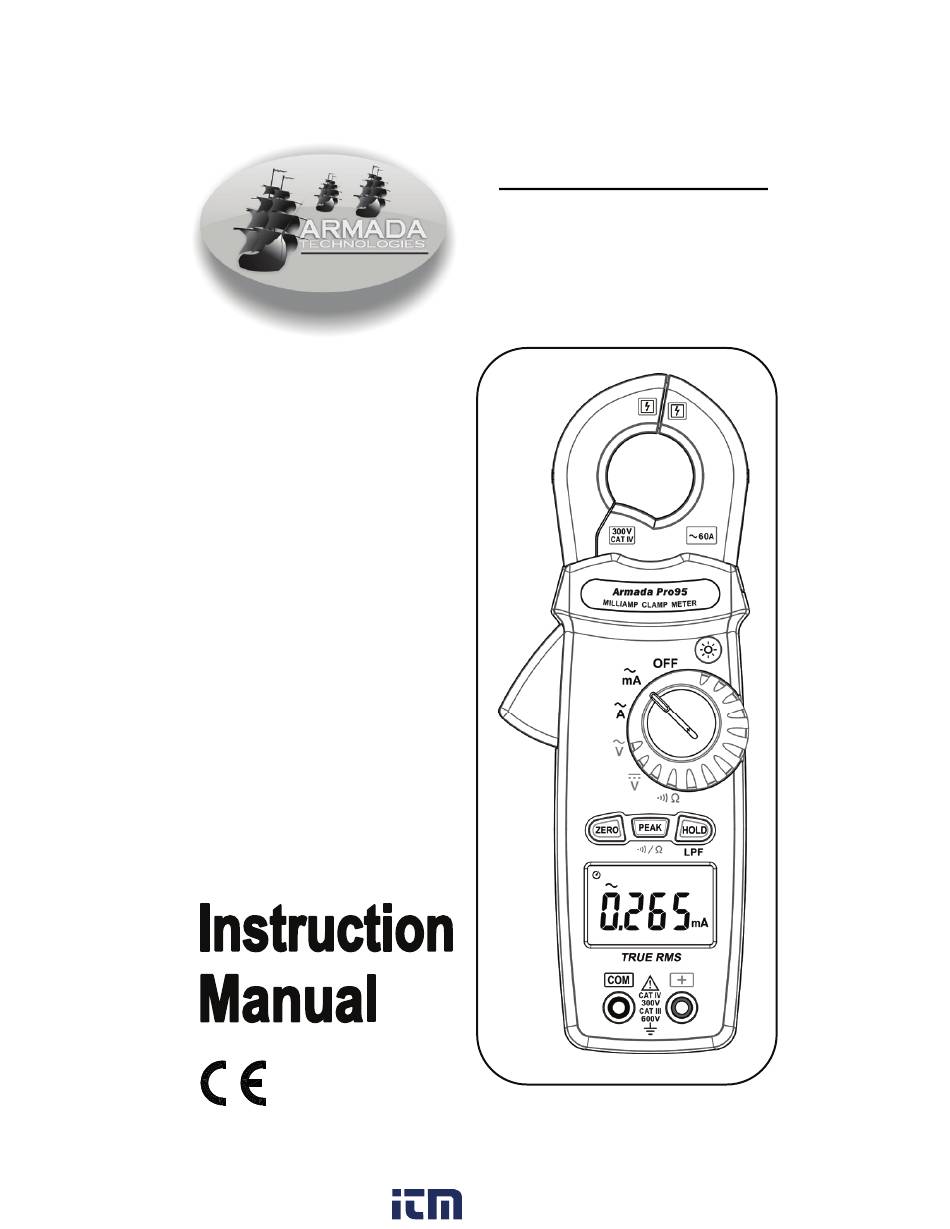

  • Page 1 Model: Pro95 TRUE RMS MILLIAMP CLAMP METER 1.800.561.8187 information@itm.com www. .com...
  • Page 2 1.800.561.8187 information@itm.com www. .com...
  • Page 3 TABLE OF CONTENTS SAFETY INFORMATION ............1 GENERAL SPECIFICATION ..........1 ELECTRICAL SPECIFICATION ........... 2 3-1 AC .............. 2 MEASUREMENT 3-2 ACA ..............3 MEASUREMENT 3-3 ACV ..............3 MEASUREMENT 3-4 DCV ..............3 MEASUREMENT 3-5 C ) ..............3 ONTINUITY 3-6 R (Ω).
  • Page 4 Clamp Meter SAFETY INFORMATION  Do not operate the tester if there is any sign of damage to the tester or the test leads.  Check the main function dial and make sure it is in the correct position before each measurement. ...
  • Page 5 Clamp Meter Power Source: 1.5V size AAA battery X 2 Typical battery Life: (without buzzer, backlight) 40 hours at ACmA and ACA and ACV function; 60 hours at DCV and Ohm function. (alkaline battery) Auto Power Off: If there is no key or dial operation for 30 minutes, the meter will power itself off to save battery life.
  • Page 6 Clamp Meter 3-2 ACA (True RMS) Accuracy Range Resolution 50~60Hz 50~500Hz 6.000A 0.001A 1.0% + 5dgts 2.0% + 5dgts 60.00A 0.01A Low Pass Filter Range Resolution Accuracy 6.000A 0.001A 2.0% + 5dgts 60.00A 0.01A 3-3 ACV (True RMS) Accuracy Range Resolution 50~500Hz 60.00V...
  • Page 7 Clamp Meter 4. DESCRIPTION OF THE INSTRUMENT 4-1 Description of the display Auto power off indication Polarity indication Low battery indication AC measurement indication DC measurement indication Current measurement indication Voltage measurement indication ZERO indication Data hold indication PEAK hold indication Low pass filter indication Continuity test indication Measurement unit...
  • Page 8 Clamp Meter 4-2 Description of font and rear Current Sensing Clamp ○ Safety protection ring ○ Backlight button ○ Clamp opening handle ○ Function select dial ○ ZERO button ○ PEAK & button ○ Data hold & LPF button ○ LCD display ○...
  • Page 9 Clamp Meter 5. BUTTON INSTRUCTION 5-1 HOLD & LPF Function It is possible to freeze the value displayed by pressing on the "HOLD" button. Press the "HOLD" button again to exit the Hold mode. To activate the Low Pass Filter (LPF) feature, press and hold the “LPF”...
  • Page 10 Clamp Meter 6. MEASURING INSTRUCTION 6-1 ACA、ACmA Measurement: (1) Set the range selector switch to the desired position. The current to be measured should be within the selected measuring range. (2) Normal measurement (see Fig.1): Press the jaw trigger to open the clampmeter jaws and close them over one conductor only.
  • Page 11 Clamp Meter Fig.2 Measuring out of balance leakage current: 3-Phase 3-Wire system Single-Phase 2-Wire system 6-2 ACV Measurement: WARNING! Maximum Input Voltage is 600V AC/DC. Do not attempt to Take any voltage measurement that may exceed this maximum to avoid Electrical shock hazard and/or damage to this instrument.
  • Page 12 Clamp Meter 6-3 DCV Measurement: Switch the main function selector to range. Connect the red test lead to the “+” terminal and black lead to the “COM” terminal. Measure voltage touching the test lead tips to the test circuit where the value of voltage is needed.
  • Page 13 Clamp Meter 6-5 Resistance Measurement Switch the main function to range. Connect the red test lead to the “+” terminal and the black lead to the "COM" terminal. Connect tip of the test leads to the points where the value of the resistance is to be measured.
  • Page 14 Clamp Meter 8. MAINTENANCE WARNING! Before opening the meter, disconnect both test leads. Never use the meter unless the battery cover is in place and the screw is tightened. CAUTION! To avoid contamination or static damage, do not touch the circuit board without proper static protection.
  • Page 15 1.800.561.8187 information@itm.com www. .com...
  • Page 16 GCBARM265-R0200 1.800.561.8187 information@itm.com www. .com...
