Summary of Contents for Kidde 20SDR

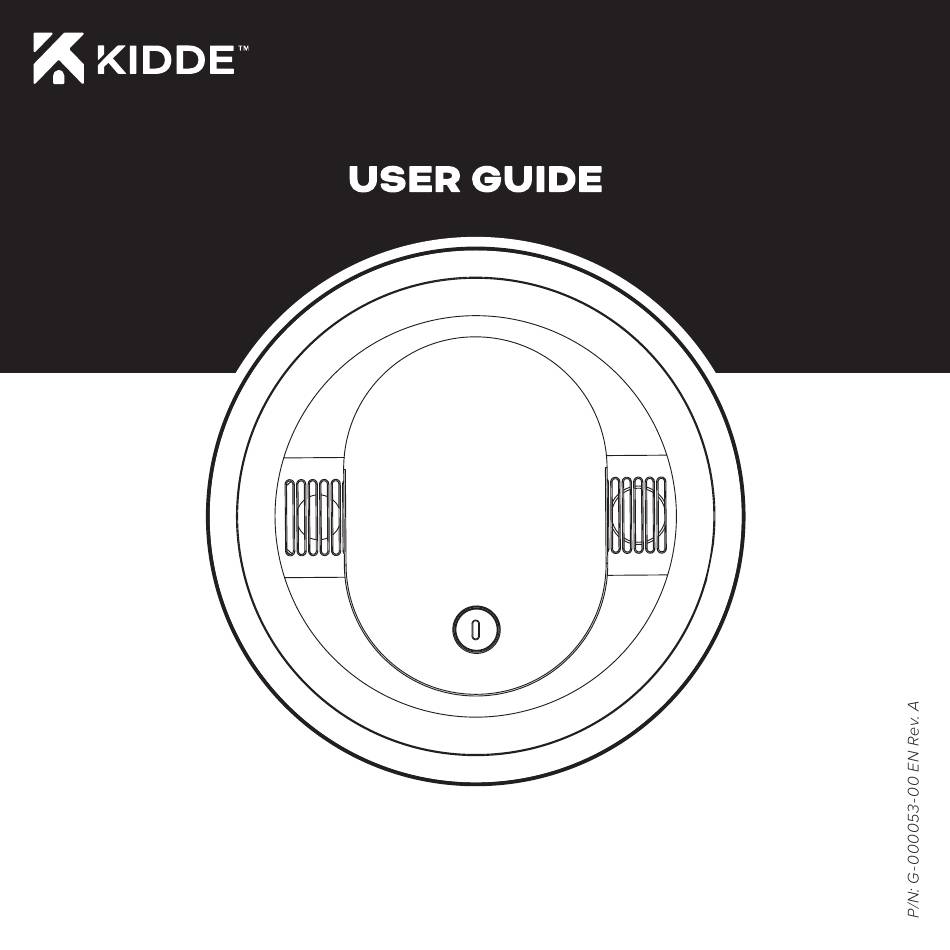

- Page 1 Smoke and Combination Smoke/CO Alarms...

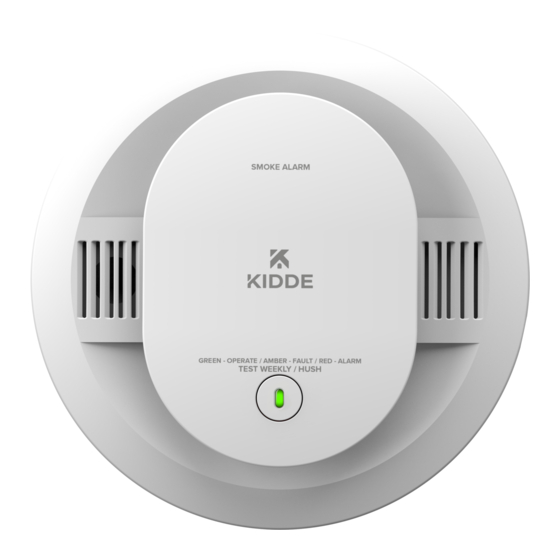

- Page 2 Models included in this User Guide: 10 Yr Sealed Kidde Model Type Voice Batteries Battery 20SDR Smoke 20SD10 Smoke 20SD10-V Smoke 30CUDR Smoke / CO 30CUDR-V Smoke / CO 30CUD10 Smoke / CO 30CUD10-V Smoke / CO Products are tested and certified to UL 217 (smoke models) or UL 217 and UL 2034 (combination smoke/CO models).
- Page 3 Please write down the below information and have this at hand when you call. Scan here to register your device Model: _________________ with Kidde for customer support Date Code (on back): _________________ and warranty information. Date of Purchase: _________________ Where Purchased: _________________...
-
Page 4: Table Of Contents
Contents 1. Smoke Alarm: What To Do When The Alarm Sounds ..5 2. Other Alarm Visual And Audible Indicators ... .6 3. Troubleshooting Guide ....7 4. -
Page 5: Smoke Alarm: What To Do When The Alarm Sounds
1. Smoke Alarm: What To Do When The Alarm Sounds The smoke alarm pattern is three long beeps with voice “Fire!” (voice models only), a 1.5 second pause, and three long beeps repeating. The red LED blinks in time with the alarm pattern. The smoke alarm takes precedence when both smoke and carbon monoxide are present. -
Page 6: Other Alarm Visual And Audible Indicators
2. Other Alarm Visual And Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note Normal (standby) Green LED blinks approx every 60 sec. Test (Test/Hush button Red LED blinks in time with alarm pattern. Non-Voice Smoke Models: Perform Test/Hush • Single beep button press once a press when no alarm •... -
Page 7: Troubleshooting Guide
1-800-880-6788 before discharging the battery (10 yr sealed battery models) or disposing of your alarm. You may also write us at: Kidde, 1016 Corporate Park Drive, Mebane, NC 27302, or visit our internet address at www.kidde.com. Trouble Condition... -
Page 8: Introduction, Product Features And Specifications
4. Introduction, Product Features And Specifications Introduction This alarm detects products of combustion using a photoelectric sensor and carbon monoxide (on combination smoke/CO models only) using an electrochemical cell. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit was installed, powered up, and tested, this unit will automatically alert you that it is time to replace the unit. -
Page 9: Limitations Of Smoke And Carbon Monoxide Alarms
5. Limitations Of Smoke And Carbon Monoxide Alarms WARNING: PLEASE READ CAREFULLY AND THOROUGHLY • Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to escape, followed by the appropriate egress actions by those occupants. •... - Page 10 • The use of alcohol or drugs may also impair one’s ability to hear the smoke alarm. For optimal detection, a smoke alarm should be installed in each sleeping area on every level of a home. This alarm is not intended to alert hearing impaired individuals. * Reference National Fire Protection Association (NFPA) standard 72 WARNING: PLEASE READ CAREFULLY AND THOROUGHLY IMPORTANT: Combination smoke/CO alarms are designed to detect carbon monoxide gas from ANY...
-
Page 11: Recommended Locations For Smoke And Carbon Monoxide Alarms
6. Recommended Locations For Smoke And Carbon Monoxide Alarms • Locate smoke alarms in all sleeping areas. Try to monitor the exit path as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area. - Page 12 CEILING CEILING CEILING CEILING ANYWHERE ALONG ANYWHERE ALONG THIS BOLD SURFACE ANYWHERE ALONG THIS BOLD SURFACE ANYWHERE ALONG THIS BOLD SURFACE 12” THIS BOLD SURFACE ACCEPTABLE (30.5 cm) 12” 12” (30.5 cm) ACCEPTABLE ACCEPTABLE (30.5 cm) 12” 12’’ TOP OF ALARM ACCEPTABLE (30.5 cm) (30.5 cm)
-
Page 13: Locations To Avoid
3’ 3’ (0.9 m) (0.9 m) IN THIS AREA IN THIS ANYWHERE AREA 4” ANYWHERE IN THIS (102 mm) IN THIS AREA 4” AREA (102 mm) 3’ 3’ 3’ (0.9 m) (0.9 m) (0.9 m) Figure 6-C IN THIS AREA ANYWHERE 7. -
Page 14: Alarm Installation
8. Alarm Installation NOTE: A dust cover has been installed on the alarm. Keep the dust cover on until all construction has been completed for at least 24 hours (drywall, painting, varnishing, mounting plate install, etc). Retain the dust cover and re-install it to protect the alarm during future construction projects. Construction dust and chemicals can cause contamination and false alarms. - Page 15 Figure 8-C STEP 2: Install Mounting Bracket NOTE: Kidde alarms are not designed, agency tested or certified for recessed mounting and should not be installed in this manner. Recessed mounting impedes smoke entry into the smoke chamber, which may prevent the alarm from sounding in a timely manner. This could endanger the lives of occupants in the residence.
-
Page 16: Operation And Testing
Mounting Bracket Note orientation of "A" line. Remove Install After fully installed To ensure aesthetic alignment, orient (The button should the unit as shown on the mounting be at the bottom.) bracket and rotate the unit completely until it stops. Figure 8-F NOTE: These models will mount to the bracket in 4 positions (every 90 degrees). -
Page 17: Recognizing Nuisance Alarms
Testing WARNING: Do not attempt to test this unit with retail “canned smoke” products. Those products are intended for use by trained professionals and produce inconsistent results when misused. Over-application of canned smoke can permanently damage the alarm. Self-Testing This model is equipped with internal, self-testing components that are always checking to ensure the device is operating as expected. -
Page 18: Battery Information
NOTE: Dense smoke will override Hush and sound a continuous alarm. If no fire is present, check to see if one of the reasons listed in “Locations to avoid” may have caused the alarm. If a fire is discovered, get out and call the fire department or 911. Cigarette smoke will not normally cause the unit to alarm, unless the smoke is blown directly into the alarm. - Page 19 WARNING: Use only the batteries specified. Use of different batteries may have a detrimental effect on the alarm. Do not mix old and new batteries. Do not mix alkaline, standard, or rechargeable batteries. NOTE: Do not use lithium batteries in this unit. A good safety measure is to replace the batteries at least once a year, or at the same time you change your clocks for daylight saving time.
-
Page 20: Permanently Disable Alarm / Discharge Battery (10 Yr Sealed Battery Models Only)
12. Permanently Disable Alarm / Discharge Battery (10 yr sealed battery models only) WARNING: FAILURE TO DISCHARGE ALARM BATTERY AS INSTRUCTED PRIOR TO DISPOSAL MAY CREATE POTENTIAL FOR LITHIUM BATTERY RELATED FIRE OR HAZARD. WARNING: DISCHARGING THE ALARM BATTERY IS PERMANENT •... -
Page 21: Carbon Monoxide Alarm: What To Do When The Alarm Sounds (Combination Smoke/Co Models Only)
Models that detect CO 10 Yr Sealed Model Type 120VAC Voice Batteries Battery 30CUDR Smoke / CO 30CUDR-V Smoke / CO 30CUD10 Smoke / CO 30CUD10-V Smoke / CO 13. Carbon Monoxide Alarm: What To Do When The Alarm Sounds (combination smoke/CO models only) The carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide”... -
Page 22: General Carbon Monoxide (Co) Information
14. General Carbon Monoxide (CO) Information Carbon monoxide (CO) is a colorless, odorless, and tasteless poison gas that can be fatal when inhaled. CO inhibits the blood’s capacity to carry oxygen. Possible Sources of CO Inside your home, appliances used for heating and cooking are the most likely sources of CO. Vehicles and other combustion engines running in an attached garage and using a charcoal/gas grill or hibachi in an enclosed area are all possible sources of CO. - Page 23 Some contractors may charge for this service. It’s advisable to inquire about any applicable fees prior to having the service performed. Kidde will not pay for, or reimburse the owner or user of this product, for any repair or dispatch calls related to the alarm sounding.
-
Page 24: Cleaning Your Alarm
15. Cleaning Your Alarm Your Alarm Should be Cleaned at Least Once a Year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a clean, dry cloth. -
Page 25: Good Safety Habits
Move the Alarm and place in another location prior to performing any of the following: Staining or stripping wood floors or furniture Painting Wall papering Using adhesives Storing the unit in a plastic bag during any of the above projects will protect the sensors from damage. When household cleaning supplies or similar contaminates are used, the area must be well ventilated. - Page 26 Fire Prevention Never smoke in bed or leave cooking food unattended. Teach children never to play with matches or lighters! Train everyone in the home to recognize the smoke alarm pattern and to leave the home using their escape plan when it’s heard. Know how to do “Stop, Drop and Roll” if clothes catch on fire, and how to crawl low under smoke.
-
Page 27: Service And Warranty
The obligation of Kidde under this warranty is limited to repairing or replacing the alarm or any part which we find to be defective in material, workmanship or design (part... - Page 28 The above warranty may not be altered except in writing signed by both parties hereto. Your Kidde Alarm is not a substitute for property, fire, disability, life or other insurance of any kind. Appropriate insurance cover- age is your responsibility.
