Summary of Contents for NAIM FLASH REMOTE HANDSET

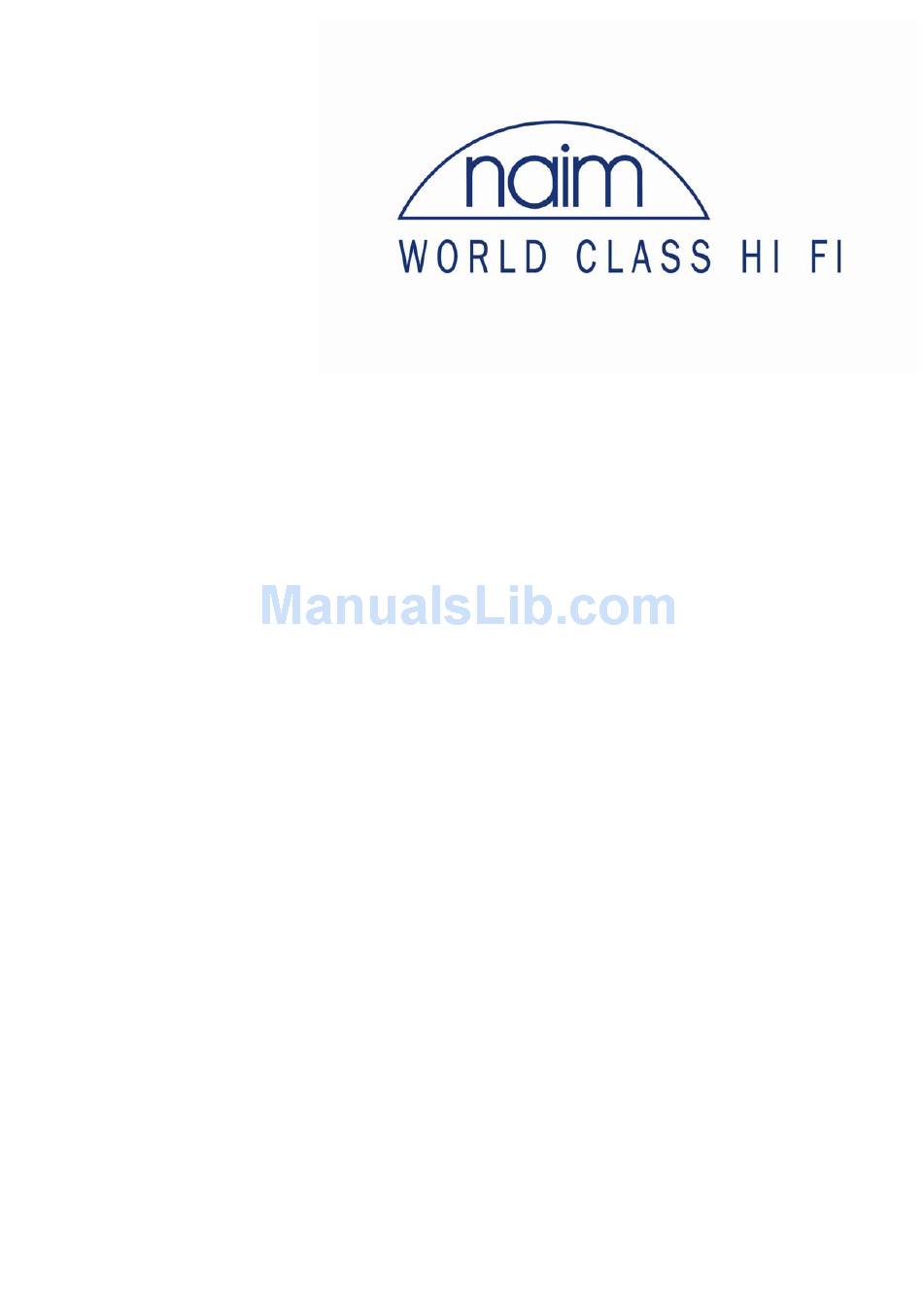

- Page 1 U P D A T E N O T E S ISSUE 2 Flash Remote Handset...
-
Page 3: Operation
Flash. For a detailed description of product specific commands and their function please refer to the appropriate product manuals. Mode selection The Flash remote handset has 3 modes of operation, Two Channel mode (2CH), Audio Video mode (AV) and Setup... -
Page 4: Channel Mode
mode (SETUP). To switch between modes press the Navi key (<>) for a short time. To enter SETUP mode, press and hold the Navi Key (<>). 2 Channel mode... - Page 5 2 channel mode is used to control 2 channel products such as preamps, CD players and tuners. Volume down (6), mute (mute) and volume up (5) hotkeys control preamp volume in this mode. Preamp key (PRE) Selects 1 of 2 preamp pages. PRE-S - Numeric keys control preamp source selection.
-
Page 6: Setup Mode
AV key (AV) Press and release to selects one of 3 AV pages. Press and hold to send AV standby command. AV-I/P - Numeric keys control AV processor input selection. AV-MODE - Numeric keys control AV processor mode selection. AV - Numeric keys are disabled. DVD key (DVD) Press and release to selects one of 3 DVD pages. - Page 7 adjust the current settings displayed on the right, and press OK (OK). Lights The lights setting controls the screen and button backlight. It has 4 settings: – always off. – on whenever the handset is awake. auto – on whenever the handset is awake AND the ambient light level is low (default).
- Page 8 Softkeys softkey setup menu allows alternate commands to be assigned to any of the 8 softkeys on each of the 13 pre- defined product pages. To assign a softkey, select the required product page using the OK (OK) key (press EXIT (EXIT) at any time to return to the instructions page).
-
Page 9: Appendix 1 - Software Update Procedure
Appendix 1 - Software Update Procedure Introduction This update to the Flash Remote Handset provides the following enhanced features: • DVD and n-SUB control functions • Menu driven setup facility • User defined softkeys • New screen design with central command indication Fully future-proof software architecture... - Page 10 Note the orientation of the in the Socket. There is a chamfer with a dot located on one side of the PIC. The replacement must be inserted with the same orientation. Attach an anti-static earth strap to your wrist and connect the crocodile clip to the top negative battery terminal (connected to the black wire).
-
Page 11: Appendix 2 - Command Codes
Appendix 2 – Command Codes (none) disp-c input-a angle-d prog-c spkr-a subt-d vol5-p open-c audio-d vol6-p mem-d mute-p mon-p bal4-p i/p1-a 3bal-p disp-p i/p2-a prog-p i/p3-a i/p4-a i/p5-p i/p5-a i/p6-p i/p6-a i/p7-a down-t i/p8-a up-t prog-d i/p9-a mode-t disp-d i/p0-a mono-t m1-a disp-t... -
Page 12: Appendix 3 - Product Commands
Appendix 3 – Product Commands Use the following images to note changes to softkeys future reference. Preamp Default User Default User... - Page 13 Tuner Default User Default User...
- Page 14 Default User Subwoofer Default User...
- Page 16 Naim Audio Limited, Southampton Road, Salisbury, England SP1 2LN Telephone: +44 (0) 1722 332266 Fax: +44 (0) 1722 412034 www.naim-audio.com Part No. 12-001-0052 Drawing No. NA906002-420/1...
