General
• No tools are required for the assembly.
• Two adults are recommended for the installation and operation of the solar cover reel.
• Fits Intex rectangular frame pools with a width from 2.74 m to 4.88 m (9' to 16').
• Make sure the pool is setup, filled with water first and the solar cover (not included) is
place on the water surface with the bubbles facing down.
• Remove the solar cover reel from the pool before placing a debris pool cover.
• Always lock the crank handle before removing the rolled up solar cover and reel from the
pool.
• Store the product indoors when not in use.
Setup instructions:

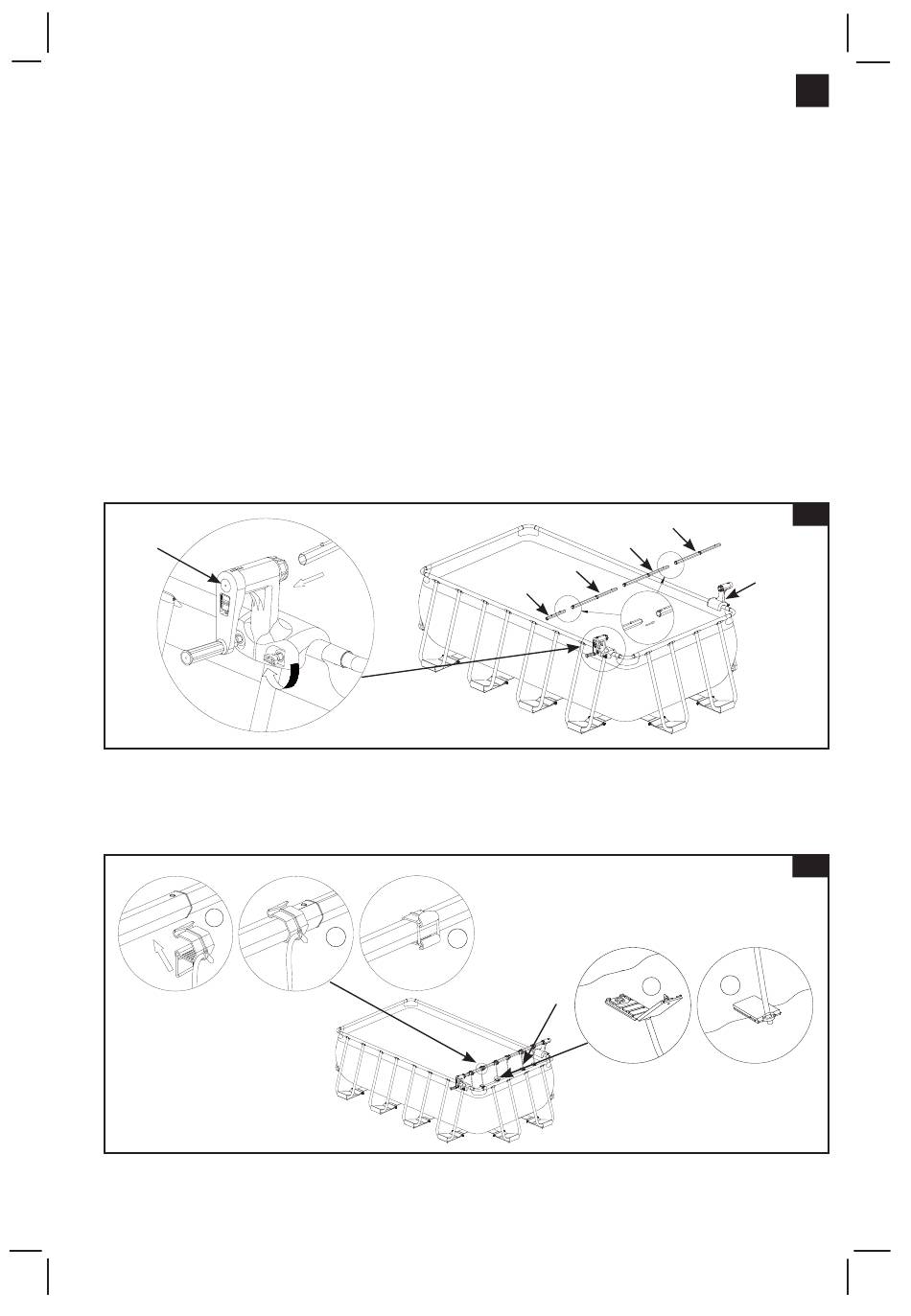

1. Place the axles (1 & 5) at either end of the rectangular frame pool long sides. Tighten
the clamp screws securely by hand. See fig 1.
2. Assemble the aluminum pipes (2 & 3) according to the width of the pool. Adjust the
overall length and make sure the spring pins are snapped into the respective holes.
For smaller pool sizes, you may not use all the aluminum pipes. Insert the aluminum
pipe assembly into the axles (1 & 5). See fig 1.
1
3. Attach the "C" end of the C-clip (4) onto the aluminum pipe assembly. Make sure the
C-clips (4) are equally spaced along the aluminum pipe assembly. Attached the clip end
to the edge of the solar cover. See fig 2.
1
SAVE THESE INSTRUCTIONS
