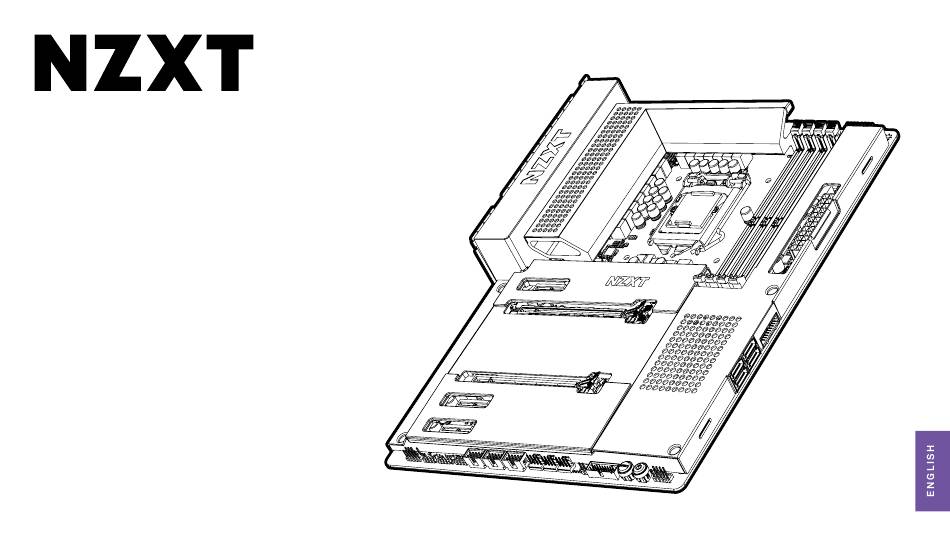

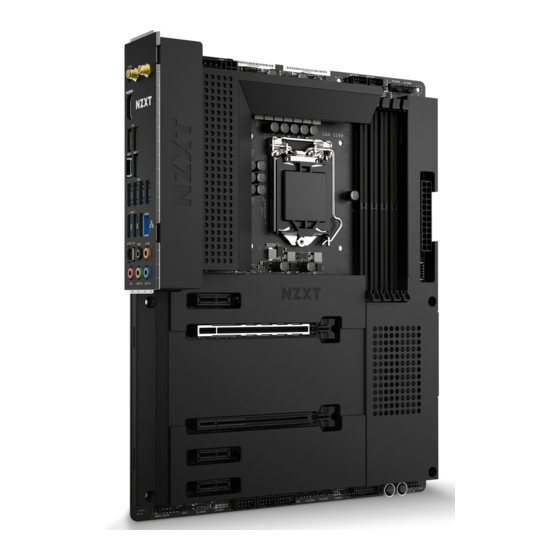

  • Page 1 N7 Z590 ATX MOTHERBOAR D...
  • Page 2 1. PREFACE 4. DOWNLOADING NZXT CAM ..........
  • Page 3 1. PREFACE N 7 Z 5 9 0 AT X M O T H E R B O A R D A. Copyright NZXT, Inc. All Rights Reserved. C. Trademark Recognition © This manual including all illustrations and screen captures,...

  • Page 4: Product Information

    2. PRODUCT INFORMATION N 7 Z 5 9 0 AT X M O T H E R B O A R D 2.1 Package Contents ............2.2 Specifications ..............

  • Page 5: Package Contents

    2.1 PACKAGE CONTENTS N 7 Z 5 9 0 AT X M O T H E R B O A R D A. N7 Z590 Motherboard C. M.2 Screws B. SATA Cables D. Wireless Antenna 90°x2, 180°x2...

  • Page 6: Specifications

    2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory • Dual-channel memory architecture Chipset • Support Intel ® Extreme Memory Profile (XMP) 2.0 * Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information. Intel Z590 ® Expansion Slots Intel 11th Gen Core™...
  • Page 7 2.2 SPECIFICATIONS N 7 Z 5 9 0 AT X M O T H E R B O A R D Integrated Graphics Integrated Graphics Processor- Intel UHD Graphics Support Realtek RTL8125BG 2.5G LAN ® ® Single-graphic output support: HDMI port Wireless •...
  • Page 8 2.2 SPECIFICATIONS N 7 Z 5 9 0 AT X M O T H E R B O A R D Bluetooth Rear I/O • 3 x USB 3.2 Gen 2 port Bluetooth V5.2 • 1 x USB 3.2 Gen 2x2 Type-C port •...
  • Page 9 RGB LED Strips or five Aer RGB Fans. • 5 x 4-pin SYS_FAN connectors(2) • 2 x NZXT RGB LED connectors(3) 4. Supports in total up to 5V/3A, 15W LED Strip. Supports up to 40 individually addressable LEDs.

  • Page 10: Table Of Contents

    3. COMPONENTS & PORTS N 7 Z 5 9 0 AT X M O T H E R B O A R D 3.1 Covers 3.6 DIMM Slots ................................3.2 Exploded View 3.7 PCI Express Expansion Slots ....................... 3.3 Ports Overview 3.8 SATA Connectors ..............
  • Page 11 N 7 Z 5 9 0 AT X M O T H E R B O A R D 3.11 Antenna 3.16 Fan Connectors ............................3.12 Power Connectors 3.17 NZXT RGB Connectors ......................3.13 USB Connectors 3.18 5V Addressable RGB Connector .............

  • Page 12: Covers

    3.1 COVERS N 7 Z 5 9 0 AT X M O T H E R B O A R D The all-metal N7 cover pieces can be removed by hand. They are latched onto the motherboard through multiple points. When installing and removing, please pay close attention to these points and apply an even force to prevent damage.

  • Page 13: Exploded View

    3.2 EXPLODED VIEW N 7 Z 5 9 0 AT X M O T H E R B O A R D...

  • Page 14: Ports Overview

    C L R _ C M O S AIO_PUMP 4-pin AIO pump connector FRONT_AUDIO Front panel audio connector H D M I NZXT RGB 1 & 2 4-pin LED header M.2 Socket 3 with M key, supports type 2242/2260/2280 storage DIMM A1-B2 288-pin DDR4 memory slots M2_2 devices (Supports PCIE &...

  • Page 15: Rear I/O

    3.4 REAR I/O N 7 Z 5 9 0 AT X M O T H E R B O A R D NO. PORT NAME NO. PORT NAME Wireless Antenna USB 3.2 Gen 1 Clear CMOS Button RJ45 LAN port HDMI 1.4b port USB 3.2 Gen 1 USB 2.0...

  • Page 16: Cpu Socket

    3.5 CPU SOCKET N 7 Z 5 9 0 AT X M O T H E R B O A R D The surface of the LGA 1200 CPU has two notches and a golden triangle to assist in correctly lining up the CPU for placement within the socket.
  • Page 17 INSTALLATION N 7 Z 5 9 0 AT X M O T H E R B O A R D • Push down on the retention arm and outwards to release. • Flip open the latch and place the CPU making sure the triangle and the notches on the CPU matches the corner as indicated. •...

  • Page 18: Dimm Slots

    3.6 DIMM SLOTS N 7 Z 5 9 0 AT X M O T H E R B O A R D The DIMM slots are located here. Please see the diagram for recommended memory configuration. NOTE • Insert memory modules in the A2 slot first. (Populate A2 First)
  • Page 19 INSTALLATION N 7 Z 5 9 0 AT X M O T H E R B O A R D • Push the release lever as indicated. • Match the memory with the middle notch and align into the DIMM slots. •...

  • Page 20: Pci Express Expansion Slots

    3.7 PCI EXPRESS EXPANSION SLOTS N 7 Z 5 9 0 AT X M O T H E R B O A R D See the diagram below for the list of slots. Please install graphics cards using the PCIEX1_1: PCIe 3.0 x1 slot PCIEX16_1 first then the PCIEX16_2.
  • Page 21 MULTI-GRAPHIC CARDS INSTALLATION N 7 Z 5 9 0 AT X M O T H E R B O A R D For power supply recommendations for multi-GPU configurations, please refer to the user guide of your graphics card to make sure you meet all the system requirements. To install multiple graphics cards: •...

  • Page 22: Sata Connectors

    3.8 SATA CONNECTORS N 7 Z 5 9 0 AT X M O T H E R B O A R D These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. No ports utilize the same bandwidth with any M.2. NOTE •...

  • Page 23: Slots For Storage

    3.9 M.2 SLOTS FOR STORAGE N 7 Z 5 9 0 AT X M O T H E R B O A R D There are two M.2 slots on the N7 motherboard. You will need to remove the steel cover pieces prior to installation.
  • Page 24 INSTALLATION N 7 Z 5 9 0 AT X M O T H E R B O A R D • Remove the M.2 slot cover. • Confirm the standoff is at the required position and if necessary, move the standoff. •...

  • Page 25: Slot For Wireless Connectivity

    3.10 M.2 SLOT FOR WIRELESS CONNECTIVITY N 7 Z 5 9 0 AT X M O T H E R B O A R D A Key E M.2 slot supporting PCIe and CNVio is located at the center of the motherboard. This slot is prepopulated with an Intel ®...

  • Page 26: Antenna

    3.11 ANTENNA N 7 Z 5 9 0 AT X M O T H E R B O A R D Wireless antennas are included to boost the wireless and Bluetooth signals. • Attach the antenna onto the rear I/O by securing them directly to the SMA ports labelled "Wi-Fi".

  • Page 27: Power Connectors

    3.12 POWER CONNECTORS N 7 Z 5 9 0 AT X M O T H E R B O A R D These connectors connect to an ATX 24-pin ATX_POWER 8+4-pin ATX_12V power supply. +3.3V +12V +12V +5V STANDBY NOTE POWER OK RESERVED •...

  • Page 28: Usb Connectors

    3.13 USB CONNECTORS N 7 Z 5 9 0 AT X M O T H E R B O A R D These connectors allow you to connect to the front panel USB ports or devices requiring internal USB ports. USB 2.0 USB 3.2 Gen.1 USB 3.2 Gen.2 Type-C...

  • Page 29: Front Panel Audio Connector

    3.14 FRONT PANEL AUDIO CONNECTOR N 7 Z 5 9 0 AT X M O T H E R B O A R D This connector connects to the front panel audio on the case.

  • Page 30: Front Panel Connector

    3.15 FRONT PANEL CONNECTOR N 7 Z 5 9 0 AT X M O T H E R B O A R D These connectors connect to the switches and indicator LEDs on the case. IMPORTANT • Please check the polarity of the pins to ensure your LEDs work properly.

  • Page 31: Fan Connectors

    3.16 FAN CONNECTORS N 7 Z 5 9 0 AT X M O T H E R B O A R D The CPU_FAN connector supports 4-pin PWM fans up to 2A (24W). The AIO_PUMP and the five SYS_FAN connectors automatically detects if a 4-pin PWM(Pulse Width Modulation) or 3-pin fan is in use and supports up to 2A(24W) each.

  • Page 32: Nzxt Rgb Connectors

    3.17 NZXT RGB CONNECTORS N 7 Z 5 9 0 AT X M O T H E R B O A R D There are two NZXT RGB headers located on the motherboard. The NZXT RGB ports are compatible with NZXT lighting accessories. Each channel supports up to 40 LEDs and up to 6 accessories.

  • Page 33: Addressable Rgb Connector

    3.18 5V ADDRESSABLE RGB CONNECTOR N 7 Z 5 9 0 AT X M O T H E R B O A R D A 5V Addressable RGB is located on the motherboard. This port supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and supports up to 40 LEDs.

  • Page 34: Rgb Connector

    3.19 12V RGB CONNECTOR N 7 Z 5 9 0 AT X M O T H E R B O A R D A 12V RGB is located on the motherboard. This port supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

  • Page 35: Buttons And Post Leds

    3.20 BUT TONS AND POST LEDS N 7 Z 5 9 0 AT X M O T H E R B O A R D Power and Reset Button The power and reset button allow you to power on and reset the motherboard without connecting to a switch which is useful when testing.
  • Page 36 3.20 BUT TONS AND POST LEDS N 7 Z 5 9 0 AT X M O T H E R B O A R D POST LEDs POST LEDs diagnoses the computer when users power on their system. It will light up to indicate whether the CPU, memory, VGA or storage is dysfunctional.
  • Page 37 3.20 BUT TONS AND POST LEDS N 7 Z 5 9 0 AT X M O T H E R B O A R D Clear CMOS Button The Clear CMOS button located on the rear I/O can be used to revert BIOS settings to default. To clear CMOS, turn off the power and remove the AC power to the power supply.
  • Page 38 Descargue e instale NZXT CAM en nzxt.com/camapp. Téléchargez et installez NZXT CAM depuis nzxt.com/camapp. laden Sie NZXT CAM von nzxt.com/camapp herunter und installieren Sie die Software. Scaricare e installare NZXT CAM da nzxt.com/camapp. Baixe e instale o NZXT CAM de nzxt.com/camapp.
  • Page 39 5. APPENDIX N 7 Z 5 9 0 AT X M O T H E R B O A R D 5.1 NZXT Global Warranty Policy 5.4 Battery Information A-13 ..................5.2 Support and Service 5.5 WEEE Statement A-14 ............
  • Page 40 5.1 NZXT GLOBAL WARRANTY POLICY N 7 Z 5 9 0 AT X M O T H E R B O A R D This NZXT Global Warranty Policy governs the sale of products by NZXT to you. I. WARRANTY LENGTH II.
  • Page 41 NZXT shall not, in any event, be liable for any incidental or unauthorized product modification or failure to follow instructions included with the product;...
  • Page 42 To receive a warranty service for your product when purchased directly limited to those of merchantability or fitness for a particular purpose. from NZXT, you must submit a request via the NZXT Support site outlining The duration of implied warranties is limited to the warranty length the problem.
  • Page 43 VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR CONSUMERS In the United Kingdom: • For NZXT products sold to customers in the UK, during the expected This warranty gives you specific legal rights. These conditions are lifespan of your product your legal rights entitle you to the following:...
  • Page 44 NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without prior approval and an Outside North America, Europe, and Australasia: RMA number.
  • Page 45 > Visit nzxt.com/warranty and support.nzxt.com for information on warranty coverage and service. Eligible products under this NZXT Warranty qualify for a full refund or > Visite el sitio Web nzxt.com/warranty y support.nzxt.com para obtener exchange only with an authorized RMA number and if the item is returned información sobre la cobertura y el servicio de la garantía.

  • Page 46: Support And Service

    SUPPORT AND SERVICE SUPPORT ET SERVICE If you have any questions or problems with the NZXT product you Si vous avez des questions ou des problèmes avec le produit NZXT purchased, please don’t hesitate to contact us using our support system.
  • Page 47 N 7 Z 5 9 0 AT X M O T H E R B O A R D ASSISTENZA E SERVIZIO In caso di dubbi o problemi con il prodotto NZXT acquistato, non esitate a contattarci utilizzando il nostro sistema di assistenza. support.nzxt.com NZXT : service@nzxt.com...
  • Page 48 N 7 Z 5 9 0 AT X M O T H E R B O A R D 支持和服务 지원 및 서비스 如果有任何疑问或者在使用 NZXT 产品的过程中遇到任何问题,欢迎联络 구입한 NZXT 제품과 관련하여 질문 또는 문제가 있을 경우 , 당사의 지원 시스템 ( support.nzxt.com ) 을 사용하여 문의하십시오 . service@nzxt.com,联络时请提供关于问题的详细说明及购买凭证。您可以向 support.nzxt.com 查询更换部件。如有任何意见或建议,欢迎致信我们的设计团 문제를 자세히 기술하고 구매 증빙을 제출하십시오...

  • Page 49: Regulatory Notices

    5.3 REGULATORY NOTICES N 7 Z 5 9 0 AT X M O T H E R B O A R D FCC COMPLIANCE STATEMENT Shielded interconnect cables and a shielded AC power cable must be This equipment has been tested and found to comply with the limits employed with this equipment to ensure compliance with the pertinent for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 50 I. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: NZXT Inc, declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European •...

  • Page 51: Battery Information

    5.4 BAT TERY INFORMATION N 7 Z 5 9 0 AT X M O T H E R B O A R D EUROPEAN UNION CALIFORNIA, USA Batteries, battery packs, and accumulators should not be The button cell battery may contain perchlorate material and disposed of as unsorted household waste.
  • Page 52 NZXT will comply with the product municipio, los fabricantes de equipos electrónicos, están obligados a take back requirements at the end-of-life of NZXT products that are sold hacerse cargo de dichos productos al termino de su período de vida.
  • Page 53 NZXT è conforme ai requisiti inerenti al ritiro a fine vita dei prodotti NZXT venduti nell’UE. Questi prodotti devono essere conferiti nei centri di raccolta locali.
  • Page 54 », descartados como lixo municipal e os fabricantes de eletrônicos cobertos devem receber de volta tais produtos no fim de sua vida útil. A NZXT cumprirá os requisitos de recolhimento do produto ao fim da vida útil dos produtos da NZXT vendidos dentro da UE. Você pode devolver esses .
  • Page 55 简体中文 한국어 作为一家环保型企业，为保护全球环境，NZXT 提醒您…… 지구를 보호하고 , 환경에 친화적인 기업인 NZXT 는 다음 사항을 안내합니다 . 根据 2014 年 2 月 14 日生效的欧洲（“EU”）废弃电子电气设备指令—— 2014 년 2 월 14 일부터 시행되는 Directive 2012/19/EU, 폐전기 · 전자제품에 관한 第 2012/19/EU 号指令的规定，“电气和电子设备”产品不可作为市政废物丢弃， 유럽연합...

  • Page 56: Revision History

    5.6 REVISION HISTORY N 7 Z 5 9 0 AT X M O T H E R B O A R D Version 1.1, 2021/08/26 A -1 8...
