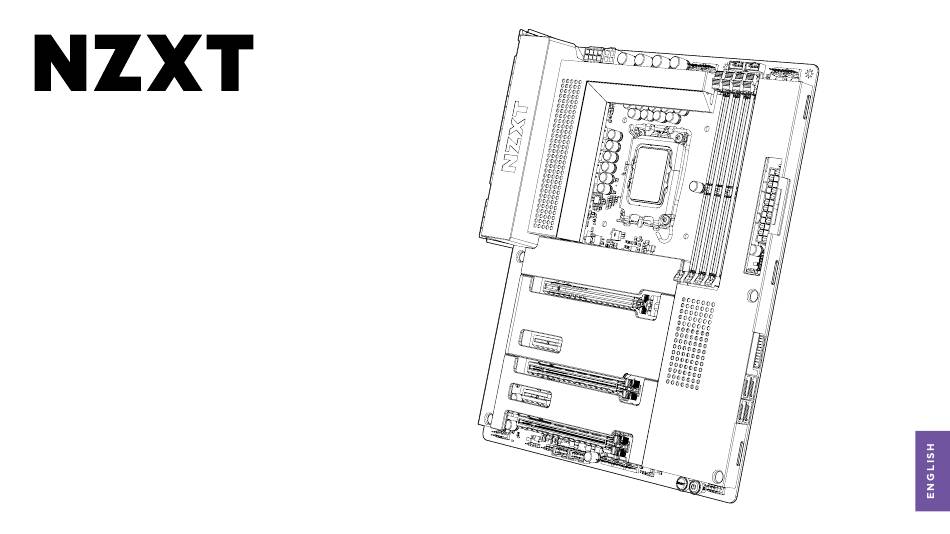

  • Page 1 N7 Z690 INT EL Z690 ATX MOTHE RBOARD...
  • Page 2 1. PREFACE 4. DOWNLOADING NZXT CAM ..........
  • Page 3 1. PREFACE N7 Z690 INTEL ATX MOTHERBOARD A. Copyright NZXT, Inc. All Rights Reserved. C. Trademark Recognition © This manual including all illustrations and screen captures, Product names used in this manual are the properties of is protected under international copyright laws, with all their respective owners and are acknowledged.
  • Page 4 2. PRODUCT INFORMATION N7 Z690 INTEL ATX MOTHERBOARD 2.1 Package Contents ............. 2.2 Specifications ..............
  • Page 5 2.1 PACKAGE CONTENTS N7 Z690 INTEL ATX MOTHERBOARD A. N7 Z690 Motherboard C. M.2 Screws B. SATA Cables D. Wireless Antenna 90°x2, 180°x2...
  • Page 6 • Supports DDR4 Non-ECC, Un-buffered Memory up to 4800+ (OC)* • Supports ECC UDIMM Memory (operate in non-ECC mode) • Support Intel® Extreme Memory Profile (XMP) 2.0 *Supports DDR4 3200 natively * Please refer to Memory QVL on NZXT’s website (www.nzxt.com) for more information.
  • Page 7 2.2 SPECIFICATIONS N7 Z690 INTEL ATX MOTHERBOARD Storage Wireless Intel® Z690 Chipset Dual Band Wireless Wi-Fi 6E • 1 x M.2_1 Type 2242/2260/2280 (PCIe Gen 4 ×4 mode)* • Wi-Fi 802.11 a/b/g/n/ax • 1 x M.2_2 Type 2242/2260/2280/22110 (PCIe Gen 4 ×4 •...
  • Page 8 2.2 SPECIFICATIONS N7 Z690 INTEL ATX MOTHERBOARD Audio Rear I/O Realtek® ALC1220 Codec • 2 x Wireless antenna SMA connectors 8-Channel High Definition Audio, 32-bit /192KHz DAC • 1 x HDMI™ port • 2 x USB 2.0 ports Expansion Slots •...
  • Page 9 • 2 x USB 2.0 header (Up to 4 USB 2.0 ports) NZXT CAM is free to download and use; some features • 1 x USB 3.2 Gen 1 header (Up to 2 USB 3.2 Gen 1 ports) require a valid email address, acceptance of our current •...

  • Page 10: Table Of Contents

    3. COMPONENTS & PORTS N7 Z690 INTEL ATX MOTHERBOARD 3.1 Covers 3.6 DIMM Slots ....................................3.2 Exploded View 3.7 PCI Express Expansion Slots ....................... 3.3 Ports Overview 3.8 SATA Connectors ............................3.4 Rear I/O 3.9 M.2 Slots for Storage ..................
  • Page 11 3. COMPONENTS & PORTS N7 Z690 INTEL ATX MOTHERBOARD 3.11 Antenna 3.16 Fan Connectors ................................3.12 Power Connectors 3.17 NZXT RGB Connectors ........................ 3.13 USB Connectors 3.18 5V Addressable RGB Connector ....................3.14 Front Panel Audio Connector 3.19 12V RGB Connector...
  • Page 12 3. COMPONENTS & PORTS N7 Z690 INTEL ATX MOTHERBOARD 3.21 CMOS Battery ................ 3.22 BIOS Flashback ..............

  • Page 13: Covers

    3.1 COVERS N7 Z690 INTEL ATX MOTHERBOARD The all-metal N7 cover pieces can be removed by hand. They are latched onto the motherboard through multiple points. When installing and removing, please pay close attention to these points and apply an even force to...

  • Page 14: Exploded View

    3.2 EXPLODED VIEW N7 Z690 INTEL ATX MOTHERBOARD...

  • Page 15: Ports Overview

    3.3 PORTS OVERVIEW N7 Z690 INTEL ATX MOTHERBOARD NO. PORT NAME DESCRIPTION NO. PORT NAME DESCRIPTION 12V RGB1 4-pin 12V LED header LGA 1700 socket for Intel 12th CPU Socket Generation processor L E D 1 L E D 1...

  • Page 16: Rear I/O

    3.4 REAR I/O N7 Z690 INTEL ATX MOTHERBOARD NO. PORT NAME NO. PORT NAME Clear CMOS Button USB 3.2 Gen 1 BIOS Flashback Button RJ45 LAN port Wireless Antenna USB 3.2 Gen 2 HDMI port Audio ports USB 2.0 with BIOS Flashback Function A.

  • Page 17: Cpu Socket

    3.5 CPU SOCKET N7 Z690 INTEL ATX MOTHERBOARD The surface of the LGA 1700 CPU has four notches and a golden triangle to assist in correctly lining up the CPU for placement within the socket. NOTE • Always unplug the power cord from the power outlet before installing or removing the CPU.
  • Page 18 INSTALLATION N7 Z690 INTEL ATX MOTHERBOARD • Push down on the retention arm and outwards to release. • Flip open the latch and place the CPU making sure the triangle and the notches on the CPU matches the corner as indicated.

  • Page 19: Dimm Slots

    3.6 DIMM SLOTS N7 Z690 INTEL ATX MOTHERBOARD The DIMM slots are located here. Please see the diagram for recommended memory configuration. NOTE • Insert memory modules in the A2 slot first. Populate A2 First...
  • Page 20 INSTALLATION N7 Z690 INTEL ATX MOTHERBOARD • Push the release lever as indicated. • Match the memory with the middle notch and align into the DIMM slots. • Push the memory into the DIMM slot firmly until the lever has been locked automatically.

  • Page 21: Pci Express Expansion Slots

    3.7 PCI EXPRESS EXPANSION SLOTS N7 Z690 INTEL ATX MOTHERBOARD See the diagram below for the list of slots. Please install graphics cards using the PCIEX16_1 first then the PCIEX16_2. PCIEX16_1: PCIe 5.0 x16 slot PCIEX1_1: PCIe 4.0 x1 slot...
  • Page 22 MULTI-GRAPHIC CARDS INSTALLATION N7 Z690 INTEL ATX MOTHERBOARD For power supply recommendations for multi-GPU configurations, please refer to the user guide of your graphics card to make sure you meet all the system requirements. To install multiple graphics cards: • Turn off your computer and disconnect the power cord, install two graphics cards into the PCIEX16_1 and PCIEX16_2 slots.

  • Page 23: Sata Connectors

    3.8 SATA CONNECTORS N7 Z690 INTEL ATX MOTHERBOARD These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. No ports utilize the same bandwidth with any M.2. NOTE • Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.

  • Page 24: Slots For Storage

    3.9 M.2 SLOTS FOR STORAGE N7 Z690 INTEL ATX MOTHERBOARD There are three M.2 slots on the N7 motherboard. You will need to remove the steel cover pieces prior to installation. The topmost slot includes a heat spreader. Please follow the instructions below to install your M.2 drive.
  • Page 25 INSTALLATION N7 Z690 INTEL ATX MOTHERBOARD • Remove the M.2 slot cover. • Confirm the standoff is at the required position and if necessary, move the standoff. • Insert your M.2 drive into the M.2 slot at an angle. • Secure the M.2 drive using the M.2 screw onto the standoff and tighten.

  • Page 26: Slot For Wireless Connectivity

    3.10 M.2 SLOT FOR WIRELESS CONNECTIVITY N7 Z690 INTEL ATX MOTHERBOARD A Key E M.2 slot supporting PCIe and CNVio is located at the center of the motherboard. This slot is prepopulated with a wireless card and two antenna cables route the wireless...

  • Page 27: Antenna

    3.11 ANTENNA N7 Z690 INTEL ATX MOTHERBOARD Wireless antennas are included to boost the wireless and Bluetooth signals. • Attach the antenna onto the rear I/O by securing them directly to the SMA ports labelled “Wi-Fi”.

  • Page 28: Power Connectors

    3.12 POWER CONNECTORS N7 Z690 INTEL ATX MOTHERBOARD ATX_12V ATX_PWR These connectors connect to an ATX power supply. +3.3V +12V +12V +5V STANDBY POWER OK RESERVED NOTE • Make sure that all the power cables are securely connected to a proper ATX power supply to PSON# ensure stable operation of the motherboard.

  • Page 29: Usb Connectors

    3.13 USB CONNECTORS N7 Z690 INTEL ATX MOTHERBOARD These connectors allow you to connect to the front panel USB ports or devices requiring internal USB ports. USB 2.0 USB 3.2 Gen 1 USB 3.2 Gen 2x2 Type-C POWER POWER USB3_RX_DN...

  • Page 30: Front Panel Audio Connector

    3.14 FRONT PANEL AUDIO CONNECTOR N7 Z690 INTEL ATX MOTHERBOARD This connector connects to the FRONT AUDIO front panel audio on the case.

  • Page 31: Front Panel Connector

    3.15 FRONT PANEL CONNECTOR N7 Z690 INTEL ATX MOTHERBOARD F_PANEL These connectors connect to the switches and indicator LEDs on the case. IMPORTANT • Please check the polarity of the pins to ensure your LEDs work properly.

  • Page 32: Fan Connectors

    3.16 FAN CONNECTORS N7 Z690 INTEL ATX MOTHERBOARD The CPU_FAN, AIO_PUMP and the five SYS_ FAN connectors automatically detects if a 4-pin PWM(Pulse Width Modulation) or 3-pin fan is in use and supports up to 2A(24W) each. The fan speeds can be adjusted within CAM.

  • Page 33: Nzxt Rgb Connectors

    3.17 NZXT RGB CONNECTORS N7 Z690 INTEL ATX MOTHERBOARD There are two NZXT RGB headers located on NZXT RGB the motherboard. The NZXT RGB ports are compatible with NZXT lighting accessories. Each channel supports up to 40 LEDs and up to 6 accessories.

  • Page 34: Addressable Rgb Connector

    3.18 5V ADDRESSABLE RGB CONNECTOR N7 Z690 INTEL ATX MOTHERBOARD A 5V Addressable RGB is located on the motherboard. This port supports WS2812B 5V ARGB addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and supports up to 40 LEDs.

  • Page 35: Rgb Connector

    3.19 12V RGB CONNECTOR N7 Z690 INTEL ATX MOTHERBOARD A 12V RGB is located on the motherboard. This port supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 12V RGB 2 meters.

  • Page 36: Buttons And Post Leds

    3.20 BUTTONS AND POST LEDS N7 Z690 INTEL ATX MOTHERBOARD Power and Reset Button The power and reset button allow you to power on and reset the motherboard without connecting to a switch which is useful when testing.
  • Page 37 3.20 BUTTONS AND POST LEDS N7 Z690 INTEL ATX MOTHERBOARD POST LEDs Post LEDs diagnoses the computer when users power on their system. It will light up to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four...
  • Page 38 3.20 BUTTONS AND POST LEDS N7 Z690 INTEL ATX MOTHERBOARD Clear CMOS Button The Clear CMOS button located on the rear I/O can be used to revert BIOS settings to default. To clear CMOS, turn off the power and remove the AC power to the power supply.
  • Page 39 3.21 CMOS BATTERY N7 Z690 INTEL ATX MOTHERBOARD In the event that your BIOS settings can no longer be saved, it is likely the motherboard CMOS battery (CR2032) no longer holds a charge. You can access the battery and replace it by removing the metal...
  • Page 40 Plug the USB drive to the USB BIOS Flashback port. • Download the latest BIOS file from NZXT's website: http://www.nzxt.com. • Extract the BIOS file from the zip file to a secure location and rename the BIOS file "creative.rom".
  • Page 41 Descargue e instale NZXT CAM en nzxt.com/camapp. Téléchargez et installez NZXT CAM depuis nzxt.com/camapp. laden Sie NZXT CAM von nzxt.com/camapp herunter und installieren Sie die Software. Scaricare e installare NZXT CAM da nzxt.com/camapp. Baixe e instale o NZXT CAM de nzxt.com/camapp.
  • Page 42 5. APPENDIX N7 Z690 INTEL ATX MOTHERBOARD 5.1 NZXT Global Warranty Policy 5.4 Battery Information A-13 ..................5.2 Support and Service 5.5 WEEE Statement A-14 ........................5.3 Regulatory Notices A-11 5.6 Revision History A-18 .......................... A - 1...
  • Page 43 5.1 NZXT GLOBAL WARRANTY POLICY N7 Z690 INTEL ATX MOTHERBOARD This NZXT Global Warranty Policy governs the sale of products by NZXT to you. I. WARRANTY LENGTH II. WHO IS PROTECTED Any replacement product will be covered under warranty for the The Warranty covers only NZXT products purchased by the remainder of the warranty period or thirty days, whichever is longer.
  • Page 44 NZXT shall not, in any event, be liable for • improper installation, unauthorized alterations or modifications, or any incidental or consequential damage, including but not limited repair or attempted repair by anyone not authorized by NZXT;...
  • Page 45 Once approved, you`ll receive an RMA number, upon which you need help, you may contact us by phone at +1 (800) 228-9395, by will be asked to ship the defective item back to NZXT with the email at service@nzxt.com, or visit the NZXT Support site at RMA number clearly marked or labelled on the package.
  • Page 46 VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR In the United Kingdom: CONSUMERS • For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the This warranty gives you specific legal rights. These conditions are...
  • Page 47 In North America: your dealer, please contact NZXT Customer Support (see above) for Within the first 60 days after purchase, please return your product assistance and instructions. NZXT will not accept returns without (or for power supplies installed within our enclosures, just the failed prior approval.
  • Page 48 을 방문해 주시기 바랍니다 . > 保証範囲およびサービスに関する情報については、 support.nzxt.com と nzxt.com/ warranty にアクセスしてください。 NZXT, Inc./ 15736 E Valley Blvd, City of Industry, CA 91744, USA > 请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。 NZXT Europe GmbH/ Industriering Ost 66 | 47906 Kempen | Germany >...
  • Page 49 N7 Z690 INTEL ATX MOTHERBOARD SUPPORT AND SERVICE SUPPORT ET SERVICE If you have any questions or problems with the NZXT product you Si vous avez des questions ou des problèmes avec le produit purchased, please don’t hesitate to contact us using our support NZXT que vous avez acheté, n’hésitez pas à...
  • Page 50 ASSISTENZA E SERVIZIO acerca da NZXT, visite-nos online. Web site da NZXT: NZXT.com In caso di dubbi o problemi con il prodotto NZXT acquistato, non esitate a contattarci utilizzando il nostro sistema di assistenza. support.nzxt.com Includere una spiegazione dettagliata del problema e la prova di acquisto.
  • Page 51 5.2 SUPPORT AND SERVICE N7 Z690 INTEL ATX MOTHERBOARD 支持和服务 지원 및 서비스 NZXT 제품과 관련하여 질문 또는 문제가 있을 경우 , 당사의 지원 시스템 如果有任何疑问或者在使用 NZXT 产品的过程中遇到任何问题,欢迎联络 구입한 ( support.nzxt.com ) 을 사용하여 문의하십시오 . service@nzxt.com,联络时请提供关于问题的详细说明及购买凭证。您可以向 . 의견 또는 제안 사항이 잇을...
  • Page 52 5.3 REGULATORY NOTICES N7 Z690 INTEL ATX MOTHERBOARD FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits Shielded interconnect cables and a shielded AC power cable must for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 53 I. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: NZXT Inc, declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the •...
  • Page 54 5.4 BATTERY INFORMATION N7 Z690 INTEL ATX MOTHERBOARD EUROPEAN UNION CALIFORNIA, USA Batteries, battery packs, and accumulators should not The button cell battery may contain perchlorate material be disposed of as unsorted household waste. Please use and requires special handling when recycled or disposed the public collection system to return, recycle, or treat of in California.
  • Page 55 NZXT will comply with the product take back requirements at electrónicos, están obligados a hacerse cargo de dichos productos al the end-of-life of NZXT products that are sold within the EU. You can termino de su período de vida. NZXT estará comprometido con los return these products to local collection points términos de recogida de sus productos vendidos en la Unión Europea...
  • Page 56 NZXT è conforme ai requisiti inerenti al ritiro a fine vita dei prodotti NZXT venduti nell’UE. Questi prodotti devono essere conferiti nei centri di raccolta locali.
  • Page 57 », eletrônicos cobertos devem receber de volta tais produtos no fim de sua vida útil. A NZXT cumprirá os requisitos de recolhimento do produto ao fim da vida útil dos produtos da NZXT vendidos dentro . NZXT da UE.
  • Page 58 , 수명이 다한 제품은 반드시 해당 제품의 제조업체가 회수해야 합니다 . 相关电子产品的制造商须在此类产品使用寿命结束时将其收回。对于 NZXT 在 수 없으며 NZXT 는 유럽 내에서 판매되는 NZXT 제품에 대한 회수 지침을 준수합니다 . 欧盟地区售出的 NZXT 产品报废时，NZXT 将遵循该产品回收要求。您可以将 这些产品送至当地的回收点。 수명이 다한 제품은 해당 지역의 회수처에 반납하실 수 있습니다...
  • Page 59 5.6 REVISION HISTORY N7 Z690 INTEL ATX MOTHERBOARD Version 1.2, 2022/01/26 A - 1 8...
