NZXT N5 Z690 Manual

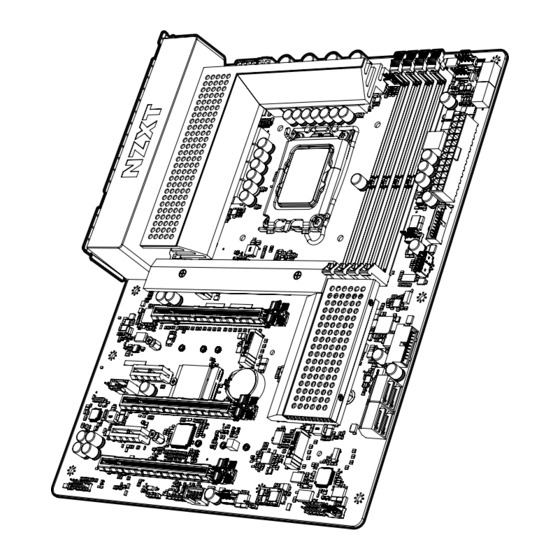

Intel z690 atx motherboard
Hide thumbs Also See for N5 Z690:
Table of Contents

Advertisement

Quick Links

N5 Z690
INT EL Z690 ATX MOTHE RBOARD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N5 Z690 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NZXT N5 Z690

Summary of Contents for NZXT N5 Z690

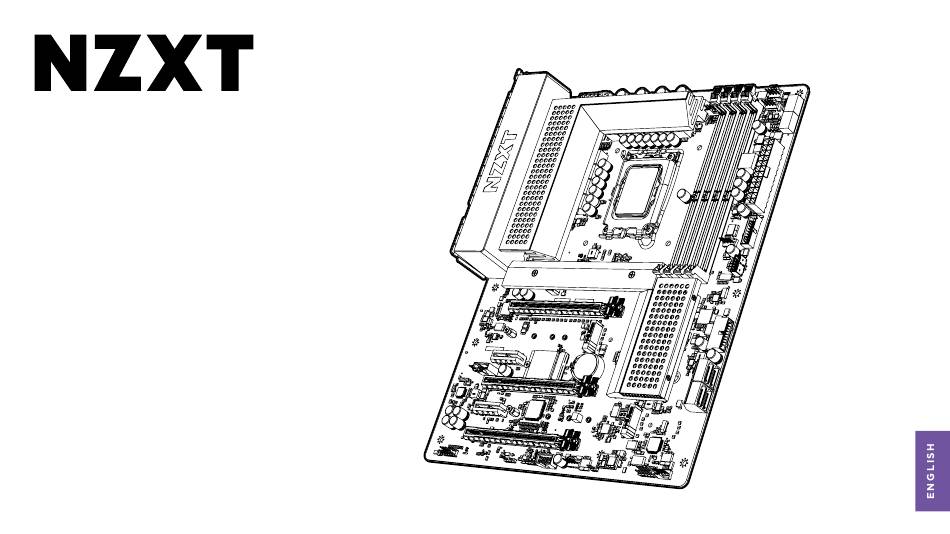

  • Page 1 N5 Z690 INT EL Z690 ATX MOTHE RBOARD...
  • Page 2 1. PREFACE 4. DOWNLOADING NZXT CAM ..........
  • Page 3 1. PREFACE N5 Z690 INTEL ATX MOTHERBOARD A. Copyright NZXT, Inc. All Rights Reserved. C. Trademark Recognition © This manual including all illustrations and screen captures, Product names used in this manual are the properties of is protected under international copyright laws, with all their respective owners and are acknowledged.
  • Page 4 2. PRODUCT INFORMATION N5 Z690 INTEL ATX MOTHERBOARD 2.1 Package Contents ............. 2.2 Specifications ..............
  • Page 5 2.1 PACKAGE CONTENTS N5 Z690 INTEL ATX MOTHERBOARD A. N5 Z690 Motherboard C. M.2 Screws B. SATA Cables D. Wireless Antenna 90°x2, 180°x2...
  • Page 6 • Supports DDR4 Non-ECC, Un-buffered Memory up to 5000+ (OC)* • Supports ECC UDIMM Memory (operate in non-ECC mode) ® • Support Intel Extreme Memory Profile (XMP) 2.0 * Supports DDR4 3200 natively * Please refer to Memory QVL on NZXT’s website www.nzxt.com for more information.
  • Page 7 2.2 SPECIFICATIONS N5 Z690 INTEL ATX MOTHERBOARD Integrated Graphics • Integrated Graphics Processor- Intel UHD Graphics Support* ® Realtek® RTL8125BG 2.5G LAN • Intel Xe Graphics Architecture (Gen 12) ® • Supports HDMI™ 2.1 TMDS Compatible with max. resolution up to...
  • Page 8 • 1 x 4-pin AIO_PUMP connector (Up to 24W per channel) • 4 x 4-pin SYS_FAN connectors (Up to 24W per channel) Realtek® ALC897 Codec • 2 x NZXT RGB LED connectors 8-Channel High Definition Audio • 1 x 5V Addressable RGB LED connector •...
  • Page 9 Form Factor System Requirements NZXT CAM software requires Microsoft Windows® 11/10 operating system. NZXT CAM is free to download and use; some features require a valid email address, acceptance of our current Terms of Service, and an active internet connection.

  • Page 10: Table Of Contents

    3. COMPONENTS & PORTS N5 Z690 INTEL ATX MOTHERBOARD 3.1 Exploded View 3.6 PCI Express Expansion Slots ........................ 3.2 Ports Overview 3.7 SATA Connectors ............................3.3 Rear I/O 3.8 M.2 Slots for Storage ..............................3.4 CPU Socket 3.9 M.2 Slot for Wireless Connectivity...
  • Page 11 3. COMPONENTS & PORTS N5 Z690 INTEL ATX MOTHERBOARD 3.11 Power Connectors 3.16 NZXT RGB Connectors ......................... 3.12 USB Connectors 3.17 5V Addressable RGB Connector ....................3.13 Front Panel Audio Connector 3.18 12V RGB Connector ................... 3.14 Front Panel Connector 3.19 SPI TPM Header...
  • Page 12 3. COMPONENTS & PORTS N5 Z690 INTEL ATX MOTHERBOARD 3.21 CMOS Battery ................ 3.22 BIOS Flashback ..............

  • Page 13: Exploded View

    3.1 EXPLODED VIEW N5 Z690 INTEL ATX MOTHERBOARD...

  • Page 14: Ports Overview

    3.2 PORTS OVERVIEW N5 Z690 INTEL ATX MOTHERBOARD PORT NAME DESCRIPTION LGA 1700 socket for Intel 12th CPU Socket L E D 1 L E D 2 A I O _ P U M P Generation processor C P U _ F A N...
  • Page 15 3.2 PORTS OVERVIEW N5 Z690 INTEL ATX MOTHERBOARD PORT NAME DESCRIPTION SATA 1-4 Serial ATA 6Gbps connectors L E D 1 L E D 2 A I O _ P U M P SYS_FAN 4 4-pin fan connector C P U _ F A N...
  • Page 16 3.2 PORTS OVERVIEW N5 Z690 INTEL ATX MOTHERBOARD PORT NAME DESCRIPTION PCIEX1_2 PCI Express x1 Gen4 slot L E D 1 L E D 2 A I O _ P U M P PCIEX16_2 PCI Express x16 Gen4 slot C P U _ F A N...

  • Page 17: Rear I/O

    3.3 REAR I/O N5 Z690 INTEL ATX MOTHERBOARD NO. PORT NAME NO. PORT NAME USB 3.2 Gen 1 USB 3.2 Gen 2 Type-C Wireless Antenna RJ45 LAN port HDMI port USB 3.2 Gen 1 with BIOS Flashback Function USB 2.0 USB 3.2 Gen 1...

  • Page 18: Cpu Socket

    3.4 CPU SOCKET N5 Z690 INTEL ATX MOTHERBOARD The surface of the LGA 1700 CPU has four notches and a golden triangle to assist in correctly lining up the CPU for placement within the socket. NOTE • Always unplug the power cord from the power outlet before installing or removing the CPU.
  • Page 19 INSTALLATION N5 Z690 INTEL ATX MOTHERBOARD • Push down on the retention arm and outwards to release. • Flip open the latch and place the CPU making sure the triangle and the notches on the CPU matches the corner as indicated.

  • Page 20: Dimm Slots

    3.5 DIMM SLOTS N5 Z690 INTEL ATX MOTHERBOARD The DIMM slots are located here. Please see the diagram for recommended memory configuration. NOTE • Insert memory modules in the A2 slot first. Populate Populate A2 First A2 First...
  • Page 21 INSTALLATION N5 Z690 INTEL ATX MOTHERBOARD • Push the release lever as indicated. • Match the memory with the middle notch and align into the DIMM slots. • Push the memory into the DIMM slot firmly until the lever has been locked automatically.

  • Page 22: Pci Express Expansion Slots

    3.6 PCI EXPRESS EXPANSION SLOTS N5 Z690 INTEL ATX MOTHERBOARD See the diagram below for the list of slots. Please install graphics cards using the PCIEX16_1 first then the PCIEX16_2. PCIEX16_1: PCIe 5.0 x16 slot PCIEX1_1: PCIe 4.0 x1 slot NOTE PCIEX16_2: PCIe 4.0 x4 slot...
  • Page 23 MULTI-GRAPHIC CARDS INSTALLATION N5 Z690 INTEL ATX MOTHERBOARD For power supply recommendations for multi-GPU configurations, please refer to the user guide of your graphics card to make sure you meet all the system requirements. To install multiple graphics cards: • Turn off your computer and disconnect the power cord, install two graphics cards into the PCIEX16_1 and PCIEX16_2 slots.

  • Page 24: Sata Connectors

    3.7 SATA CONNECTORS N5 Z690 INTEL ATX MOTHERBOARD These connectors are SATA 6Gb/s interface ports. Each connector can connect to one SATA device. No ports utilize the same bandwidth with any M.2. NOTE • Please do not fold the SATA cable at a 90-degree angle. Data loss may result during transmission otherwise.

  • Page 25: Slots For Storage

    3.8 M.2 SLOTS FOR STORAGE N5 Z690 INTEL ATX MOTHERBOARD There are four M.2 slots on the N5 motherboard. You will need to remove the steel cover pieces prior to installation. The topmost slot includes a heat spreader. Please follow the instructions below to install your M.2 drive.
  • Page 26 INSTALLATION N5 Z690 INTEL ATX MOTHERBOARD • Remove the M.2 slot cover. • Confirm the standoff is at the required position and if necessary, move the standoff. • Insert your M.2 drive into the M.2 slot at an angle. • Secure the M.2 drive using the M.2 screw onto the standoff and tighten.

  • Page 27: Slot For Wireless Connectivity

    3.9 M.2 SLOT FOR WIRELESS CONNECTIVITY N5 Z690 INTEL ATX MOTHERBOARD A Key E M.2 slot supporting PCIe and CNVio is located at the center of the motherboard. This slot is prepopulated with a wireless card and two antenna cables route the wireless...

  • Page 28: Antenna

    3.10 ANTENNA N5 Z690 INTEL ATX MOTHERBOARD Wireless antennas are included to boost the wireless and Bluetooth signals. • Attach the antenna onto the rear I/O by securing them directly to the SMA ports labelled “Wi-Fi”.

  • Page 29: Power Connectors

    3.11 POWER CONNECTORS N5 Z690 INTEL ATX MOTHERBOARD 8+4-pin ATX_12V 24-pin ATX_POWER These connectors connect to an ATX power supply. +3.3V +12V +12V +5V STANDBY NOTE POWER OK RESERVED • Make sure that all the power cables are securely connected to a proper ATX power supply to ensure stable operation of the motherboard.

  • Page 30: Usb Connectors

    3.12 USB CONNECTORS N5 Z690 INTEL ATX MOTHERBOARD These connectors allow you to connect to the front panel USB ports or devices requiring internal USB ports. USB 2.0 USB 3.2 Gen 1 USB 3.2 Gen 2x2 Type-C...

  • Page 31: Front Panel Audio Connector

    3.13 FRONT PANEL AUDIO CONNECTOR N5 Z690 INTEL ATX MOTHERBOARD This connector connects to the front panel audio on the case.

  • Page 32: Front Panel Connector

    3.14 FRONT PANEL CONNECTOR N5 Z690 INTEL ATX MOTHERBOARD These connectors connect to the switches and indicator LEDs on the case. IMPORTANT • Please check the polarity of the pins to ensure your LEDs work properly.

  • Page 33: Fan Connectors

    3.15 FAN CONNECTORS N5 Z690 INTEL ATX MOTHERBOARD The CPU_FAN, AIO_PUMP and the four SYS_ FAN connectors automatically detects if a 4-pin PWM(Pulse Width Modulation) or 3-pin fan is in use and supports up to 2A(24W) each. The fan speeds can be adjusted within CAM.

  • Page 34: Nzxt Rgb Connectors

    3.16 NZXT RGB CONNECTORS N5 Z690 INTEL ATX MOTHERBOARD There are two NZXT RGB headers located on the motherboard. The NZXT RGB ports are compatible with NZXT lighting accessories. Each channel supports up to 40 LEDs and up to 6 accessories.

  • Page 35: Addressable Rgb Connector

    3.17 5V ADDRESSABLE RGB CONNECTOR N5 Z690 INTEL ATX MOTHERBOARD A 5V Addressable RGB is located on the motherboard. This port supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V) and supports up to 40 LEDs.

  • Page 36: Rgb Connector

    3.18 12V RGB CONNECTOR N5 Z690 INTEL ATX MOTHERBOARD A 12V RGB is located on the motherboard. This port supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. NOTE •...

  • Page 37: Spi Tpm Header

    3.19 SPI TPM HEADER N5 Z690 INTEL ATX MOTHERBOARD This connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures...

  • Page 38: Clear Cmos And Post Leds

    3.20 CLEAR CMOS AND POST LEDS N5 Z690 INTEL ATX MOTHERBOARD Clear CMOS Header The Clear CMOS header is located on the Clear CMOS Jumper bottom of the board and can be used to revert BIOS settings to default. To clear CMOS, turn off the power and remove the AC power to the power supply.
  • Page 39 3.20 BUTTONS AND POST LEDS N5 Z690 INTEL ATX MOTHERBOARD POST LEDs Post LEDs diagnoses the computer when users power on their system. It will light up to indicate whether the CPU, memory, VGA or storage is dysfunctional. The lights go off if the four...
  • Page 40 3.21 CMOS BATTERY N5 Z690 INTEL ATX MOTHERBOARD In the event that your BIOS settings can no longer be saved, it is likely the motherboard CMOS battery (CR2032) no longer holds a charge. You can access the battery and replace...
  • Page 41 TPM. It is recommended to disable fTPM before updating the BIOS. Otherwise an unpredictable failure may occur. • Download the latest BIOS file from NZXT's website: http://www.nzxt.com. • Extract the BIOS file from the zip file to a secure location and rename the BIOS file "creative.rom".
  • Page 42 Descargue e instale NZXT CAM en nzxt.com/camapp. Téléchargez et installez NZXT CAM depuis nzxt.com/camapp. laden Sie NZXT CAM von nzxt.com/camapp herunter und installieren Sie die Software. Scaricare e installare NZXT CAM da nzxt.com/camapp. Baixe e instale o NZXT CAM de nzxt.com/camapp.
  • Page 43 5. APPENDIX N5 Z690 INTEL ATX MOTHERBOARD 5.1 NZXT Global Warranty Policy 5.4 Battery Information A-13 ..................5.2 Support and Service 5.5 WEEE Statement A-14 ........................5.3 Regulatory Notices A-11 5.6 Revision History A-18 .......................... A - 1...
  • Page 44 5.1 NZXT GLOBAL WARRANTY POLICY N5 Z690 INTEL ATX MOTHERBOARD This NZXT Global Warranty Policy governs the sale of products by NZXT to you. I. WARRANTY LENGTH II. WHO IS PROTECTED Any replacement product will be covered under warranty for the The Warranty covers only NZXT products purchased by the remainder of the warranty period or thirty days, whichever is longer.
  • Page 45 NZXT shall not, in any event, be liable for • improper installation, unauthorized alterations or modifications, or any incidental or consequential damage, including but not limited repair or attempted repair by anyone not authorized by NZXT;...
  • Page 46 Once approved, you`ll receive an RMA number, upon which you need help, you may contact us by phone at +1 (800) 228-9395, by will be asked to ship the defective item back to NZXT with the email at service@nzxt.com, or visit the NZXT Support site at RMA number clearly marked or labelled on the package.
  • Page 47 VIII. APPLICABLE LAW AND ADDITIONAL LEGAL RIGHTS FOR In the United Kingdom: CONSUMERS • For NZXT products sold to customers in the UK, during the expected lifespan of your product your legal rights entitle you to the This warranty gives you specific legal rights. These conditions are...
  • Page 48 In North America: your dealer, please contact NZXT Customer Support (see above) for assistance and instructions. NZXT will not accept returns without Within the first 60 days after purchase, please return your product prior approval.
  • Page 49 NZXT Europe GmbH/ Ammerthalstrasse 32 Kirchheim bei Muenchen 85551, Germany > 请造访 nzxt.com/warranty 和 support.nzxt.com 了解保修范围和服务的信息。 NZXT UK Ltd./ First Floor 5 Fleet Place London EC4M 7RD, GB United Kingdom > 請訪問 nzxt.com/warranty 和 support.nzxt.com 了解產品保固範圍和更多服務訊 +1 (800) 228-9395 / service@nzxt.com / NZXT.com...
  • Page 50 N5 Z690 INTEL ATX MOTHERBOARD SUPPORT AND SERVICE SUPPORT ET SERVICE If you have any questions or problems with the NZXT product you Si vous avez des questions ou des problèmes avec le produit purchased, please don’t hesitate to contact us using our support NZXT que vous avez acheté, n’hésitez pas à...
  • Page 51 5.2 SUPPORT AND SERVICE N5 Z690 INTEL ATX MOTHERBOARD ASSISTENZA E SERVIZIO In caso di dubbi o problemi con il prodotto NZXT acquistato, non esitate a contattarci utilizzando il nostro sistema di assistenza. NZXT : service@nzxt.com support.nzxt.com Includere una spiegazione dettagliata del problema e la prova di : support.
  • Page 52 5.2 SUPPORT AND SERVICE N5 Z690 INTEL ATX MOTHERBOARD 支持和服务 지원 및 서비스 如果有任何疑问或者在使用 NZXT 产品的过程中遇到任何问题,欢迎联络 구입한 NZXT 제품과 관련하여 질문 또는 문제가 있을 경우, 당사의 지원 시스템 support.nzxt.com service@nzxt.com,联络时请提供关于问题的详细说明及购买凭证。您可以向 )을 사용하여 문의하십시오. support.nzxt.com 查询更换部件。如有任何意见或建议,欢迎致信我们的设计 문제를 자세히 기술하고 구매 증빙을 제출하십시오. 의견 또는 제안 사항이 잇을...
  • Page 53 5.3 REGULATORY NOTICES N5 Z690 INTEL ATX MOTHERBOARD FCC COMPLIANCE STATEMENT Shielded interconnect cables and a shielded AC power cable must This equipment has been tested and found to comply with the limits be employed with this equipment to ensure compliance with the for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 54 I. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING CONDITIONS: NZXT Inc, declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the •...
  • Page 55 5.4 BATTERY INFORMATION N5 Z690 INTEL ATX MOTHERBOARD EUROPEAN UNION CALIFORNIA, USA Batteries, battery packs, and accumulators should not The button cell battery may contain perchlorate material be disposed of as unsorted household waste. Please use and requires special handling when recycled or disposed the public collection system to return, recycle, or treat of in California.
  • Page 56 NZXT will comply with the product take back requirements at electrónicos, están obligados a hacerse cargo de dichos productos al the end-of-life of NZXT products that are sold within the EU. You can termino de su período de vida. NZXT estará comprometido con los return these products to local collection points.
  • Page 57 NZXT è conforme ai requisiti inerenti al ritiro a fine vita dei prodotti NZXT venduti nell’UE. Questi prodotti devono essere conferiti nei centri di raccolta locali.
  • Page 58 », eletrônicos cobertos devem receber de volta tais produtos no fim de sua vida útil. A NZXT cumprirá os requisitos de recolhimento do produto ao fim da vida útil dos produtos da NZXT vendidos dentro . NZXT da UE.
  • Page 59 第 2012/19/EU 号指令的规定，“电气和电子设备”产品不可作为市政废物丢弃， 相关电子产品的制造商须在此类产品使用寿命结束时将其收回。对于 NZXT 在 수 없으며, 수명이 다한 제품은 반드시 해당 제품의 제조업체가 회수해야 합니다. NZXT는 유럽 내에서 판매되는 NZXT 제품에 대한 회수 지침을 준수합니다. 수명이 欧盟地区售出的 NZXT 产品报废时，NZXT 将遵循该产品回收要求。您可以将 这些产品送至当地的回收点。 다한 제품은 해당 지역의 회수처에 반납하실 수 있습니다.
  • Page 60 5.6 REVISION HISTORY N5 Z690 INTEL ATX MOTHERBOARD Version 2, 2023/07/03 A - 1 8...
