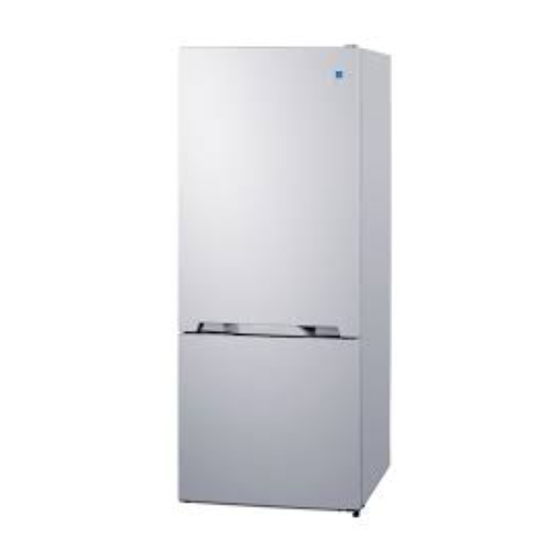

Summit FFBF151W User Manual

Bottom mount refrigerator - freezer

Hide thumbs

Table Of Contents

Available languages

Quick Links

Download this manual

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.

Write Model and Serial Numbers here:

Model _________________________

Serial No. ______________________

BOTTOM MOUNT

REFRIGERATOR - FREEZER

FFBF151W

LBF16W

SBF16W

FFBF152PL

LBF16PL

SBF16PL

User Manual

Models:

FFBF152B

LBF16B

SBF16B

FFBF154SS

LBF16SS

SBF16SS

Table of Contents

Need help?

Do you have a question about the FFBF151W and is the answer not in the manual?

Questions and answers

Summary of Contents for Summit FFBF151W

Page 1 BOTTOM MOUNT REFRIGERATOR - FREEZER Models: FFBF152B FFBF151W LBF16B LBF16W SBF16B SBF16W FFBF154SS FFBF152PL LBF16SS LBF16PL SBF16SS SBF16PL User Manual BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Write Model and Serial Numbers here: Model _________________________...
Page 2: Risk Of Electric Shock
Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................1 1.1 General Safety Warnings ....................1 1.2 Installation warnings .......................6 1.3 During Usage........................6 2 DESCRIPTION OF THE APPLIANCE ............8 3 USING THE APPLIANCE ................8 3.1 Information about New Generation Cooling Technology ..........8 3.2 Display and Control Panel ....................9 3.3 Operating your Fridge Freezer ..................9 3.3.1 Freezer Temperature Settings ..................9 3.3.2 Refrigerator Temperature Settings ................9...
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Page 5 natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 7 • WARNING: The refrigeration system is under high pressure. Do not tamper with it. Contact qualified service personal before disposal. • CAUTION: To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In The Vicinity Of Freezer Or Refrigerator. •...
Page 8 To prevent food contamination, please follow these instructions: • Keeping the door open for extended periods can significantly raise the temperature inside the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems. • Store raw meat and fish in suitable containers in the refrigerator to prevent them from coming into contact with or dripping onto other foods.
Page 9: Installation Warnings
1.2 Installation Warnings Before using your fridge freezer for the first time, please consider the following points: • The operating voltage for your fridge • Clearance of at least 6 inches is required freezer is 115-127 V at 60Hz. at the top of your appliance. Do not place •...
Page 10: During Usage
1.3 During Usage Old and Out-of-Order Fridges • If your old fridge or freezer has a lock, • Do not connect your fridge freezer to the break or remove the lock before mains electricity supply using an extension discarding it, because children may get lead.
Page 11: Description Of The Appliance
2 DESCRIPTION OF THE 3 USING THE APPLIANCE APPLIANCE 3.1 Information about New Generation Cooling Technology Fridges with new-generation cooling technology have a different operating system to static fridges. Other (static) fridges may experience a build up of ice in the freezer compartment due to door openings and humidity in the food.
Page 12: Display And Control Panel
3.2 Display and Control Panel 3.3.2 Refrigerator Temperature Settings • The initial temperature value for the refrigerator setting indicator is 39°F. • Press the cooler button once. • Whenever you press the button, a lower temperature will be set (46°F, 43°F, 41°F, 39°F, or 36°F).
Page 13: Door Open Alarm Function
Changing Temperature Display from Recommended Settings for the Freezer Celsius to Fahrenheit and Refrigerator Compartment To view temperature settings in Fahrenheit, Temperature please follow these instructions: Freezer Refrigerator Remarks • Set the refrigerator section temperature to Compartment Compartment 4°C and wait until the blinking stops. For regular use and best •...
Page 14: Accessories
(The images are representative) 3.5 Accessories Visual and text descriptions in the accessories section may vary according to the model of your appliance. 3.5.1 Ice Tray (In some models) • Fill the ice tray with water and place in the freezer compartment. •...
Page 15: The Fresh Dial (In Some Models)
4 FOOD STORAGE To Remove the Chiller Drawer: (The images are representative) 4.1 Refrigerator Compartment For normal operating conditions, set the temperature of the refrigerator compartment to 39 F to + 43 • To reduce humidity and prevent frost formation, always store liquids in sealed containers in the refrigerator.
Page 16: Freezer Compartment
• Do not obstruct the air flow passage by Maximum How and where to placing food items in front of it. Food storage time store • Consume packaged foods before the Butter and On the designated recommended expiration date. 1 week margarine door shelf •...
Page 17 • Frozen food should be transported in • If the freezer door has been left open for a long time or not closed properly, frost will appropriate containers and placed in the form and can prevent efficient air freezer as soon as possible. circulation.
Page 18 Maximum storage time Meat and fish Preparation (months) Shellfish Clean and in a bag 4 - 6 In its packaging, or in an aluminium or plastic Caviar 2 - 3 container Snails In salty water, or in an aluminium or plastic container NOTE: Thawed frozen meat should be cooked as fresh meat.
Page 19: Cleaning And Maintenance
5 CLEANING AND • Remove the water tray from its position by removing the screws (if it has screws). MAINTENANCE Clean it with soapy water at specific time intervals. This will prevent odours from Disconnect the unit from the power forming.
Page 20: Instructions For Reversing The Door Swing
6.3 Instructions for Reversing the Door Swing 1. Remove the top hinge cover from the refrigerator compartment. 2. Unscrew the top hinge. 3. Remove and set it aside. EN - 17...
Page 21 4. Lift the refrigerator door up and forward to detach it from the pin. 5. Reposition the top hinge cover. EN - 18...
Page 22 6. Unscrew the middle hinge. Set it aside. 7. Lift the freezer door up and forward to remove it from the pin. EN - 19...
Page 23 9. Detach the pin from the bottom hinge and move it to the opposite hole. 8. Unscrew the foot and bottom hinge. 10. Relocate the bottom hinge and foot to the opposite side. EN - 20...
Page 24 11. Switch the top door cap cover to the opposite side of the door. EN - 21...
Page 25 12. Unscrew the bottom freezer door hinge to the opposite side. 13. Ensure the hinge is flipped. EN - 22...
Page 26 14. Unscrew the bottom refrigerator door hinge to the opposite side 15. Ensure the hinge is flipped. EN - 23...
Page 27 17. Attach the freezer door by 16. Insert the middle hinge to the inserting it onto the pin, pushing top of the freezer door. down and toward the unit. 18. Secure the middle hinge to the unit. EN - 24...
Page 28 19. Attach the refrigerator door by inserting it onto the pin, pushing down and toward the unit. EN - 25...
Page 29 20. Secure the top hinge to the top of the unit. 21. Reattach the hinge cover. Ensure it snaps into place. EN - 26...
Page 30: Tips For Saving Energy
7 TIPS FOR SAVING ENERGY Recommendations • If the appliance is switched off or • Install the appliance in a cool, well- unplugged, wait at least 5 minutes before ventilated room, but not in direct sunlight plugging the appliance in or restarting it in and not near a heat source (such as a order to prevent damage to the radiator or oven) otherwise an insulating...
Page 31: Error Codes
8 ERROR CODES Errors Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators. ERROR TYPE MEANING WHAT TO DO Call Service for assistance as...
Page 32 ERROR TYPE MEANING WHAT TO DO 1. Check is Super Cool mode is activated 2. Reduce the fridge compartment temperature Fridge compartment is Various 3. Check to see if vents are clear too cold and not clogged If this warning continues an authorised technician needs to be contacted.
Page 33: General Troubleshooting
9 GENERAL TROUBLESHOOTING If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service. PROBLEM POSSIBLE CAUSES SOLUTION There is no power. Verify that the power supply to the building is active. Contact your utility Your appliance is not provider if there are outages.
Page 34: Limited Warranty
LIMITED WARRANTY ONE-YEAR LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
Page 35 52526252...
Page 36: Manuel D'utilisation
Machine Translated by Google MONTAGE I NFÉRIEUR RÉFRIGÉRATEUR C ONGÉLATEUR Modèles: FFBF152B FFBF151W LBF16B LBF16W SBF16B SBF16W FFBF154SS FFBF152PL LBF16SS LBF16PL SBF16SS SBF16PL Manuel d 'utilisation AVANT U TILISATION, V EUILLEZ L IRE E T S UIVRE T OUTES L ES R ÈGLES D E S ÉCURITÉ E T L ES I NSTRUCTIONS D 'UTILISATION.
Page 37 Merci d 'avoir c hoisi c e p roduit. Ce m anuel d 'utilisation c ontient d es i nformations i mportantes s ur l a s écurité e t d es i nstructions d estinées à vous a ider d ans l 'utilisation e t l 'entretien d e v otre a ppareil. Veuillez ...
Page 38 CONTENU 1 C ONSIGNES D E S ÉCURITÉ ....................1 1.1 A vertissements g énéraux d e sécurité....................1 1 .2 A vertissements d'installation......................6 1 .3 P endant l'utilisation...........................7 2 D ESCRIPTION D E L 'APPAREIL................8 3 U TILISATION D E L 'APPAREIL ................8 3.1 ...
Page 39: Onsignes D E S Écurité
1 C ONSIGNES D E S ÉCURITÉ 1.1 A vertissements g énéraux d e s écurité Lisez a ttentivement c e m anuel d 'utilisation. AVERTISSEMENT : G ardez l es o uvertures d e v entilation, d ans le b oîtier d e l 'appareil o u d ans l a s tructure i ntégrée, e xemptes d e t oute obstruction.
Page 40 gaz n aturel, m ais i l e st e xplosif. E n c as d e f uite d ue à l a d étérioration des é léments r éfrigérants, é loignez v otre r éfrigérateur d es f lammes nues ...
Page 41 • C et a ppareil p eut ê tre u tilisé p ar d es e nfants â gés d e 8 a ns e t plus e t p ar d es p ersonnes a yant d es c apacités p hysiques, sensorielles ...
Page 42 • A VERTISSEMENT : L e s ystème d e r éfrigération e st s ous haute p ression. N e p as l e m odifier. C ontacter u n t echnicien qualifié avant de procéder à la mise au rebut. •...
Page 43 Pour é viter l a c ontamination d es a liments, v euillez s uivre ces instructions : • G arder l a p orte o uverte p endant d es p ériodes p rolongées p eut augmenter c onsidérablement l a t empérature à l ’intérieur d e l’appareil.
Page 44: A Vertissements D'installation
1.2 A vertissements d 'installation Avant d'utiliser v otre r éfrigérateurcongélateur p our l a p remière f ois, veuillez t enir c ompte d es p oints s uivants : Un espace libre d'au moins 6 pouces est requis au sommet de •...
Page 45: P Endant L'utilisation
1.3 P endant l 'utilisation Réfrigérateurs a nciens e t h ors s ervice • S i v otre ancien r éfrigérateur o u c ongélateur e st é quipé d 'un v errou, • N e b ranchez p as v otre r éfrigérateurcongélateur a u cassez ...
Page 46: Tilisation D E L 'Appareil
2 D ESCRIPTION D U 3 U TILISATION D E L 'APPAREIL APPAREIL 3.1 I nformations s ur l a t echnologie d e r efroidissement d e nouvelle g énération Les r éfrigérateurs d otés d 'une t echnologie d e r éfrigération de ...
Page 47: R Églages D E T Empérature D U Congélateur
3.3.2 R églages d e t empérature d u r éfrigérateur 3.2 A ffichage e t p anneau d e c ontrôle • L a v aleur d e t empérature i nitiale p our l e L'indicateur d e r églage d u r éfrigérateur e st à 3 9°F. • ...
Page 48: F Onction D 'Alarme D E P Orte Ouverte
Modification d e l 'affichage d e l a t empérature à p artir d e Réglages r ecommandés p our l e c ompartiment c ongélateur e t De C elsius à F ahrenheit réfrigérateur Pour a fficher l es p aramètres d e t empérature e n d egrés Température Fahrenheit, ...
Page 49: Accessoires
(Les i mages s ont r eprésentatives) 3.5 A ccessoires Les d escriptions v isuelles e t t extuelles d ans l a section a ccessoires p euvent v arier s elon l e m odèle d e v otre appareil.
Page 50: C Ompartiment R Éfrigérateur
Pour r etirer l e t iroir r éfrigéré : 4 S TOCKAGE D ES A LIMENTS (Les i mages s ont r eprésentatives) 4.1 C ompartiment r éfrigérateur Pour d es conditions d e f onctionnement n ormales, réglez l a température d u c ompartiment r éfrigérateur entre ...
Page 51: C Ompartiment C Ongélateur
• N e p as o bstruer l e p assage d u f lux d 'air e n Durée d e placer d es a liments d evant l ui. Comment e t o ù s tocker Nourriture stockage m aximale • ...
Page 52 • L es a liments c ongelés d oivent ê tre t ransportés d ans • S i l a p orte d u c ongélateur e st r estée o uverte p endant u ne longtemps o u m al f ermé, l e g el v a des ...
Page 53 Durée d e s tockage m aximale Viande e t p oisson Préparation (mois) 4 6 Fruits d e m er Propre e t d ans u n s ac Dans s on e mballage, o u d ans u n r écipient e n a luminium o u 2 ...
Page 54: Entretien
5 N ETTOYAGE E T • R etirez l e b ac à e au d e s on e mplacement en r etirant l es v is ( si i l y a d es v is). ENTRETIEN Nettoyezle ...
Page 55 6.3 I nstructions p our i nverser l e s ens d 'ouverture d e l a p orte 1. R etirez l e c ouvercle d e l a c harnière s upérieure du c ompartiment r éfrigérateur. 2. D évissez l a c harnière supérieure.
Page 56 4. S oulevez l a p orte d u r éfrigérateur vers l e h aut e t v ers l’avant p our l a détacher d e l a g oupille. 5. R epositionnez l e c ouvercle d e l a c harnière supérieure.
Page 57 6. D évissez l a c harnière centrale. Mettezle d e c ôté. 7. S oulevez l a p orte d u c ongélateur v ers le haut e t v ers l ’avant p our l a r etirer d e l a goupille.
Page 58 9. Détachez l a g oupille d e l a charnière i nférieure e t d éplacezla vers l e t rou o pposé. 8. Dévissez l e p ied e t l a c harnière i nférieure. 10. Déplacez l a c harnière inférieure ...
Page 59 11. B asculez l e c ouvercle d u c apuchon d e p orte s upérieur s ur l e c ôté o pposé d e l a p orte. FR 2 1...
Page 60 12. D évissez l a c harnière d e l a p orte inférieure d u congélateur v ers l e c ôté opposé. 13. A ssurezvous q ue l a c harnière e st retournée. FR 2 2...
Page 61 14. D évissez l a c harnière i nférieure d e l a p orte du r éfrigérateur vers l e c ôté o pposé 15. A ssurezvous q ue l a c harnière e st r etournée. FR 2 3...
Page 62 17. Fixez l a p orte d u c ongélateur e n 16. Insérez l a c harnière c entrale e n l'insérant s ur l a g oupille, e n haut de l a p orte d u c ongélateur. poussant vers l e b as e t v ers l'appareil.
Page 63 19. F ixez l a p orte d u r éfrigérateur e n l'insérant s ur l a g oupille, e n p oussant vers l e b as e t v ers l 'appareil. FR 2 5...
Page 64 20. F ixez l a c harnière s upérieure s ur l e d essus d e l ’unité. 21. R emettez l e c ouvercle d e l a charnière e n p lace. Assurezvous qu'il s 'enclenche b ien e n p lace. FR ...
Page 65: Conseils Pour Économiser De L'énergie
7 CONSEILS POUR ÉCONOMISER DE L'ÉNERGIE Recommendations • Si l'appareil est éteint ou débranché, attendez Installez l'appareil dans une pièce fraîche et • au moins 5 minutes avant de brancher l'appareil bien aérée, mais pas en plein soleil et pas à ou de le redémarrer afin d'éviter d'endommager proximité...
Page 66: Odes D 'Erreur
8 C ODES D 'ERREUR Erreurs Votre r éfrigérateur v ous a vertit s i l es t empératures d u r éfrigérateur e t d u c ongélateur s ont à d es n iveaux inappropriés o u s i u n p roblème s urvient a vec l 'appareil. D es c odes d 'avertissement s 'affichent s ur l es i ndicateurs d u congélateur ...
Page 67 TYPE D 'ERREUR SIGNIFICATION CE Q U'IL F AUT F AIRE POURQUOI 1. V érifiez q ue l e m ode S uper C ool est a ctivé 2. R éduisez l a température du c ompartiment r éfrigérateur Le ...
Page 68: Dépannage
8 DÉPANNAGE Si vous rencontrez un problème avec votre appareil, veuillez vérifier les points suivants avant de contacter le service après-vente. PROBLÈME CAUSES POSSIBLES SOLUTION Il n'y a pas d'électricité. Vérifiez que l'alimentation électrique du bâtiment est active. Contactez Votre appareil votre fournisseur d'électricité...
Page 69 Il y a une La porte de l'appareil est ouverte Limitez le nombre de fois où la porte est ouverte et assurez-vous accumulation fréquemment. L'humidité de la pièce qu’elle est bien fermée à chaque fois. d'humidité à pénètre dans l'appareil lorsque les l'intérieur de portes sont ouvertes.
Page 70: Garantie Limitée
GARANTIE LIMITÉE GARANTIE LIMITÉE D'UN AN Dans les 48 États contigus des États-Unis, pendant un an à compter de la date d'achat, lorsque cet appareil est utilisé et entretenu conformément aux instructions jointes ou fournies avec le produit, le garant paiera les pièces spécifiées par l'usine et la main-d'œuvre pour corriger les défauts de matériaux.
Page 71 52525485...
