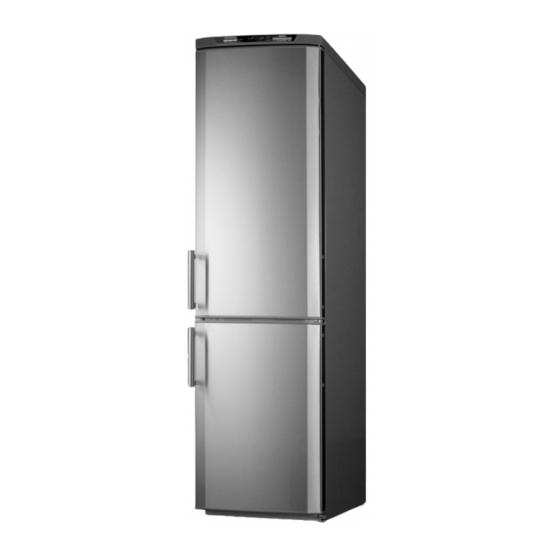

Summit FFBF171SS User Manual

Two-door refrigerator with bottom freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

TWO-DOOR REFRIGERATOR
Please record the serial number, which is found on a label
inside the refrigerator.
________________________________________________
Staple your receipt to this manual. You will need it to obtain warranty service.
with BOTTOM FREEZER
Model No. FFBF171SS
User's Manual
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com

Advertisement

Table of Contents
loading

Related Manuals for Summit FFBF171SS

Summary of Contents for Summit FFBF171SS

  • Page 1 TWO-DOOR REFRIGERATOR with BOTTOM FREEZER Model No. FFBF171SS User's Manual FELIX STORCH, INC. Please record the serial number, which is found on a label 770 Garrison Avenue inside the refrigerator. Bronx, New York 10474 www.summitappliance.com ________________________________________________ Staple your receipt to this manual. You will need it to obtain warranty service.

  • Page 2: Table Of Contents

    Table of Contents Important Safeguards ................2 - 3 Parts and Features ..................4 Installation ....................5 - 8 Transporting your appliance ..............5 Setting up the appliance ................ 5 Location ................... 5 - 6 Electrical requirements ................6 Reversing the door swing ..............6 - 7 Door handle reversal ................

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS Read all of the instructions before using this appliance. If instructions are not followed, you may lose your right to free service during the warranty period. Please keep this manual in a safe place and pass it on to later users if applicable.
  • Page 4 "...Thawed ground meats, poultry or fish that have any off-odor or off-color should not be refrozen and should not be eaten. Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat.

  • Page 5: Parts And Features

    Parts and Features 1. Control panel 16. Freezer lower drawer 2. Interior light 17. Adjustable feet 3. Light cover 18. Door rack cover 4. Refrigerator shelves 19. Egg rack (inside) 5. Temperature head guard 20. Door rack 6. Temperature sensor 21.

  • Page 6: Installation

    Installation Transporting your appliance 1. The appliance should only be transported in the upright position. 2. The packaging as supplied must remain intact during transportation. 3. If the unit has been transported or carried in the horizontal position, it may only be plugged in after standing in the vertical position for 4 hours.

  • Page 7: Electrical Requirements

    • Leveling legs can be adjusted by turning them counter-clockwise to raise the refrigerator or clockwise to lower it. Correct adjustment of the feet avoids excessive vibration and noise. Electrical requirements Any electrical work required to install this appliance should be carried out by a qualified or authorized person.

  • Page 8: Location

    5. Remove the installed door stopper from the bottom of the upper door and put it beside the instruction manual bag. 6. Take the other door stopper from the instruction manual bag and fit it on the opposite bottom edge of the upper door using the screw removed from the right- hand door stopper.

  • Page 9: Door Handle Reversal

    Door handle reversal (if door swing is reversed) Remove the handle screws that hold the handle to the door on the left side as illustrated, and transfer them to the covered holes on the right side. Use the screws to affix the handle to the right side of the door and place the hole coverings over the holes on the left side of the door.
  • Page 10 Operation of the various controls is described below: REFRIGERATOR ON/OFF Press this button once and the refrigerator turns on. Pressing it a second time will turn the refrigerator off. SUPER COOL If you need the temperature inside the refrigerator to drop rapidly, press the button and the refrigerator will run in SUPER COOL mode until SUPER COOL the temperature inside the refrigerator reaches 2°C (35.6°F).

  • Page 11: Refrigerator Compartment

    Freezer Temperature Alarm : When the temperature in the freezer is abnormally high, the over-temperature alarm will be heard. A buzzer will sound for 10 seconds, and at the same time the alarm LED on the control panel will begin to flash. Press the Alarm/M button once to stop the buzzer.

  • Page 12: Food Storage Information

    Defrosting The freezer compartment defrosts automatically. WARNINGS! • The fan inside the freezer compartment circulates cold air. Never insert any object through the guard. Do not allow children to play with the freezer fan. • To ensure that you obtain the best possible performance from your appliance, do not obstruct the freezer fan guard.

  • Page 13: Frozen Food

    Frozen Food • Proper freezer storage requires correct packaging. All foods must be in packages that do not allow the flow of air or moisture in or out. Improper storage will allow the transfer of odors and taste and will result in the drying out of the improperly packaged food.

  • Page 14: Cleaning And Care

    Cleaning and Care Warning! To avoid electric shock, always unplug your refrigerator or switch off the circuit breaker before cleaning. Ignoring this warning may result in death or injury. Interior and exterior surfaces • Remove foods from the appliance before cleaning and store them in a cool, covered place.

  • Page 15: If There Is A Power Failure

    b) Remove the plastic light cover with one hand while forcefully pressing the middle of the cover with the other hand. See illustration. c) Replace the bulb with a 10-watt (or less) LED bulb that is of the same shape and size as the original. d) Replace the plastic cover and reconnect the unit.

  • Page 16: Changing The Light Bulb

    Troubleshooting Not every malfunction is a case for our customer service. Very often, you can easily resolve the problem without requesting service. Before requesting service, please check the list below to see if the call can be avoided. Problem Possible Cause Solution Appliance is not switched on.

  • Page 17: Limited Warranty

    SUMMIT Appliances are manufactured to provide outstanding value, and your satisfaction is our goal on every product. All SUMMIT major appliances carry a one year limited warranty on both parts and labor. All refrigerators and freezers carry an additional four years on the compressor. Certain exclusions may apply.
  • Page 18 • ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD: Summit is not responsible for the repair or replacement of any parts that Summit determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or act of God.
