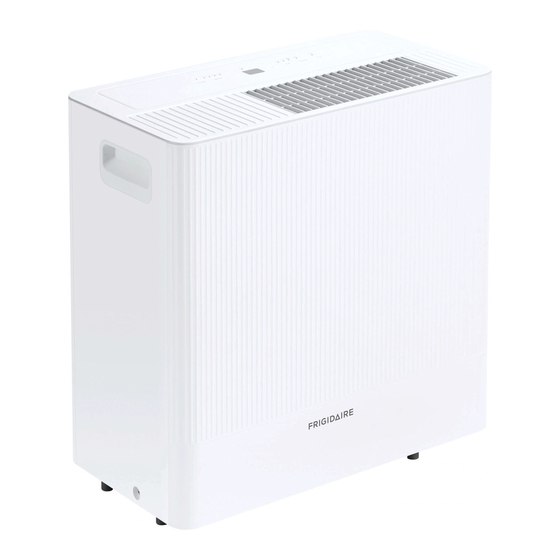

Frigidaire FHDP5033W1 Use & Care Manual
  1. Manuals
  2. Brands
  3. Frigidaire Manuals
  4. Dehumidifier
  5. FHDP5033W1
  6. Use & care manual
Frigidaire FHDP5033W1 Use & Care Manual

Frigidaire FHDP5033W1 Use & Care Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Introduction .....................................................2
Important Safety Instructions ...................3
FCC Statement ............................................. 10
Location ........................................................... 11
How It Works.................................................. 11
Dehumidifier Features................................ 13
Frigidaire.com USA 1-800-944-9044
use
Dehumidifier
Operating Instructions ............................... 13
Care And Cleaning ...................................... 18
Storage ............................................................ 19
Normal Sounds ............................................. 19
Before You Call............................................ 20
Frigidaire.ca Canada 1-800-265-8352
care
&
FHDP5033W1
Model:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FHDP5033W1 and is the answer not in the manual?

Questions and answers

Related Manuals for Frigidaire FHDP5033W1

Summary of Contents for Frigidaire FHDP5033W1

  • Page 1: Table Of Contents

    Care And Cleaning ........18 FCC Statement ..........10 Storage ............19 Location ............11 Normal Sounds ..........19 How It Works..........11 Before You Call..........20 Dehumidifier Features........ 13 Major Appliance Limited Warranty..21 Model: FHDP5033W1 Frigidaire.com USA 1-800-944-9044 Frigidaire.ca Canada 1-800-265-8352...

  • Page 2: Introduction

    INTRODUCTION family Welcome to our Thank you for bringing Frigidaire® into your home! your purchase beginning of a long relationship together. This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS • Do not leave children unattended in an WARNING area where the appliance is operating. Do not allow them to sit or stand on the For Your Safety appliance. • This appliance is not intended for use by •...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING SAFETY PRECAUTIONS CAUTION! Avoid Injury or damage to the FOR FLAMMABLE REFRIGERANT unit or other property • Servicing shall only be performed as recommended equipment • Do not direct airflow at fireplaces or other manufacturer. Maintenance and repair heat related sources as this could cause requiring the assistance of other skilled flare ups.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS • opening of ventilated enclosures. the refrigerating system, the following precautions shall be complied with prior • No any open fire or device like switch to conducting work on the system. which may generate spark/arcing shall be around air conditioner to avoid causing b) Work procedure ignition of the flammable refrigerant used.
  • Page 6 IMPORTANT SAFETY INSTRUCTIONS flammable refrigerant can possibly be checks component inspection released to the surrounding space. Prior procedures. If a fault exists that could to work taking place, the area around the compromise safety, then no electrical equipment is to be surveyed to make sure supply shall be connected to the circuit that there are no flammable hazards or until it is satisfactorily dealt with.
  • Page 7 IMPORTANT SAFETY INSTRUCTIONS refrigerant and shall be calibrated to the achieved by breaking the vacuum in the refrigerant employed and the appropriate system with oxygen-free nitrogen and percentage of gas (25 % maximum) is continuing fill until working confirmed. Leak detection fluids are pressure is achieved, then venting to suitable for use with most refrigerants but atmosphere, and finally pulling down to a...
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS a) Become familiar with the equipment and removed safely. When transferring its operation. refrigerant into cylinders, ensure that only appropriate refrigerant recovery b) Isolate system electrically. cylinders are employed. Ensure that the c) Before attempting the procedure ensure correct number of cylinders for holding that: Mechanical handling equipment is the total system charge is available.

  • Page 9: Wiring Diagram

    IMPORTANT SAFETY INSTRUCTIONS CAUTION: Risk of fire flammable materials IMPORTANT NOTE: Read this manual carefully before installing or operating your new appliance unit. Make sure to save this manual for future reference. This symbol shows that the operation manual should be read CAUTION carefully.

  • Page 10: Fcc Statement

    FCC STATEMENT FCC Interference Statement antenna or transmitter unless authorized to do so by the FCC. This equipment has been tested and found to comply with the limits for a Class B digital INDUSTRY CANADA (IC) STATEMENT device, pursuant to part 15 of the FCC Rules. This Class B digital apparatus complies with These limits are designed to provide Canadian ICES-003.

  • Page 11: Location

    LOCATION & HOW IT WORKS Location How It Works Selecting a Location When the unit is started, the fan begins to pull moisture-laden across IMPORTANT: dehumidifying coils. The coils condense or 1. Dehumidifier must be operated in an draw moisture from the air, and air flows enclosed area to be most e ective.

  • Page 12: How It Works

    HOW IT WORKS Install wheels Repeat on the other side to install the other 2 casters. Open the cover of the water bucket. Note: The tilt Angle CAN NOT be larger than 30° when installing casters. All casters MUST BE installed within 5 minutes. Leave the unit in a vertical position for half an hour before use.

  • Page 13: Dehumidifier Features

    DEHUMIDIFIER FEATURES & OPERATING INSTRUCTIONS Dehumidifier Features ELECTRONIC CONTROL Before you begin, thoroughly familiarize yourself with the control panel and all its functions (as shown below). Timer Button WIFI Indicator* Mode Button Pump Indicator Adjusts Humidity/Timer Dust Filter Indicator Fan Button Display Screen Pump Button Bucket Full Indicator...
  • Page 14 OPERATING INSTRUCTIONS Cont. Mode Press the Mode button to choose Cont. mode. In this mode, the set humidity cannot be changed. Display will show actual room humidity. Note: Fan speed can only be changed manually during Dry, AUTO and Cont. mode. Timer function The TIMER function enables you to either Delay Start or Delay Stop the unit in the...

  • Page 15: Fault Codes

    3 seconds to reset. EEPROM error. Unplug the unit and plug it in again, if the code persists, contact your Authorized Frigidaire® Service Center. 3. If the display reads "Eb", check the following operating conditions: a. Make sure the pump drain hose is well connected.

  • Page 16: Removing Collected Water

    OPERATING INSTRUCTIONS Removing Collected Water d. Replace the empty bucket back into the unit and once seated correctly, the unit will 1. Emptying the Bucket: start up again. a. When the bucket is full, the unit will shut e. You should hear a click when the bucket is down and the BUCKET FULL indicator will in the correct position.
  • Page 17 OPERATING INSTRUCTIONS c. Insert the female threaded end of the hose h. Select the desired humidity setting and fan onto the drain connector of the unit. speed on the unit for continuous draining to start. d. Screw the garden hose onto the threaded portion of the drain connector.

  • Page 18: Care And Cleaning

    CARE AND CLEANING 2. Cabinet To remove pump drain hose: a. Press the tightening ring of drainage joint. a. Dust cabinet with an oil-free cloth, or using a damp cloth. b. Pull out the drain hose. b. Vacuum grill using brush attachment. c.

  • Page 19: Storage

    STORAGE & NORMAL SOUNDS Storage Normal Sounds When unit is not in use, unplug and use the cord wrap shown for your model type. Dripping Sound The sound of dripping water may be heard during dehumidification cycle. Sound of Rushing Air At the top of the unit, you may hear the sound of rushing air being moved by the fan.

  • Page 20: Before You Call

    • Room Temperature is too low. All models will operate satisfactorily at temperatures greater than 41°F (5°C). Fan noise. • Air is moving through the dehumidifier. This is a normal sound. If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada) For Frigidaire® Service.

  • Page 21: Major Appliance Limited Warranty

    MAJOR APPLIANCE LIMITED WARRANTY Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.
  • Page 22 Our home is your home. Visit us if you need help with any of these things: owner support accessories service registration (See your registration card for more information.) Frigidaire.com 1-800-944-9044 Frigidaire.ca 1-800-265-8352 16120300A34212 (August 2024)
