SEA USA USER 2 DG 24V R1B Manual

Control unit to manage two 24v operators
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Compliance with
ANSI/UL/CSA 325:2003
(7th Ed., Feb. 21, 2023)

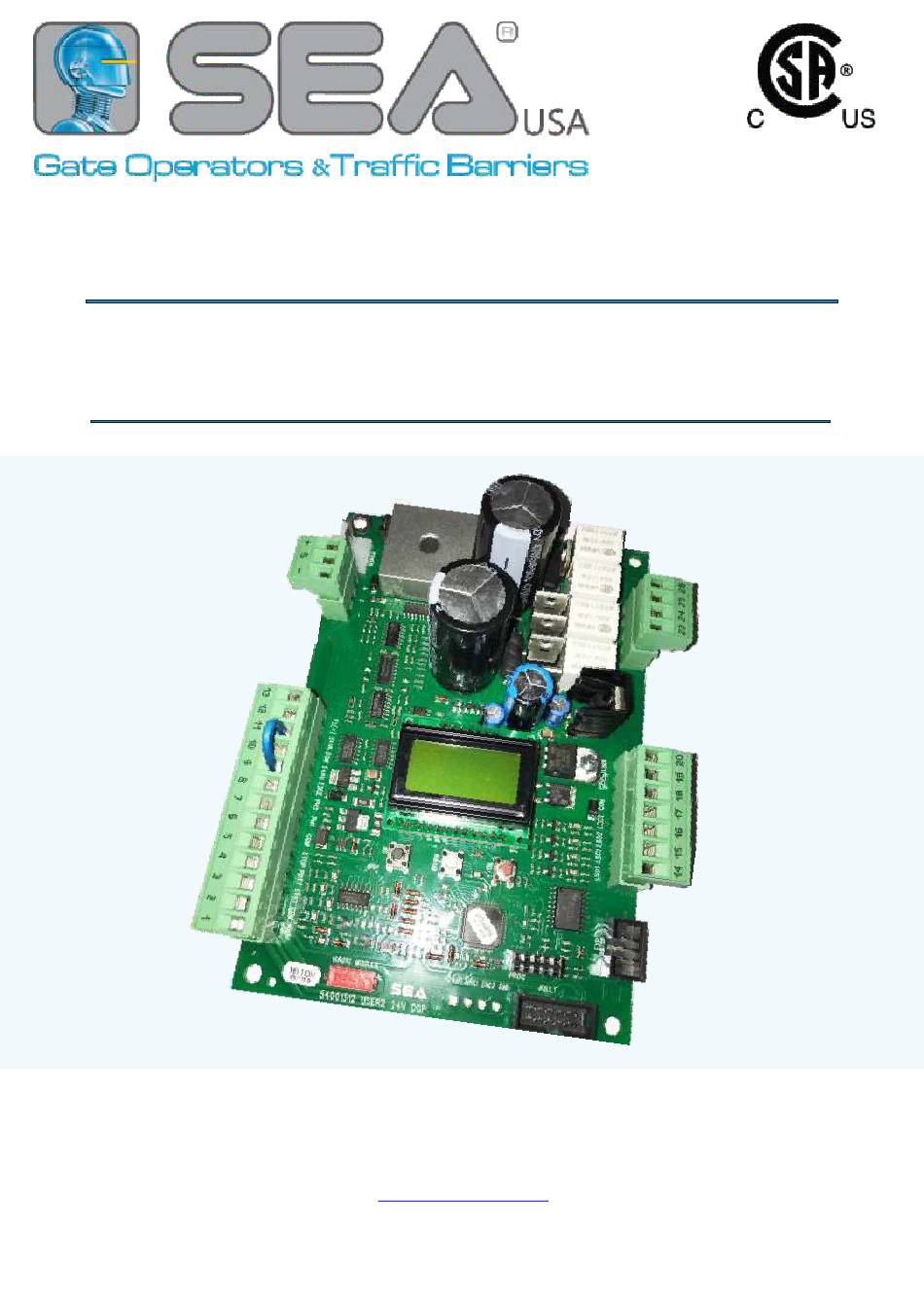

USER 2 DG 24V R1B
ALL - IN
CONTROL UNIT TO MANAGE TWO 24V OPERATORS
SEA USA Inc.
10850 N.W. - 21st - unit 160 - Doral - MIAMI - Florida (FL) - 33172 - USA
Telephone: ++1-305.594.1151
www.sea-usa.com
67411656
REV. 04 - 01/2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USER 2 DG 24V R1B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEA USA USER 2 DG 24V R1B

Summary of Contents for SEA USA USER 2 DG 24V R1B

  • Page 1 Compliance with ANSI/UL/CSA 325:2003 (7th Ed., Feb. 21, 2023) USER 2 DG 24V R1B ALL - IN CONTROL UNIT TO MANAGE TWO 24V OPERATORS SEA USA Inc. 10850 N.W. - 21st - unit 160 - Doral - MIAMI - Florida (FL) - 33172 - USA Telephone: ++1-305.594.1151...
  • Page 2 INDEX SAFETY INFORMATION AND «UL» STANDARDS REQUIREMENTS PRELIMINARY INFORMATION AND PRODUCT DETAILS 1 - WIRINGS CONNECTIONS ON START, PARTIAL START, STOP « » « » CONNECTIONS ON , 12V CONNECTIONS ON CONNECTIONS ON «POWER» CONNECTIONS ON CONNECTIONS ON CONNECTIONS ON - EXTERNAL MODULES «...
  • Page 3 INDEX 10 - DISPLAY OPERATION AND PROGRAMMING MENU 11 - BASIC MENU 12 - INPUTS STATUS MANAGEMENT N.C. N.O. 13 - WORKING TIMES LEARNING - PROGRAMMING OF THE CONTROL UNIT 14 - OPERATING LOGICS 15 - PASSWORD - PROTECTION OF THE CONTROL UNIT BY PASSWORD 16 - RECEIVERS AND TRANSMITTERS - PROGRAMMING OF THE TX «...
  • Page 4 UL 325 ED. 7 FOR GATE OPERATORS GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user; Read them carefully as they contain important indications for the safe installation, use and maintenance. 1.
  • Page 5 A gate operator shall be provided with the specific instructions describing all user adjustments required for proper operation of the gate. Detailed instructions shall be provided regarding user adjustment of any clutch or pressure relief adjustments provided. The instructions shall also indicate the need for periodic checking and adjustment by a qualified technician of the control mechanism for force, speed, and sensitivity.
  • Page 6 e. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for entrapment protection functions shall be located where the transmission of the signals is not obstructed or impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor shall function under the intended end-use conditions.
  • Page 7 The guarantee will be void and the manufacturer responsibility will be nullified if SEA USA Inc. original spare parts are not being used. The electrical installation shall be carried out by a professional technician who will release documentation as requested by the laws in force.

  • Page 8: Technical Information

    PRELIMINARY USER 2 24V DG requires the programming of the working times (chapter 13); it is not possible to start the operator correctly without first programming the control unit! The unit and the accessories programming and settings can be carried out by the display on board or by the JOLLY 3 programmer or SEACLOUD JOLLY 3 SEACLOUD...
  • Page 9 1 - WIRINGS Make all the wirings when the control unit is not powered! Keep the power cables separate from the command cables - always run cables in separate sheaths to prevent interferences! Automatic recognition of the N.C. inputs not in use, except for the safety edge input;...
  • Page 10 2 - CONNECTIONS ON CN1 2.1 - START (N.O.) Connect the « » command on clamps 3 and 6 (or 2) START Logics to be linked to the « » command in chapter 14 8 7 6 5 4 3 2 1 START If the input is engaged during the pause time, the g a t e d o e s n o t c l o s e u n t i l t h e i n p u t i s r e l e a s e d...

  • Page 11: Safety Loop

    2.6 - 24V FLASHING LIGHT - MAX 3W The flashing lamp can be wired on clamps 12 and 13 Door movement signals: BLINK SECOND IN OPENING BLINKS SECOND IN CLOSING TEADY LIT DURING PAUSE 13 12 11 10 9 LASHING LAMP Management of the flashing lamp operating FLASHING mode from menu 86...

  • Page 12: External Receiver

    2.9 - 10K PHOTOCELL SINGLE OR DOUBLE It is possible to wire up to two coples of 10K photocells on clamps * or to COM 6 9 - 11(or COM 6) - 12, as shown on the side Set the menu 100 on « 10K»...
  • Page 13 2.13 - LATCH OPENING OR LATCH CLOSING BUTTON Wire the button to be used as LATCH on clamps 4 and 6 OPENING LATCH «P » XAMPLE Management: set the desired operation mode (in opening or in closing) via the menu 118 To enable the , press the ;...

  • Page 14: Limit Switch

    3 - CONNECTIONS ON CN2 3.1 - LIMIT SWITCH N CASE OF SINGLE LEAF ONLY WIRE Connect the opening and closing limit switch THE MOTOR LIMIT SWITCHES as shown DO NOT JUMPER MOTOR LIMIT SWITCHES The type of limit switch is automatically 14 15 16 17 18 detected during the working times learning OPENING LIMIT SWITCH...
  • Page 15 4 - CONNECTION ON CN3 4.1 - MOTORS CONNECTION ON THE CONTROL UNIT MOTOR 1 = OPENING/CLOSING = CLOSING/OPENING 23 24 25 26 MOTOR 2 = OPENING/CLOSING = CLOSING/OPENING Selon le modèle d'opérateur utilisé, veillez à régler 35 - SURF MOTOR le bon type dans le menu de sélection du moteur : XAMPLE...

  • Page 16: Emergency Batteries

    CONNECTIONS ON 6.1 - CONTROL UNIT POWER SUPPLY BY «CN5» CONNECTOR L = PHASE (or P) G = GROUND SWITCHING N = NEUTRAL Fuse 3.15 AT delayed on 230V~ power supply Fuse 6.3 AT delayed on 115V~ power supply In case of unstable power supply, the use of an external UPS of min.
  • Page 17 7 - COLLEGAMENTO RICEVENTI SU CNA RECEIVER MODEL MAX USERS NUMBER RF UNI RF UNI PG RF UNI 16 USERS Without additional memory 800 USERS With additional memory MEMO RF UNI PG 100 USERS old type If programmed in mode FIX CODE non-extractable memory 800 USERS...
  • Page 18 8.3 - «POSITION GATE» LINEAR POTENTIOMETER CONNECTION VIA «LSE» or «LE» = BLUE P01/P02 Connect the « » linear POSITION GATE = BLACK D1/D2 potentiometer for managing the correct = BROWN P11/P12 position of the gate and the inversion on obstacles, as shown aside Respect the cable colors 4 5 6 7...

  • Page 19: Additional Functions

    9 - ADDITIONAL FUNCTIONS 9.1 - AMPEROMETRIC MANAGEMENT - FOR ELECTROMECHANICAL OPERATORS ONLY! The control unit is equipped with an (only on electromechanical OBSTACLE DETECTION SYSTEM operators), which allows the inversion in case of obstacle and the automatic detection of mechanical stops Torque parameters setting in opening and closing for adjustment of the inversion force M1 OPENING...
  • Page 20 10 - DISPLAY and PROGRAMMING CONNECT ALL THE ACCESSORIES WHEN THE CONTROL UNIT IS SWITCHED OFF! AFTER ALL CONNECTIONS HAVE BEEN MADE, POWER ON THE UNIT FOR SETTINGS 10.1 - POWER ON THE CONTROL UNIT OWER SOFTWARE INPUTS STATUS BASIC REVISION (CHAPTER 12) MENU...
  • Page 21 13 - BASIC MENU 11 - BASIC MENU RETURN TO ENGLISH LANGUAGE THE MAIN MENU DOWN SKIP THIS STEP IF YOU DO NOT NEED TO PROGRAM THE TX CONFIRM READ THE AND EXIT CHAPTER 16 PRESS ON THE TX PRESS STORED START BEFORE...
  • Page 22 12 - INPUTS STATUS MANAGEMENT 12.1 - INPUT STATUS DISPLAY Every input corresponds to a fixed position on the display, according to the diagram below Every input can be: (0) - N.O. - N.C. - START (*) MOTOR 1 OPENING LIMIT SWITCH 1 2 3 4 5 6 7 8 PARTIAL START MOTOR 1 CLOSING LIMIT SWITCH...
  • Page 23 12.3 - INPUTS MANAGEMENT MENU HIS MENU ALLOWS TO ENABLE OR DISABLE THE INPUTS WITHOUT REPEATING THE WORKING TIMES LEARNING LANGUAGE HOLD PRESSED 5 SECONDS TO ACCESS START ENABLED START RETURN START DISABLED DOWN PARTIAL ENABLED START PARTIAL RETURN START PARTIAL DISABLED START...

  • Page 24: Preliminary Settings

    13 - WORKING TIMES LEARNING DANGER! AVE A QUALIFIED SERVICE PERSON TO CARRY OUT THE OPERATIONS IN SAFE CONDITIONS Check the correct operation of all accessories (photocells, buttons, etc.) Do not jumper the inputs not in use (limit switch, safety edge, etc.) 13.1 - PRELIMINARY SETTINGS Before programming the working times, it is necessary to carry out the essential settings of the basic menu.
  • Page 25 13.3 - WORKING TIMES LEARNING for OPERATORS with LIMIT SWITCH Working times learning through automatic detection of the limit switches Set to «ON» the menu 32 to enable the encoder; Set to «OFF» if there is no encoder paragraph 13.2) Check on the INPUTS STATUS MENU (chapter 12) that the correct limit switch is engaged for each movement direction Start-up the working times learning by following the procedure below:...
  • Page 26 13.5 - WORKING TIMES LEARNING BY MANUAL PULSES For operators without limit switch, without encoder and without potentiometer Working times learning through manual pulses on the points of stop Check that the special menu 32 is set to «OFF» (see paragraph 13.2) LOCK UNLOCK LEAVES ON HALFWAY...
  • Page 27 13.7 - WORKING TIMES LEARNING BY AMPEROMETRIC FUCTION Times learning through automatic detection of the end-of-stroke points Set to «ON» the menu 32 to enable the encoder; Set to «OFF» if there is no encoder paragraph 13.2) Start-up the working times learning by following the procedure below OWER UNLOCK LEAVES ON HALFWAY...
  • Page 28 14 - LOGICS « », HE DEFAULT LOGIC IS AUTOMATIC ANYWAY IT CAN BE CHANGED AFTER THE WORKING TIMES LEARNING AUTOMATIC LOGIC: pre-set by default. Anyway it can be manually AUTOMATIC LOGIC enabled through the menu 6 or through the menu 7 by setting a pause time different than 0 and up to 240 seconds (The menu 7 also enables TIMER the automatic reclosing when different than 0)
  • Page 29 16 - RECEIVERS AND TRANSMITTERS ONNECT THE RECEIVER CIRCUIT WHEN THE CONTROL UNIT IS NOT POWERED AS SHOWN IN CHAPTER When the control unit is switched-off, check if the receiver is correctly plugged in Program the transmitters before connecting the antenna Program the transmitters only when the gate is closed and the motor is stopped allow the use of both r It is possible to store up to 2 among the available functions...
  • Page 30 16.4 - TRANSMITTERS FUNCTIONS DIAGRAM THE «START» PRESS STORED START LANGUAGE TRANSMITTERS BUTTON C O M M A N D MUST ALWAYS BE STORED ON T H E F I R S T PRESS THE BUTTON TO STORE T X C H A N N E L SETTING OF THE PARTIAL START PARTIAL PRESS...
  • Page 31 17 - ALARMS XAMPLE 17.1 - FAULTS SHOWN ON THE DISPLAY LIMIT SWITCH EXIT The control unit advises of the faults may happen through a FAULT message on the display (Note: press ok to exit the message) Below the list of the faults that are signaled on the display and the possible solutions to the problems (if the fault message holds out, contact the technical support) SOLUTION WARNING MESSAGE...
  • Page 32 17.2 - FAULTS SIGNALED ON THE FLASHING LIGHT It is also possible to visualize the warning signals through the flashing light simply by observing the number of flashes emitted (see the table of correspondences below) When an event occurs, the warning flashes will be issued at each « »...

  • Page 33: Troubleshooting

    18 - TROUBLESHOOTING AKE SURE THAT ALL THE SAFETY DEVICES ARE ENABLED PROBLEM POSSIBLE REASON SOLUTION The operator does not a) Check the connections and the jumpers on the safety edge or stop or photocell a) Check that the N.C. are connected respond to any START inputs, if connected b) Blown fuse...
  • Page 34 PROBLEM POSSIBLE REASON SOLUTION a) Opening control active a) Check if there is an active input among the open inputs b) Pause not set b) Check the pause settings The gate opens but does not c) The closing anti-entrapment protection device is c) Check if there is an active sensor among all the inputs of the anti-entrapment close with TX or closing timer active...
  • Page 35 USER 2 DG R1B MENU FUNCTIONS TABLE MENU DESCRIPTION DEFAULT NOTE Italiano Italian English English Français French 1 LANGUAGE English Español Spanish Dutch Dutch Polski Polish Start Start Partial START Partial START External module External module Stop Stop Pressed once, it stops the gate. Start Bistable Stop Pressed twice, it reactivates the START input...
  • Page 36 MENU DESCRIPTION DEFAULT NOTE The START command is not accepted during pause 8 START IN PAUSE The START command is accepted during pause 9 PROGRAMMING To start up the working times learning To give a START command for testing the operator 10 TEST START Command available only for already programmed units A count-down of 5 seconds will start by holding the UP button;...

  • Page 37: Special Menu

    SPECIAL MENU PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU SPECIAL MENU DESCRIPTION DEFAULT NOTE 17 OPENING SPEED 1 100% Motor 1 speed in opening 18 CLOSING SPEED 1 100% Motor 1 speed in closing 19 OPENING SPEED 2 100% Motor 2 speed in opening...
  • Page 38 SPECIAL MENU DESCRIPTION DEFAULT NOTE ON = Standard Encoder Enabled 32 ENCODER OFF = Standard Encoder Disabled (when OFF, only the learnt working times are shown) 10% (Fast intervention) To adjust the Potentiometer intervention time on the Motor 1 OPENING SENSITIVITY 99% (Slow intervention) in opening MOTOR 1...
  • Page 39 SPECIAL MENU DESCRIPTION DEFAULT NOTE Before opening, the motor starts up in closing for the time set, 76 PUSHING STROKE 3 seconds in order to simplify the lock release 77 LOCK TIME 5 seconds To adjust the lock release time from 0 to 5 seconds Only opening To enable the lock only before opening Only...
  • Page 40 SPECIAL MENU DESCRIPTION DEFAULT NOTE Disabled 93 FIRE SWITCH On Photocell 2 The function can be enabled on the Photocell 2 input On Partial START The function can be enabled on the Partial Start input Always AUX output always powered In cycle AUX output powered only during cycle Opening...
  • Page 41 SPECIAL MENU DESCRIPTION DEFAULT NOTE If the photocell is occupied during closing, the gate reverses the Closing movement; If the photocell is occupied during the pause, it prevents the gate reclosing If the photocell is occupied during opening or closing, it stops Opening and closing the gate movement;...
  • Page 42 SPECIAL MENU DESCRIPTION DEFAULT NOTE Note: «0000» setting is To enter a password for blocking the control unit parameters 112 PASSWORD - - - - not allowed modification Disabled In case of power failure and with batteries connected and Emergency charged, the gate opens completely and remains open until the power is restored In case of power failure, as soon as the battery charge drops...

  • Page 43: General Warnings

    Products under warranty will be returned pre-paid by SEA. Recognized defects, whatever their nature, will not produce any responsibility and/or damage claims to SEA USA Inc and SEA. Warranty shall not cover any required labour activities. Warranty will in no case be recognized if alterations and any other changes will be found on products.
  • Page 44 SEA USA Inc. 10850 N.W. - 21st - unit 160 - Doral - MIAMI - Florida (FL) - 33172 - USA Telephone: ++1 305 594 1151 www.sea-usa.com Compliance with ANSI/UL/CSA 325:2003 (7th Ed., Feb. 21, 2023)
