SEA USA User 1 24V DG R1B Manual

24v electronic control unit for sliding gates and barriers
Hide thumbs

Advertisement

Quick Links

Download this manual
International registered trademark n. 2.777.971

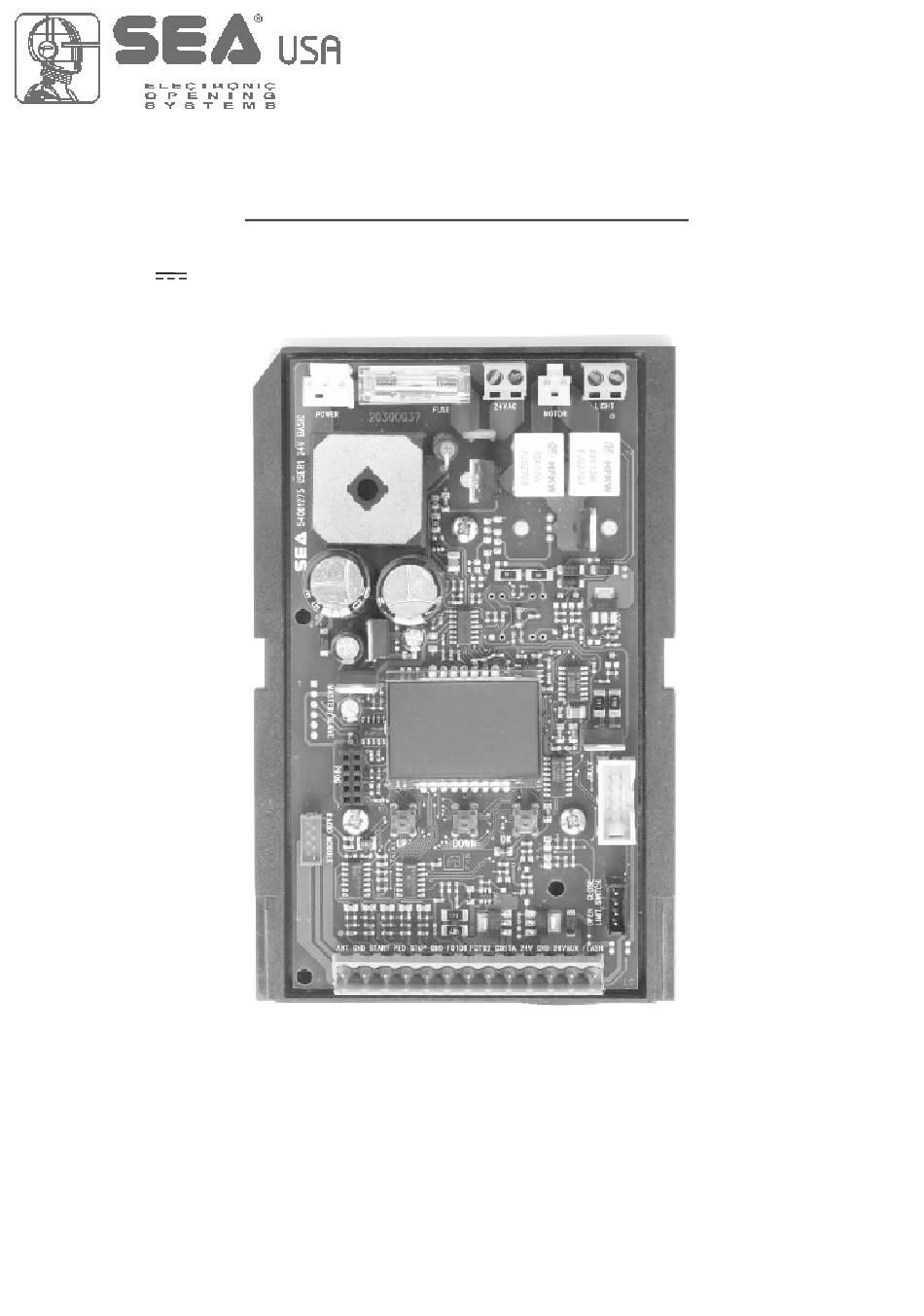

USER 1 - 24V DG R1B
24V
ELECTRONIC CONTROL UNIT FOR SLIDING GATES AND BARRIERS
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172 USA
Tel.
:++1-305.594.1151 ++1-305.594.7325
-
Toll free:
800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
67411535
REV 10 - 02/2018

Advertisement

loading
Need help?

Need help?

Do you have a question about the User 1 24V DG R1B and is the answer not in the manual?

Questions and answers

Related Manuals for SEA USA User 1 24V DG R1B

Summary of Contents for SEA USA User 1 24V DG R1B

  • Page 1 International registered trademark n. 2.777.971 USER 1 - 24V DG R1B ELECTRONIC CONTROL UNIT FOR SLIDING GATES AND BARRIERS SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Tel. :++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
  • Page 2 International registered trademark n. 2.777.971 IMPORTANT SAFETY INFORMATION GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user Read them carefully as they contain important indications for the safe installation, use and maintenance. 1.
  • Page 3 International registered trademark n. 2.777.971 GENERAL SAFETY INFORMATION An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
  • Page 4 The installer shall follow the provided instructions thoroughly. SEA products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc. explicit authorization will preserve the manufacturer from whatsoever responsibility.
  • Page 5 International registered trademark n. 2.777.971 5. The End of Type E. Type E (audible alarm) devices can no longer be used for entrapment protection. This change was made because the Type E device is really a warning device, not an entrapment-protection device. Also, all gate operator classes are now required to have an audio alarm that sounds when two successive obstructions are encountered via a contact-type system.

  • Page 6: Description Of The Components

    DESCRIPTION OF THE COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 24 V~ Absorption in stand 30 mA Environment temperature: -20°C +50°C Specifications of external enclosure: 305 x 225 x 125 mm - Ip55 LIGHT FUSE POWER BATTERY MOTOR COURTESY LIGHT RICEVENTE RX DISPLAY DOWN...
  • Page 7 CONNECTIONS POWER (CN8) MOTOR (CN6) LIGHT (CN5) 24V (Red) Brown Limit switch Cl.1 (Yellow) White Green Limit switch Op.1 (Green) 24V~ Max 200W Max 100mA Common (White) 9 10 11 12 13 ANT COM START PEDST STOP COM PH1 PH2 EDGE AUX COM (FL)- JUMPERS WARNING: The control unit is designed with the automatic detection of not used N.C.
  • Page 8 PROGRAMMING FAST SELF-LEARNING “Input check menu" DISPLAY DOWN 1 2 3 4 5 6 7 8 9 10 11 12 13 DOWN Start quick programming Fast self-learning START command by radio control You can start the quick programming by holding UP for 5 s in the “Input check You can store the START button of the menu", until the motor starts.
  • Page 9 PROGRAMMING PROGRAMMING QUICK START BUTTONS MENU MENU LANGUAGE ITALIANO DOWN Skip this step if you do not want to program a transmitter OK to exit Press the Menu or press MENU MENU MENU MENU button of the the button of PRESS TX to be START...
  • Page 10 BASIC MENU MENU FUNCTIONS TABLE USER1 24V DG R1B Set value MENU Description Default Italiano Italian English English Français French Italiano 1 - LANGUAGE Español Spanish Dutch Dutch Start Start Partial opening Start Partial opening Start External module External module Stop Stop Storing of a command...
  • Page 11 MENU Description Default Set value Synchronized right motor 5 - REVERSE MOTOR Synchronized left motor Automatic Automatic Open-stop-close-stop-open Step by step type 1 Step by step type 2 Open-stop-close-open Open-stop- 6 - LOGIC 2 buttons Two buttons close-open Safety Safety Dead man Dead man (semi-automatic logics)

  • Page 12: Function Logic

    FUNCTION LOGIC AUTOMATIC LOGIC A start impulse opens the gate. A second impluse during the opening will not be accepted. A start impulse during closing reverses the movement. NOTE 1: To have the automatic closing it is necessary to set a pause time, otherwise all the logic will be semi-automatic.
  • Page 13 PRESS AT THE SAME TIME FOR 5 S TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE USER 1 24V DG R1B For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 s.
  • Page 14 Default Set Value MENU SP Description Retrieves the inertia of the 70 - OPENING POSITION motor in opening after Stop 0 15 RECOVERY or reversing Retrieves the inertia of the 71 - CLOSING POSITION motor in closing after Stop 0 15 RECOVERY or reversing Adjust the tolerance between...
  • Page 15 MENU SP Description Default Set Value AUX output always Always p o w e r s u p p l i e d output active In cycle only during cycle AUX output power sup- Opening plied only during opening AUX output power sup- Closing plied only during closing AUX output power sup-...
  • Page 16 MENU SP Description Default Set Value Closing Photocell active in closing Opening and closing Active in opening and closing The photocell stops in closing Stop and close and closes when released The photocell is active Stop also before opening Stop N.O. It modifies the PHOTO2 input (only for VERG barrier) into a Normally Open stop button...
  • Page 17 MENU SP Description Default Set Value For applications with two motors in master-slave, it Master allows to set the control unit as master For applications with two 105 - MASTER-SLAVE motors in master-slave, Slave you can set the control unit as slave Disabled Shows last event 106 - DIAGNOSTICS...
  • Page 18 JOINT Photocell 1 Edge 1 DOWN Photocell 2 MENU FUNCTION TABLE CHECK USER 1 24V DG R1B INPUTS To access the Menu for input check keep pressed OK for about 5 seconds. Description Description MENU The contact must be a N.O. Contact . When activating the related...
  • Page 19 RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. With RF UNI and RF UNI PG module it will be possible to use both Coccinella Roll Plus transmitters and radio transmitters with fixed code.
  • Page 20 START - STOP - PARTIAL OPENING - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections + = 24V (Accessories) max 750mA COM = 0V PH1 = Photocell contact 1 PH2 = Photocell contact 2 Note: Self-test: connect the TX to the AUX clamp and activate the Autotest function. The 1 2 3 4 5 6 7 8 photocell 1 default setting is FOTO CLOSE and the photocell 2 one is FOTO OPEN.
  • Page 21 WARNING LAMP - SAFETY EDGE - 10K PHOTOCELL - BUZZER Example of two 10K Photocells 10K PHOTOCELL or DOUBLE 10K PHOTOCELL 9 and 11 connections etween clamps 9 and 11 on the terminal CN1 it is also possible to connect a 10K Photocell or two 10K Photocells .
  • Page 22 SAFETY LOOP CONNECTIONS DRAWING SHOWS HOW TO EVENTUALLY CONNECT THE MAGNETIC LOOP 1 2 3 4 5 6 7 8 9 10 11 12 13 C1 = CONTACT OPEN C2 = CONTACT CLOSED C C2 12 = 24 V Safety exit loop (loop 1) C = 0 V Connecting scheme of loop detector 1 reader...

  • Page 23: External Receiver

    CONNECTION OF BATTERIES TO BATTERY CHARGER CARD E SUN Q E SUN Code 23101105 Code 23101104 = charge 200mA = charge 200mA = charge 360mA = charge 360mA = charge 800mA = charge 800mA PSOL GND S 28V GND PSOL BAT 28V (BAT) - Bat + Bat...

  • Page 24: Master-Slave Function

    MASTER-SLAVE FUNCTION To set an installation with two motors in MASTER-SLAVE function it is recommended to do as follows: 1) Set the two motors as if they were two independent installations, make sure that the individual motor works properly and that the limit switches (when present) are read properly. 2) Once sure of the correct functioning connect the control unit MASTER to the control unit SLAVE through the special clamp (Code SEA 23001220).

  • Page 25: Motor Power Supply

    MOTOR POWER SUPPLY TRANSFORMER 115V~ 230V~ 3,6A blow fuse on 230V ~ power supply 6,3A blow fuse on 115V ~ power supply POWER (CN8) Power input Input for the connection of the electric power. P = PHASE NOTICE: for the N = NEUTRAL connection to the G = GROUND...
  • Page 26 ALARM DESCRIPTION Signals Kind of alarm Solutions Motors current Make sure there are no short circuits on the motor or on the FAILURE MOTOR failure control unit 24V Power supply Make sure there are no short circuits on the wiring or on the FAILURE24 failure control unit and no overloads...

  • Page 27: Troubleshooting

    TROUBLESHOOTING Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check the connections or the jumpers on the connections of Operator doesn’t respond to a) Check the connected N.C. contacts the safety edge or of the stop and of the photocell if connected any START impulse b) Burnt fuse b) Replace the burnt fuse on the control unit...
  • Page 28 Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check all Open inputs for an active input a) Open control active b) Check pause settings Gate opens, but will not close b) Pause not set c) Check all Entrapment Protection Device inputs for an active with transmitter or pause time c) Close Entrapment Protecting Device active...
  • Page 29 Periodically clean the optical systems of the photocells. REPLACEMENTS Any request for spare parts must be sent to: SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Tel. :++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716...
  • Page 30 Products under warranty will be returned pre-paid by SEA. Recognized defects, whatever their nature, will not produce any responsibility and/or damage claims to SEA USA Inc and SEA s.r.l. Warranty shall not cover any required labor activities. Warranty will in no case be recognized if alterations and any other changes will be found on products.
  • Page 31 International registered trademark n. 2.777.971 NOTES...
  • Page 32 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
