USER 2 - 24V / USER 2 HIDRO
23024015/16/17/18/19/20/21

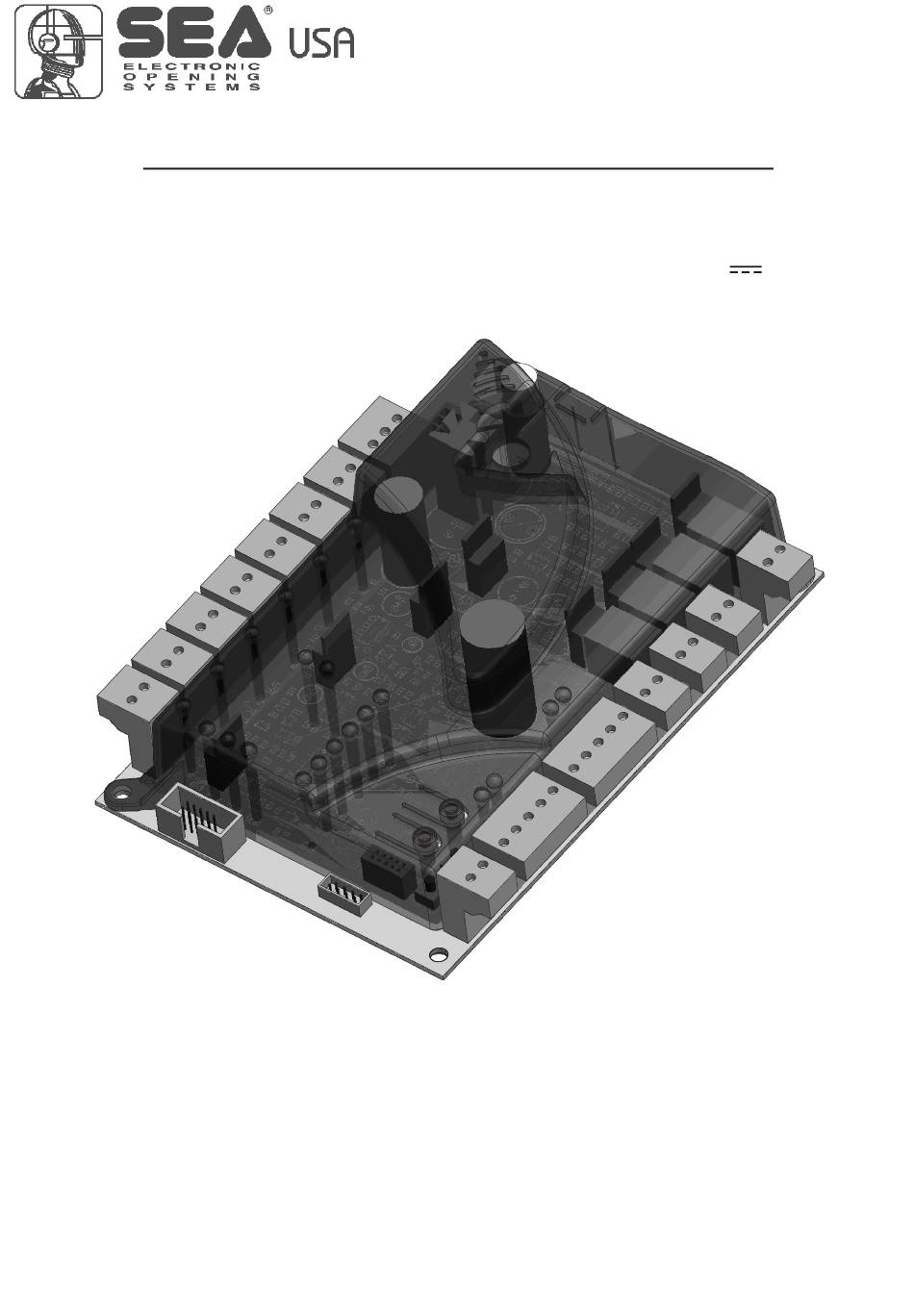

ELECTRONIC CONTROL UNIT FOR SWING OPERATORS 24V
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172
Phone:++1-305.594.1151 Fax: ++1-305.594.7325
Toll Free: 800.689.4716
67410925
REV 02 - 06/2010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SEA USA USER 2 - 24V
Summary of Contents for SEA USA USER 2 - 24V
- Page 1 International registered trademark n. 2.777.971 USER 2 - 24V / USER 2 HIDRO 23024015/16/17/18/19/20/21 ELECTRONIC CONTROL UNIT FOR SWING OPERATORS 24V SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716...
- Page 2 USER 2 - 24V International registered trademark n. 2.777.971 CONNECTIONS 1 2 3 Only with battery charger card Accessories Max 200 mA 1 2 3 4 5 1 2 3 4 5 CALM Receiver module connector feed connector Connector programmer OPEN...
-
Page 3: Table Of Contents
USER 2 - 24V International registered trademark n. 2.777.971 INDEX SAFETY INSTRUCTIONS ......................4 COMPONENTS’ DESCRIPTION ....................6 GENERAL INFORMATION ......................7 START, STOP, PEDESTRIAN START, ANTENNA, PHOTOCELL CONNECTIONS.....9 ENCODER, LIMIT SWITCH, ELECTRIC LOCK, WARNING LAMP, EDGE.......10 POWER SUPPLY AND MOTORS ARM - ALPHA - BETA CONNECTIONS......11 SELFLEARNING WORKING TIMES ..................12... -
Page 4: Safety Instructions
USER 2 - 24V International registered trademark n. 2.777.971 WARNING: Not following these instructions may cause severe injury or death to person IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce risk of severe injury or death: 1) READ AND FOLLOW ALL INSTRUCTIONS 2) Never let children operate or play with door controls. - Page 5 USER 2 - 24V International registered trademark n. 2.777.971 GROUNDING Good grounding and proper surge suppression are an integral part of proper installation for a gate operator system. One or all of the following may require surge suppressors: high voltage power lines, low voltage power lines, telephone lines, data lines, low voltage control lines and loops.
-
Page 6: Components' Description
USER 2 - 24V International registered trademark n. 2.777.971 DESCRIPTION OF THE COMPONENTS CALM Replace Fuse Replace Fuse when led is on when led is on USER24V USER24V LED2 PHOTO PHOTO LED3 LED4 LSO-M1 LSO-M1 LSC-M1 LSC-M1 LED5 FLASH FLASH... -
Page 7: General Information
USER 2 - 24V International registered trademark n. 2.777.971 GENERAL INFORMATION The information in this section of the manual are only for technicians or for qualified or authorized installers. GENERAL CHARACTERISTICS The USER 2 24V control unit has been designed to manage one or two low voltage swing gate operators with or without electronic limit switches. - Page 8 USER 2 - 24V International registered trademark n. 2.777.971 The max. length of the power supply cable between control unit and motors is 10m, use cables with 2,5 mm section. Use wirings with double insulated cables (cables with sheath) up to the immediate proximities of the terminals especially for the power supply cable (230V ).
-
Page 9: Start, Stop, Pedestrian Start, Antenna, Photocell Connections
USER 2 - 24V International registered trademark n. 2.777.971 START - STOP - PEDESTRIAN START - ANTENNA - PHOTOCELL Photocell 1 Connection When the ray of the photocell is crossed, and the automation is in phase of closing it reverses its movement. Through programmer... -
Page 10: Encoder, Limit Switch, Electric Lock, Warning Lamp, Edge
USER 2 - 24V International registered trademark n. 2.777.971 ENCODER - LIMIT SWITCH Encoder / Ammeter sensor The encoder is a device that allows to reveal possible obstacles during the opening and the closing of the gate. When this device intervenes in opening it causes the inversion of the movement for around a second, if it intervenes in closing it causes the total reopening. -
Page 11: Power Supply And Motors Arm - Alpha - Beta Connections
USER 2 - 24V International registered trademark n. 2.777.971 POWER SUPPLY - MOTORS ARM-ALPHA-BETA 3,6 A delayed fuse on 230V ~ power supply . 6,3A delayed fuse on 115V ~ power supply. M+M- HT ELETTRO- FLIPPER IDRAULICO 115V ALPHA STD ˜... -
Page 12: Selflearning Working Times
USER 2 - 24V International registered trademark n. 2.777.971 SELFLEARNING WITH DEFAULT PARAMETERS The control unit is pre-set with the default settings, to learn the working times it is sufficient to press the Menu button once and to hold pressed the SET buttonuntil the motors start in closing. -
Page 13: Settings' Selection
USER 2 - 24V International registered trademark n. 2.777.971 SELECTION OF THE SETTINGS The adjustments of the control unit are executed through the buttons "MENU" and "SET” . Pressing the "MENU” button you select the Leds corresponding to the various functions to be set, pressing the “SET” button you select the leds corresponding to the desired values inside every single function. -
Page 14: External Receiver Connection And Radio Transmitter Learning
USER 2 - 24V International registered trademark n. 2.777.971 EXTERNAL RECEIVER Example: Connection of a radio receiver For the connection of the receiver refer to the relative instructions manual. RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. -
Page 15: Functioning Logics
USER 2 - 24V International registered trademark n. 2.777.971 FUNCTION LOGIC SEMI AUTOMATIC LOGIC A start impulse opens the gate. A second impulse during opening stops the mouvement. With the gate opened a start impulse is necessary for its re-closing. A start commande during the closing reverses the movement. -
Page 16: Programmer Jolly Parameters Adjustment
USER 2 - 24V International registered trademark n. 2.777.971 PROGRAMMER JOLLY PARAMETERS ADJUSTMENT The Jolly programmer allows to keep under control all the parameters of the control unit and it results essential for the initial setting of some parameters, which are: pre-flashing, photocell self-testing, photocell in opening, anti-intrusion, torque motore1 and 2, deceleration speed, learning speed, acceleration, deceleration, leaf stroke, number of cycles, pedestrian opening, etc. - Page 17 USER 2 - 24V International registered trademark n. 2.777.971 PROGRAMMER JOLLY PARAMETERS ADJUSTMENT NOTE: For the respect of the valid European ruels on the safety of the electric gates, it is recommended to not adjust the parameters torque Max 1 and torque Max 2 on the value 100%.
-
Page 18: Connection Of Batteries
USER 2 - 24V International registered trademark n. 2.777.971 CONNECTION OF BATTERIES TO BATTERY CHARGER CARD Battery signals: (BAT) - Batteries loaded up to 20V: green led turned on, red led turned off. Cod.23101110 -Batteries with tension between 20 and... -
Page 19: Trouble Shooting
USER 2 - 24V International registered trademark n. 2.777.971 TROUBLE SHOOTING Advises Make sure all Safety LED are turned ON All not-used N.C. contacts must have jumpers Problem Found Possibile Cause Solution Motor doesn’t a.) Check the connections or the a.) Jumper missing on one of the... -
Page 20: Safety Precautions And Guarantee
USER 2 - 24V International registered trademark n. 2.777.971 SAFETY PRECAUTIONS Every change on trimmers and on dip switch must be done with the gate closed, or without power supply. All electrical installation work should conform to the current edition of the LEE Regulations and all electrical work should only be carried out by a competent electrician. -
Page 21: Sales Conditions
SEA. Recognized defects, whatever their nature, will not produce any responsibility and/or damage claims to SEA USA Inc and SEA s.r.l. Warranty shall not cover any required labor activities. Warranty will in no case be recognized if alterations and any other changes will be found on products. Warranty will not cover damages caused by carriers, expendable materials and faults due to improper use with the products specifications. - Page 24 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716...
