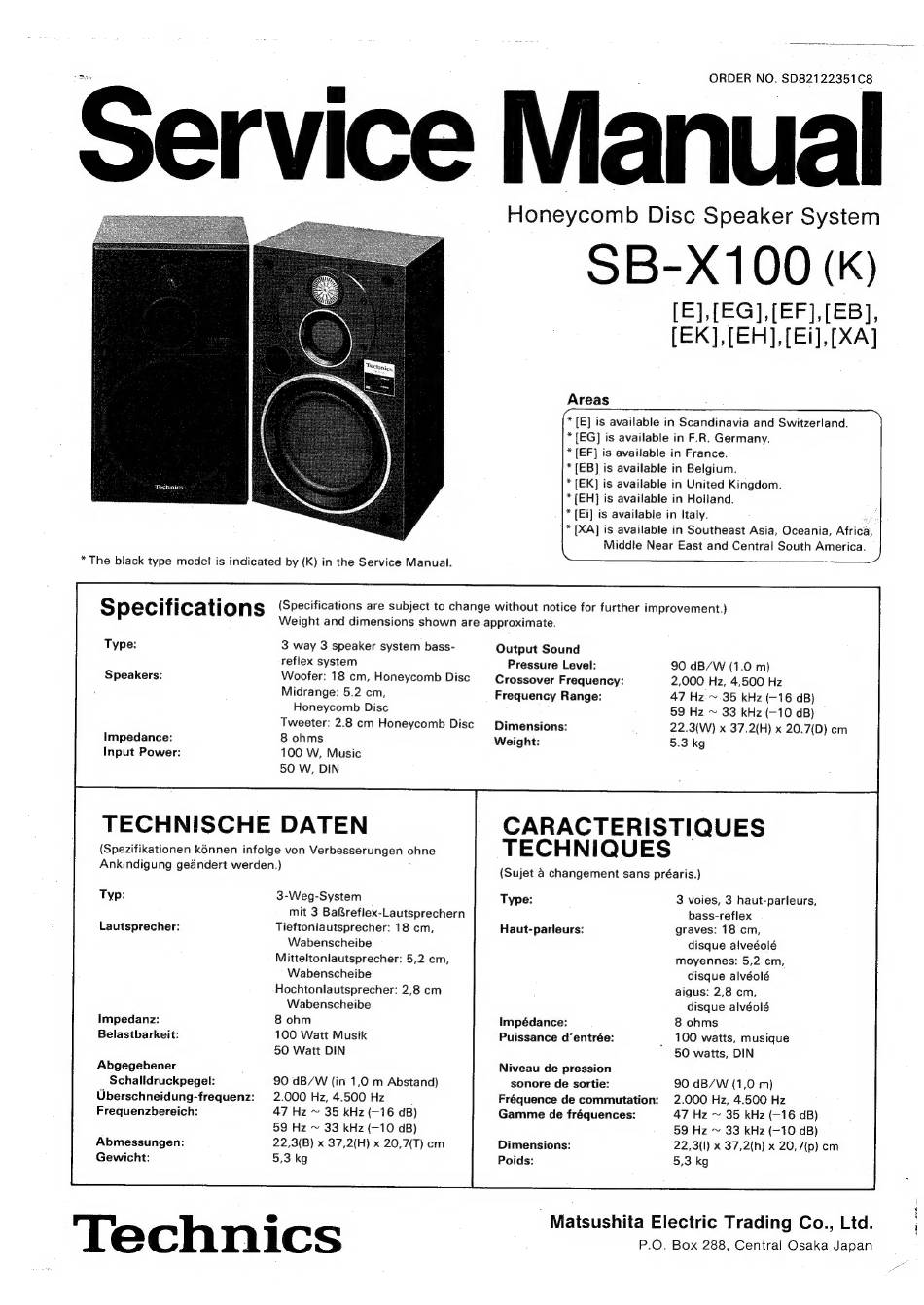

Technics SB-X100 Service Manual

ORDER NO. $D82122351C8
Honeycomb Disc Speaker System
SB-X100 (k)
[E], [EG], [EF],[EB],
[EK], [EH], [Ei],[XA]
Areas
* [E] is available in Scandinavia and Switzerland.
*{EG] is available in F.R. Germany.
* [EF] is available in France.
* [EB] is available in Belgium.
* [EK] is available in United Kingdom.
* [EH] is available in Holland.
* [Ei] is available in Italy.
* [XA] is available in Southeast Asia, Oceania, Africa,
Middie Near East and Central South America.
Technics
* The black type model is indicated by (K) in the Service Manual.
Specifications
3 way 3 speaker system bass-
reflex system
Woofer: 18 cm, Honeycomb Disc
Midrange: 5.2 cm,
Honeycomb Disc
Tweeter: 2.8 cm Honeycomb Disc
8 ohms
100 W, Music
50 W, DIN
Frequency Range:
90 dB/W (1.0 m)
2,000 Hz, 4,500 Hz
47 Hz ~ 35 kHz (—16 dB)
59 Hz ~ 33 kHz (-10 dB) —
22.3(W) x 37.2(H) x 20.7(D) em
5.3 kg
Speakers:
Dimensions:
Input Power:
CARACTERISTIQUES
TECHNIQUES
(Sujet 4 changement sans préaris.)
TECHNISCHE DATEN
(Spezifikationen kénnen infolge von Verbesserungen onige
Ankindigung geandert werden.)
3 voies, 3 haut-parleurs,
bass-reflex
graves: 18 cm,
disque alveéolé
moyennes: 5,2 cm,
Typ: 3-Weg-System
mit 3 BaBreflex-Lautsprechern
Tieftonlautsprecher: 18 cm,
Wabenscheibe
Mitteltonlautsprecher: 5,2 cm,
Type:
Impedanz:
Belastbarkeit:
Abgegebener
Schalldruckpegel:
Uberschneidung-frequenz:
Frequenzbereich:
Abmessungen:
Gewicht:
Wabenscheibe
Hochtonlautsprecher: 2,8 cm
Wabenscheibe
8 ohm
100 Watt Musik
50 Watt DIN
90 dB/W (in 1,0 m Abstand)
2.000 Hz, 4.500 Hz :
47 Hz ~ 35 kHz (-16 dB)
59 Hz ~ 33 kHz (—-10 dB)
22,3(B) x 37,2(H) x 20,7(T) cm
5,3 kg
Technics
Impédance:
Puissance d'entrée:
Niveau de pression
sonore de sortie:
Fréquence de commutation:
Gamme de fréquences:
Dimensions:
Poids:
disque alvéolé
aigus: 2,8 cm,
disque alvéolé
8 ohms
100 watts, musique
50 watts, DIN
90 dB/W (1,0 m)
2.000 Hz, 4.500 Hz
47 Hz ~ 35 kHz (—16 dB)
59 Hz ~ 33 kHz (-10 dB)
22,3(I) x 37,2(h) x 20,7(p) cm
5,3 kg
_ Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
