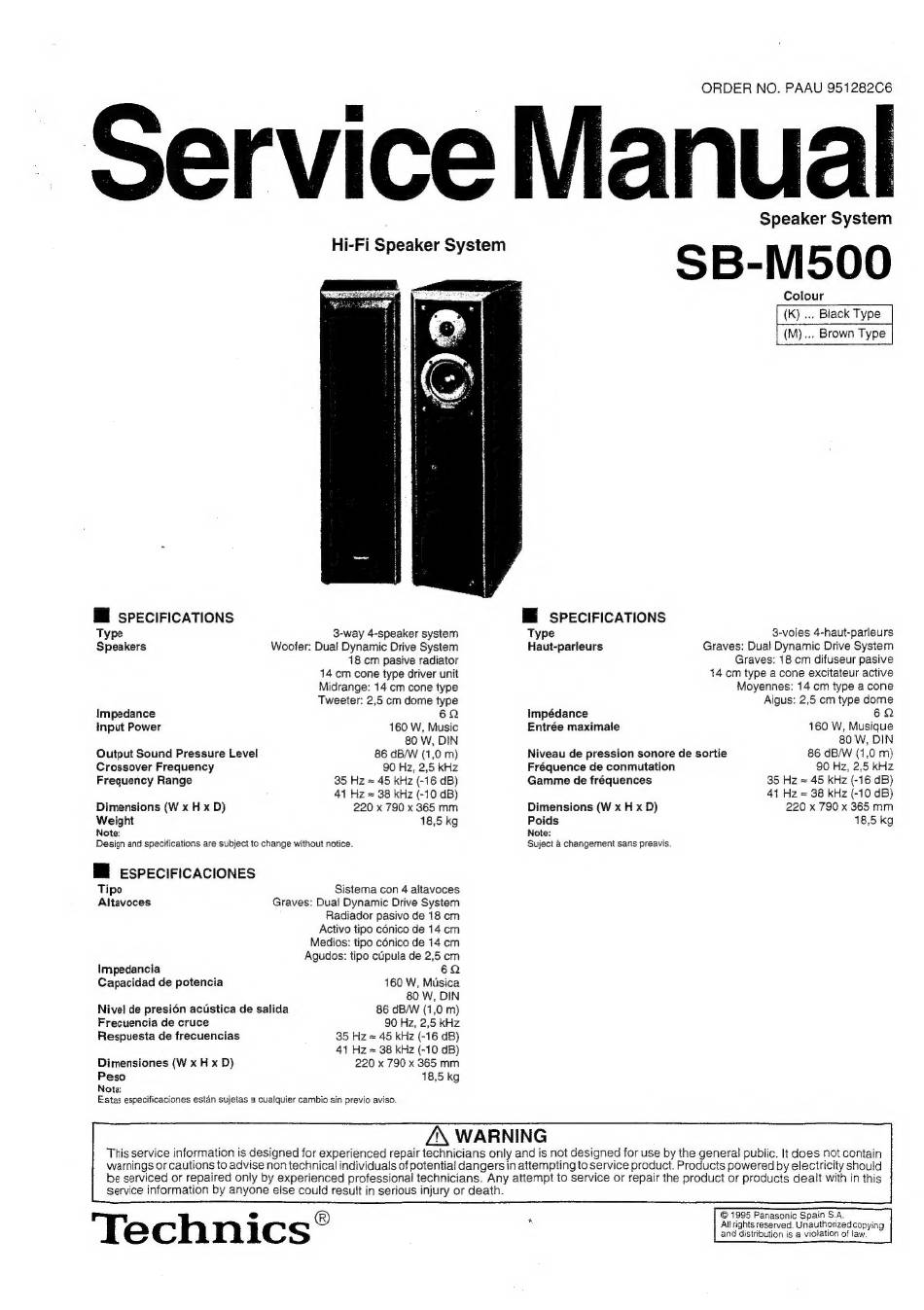

ORDER NO. PAAU 951282C6
Speaker System
SB-M500
Colour
(K) ... Black Type
(M)... Brown Type
Service
Hi-Fi Speaker System
MM SPECIFICATIONS
ME SPECIFICATIONS
Type
3-way 4-speaker system
Type
Speakers
Woofer: Dual Dynamic Drive System
Haut-parleurs
3-voies 4-haut-parleurs
Graves: Dual Dynamic Drive System
18 cm pasive radiator
14 cm cone type driver unit
Midrange: 14 cm cone type
Tweeter: 2,5 cm dome type
Impedance
6Q
Input Power
160 W, Music
80 W, DIN
Output Sound Pressure Level
86 dB/W (1,0 m)
Crossover Frequency
90 Hz, 2,5 kHz
Frequency Range
35 Hz = 45 kHz (-16 dB)
41 Hz = 38 kHz (-10 dB)
Dimensions (W x H x D)
220 x 790 x 365 mm
Weight
18,5 kg
Note:
Design and specifications are subject to change without notice.
MM ESPECIFICACIONES
Tipo
Sistema con 4 altavoces
Altavoces
Graves: Dual Dynamic Drive System
Radiador pasivo de 18 cm
Activo tipo cénico de 14 cm
Medios: tipo conico de 14. cm
Agudos: tipo cupula de 2,5 cm
Impedancia
62
Capacidad de potencia
160 W, Musica
80 W, DIN
Nivel de presi6n acustica de salida
86 dB/W (1,0 m)
Frecuencia de cruce
90 Hz, 2,5 kHz
Respuesta de frecuencias
35 Hz = 45 kHz (-16 dB)
41 Hz = 38 kHz (-10 dB)
Dimensiones (W x H x D)
220 x 790 x 365 mm
Peso
18,5 kg
Nota:
Estas especificaciones estan sujetas a cualquier cambio sin previo aviso.
Graves: 18 cm difuseur pasive
14 cm type a cone excitateur active
Moyennes: 14 cm type a cone
Aigus: 2,5 cm type dome
Impédance
6Q
Entrée maximale
160 W, Musique
80 W, DIN
Niveau de pression sonore de sortie
86 dB/W (1,0 m)
Fréquence de conmutation
90 Hz, 2,5 kHz
Gamme de fréquences
35 Hz = 45 kHz (-16 dB)
41 Hz = 38 kHz (-10 dB)
Dimensions (W x H x D)
220 x 790 x 365 mm
Poids
18,5 kg
Note:
Suject a changement sans preavis.
Z\ WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain
warnings or cautions to advise non technical individuals of potential dangers in attempting to service product. Products powered by electricity should
be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealt with in this
service information by anyone else could result in serious injury or death.
Technics*
© 1995 Panasonic Spain S.A.
All rights reserved, Unauthorized copying
and distribution is a violation of law.
