Operating Instructions
Wireless Speaker System
SC-C50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ottava S SC-C50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technics ottava S SC-C50

Summary of Contents for Technics ottava S SC-C50

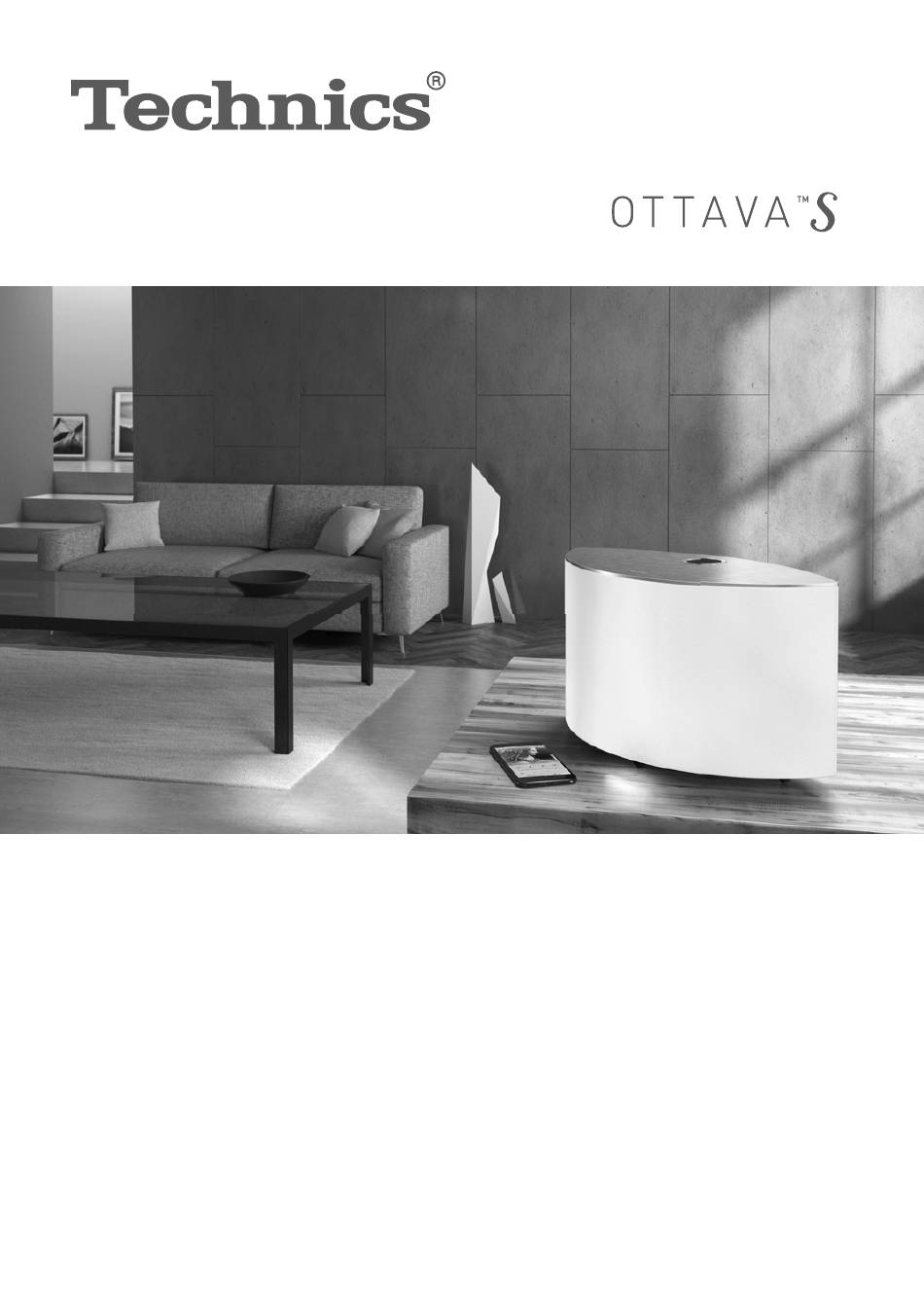

  • Page 1 Operating Instructions Wireless Speaker System SC-C50...
  • Page 2 Let us take you on your journey to rediscover music. Delivering the Ultimate Emotive Musical Experience to All At Technics we understand that the listening experience is not purely about technology but the magical and emotional relationship between people and music.
  • Page 3 • For customers within Ireland: 01 447 5229 • Monday–Friday 9:00 am – 5:00 pm, (Excluding public holidays). • For further support on your product, please visit our website: www.technics.com/uk/ Features Amazingly clear and deep sound in room-filling soundstage 3 coaxial-horn units with 6 speakers and 1 subwoofer are optimally placed in arc-shaped compact body.

  • Page 4: Table Of Contents

    Table of contents Read first Please carefully read the “Safety precautions” of this manual before use. Control reference guide This unit (front/top/rear) Connections AC mains lead connection, Network settings Operations Streaming online music, etc. Settings Favourite function, Other settings Others Troubleshooting, Specifications, etc.
  • Page 5 Accessories AC mains lead (2) For the United Kingdom and Ireland K2CT3DR00009 For continental Europe K2CMZDR00001 • The smartphone on the cover page is not supplied with this unit. • Product numbers provided in these operating instructions are correct as of August 2018. •...

  • Page 6: Read First

    Installation ........... 12 Installation ..........12 Notes on the speakers ........12 For optimum sound effects ......12 Unit care ............13 Using “Technics Audio Center” ....13 Firmware updates ........13 To dispose of or transfer this unit ....14 Table of contents ... 04...

  • Page 7: Safety Precautions

    Read first Safety precautions Warning Unit • To reduce the risk of fire, electric shock or product damage,  Do not expose this unit to rain, moisture, dripping or splashing.  Do not place objects filled with liquids, such as vases, on this unit.
  • Page 8 Placement • Place this unit on an even surface. • To reduce the risk of fire, electric shock or product damage,  Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.  Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.
  • Page 9 Pan European Guarantee included in your device box to send you the full text of our privacy policy.
  • Page 10 Disposal of Old Equipment Only for European Union and countries with recycling systems This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your...
  • Page 11 Declaration of Conformity (DoC) Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Customers can download a copy of the original DoC to our RE products from our DoC server: http://www.ptc.panasonic.eu Contact to Authorised Representative: Panasonic Marketing Europe GmbH, Panasonic...

  • Page 12: Installation

    Read first Installation Installation • Turn off all the equipment before connection and read the appropriate operating instructions. Be sure to raise this unit when moving, and do not drag this unit. Notes on the speakers • These speakers do not have magnetic shielding. Do not place them near TV, PC or other equipment easily influenced by magnetism.

  • Page 13: Unit Care

    Doing so may cause the exterior case to be deformed or the coating to come off. Using “Technics Audio Center” If you install the dedicated app “Technics Audio Center” (free of charge) on your tablet/smartphone, you can stream music files from the device on your...

  • Page 14: To Dispose Of Or Transfer This Unit

    To dispose of or transfer this unit Before disposing of or transferring this unit, be sure to erase all the recorded information by restoring the settings to factory default. (“To restore all the settings to the factory defaults” (⇒ 52)) •...

  • Page 15: Control Reference Guide

    Control reference guide This unit (front/top)......16 This unit (rear) ........18 Table of contents ... 04...

  • Page 16: This Unit (Front/Top/Rear)

    Control reference guide This unit (front/top) 08 09 01 [ ] Standby/on switch Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. 02 [ ] [ ] Adjust volume •...
  • Page 17 09 Illumination Illuminates when the volume is adjusted from the “Technics Audio Center” app, etc.
  • Page 18 Control reference guide This unit (rear) 10BASE-T/ 100BASE-TX AC IN DIMMER INFO 500mA L AN OPT IN AUX IN 10BASE - T/ 100BASE - TX AC IN DIMMER INFO 500mA L AN OPT IN AUX IN 10 11 12 13 14 10 [•DIMMER / -INFO] Adjust the brightness of illumination of the display and bottom of the unit.

  • Page 19: Connections

    Connections AC mains lead ........20 AC mains lead connection ......20 Network settings ......... 21 Wired LAN connection ......22 Wireless LAN connection ......23 Table of contents ... 04...

  • Page 20: Ac Mains Lead

    Connections AC mains lead AC mains lead connection Connect only after all other connections are completed. 10BASE - T/ 100BASE - TX AC IN DIMMER INFO 500mA L AN OPT IN AUX IN To a household mains socket • Use only the supplied AC mains lead. •...

  • Page 21: Network Settings

    Connections Network settings You can stream online music services or music files from your smartphone/tablet to this unit. This unit can be connected to a router using a LAN cable or built-in Wi-Fi ® For a stable connection to the network, a wired LAN connection is recommended.

  • Page 22: Wired Lan Connection

    Wired LAN connection 10BASE - T/ 100BASE - TX AC IN DIMMER INFO 500mA L AN OPT IN AUX IN LAN cable (not supplied) Broadband router, etc. 1 Disconnect the AC mains lead. 2 Connect this unit to a broadband router, etc.

  • Page 23: Wireless Lan Connection

    Wireless LAN connection ■ Preparation Disconnect the AC mains lead. Disconnect the LAN cable. Place this unit as close to the wireless router as possible. Connect the AC mains lead to this unit. (⇒ 20) Note • After turning on this unit, it may take some time until this unit is activated.
  • Page 24 Note • This unit will be displayed as “Technics- **** SC-C50- ” if the device name is not set. **** (“ ” stands for characters unique to each set.) • You can check your network information (SSID, MAC address and IP address) from the “Google Home”...
  • Page 25 Network setting from the setup menu (when not using Chromecast-enabled apps) Using the WPS button “WPS” If your wireless router supports WPS, you can set up a connection by pressing the WPS button. • A compatible wireless router may have the WPS identifier mark.
  • Page 26 Using the WPS PIN code “WPS PIN” If your wireless router supports WPS, you can set up a connection by entering the WPS PIN code. • For details on how to enter the PIN code, refer to the operating instructions of the wireless router. •...
  • Page 27 Try this method again from the setup menu. If “Fail” is still displayed, try other methods. 4 Press [ ] to exit the setting. Note • This unit will be displayed as “Technics- **** SC-C50- ” if the device name is not set. **** (“...
  • Page 28 Enabling or disabling the wireless LAN function 1 Press and hold the volume [ ] on the top while pressing [•DIMMER / -INFO] on the rear of this unit for approx. 5 seconds. • The Wi-Fi function switches between “On” and “Off”.

  • Page 29: Operations

    Operations Using the auxiliary input ..... 30 Adjust the volume level “Input Level” ..31 Using digital audio output device ..32 Using Bluetooth ......... 33 ® Pairing a Bluetooth device ....... 33 ® Disconnect the Bluetooth device ..... 34 ®...

  • Page 30: Using The Auxiliary Input

    Operations Using the auxiliary input You can connect a portable audio player, etc. with an analogue audio cable (φ3.5 mm) (not supplied) and play back music. 10BASE - T/ 100BASE - TX AC IN DIMMER INFO 500mA L AN OPT IN AUX IN Analogue audio cable (φ3.5 mm)

  • Page 31: Adjust The Volume Level "Input Level

    ] when “Input Level” and “Low” are displayed. • Press and hold [ ] again to set to “High”. Note • The factory default is “High”. • This item can also be set from the dedicated application “Technics Audio Center” (free of charge).

  • Page 32: Using Digital Audio Output Device

    Operations Using digital audio output device You can connect a CD player, etc. with optical digital audio cable (not supplied) and play back music. 10BASE - T/ 100BASE - TX AC IN DIMMER INFO 500mA L AN OPT IN AUX IN Optical digital audio cable (not supplied)

  • Page 33: Using Bluetooth

    3 Open the Bluetooth connection screen, ® etc. on the Bluetooth device, and select ® “Technics-SC-C50- ” **** 1, 2 • If the device name is set on the “Google Home” app, the set name is displayed. 4 Play music by operating the Bluetooth ®...

  • Page 34: Disconnect The Bluetooth ® Device

    **** 1: “ ” stands for a number that is unique to each set. 2: The device name can be changed with the dedicated application “Technics Audio Center” (free of charge). Disconnect the Bluetooth device ® Disconnect from the Bluetooth device or ®...

  • Page 35: Using Usb Device

    Operations Using USB device You can play back music stored on the connected USB device using the dedicated app “Technics Audio Center” (free of charge) on your tablet/smartphone. For details, visit: www.technics.com/support/ 10BASE - T/ AC IN 100BASE - TX...

  • Page 36: Streaming Music Over The Network

    Operations Streaming music over the network Listening to music using Chromecast-enabled app This unit is compatible with Chromecast-enabled apps. For detailed information of Chromecast- enabled apps, visit: g.co/cast/apps ■ Preparation • Complete the network settings. (⇒ 21)  Make sure that the network is connected to the Internet.
  • Page 37 Not all music streaming services are available in all countries/regions. Registration/subscription may be required, or fees may be charged to use music streaming services. Services are subject to change or be discontinued. For details, visit an individual music streaming service’s website. Important notice: Before you dispose of or transfer this unit to a third party, be sure to log out of your...

  • Page 38: Streaming Music Files On Network Devices

    Streaming music files on network devices You can stream music files from the device on your network to this unit by using the free app “Technics Audio Center”. ■ Preparation • Complete the network settings. (⇒ 21) • Connect the following devices to the same network as this unit.

  • Page 39: Playing Internet Radio And Podcasts

    Operations Playing Internet Radio and Podcasts Using the free app “Technics Audio Center”, you can play an internet radio by setting this unit as a speaker for the internet radio. For details, visit: www.technics.com/support/ ■ Preparation • Complete the network settings. (⇒ 21)  Make sure that the network is connected to the Internet.

  • Page 40: Using Airplay

    • The playback will start with a slight delay. **** 1: “ ” stands for a number that is unique to each set. 2: The device name can be changed with the dedicated application “Technics Audio Center” (free of charge).

  • Page 41: Playing Back Music Using Spotify Connect

    Operations Playing back music using Spotify Connect This unit is compatible with Spotify Connect for the online music service (Spotify). You can play music from the music streaming service of Spotify by operating your smartphone, tablet, etc. ■ Preparation • You will need Spotify Premium. For details, visit the following website.
  • Page 42 • Services, icons, and specifications are subject to change. **** 1: “ ” stands for a number that is unique to each set. 2: The device name can be changed with the dedicated application “Technics Audio Center” (free of charge).

  • Page 43: Using Tidal

    For details of TIDAL, visit the following website. www.tidal.com ■ Preparation • Install the latest “Technics Audio Center” on your device (smartphone, tablet, etc.). For details, visit: www.technics.com/support/ • Connect this unit and your device on which “Technics Audio Center” has been installed to the network connected to the Internet.
  • Page 44 ” is displayed while playing back. • Before using TIDAL, the account registration is required (paid service). • For operation details, refer to the operating instructions of “Technics Audio Center”. For details, visit: www.technics.com/support/ Note • Depending on the country or region, playback may...

  • Page 45: Using Deezer

    For details of Deezer, visit the following website. www.deezer.com ■ Preparation • Install the latest “Technics Audio Center” on your device (smartphone, tablet, etc.). For details, visit: www.technics.com/support/ • Connect this unit and your device on which “Technics Audio Center” has been installed to the network connected to the Internet.
  • Page 46 • Before using Deezer, the account registration is required (paid service). • For operation details, refer to the operating instructions of “Technics Audio Center”. For details, visit: www.technics.com/support/ Note • Depending on the country or region, playback may...

  • Page 47: Settings

    Using the favourite function ....48 Registering your favourite station or playlist to this unit ........48 Other settings ........49 Firmware updates “F/W Update” ....49 Setting up this unit from “Technics Audio Center” ......50 Table of contents ... 04...

  • Page 48: Using The Favourite Function

    • You can register up to 9 favourite stations or playlists. • The favourite function (registering/calling up/ deleting) can also be set from the dedicated application “Technics Audio Center” (free of charge). 1 Press and hold [ ] while the favourite station or playlist is played back.

  • Page 49: Other Settings

    (“ ” stands for a number.) • When the update has finished successfully, “Success” is displayed. Turn this unit off and on. • Firmware updating can also be set from the dedicated application “Technics Audio Center” (free of charge). (Continued)

  • Page 50: Setting Up This Unit From "Technics Audio Center

    • Downloading may take longer depending on the USB flash memory. Setting up this unit from “Technics Audio Center” You can configure the various settings of this unit using the dedicated app “Technics Audio Center” (free of charge). For details, visit: www.technics.com/support/...

  • Page 51: Others

    Others Troubleshooting ........52 Heat buildup of this unit ......52 Do you have the latest firmware installed? ..........52 To restore all the settings to the factory defaults ............. 52 General ............. 53 USB ............54 Bluetooth ..........55 ®...

  • Page 52: Troubleshooting

    Others Troubleshooting Before requesting service, make the following checks. If you are uncertain about some of the check points, or if the solutions indicated in the following guide do not resolve the issue, then consult your dealer for instructions. Heat buildup of this unit This unit becomes warm while in use.

  • Page 53: General

    General The unit does not work. Operations are not done properly. • One of the unit’s safety devices, etc. may have been activated. Press [ ] on the unit to switch the unit to standby. • If the unit does not switch to standby, press ] on the unit for at least 5 seconds.

  • Page 54: Usb

    The unit turns to standby mode automatically. • This unit incorporates a protection circuit to prevent damage caused by heat buildup. When you use this unit at a high volume level for a long period of time, it may turn off automatically. Wait for this unit to cool down before turning on this unit again.

  • Page 55: Bluetooth

    Bring the Bluetooth ® device closer to this system and distance it from the other devices. • Switch the transmission mode of this unit, and it can be set by using the free app “Technics Audio Center”. (Continued)

  • Page 56: Network

    Network Cannot connect to the network. • Confirm the network connection and settings. (⇒ 21) • If the network is set to be invisible, make the network visible while you set up the network for this unit or make a wired LAN connection.  To switch the Wi-Fi function between “On”...
  • Page 57 Playback does not start. The sound is interrupted. • If using the 2.4 GHz band on the wireless router, simultaneous use with other 2.4 GHz devices, such as microwaves, cordless telephones, etc., may result in connection interruptions. Increase the distance between this unit and these devices.  If your wireless router supports 5 GHz band, try using the 5 GHz band.

  • Page 58: Spotify/Tidal/Deezer/Internet Radio/Podcasts

    • Press [ ], etc. to cancel it. • The auto off function can be changed with the dedicated application “Technics Audio Center” (free of charge). Download Fail • The firmware download has failed. Press any button to exit. Please try again later.
  • Page 59 9. • Delete the stations or playlists (⇒ 48). • You can also delete the favourite station or playlist from the dedicated application “Technics Audio Center” (free of charge). “F ” (“ ” stands for a number.) •...
  • Page 60 Operate via App The key operation of this unit is disabled. • Make sure to operate from the dedicated application “Technics Audio Center” (free of charge) when you stream music files from the device on your network or online music services etc.

  • Page 61: Playable Media

    ] on this unit, the playback starts in the following order as shown. Example: Folder Music file Music 1 Music 2 Music 3 Music 4 Music 5 • For operation details, refer to the operating instructions of “Technics Audio Center”. For details, visit: www.technics.com/support/...

  • Page 62: About Bluetooth

    Others About Bluetooth ® Panasonic bears no responsibility for data and/ or information that is compromised during a wireless transmission. Frequency band used • This system uses the 2.4 GHz frequency band. Certification of this device • This system conforms to frequency restrictions and has received certification based on frequency laws.

  • Page 63: Licenses

    Others Licenses The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance ® The Wi-Fi Protected Setup™ Logo is a certification mark of Wi-Fi Alliance ® “Wi-Fi ” is a registered trademark of Wi-Fi ® Alliance ® “Wi-Fi Protected Setup™”, “WPA™”, and “WPA2™”...
  • Page 64 FLAC Decoder Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:  Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

  • Page 65: Specifications

    Others Specifications ■ GENERAL AC 220 V to 240 V, Power supply 50/60 Hz Power consumption 42 W Power consumption in standby mode 0.2 W (Network Standby Off) Power consumption in standby mode 2.0 W (Network Standby On with Wireless LAN) Power consumption in standby mode...
  • Page 66 ■ SPEAKER SECTION Front speaker (L/C/R) Type 2 way, 2 speaker (Closed) Woofer 6.5 cm × 1/ch, Cone type Tweeter 1.6 cm × 1/ch, Dome type Subwoofer 1 way, Type 1 speaker (Bass reflex) Subwoofer 12 cm × 1, Cone type ■...
  • Page 67 ■ Wi-Fi SECTION Standard IEEE802.11a/b/g/n/ac 2.4 GHz band Frequency band 5 GHz band WPA2™, Security Mixed mode WPA2™/ WPA™ WPS version Version 2.0 • The WLAN feature of this product shall exclusively be used inside buildings. (Continued)
  • Page 68 ■ File format This unit supports the following file formats. • This unit does not support the playback of copy- protected music files. • Playback of all files in formats supported by this unit is not guaranteed. • Playback of a file in a format not supported by this unit may cause choppy audio or noise.
  • Page 69 USB-A 32/44.1/ 16 to .mp3 48 kHz 320 kbps .m4a 32/44.1/48/ 16 to 88.2/96 kHz 320 kbps .aac 32/44.1/48/ 88.2/96/ .wav 176.4/192/ 16/24/32 bit 352.8/ 384 kHz 32/44.1/48/ 88.2/96/ FLAC .flac 16/24 bit 176.4/192/ 352.8/384 kHz 32/44.1/48/ 88.2/96/ AIFF .aiff 16/24/32 bit 176.4/192/ 352.8/384 kHz...
  • Page 70 LAN (DMR) 32/44.1/ 16 to 320 .mp3 48 kHz kbps .m4a 32/44.1/48/ 16 to 320 88.2/96 kHz kbps .aac 32/44.1/48/ 88.2/96/ .wav 16/24/32 bit 176.4/192/ 352.8/384 kHz 32/44.1/48/ 88.2/96/ FLAC .flac 16/24 bit 176.4/192/ 352.8/384 kHz 32/44.1/48/ 88.2/96/ AIFF .aiff 16/24/32 bit 176.4/192/ 352.8/384 kHz...
  • Page 71 Headquarter Address: Panasonic Corporation Kadoma, Osaka, Japan Importer for Europe: Panasonic Marketing Europe GmbH Panasonic Testing Centre Winsbergring 15, 22525 Hamburg, Germany Panasonic Corporation Web Site: http://www.panasonic.com TQBM0291 © Panasonic Corporation 2018 M0918TK0...
