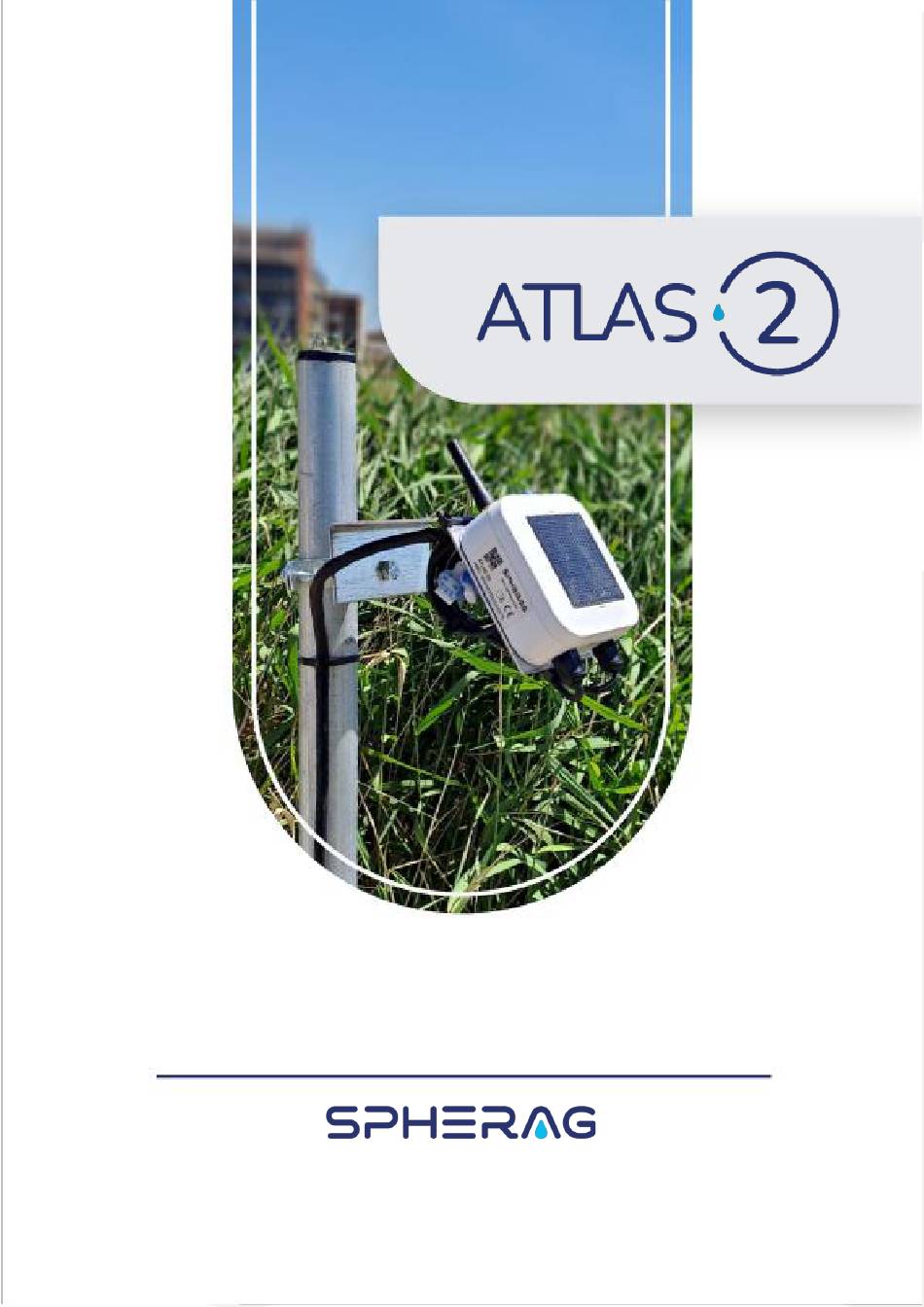

- Page 1 User Manual: Atlas 2 +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com...
-
Page 2: Table Of Contents
MONITORING ......................... 8 AlERTS AND NOTIFICATIONS ..................12 INSTALLATION AND FIRST STEPS ................14 TROUBLESHOOTING ......................17 GLOSSARY OF TERMS ....................... 19 PRODUCT RECYCLING ....................... 20 WARRANTY ........................... 21 EXPLANATION OF SYMBOLOGY ..................22 +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... -
Page 3: Device Description
DEVICE DESCRIPTION INTRODUCTION The ATLAS 2 IoT device is an irrigation controller capable of collecting and sending data in real time, equipped and designed to control and automate irrigation installations. It is completely self-contained, connects in real-time, and does not need any additional connectivity installations, such as gateways or repeaters, to perform its function. -
Page 4: Device Parts
Cover. Body. Antenna. Access tabs to the support holes. Solar panel. Device identification label. On/off button. Led. Warranty stickers. Connector 1 (input and output). Connector 2 (input and output). C sensor connector. +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... -
Page 5: Technical Specifications
2 (pulse counter or digital inputs) Outputs 2 (relay or solenoid, interlock) Output Voltage 14 Vdc Sensor Inputs 1 (I Remote Configuration SPHERAG Platform Seeking: 1 flash/ second Connecting: 1 flash/ 6 seconds Connected: 2 flash/ 6 seconds Available Sensors... -
Page 6: Connectivity
Nominal Current 4 mA Solar Panel Voltage 5 Vdc Solar panel Current 340 mA Sending data Upload Communications (Sensors) Upload Communications (Other) Asynchronous Downstream Communications Asynchronous Check with us for other synchronization options. +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... -
Page 7: Other Specifications
-20 ~ +50 ºC Operating Humidity 45% ~ 75% RH Operating Altitude 0 ~ 2000 m Storage Temperature -20 ~ +50 ºC Storage Humidity 45% ~ 75% RH Storage Altitude ~ 2000 m +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... -
Page 8: Operation
2. OPERATION ACTION The ATLAS 2 device has two outputs. Each of the outputs can be connected through an interlocking relay or solenoid to the element of the installation to be controlled, such • Valve. • Pump. • Fertilizer. •... -
Page 9: Monitoring
The connection of multiple sensors is done through a specific "hub" for each of the technolo- gies. Only sensors marketed by Spherag are compatible. Sensors are purchased separately. +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... - Page 10 Figure 2. Outputs and inputs ATLAS 2 device. Through the SPHERAG platform the user can register the connected elements and configure the unit of measurement (m3, L or Gal) and the value of each pulse (1, 10, 100) for them, as well as the current price of water to know what is the cost that is being produced in that flowmeter.
- Page 11 To receive the information from these elements, they must be registered in the SPHERAG platform, as is the case with the rest of the elements connected to the device inputs. The ATLAS 2 device will inform the platform of possible changes in the installation.
-
Page 12: Alerts And Notifications
FLOW ALERT The ATLAS 2 device has a pulse flowmeter reading, which allows to know if the irrigation is running with a flowmeter out of the established flow rate. - Page 13 To avoid false pressure alerts appearing during these minutes of pipe filling, this time can be added to the Monitoring time. NOTE: If this time interval is not required, it can be set to 0. +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com...
-
Page 14: Installation & Getting Started
Unused cables should be left electrically insulated. Make sure you have good coverage in the installation area before connecting the equipment. Screw the antenna onto the top of the ATLAS 2 and press the button on the side to turn it on (7. On/Off button). - Page 15 Connect the output wires (red and black) to the solenoid wires of the installation element (Figure 5). Repeat the process with the blue and white wires for the inputs. Figure 4. Connectors from an interlocking solenoid to an ATLAS 2. Note: The use of watertight connectors is recommended (Figure 56).
- Page 16 Verify that the device is turned on and has a correct connection (Point 0). Position the ATLAS 2 device facing the equator to ensure proper solar charging. NOTE: By lifting the tabs located on the device box (4. It has holes to place it through screws to the surface on which you are going to place the equipment (wood, wall, metal...).
-
Page 17: Troubleshooting
Change the polarity of the connection. ted to the device's output. The wires connected Readings fictitious to the transmitter are Insulate using non-conductive elements. of flow rate not electrically insu- lated. +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... - Page 18 Device Due Place it on a high point, so that the quality of to Poor Signal Qua- the coverage is better. lity. Contact SPHERAG Technical Support: Device failure due to possible short cir- - Telephone: +34 684 464 107 cuit.
-
Page 19: Glossary Of Terms
Nominal Flow Rate: This is the flow that can pass through a device/pipe under normal operating conditions. Nominal Pressure: This is the pressure that a device/pipe can withstand under normal operating conditions. +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... -
Page 20: Product Recycling
For detailed information about the most appropriate way to dispose of your appliances and/or the corresponding batteries, the consumer should contact the local authorities. +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... -
Page 21: Warranty
8. GUARANTEE Consult the General Warranty and Repair Conditions of our devices through the following link: https://spherag.com/general-warranty-and-repair-conditions/ +34 976 96 69 94 spherag.com @spheragiot contact@spherag.com... -
Page 22: Explanation Of Symbology
Official Journal of the European Communities. Responsible within the European Union: SPHERAG TECK IOT S.L. Av. Alcalde Gómez Laguna, 25, Planta 10, Oficina B1, 50009 Zaragoza To identify where the instruction manual is stored or to identify information related to the operating ins- tructions.
