Summary of Contents for Texas Instruments Extensa Series

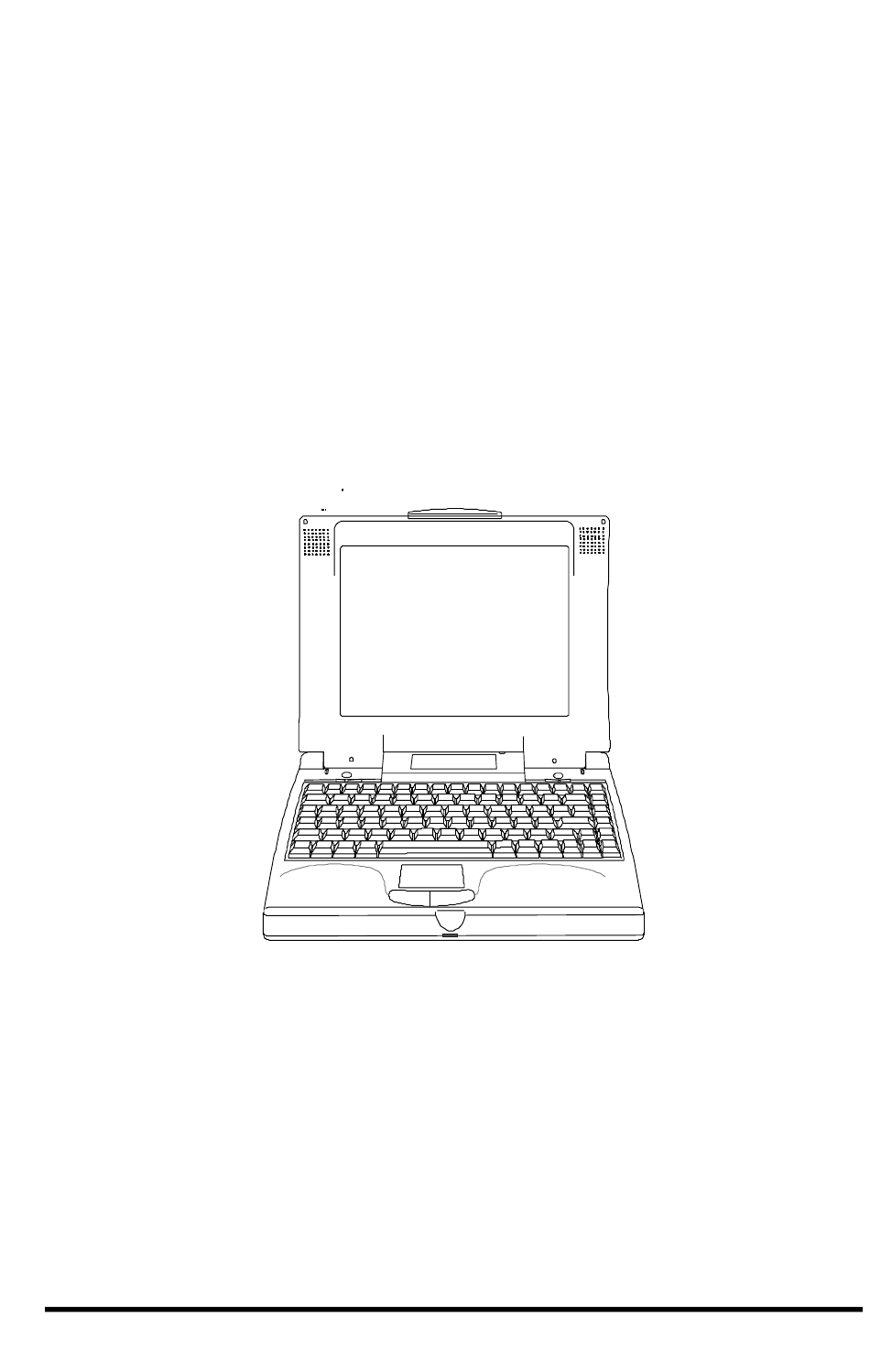

  • Page 1 Extensa...
  • Page 2 Texas Instruments. Extensa Notebook Computer Model__________Serial No._______________Purchase Date________ Extensa is a trademark of Texas Instruments. The icons in the Windows Notebook and Startup groups are copyrighted by Texas Instruments. TranXit is a trademark of Puma Technology. IBM, OS/2, AT PS/2, and VGA are trademarks of International Business Machines Corporation..
  • Page 3 FCC Notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Fcc Notice

    FCC Notice Use Conditions This part complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Table Of Contents

    Contents Chapter 1: Before You Begin Features ............1-2 Environment ..........1-4 Usage ............1-5 Using the AC Adapter ........1-7 Introduction to PCI Bus ........1-9 Chapter 2: Using Your Computer LCD Status Panel ........... 2-2 Using the Glidepad ......... 2-4 Using the Hard Drive ........
  • Page 6 Contents Chapter 3: Connecting Peripherals Using PCMCIA Cards ........3-2 Connecting a Printer ........3-3 Connecting an External Monitor ......3-4 Connecting a Keyboard or Mouse ....3-6 Connecting a Serial Device ......3-7 Connectors on the Rear Panel ......3-8 Audio Connections ........3-10 SIR Port ............3-1 1 Chapter 4: Customizing Your Notebook Running the Setup Program ......4-2...
  • Page 7 Contents Chapter 6: Care and Troubleshooting Cleaning the Computer ........6-2 Troubleshooting Tips ........6-3 Startup Error Messages ........6-4 Where To Get Help Glossary Index...
  • Page 8 Preface This manual describes features of the Texas Instruments Extensa notebook computers. The Extensa series computers are similar in appearance and incorporate such features as PCMCIA , internal pointing device, infrared interface, and 16-bit sound (CD and CDT models only).
  • Page 9 We hope you enjoy your Extensa computer. With proper care, your computer will provide you with years of productive service.

  • Page 11: Before You Begin

    Before You Begin After completing procedures in the Quick Start instructions, read this chapter to learn about important functions of your computer. Contents Features ............1-2 Environment ..........1-4 Usage ............1-5 Using the AC Adapter ........1-7 Introduction to PCI Bus ........

  • Page 12: Features

    Features The notebook includes a variety of innovative features designed to meet the most demanding computing requirements: An Intel Pentium CPU series SPGA package CPU s peed 75/100 MHz 8MB on board memory up to 40MB DRAM 1MB of video memory on the PCI bus Two type II or one type III PCMCIA slot One NiMH battery pack...
  • Page 13 Features An optional removable CD-ROM drive (CD and CDT models only), supporting CD- ROM/XA, Video CD, Audio CD which could be replaced by diskette disk drive (FDD). Advanced power management capabilities which conserve 98-99% of battery power by automatically shutting down inactive peripheral devices and system components.

  • Page 14: Environment

    Environment This section provides information on the optimum operating environment for your notebook computer: Temperature 41°F to 104 °F (5 °C to 40 °C) Operating: Nonoperating: -4°F to 140 °F (-20 °C to 60 °C) Relative Humidity (Noncondensing) 20% to 80 % Operating: Storage: 20% to 90%...

  • Page 15: Usage

    Usage Never pick up or carry your unit by the LCD. Never use the computer in harsh environ- ments where it could be subjected to rapid temperature changes or excessive dust. Never expose the computer to excessive vibration. Never expose the hard dis k , diskettes, and CD-ROM to strong magnetic fields, such as those generated by audio system speakers or...
  • Page 16 Usage Caution: In the rare event that you should see or smell anything that indicates overheating (smoke or a strange smell) Turn the power off. Disconnect the AC Adapter from the power source. Remove battery pack. Call 1-800-TI-TEXAS (USA or Canada) or the dealer in your local country.

  • Page 17: Using The Ac Adapter

    Using the AC Adapter The AC Adapter charges the internal battery pack(s) and operates the computer on AC power whether or not a battery pack is installed. The AC adapter can be operated between 100-240 volts AC and has a detachable AC power cord. Caution: Use only the AC adapter supplied with your computer.
  • Page 18 Using the AC Adapter Plug DC connector AC adapter...

  • Page 19: Introduction To Pci Bus

    The Peripheral Component Interconnect (PCI) bus provides a solution to I/O bottlenecks on Pentium processors. While this technology is available on many desktops, Texas Instruments is one of the first to offer PCI architecture at the notebook level. The following are some of the...

  • Page 21: Using Your Computer

    Using Your Computer Before beginning this chapter, ensure you have read and understood Chapter 1. Chapter 2 describes how to start and use your Extensa computer. Contents LCD Status Panel ........... 2-2 Using the Glidepad ......... 2-4 Using the Hard Drive ........2-5 Using Diskettes ..........

  • Page 22: Lcd Status Panel

    LCD Status Panel Power Powered on when lit. AC Adapter. Lights when the notebook is connected to and drawing power from the AC adapter, and the AC adapter is recharging the battery (if necessary). The battery shaped symbol disappears after the battery is fully charged.
  • Page 23 LCD Status Panel Suspend mode. Blinks when the system is in Suspend mode. Hard disk drive. Lights when the computer reads from or writes to the hard disk. PCMCIA slots. Lights when using the PCMCIA card. Diskette disk drive. Lights when the CPU writes to or reads from the diskette disk drive.

  • Page 24: Using The Glidepad

    Using the Glidepad The embedded Glidepad device offers a unique and efficient way of pointing and selecting in a Windows environment. The following figure displays the embedded pointing device. The Glidepad is touch-sensitive. To move your cursor, place your finger on the pad and push in the direction you want your cursor to go.

  • Page 25: Using The Hard Drive

    Using the Hard Drive The notebook comes with a replaceable 2.5 inch hard drive. The hard disk is formatted and loaded with software at the factory. Do not format the hard disk. If you format the hard disk, all data on it will be erased. To avoid damaging your drive, and to protect your valuable data, you should take the following precautions:...

  • Page 26: Using Diskettes

    Using Diskettes Failure to observe the following precautions can damage both the diskette drive and the data on the diskette: Insert the diskette into the diskette drive slot with the label side up and the metal-shutter end first. Gently push the diskette into the diskette drive slot until the diskette clicks into place.
  • Page 27 Using Diskettes Never remove a diskette while the diskette disk (FDD) icon is lit Never force open the access shutter on a diskette. Always remove a diskette from the diskette drive before turning off the computer. Never transport the computer with a diskette in the diskette drive.

  • Page 28: Using The Cd-Rom Drive

    Using the Optional CD-ROM Drive The CD and CDT models of the notebook come with a removable CD-ROM drive. Uncovering the CD-ROM Drive A small door covers the extra space when the Diskette Drive option is installed. After sliding the door into the compartment, you can install the CD-ROM drive.

  • Page 29: Using The Cd-Rom Drive

    Using the Optional CD-ROM Drive Handing CDs Follow these guidelines to avoid damaging your CDs. When removing a disk from its protective case or loading a disk to a drive, hold it by its central hole and outer edge. Never touch the disk data surface (non labeled side.) To protect the disk against scratches and dirt when not in use, keep it in its protective...

  • Page 30: Using The Keyboard

    Using the Keyboard The notebook has special system function keys. When pressed in conjunction with the Fn key, these keys are sometimes referred to as ”hot keys”. Fn+Esc Suspend Hot key. Suspend puts the computer in a deep sleep mode. To wake up the computer, press any key or move the mouse.

  • Page 31: Using The Internal Numeric Keypad

    Using the Internal Numeric Keypad Embedded Numeric Keypad The notebook is equipped with an embedded numeric keypad. This keypad offers an optional method for entering a series of numbers and arithmetic operators similar to an ordinary adding machine. The embedded numeric keys are color-coded in blue on your keyboard, and can be engaged by pressing and engaging the NUM LOCK key.

  • Page 32: Power Source

    Power Source The notebook is designed to operate with one of the following power sources: With AC power using the AC adapter connected to a wall outlet With a NiMH battery pack You should use the AC adapter and AC power whenever possible, relying on the battery pack only when AC power is unavailable.

  • Page 33: Using The Ac Adapter

    Using the AC Adapter Plug connector AC adapter To operate your notebook from a wall outlet using the AC adapter, follow the steps below. Ensure the notebook is powered off. Connect the AC power cord to the AC adapter, and then connect the AC adapter cord to the DC in connector at the rear of the computer.

  • Page 34: Using The Battery

    Using the Battery Description of the Battery The rechargeable NiMH battery pack allows you to operate the notebook without an external power source. When fully charged, a single battery pack can supply power to your notebook for over two hours. You will be alerted to a low battery power level by a blinking battery status icon and intermittent audible beep sounds.
  • Page 35 Using the Battery Removing the Battery Pack To remove or replace the battery pack, follow the steps below. Note: Save all data to disk before completing these procedures. Power off the notebook. Release the battery locking latch below the battery pack on the bottom of the notebook, and carefully slide the battery pack out from its bay.

  • Page 36: Conditioning The Battery

    Using the Battery The battery icon lights while the battery is charging. When the battery is 100% charged, the battery icon is extinguished. If the system is on, it takes approximately 3 hours to charge a fully-depleted battery. If the system is off, it takes 1.5 to 2 hours to recharge a fully-depleted battery.
  • Page 37 Your battery should now be at its maximum charge. 2-17...

  • Page 39: Connecting Peripherals

    Connecting Peripherals This chapter describes how you attach optional devices to your notebook. Contents Using PCMCIA Cards ........3-2 Connecting a Printer ........3-3 Connecting an External Monitor ..... 3-4 Connecting a Keyboard or Mouse ....3-6 Connecting a Serial Device ......

  • Page 40: Using Pcmcia Cards

    Using PCMCIA Cards Insert PCMCIA cards on the right side of the computer by opening the PCMCIA compartment cover. To insert a PCMCIA card, align the card with the appropriate socket and slide the card into the socket until the card locks into place. Both slots can accept either a Type I or II device.

  • Page 41: Connecting A Printer

    Connecting a Printer To connect a printer to the notebook, complete the following steps: Be sure both the notebook and the printer are turned off. Open the I/O port cover at the rear of the notebook with your finger and locate the parallel and serial ports labeled.

  • Page 42: Connecting An External Monitor

    Connecting an External Monitor To use an external monitor with your system, follow these steps. Be sure that both the notebook and the external monitor are turned off. Open the I/O port cover at the rear of the notebook and locate the 15-pin female VGA port.
  • Page 43 Connecting an External Monitor Turn on any other peripheral device connected to the notebook. Turn on the notebook.

  • Page 44: Connecting A Keyboard Or Mouse

    Connecting a Keyboard or Mouse If you want to use a full size desktop keyboard or external PS/2 mouse with your notebook, complete the following steps; Be sure that the notebook is turned off. Locate the external PS/2 port at the rear of the notebook.

  • Page 45: Connecting A Serial Device

    Connecting a Serial Device To attach a serial device (such as a pointing device) to the notebook, complete the following steps: Be sure the notebook and any other peripheral devices connected to the notebook are turned off. Open the I/O port cover at the rear of the notebook and locate the 9-pin male serial port.

  • Page 46: Connectors On The Rear Panel

    Connectors on the Rear Panel This section provides a description of connectors and ports on the rear panel of the computer. VGA port PS/2 mouse or external IR port keyboard Serial Port Parallel Port Audio (CD and CDT models only). SIR port The Serial Infrared port allows you to connect serial devices (such as...
  • Page 47 Connectors on the Rear Panel Connects to an external analog VGA monitor PS/2 Connects to an external PS/2 keyboard DC-In Connect the AC Adapter output connector to this jack to recharge the battery and supply AC power to the computer.

  • Page 48: Audio Connections

    Audio Connections The CD and CDT models of the notebook come with 16-bit sound and audio connections. Line Out Line In Line in Connects to miscellaneous sound input devices such as a radio or CD player. Line out Connects to miscellaneous sound input devices such as headphones or speakers.

  • Page 49: Sir Port

    Using the SIR Port The Serial Infrared (SIR) port offers wireless communication with a variety of IRDA-compliant devices made by other manufacturers. Ensure that the third-party manufacturer supplies you with the appropriate SIR drivers before attempting connection. To use the SIR port, align the SIR ports of the 2 devices making sure that the distance separating them is between 6 inches and 3 feet (15 centimeters and 1 meter).

  • Page 51: Customizing Your Notebook

    Customizing Your Notebook This chapter describes the software supplied with the computer and how to configure application software to run on it. Contents Running the Setup Program ......4-2 Power Management ........4-5 Suspending Operations ........4-8...

  • Page 52: Running The Setup Program

    Running the Setup Program Your notebook should have been properly setup and configured by your dealer prior to delivery. However, you may find it necessary to use the notebook's BIOS (Basic Input-Output System) Setup program to change system configuration information. The Setup program is accessed by pressing the F2 key.
  • Page 53 Running the Setup Program Main Setup Menu The Main Setup menu of the Setup program allows you to change the following information. Phoenix NoteBIOS 4.0 SETUP-Copyright 1985-95 Phoenix Technologies Ltd. Main Main Advanced Security Power Savings Exit Item Specific Help System Time: [14:53:00] System Date:...
  • Page 54 Running the Setup Program The following table describes the functions on the main setup menu System Time Uses the format hours:minutes:seconds. System Date Uses the format month/day/year. Diskette A The notebook is equipped with a 3.5", 1.44 MB disk drive. IDE Adapter Attempts to automatically detect 0 Master...

  • Page 55: Power Management

    Power Management Defining Power Management in the Setup Program You can use the setup program to control current to peripheral devices and put them in suspend or sleep mode when not in use. By monitoring selected devices and shutting off the flow of current to idle devices, the computer can extend battery life.
  • Page 56 Power Management Phoenix NoteBIOS 4.0 SETUP-Copyright 1985-94 Phoenix Technologies Ltd. Power Savings Main Advanced Security Exit Power Savings: [Custom Settings] Item SpecificHelp CPU Power Save: [On] Standby Timeout: [2 min] Auto Suspend Timeout: [2 min] Suspend mode: [Suspend] Hard Disk Timeout: [2 min] Video Timeout: [2 min]...
  • Page 57 Power Management Item Option Effect Power Longest Battery Maximum conservation of Savings Life system power Highest Best system performance; Performance conserves power when possible Custom settings Permits modified settings Power Power management Management Off disabled Suspend Suspend System saves its state and Mode remains in a low power mode...

  • Page 58: Suspending Operations

    Suspending Operations Suspend Modes The following table describes the types of suspend modes. Suspend Type Effect Suspend Memory receives current while computer in suspend mode. Advantage: Enables immediate resumption upon exiting suspend mode Disadvantage: Drains battery slightly faster than suspend-to- disk mode.
  • Page 59 Suspending Operations Activating Suspend Mode Suspend mode is activated in the following ways: Pressing the Suspend function key: Fn + Esc After a certain period of notebook inactivity Lowering the display panel and locking it into place Resuming from Suspend Mode Any one of the following options will resume operation from Suspend mode: If Suspend-to-Memory is active, operation is...

  • Page 61: Traveling With Your Computer

    Traveling with Your Computer Contents Tips for the Traveler ........5-2 What To Take When Traveling ......5-4 Packing the Computer and Accessories .... 5-5...

  • Page 62: Tips For The Traveler

    Tips for the Traveler Your Extensa Computer is a precision instrument containing many sensitive components. It should be handled with care. Here are some suggestions for traveling: Never expose the computer to excessive vibration. Do not check the computer as baggage: take the computer as carry-on luggage if traveling by air.
  • Page 63 Tips for the Traveler Changes in temperature and humidity can cause condensation. Allow the computer to return to room temperature, and inspect the LCD for condensation before turning on the computer. If the temperature change is greater than 18°F (10°C), allow the computer to come to room temperature slowly.

  • Page 64: What To Take When Traveling

    What To Take When Traveling If you plan to use your computer when traveling, you should consider taking the following items: This m anual AC adapter Power cords and adapters for the AC adapter and peripherals appropriate for the countries to which you will be traveling Fully-charged spare battery pack(s) Optional battery charger and accompanying...

  • Page 65: Packing The Computer And Accessories

    Packing the Computer and Accessories Turn off the computer. Disconnect the AC adapter from the computer and from the AC outlet. Close and latch the display. Tie up cables using twist ties or rubber bands. Enclose peripherals in plastic bags. Place computer, peripherals, documentation, and diskettes in a carrying case.

  • Page 67: Care And Troubleshooting

    Care and Troubleshooting This chapter tells you how to clean your computer safely and solve operational problems. Contents Cleaning the Computer ........6-2 Troubleshooting Tips ........6-3 Startup Error Messages ........6-4...

  • Page 68: Cleaning The Computer

    Cleaning the Computer Regularly take the time to check your computer and clean the screen, keyboard, and case to ensure trouble-free computing. Caution: Never use alcohol, benzene, thinner, or strong chemical agents that could damage the computer’s case, and never apply liquid directly to the computer, only to a clean cloth.

  • Page 69: Troubleshooting Tips

    Troubleshooting Tips Low battery; use AC adapter and Computer does not come on when recharge battery. power switch is Ensure AC adapter cable and power pressed cord are securely connected. Verify that the AC adapter LED is on. Connect AC adapter to another outlet. Adjust contrast switch.

  • Page 70: Startup Error Messages

    Startup Error Messages If your system displays following messages, write down the messages and contact your dealer. If your system fails after you made changes in the Setup menus, you may be able to correct the problem by entering Setup and restoring the original values.
  • Page 72 Startup Error Messages Incorrect Drive A type - run SETUP Type of floppy drive A: not correctly identified in Setup. Incorrect Drive B type - run SETUP Type of floppy drive B: not correctly identified in Setup. Keyboard error Keyboard not working. Keyboard error nn BIOS discovered a stuck key and displays the scan code nn for the stuck key.
  • Page 73 Optional message displayed during POST. Can be turned off in Setup.
  • Page 74 Startup Error Messages Previous boot incomplete - Default Configuration used Previous POST did not complete successfully. POST loads default was caused by incorrect values and they are not correct, the next boot will likely fail. On systems with control of wait states, improper Setup settings can also terminate POST and cause this error on the next boot.
  • Page 75 Startup Error Messages If you have following error messages, please contact your dealer or an authorized service center. Invalid NVRAM media type Problem with NVRAM (CMOS) access. Keyboard controller error The keyboard controller failed test. You may have to replace keyboard or controller. Real time clock error Real-time clock fails BIOS test.

  • Page 77: Where To Get Help

    Where To Get Help Texas Instruments and your Texas Instruments authorized reseller want you to succeed with your TI product. If you are in the United States or Canada and have questions about or operating difficulties with your TI product, follow these steps to get support. If you are outside the United States or Canada, contact one of the numbers listed in the back of this appendix.
  • Page 78 Where To Get Help Call TI Express to order options In the U.S. and Canada 1-800-TI-TEXAS (Option 2,1) FAX: 1-800-443-2984 For all other locations, dial direct: 1-817-774-6969 FAX: 1-817-774-6869 TI Express hours of operation are 8:00 am to 6:00 pm Central Standard Time, Monday through Friday.

  • Page 79: Worldwide Sales Offices

    Worldwide Sales Offices Australia Borupvang 2D DK-2750 Ballerup Texas Instruments Australia Tel: 44 68 74 00 Ltd. Fax: 44 68 64 00 6-10 Talavera Road Telex: 35123 TEXIN North Ryde, NSW 2113 Tel: (02) 878-9000 Deutschland (Germany) Fax: (02) 805-1186 Texas Instruments Deutschland GmbH.
  • Page 80 Worldwide Sales Offices France Hungary Texas Instruments France (Call Middle East/Africa) Produits de Productivité India Personnelle (Call Middle East/Africa) 8-10 Avenue Morane Saulnier, B.P. 67 Israel 78141 Vélizy Villacoublay (Call Middle East/Africa) cedex Service après-vente Italia (Italy) Tel: (1) 34 65 00 05...
  • Page 81 Worldwide Sales Offices Latin America Region Norge (Norway) Texas Instruments Texas Instruments Norge P.O. Box 149149, MS 2223 Austin, Texas 78714-9149 PB 106 - Refstad (Sinsenveien U.S.A. Tel: (512) 250-4051 0513 Oslo 5 Fax: (512) 250-7456 Tel: (02) 155090 Malaysia Österreich (Austria)
  • Page 82 Worldwide Sales Offices Singapore Taiwan Texas Instruments Singapore Texas Instruments Supply (PTE) Ltd. Company Taiwan Branch Personal Productivity Products (Call Hong Kong) Asia Pacific Region United Kingdom 990, Bendemeer Road, Singapore Texas Instruments Ltd. 1233 Manton Lane, Republic of Singapore...
  • Page 83 A-6-1...
  • Page 85 Glossary AC Adapter — The device that converts AC voltage from a standard wall socket into the proper DC voltage required to power your notebook. The AC adapter provides enough power to recharge the NiMH battery pack while you operate the notebook on AC voltage. BIOS—...
  • Page 86 Glossary CMOS RAM— A special type of low-power memory that records and stores information about your notebook's configuration. CMOS RAM is not erased when you power off the notebook. Command — An instruction you issue to your operating system, e.g., to execute a software application. Configuration —...
  • Page 87 Glossary Enhanced VGA — A video interface which offers higher resolution and/or deeper color depths than standard VGA. Expanded memory — Special additional memory designed to extend the 640KB limit imposed by DOS, and recognized by many, but not all, DOS application programs.
  • Page 88 Glossary I/O port — An acronym for Input/Output port. An input/output connection to which you can attach a peripheral device (such as a modem). Interface — A software or hardware connection for the transmission of data between hardware or software. Kilobyte (KB ) —...
  • Page 89 Glossary NiMH battery — A nickel metal-hydride battery used by your notebook. Operating system — A group of control programs that directs the internal operation of a system. Parallel port — A type of interface through which data is transferred in groups of data bits (a binary unit). Partition —...
  • Page 90 Glossary RAM — An abbreviation for Random Access Memory. A hardware component of your system that temporarily stores active program code and data. Reset — The act of reloading the operating system. A reset erases all information stored in RAM. Resolution —...
  • Page 91 Glossary Suspend mode — A power conservation mode in which current is shut down to all components of the system. The notebook supports two types of suspend modes. A Suspend-to-Memory feature cuts off current to all system components except memory. A Suspend-to-Disk feature cuts off current to all system components after the content of memory has been saved to a special partition on the hard drive.
  • Page 93 Index Connecting • 3-6 AC Adapter • 1-7, 2-15, Numeric • 2-12 LCD • 2-2 Battery • 2-16 Charging • 2-18 Memory Low • 4-11 Cache Memory • 5-1 Removing • 2-17 Extended • 4-5 BIOS • See Setup System • 4-4 Boot •...
  • Page 94 Index Power Savings Setup Serial • 3-8 • 4-10 Setup • 4-2 Suspend • 4-11 Boot • 4-4 SIR • 3-12 IDE • 4-4 Main Setup • 4-3 Temperature • 1-4 Movement • 4-2 Index 2...
