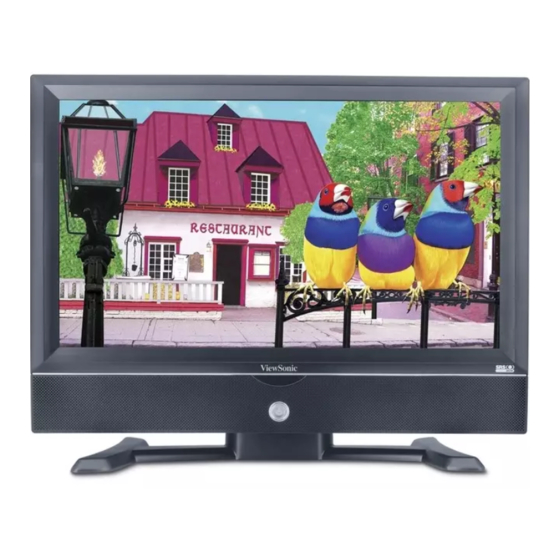

ViewSonic N3250W - NextVision - 32" LCD TV User Manual
User guide
Hide thumbs
Also See for N3250W - NextVision - 32" LCD TV:
- User manual (56 pages) ,
- Service manual (66 pages)
Related Manuals for ViewSonic N3250W - NextVision - 32" LCD TV
Summary of Contents for ViewSonic N3250W - NextVision - 32" LCD TV
- Page 1 ViewSonic ® N3250w LCD TV - User Guide - Guia do usuário - Guía del usuario ViewSonic Model No. : VS11335-1L ®...
-
Page 2: Table Of Contents
Antenna Installation Instructions ..............3 Cleaning the LCD TV ..................3 Getting Started Package Contents ................... 4 Fixing ViewSonic LCD TV to the Wall ............. 4 Front View of the Product ................5 Rear View of the product ................. 6 Remote Control ....................7 Installation ....................... -
Page 3: Important Safety Instructions
15. This product is only to perform the useful function of entertainment and visual display tasks are excluded. ViewSonic N3250w... -
Page 4: Copyright Information
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 5: Antenna Installation Instructions
LCD TV screen or ® case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 6: Getting Started
(parallel to the direction of the supports). Loosen all 6 screws, and keep for future use. Use only approved wall-mounting brackets advised by ViewSonic or your local distributor. Notes: • If your LCD TV is already set up for free-standing operation, you need to first remove the stand before mounting the device to the wall. -
Page 7: Front View Of The Product
1. Press VOL+ and MENU buttons at the same time to lock power button, and press VOL+ and MENU buttons again to unlock it. 2. Press VOL- and VOL+ buttons at the same time to lock OSD menu, and press VOL- and VOL+ buttons again to unlock it. ViewSonic N3250w... -
Page 8: Rear View Of The Product
Connect this port to the VGA output of your PC. HDMI Input Terminal Connect this port to the HDMI output of A/V device. Headphone Jack Connect this port to your headphone. Power (AC input) Using power cord provided, connect to a power source. ViewSonic N3250w... -
Page 9: Remote Control
Remote Control ViewSonic N3250w... - Page 10 23 PIP/POP Toggle to enable/disable Picture in Picture/Picture Out of Picture function 24 P.INPUT POP/PIP input source select 25 SWAP Switch between main screen and sub-screen Note: PIP means Picture In Picture. POP means Picture Out Of Picture. ViewSonic N3250w...
-
Page 11: Installation
Connect the LCD TV to TV antenna or set-top-box with 75-ohm coaxial cable. Preset the TV channels into memory with Auto Scan function when using an antenna or cable TV system without a cable connecter box (See page 16). RF Cable or Adapter (not supplied) ViewSonic N3250w... - Page 12 VCR or DVD Player 2) With S-Video cable: S-Video Cable (not supplied) Audio in Cable (not supplied) VCR or DVD Player 3) With YPbPr cable: YPbPr Cable (not supplied) Audio in Cable (not supplied) VCR or DVD Player ViewSonic N3250w...
-
Page 13: Connecting To External Stereo System To Listen To Lcd Tv Sound
Connect the audio output terminal of the LCD TV to audio in terminal of the stereo system (stereo system sold separately). Audio in Cable (not supplied) Stereo system 5. Connecting to the Headphone Connect the headphone to the headphone output terminal of the LCD TV. (Headphone sold separately). Headphone (not supplied) ViewSonic N3250w... -
Page 14: Connecting To A Computer
Connect the power cord to the AC inlet on the back of your LCD TV, after all connections have been completed, and plug the other end of the power cord into a correctly grounded electrical outlet. AC wall socket ViewSonic N3250w... -
Page 15: Basic Operation
Input, Channel, Resolution, Audio Type, Smart Sound Modes, and Smart Picture Modes, depending on what input source it is in.) Main Window Input Channel Resolution NTSC Audio Type MONO Smart Sound Mode User Smart Picture Mode User ViewSonic N3250w... - Page 16 • Use ▲▼ to select the control you want to adjust. • When selecting the control with Press <ENTER>, press ENTER to enable the function. • Press ◄► to adjust the settings. • Press MENU to exit from the OSD menu. ViewSonic N3250w...
-
Page 17: Osd Functions
• Audio Out: To control sound output ON/OFF from the RCA audio out connectors. Note: To adjust the Audio settings, Smart Sound must be set to the User mode. (Select through the Sound button on the remote control) ViewSonic N3250w... -
Page 18: Tv Menu
Cancel or exit without pressing OK. Setup Menu — To set up OSD window Setup Menu is active in all input sources. • Language: To select a OSD language from English, Portuguese or Spanish. • Parental: To set up parental control. ViewSonic N3250w... - Page 19 Aspect Ratio: To select image size between Normal, Full, Wide1, Wide2, Wide3, 4:3, 16:9, and No scale. • OSD Timeout: To setup the display time of OSD. (5, 15, 45, and 60 seconds) • Memory Recall: To restore the factory default settings. ViewSonic N3250w...
-
Page 20: Vga Menu
HDMI / YPbPr / VGA HDMI TV / YPbPr / AV / S-Video / VGA YPbPr TV / HDMI / AV / S-Video HDMI / YPbPr / VGA S-Video HDMI / YPbPr / VGA TV / HDMI / AV / S-Video ViewSonic N3250w... - Page 21 PIP Position Select: Press P.POS to select the position of sub-screen. The function only acts on PIP. Note that the screen indexed with the pink frame is the screen you select to set up. Use ◄► to move the index between the main screen and the sub-screen. ViewSonic N3250w...
-
Page 22: Other Information
Preset Timing Mode (Pre-adjusted to GTF® 1360 x 768 @ 60 Hz) Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD TV. Note: Product Specifications are subject to change without notice. ViewSonic N3250w... -
Page 23: Troubleshooting
• CATV is connected improperly or not connected; please check all the CATV connections. • The cable TV service is interrupted; please contact your cable operator. Picture is cut off/with sidebar screen • Is the image positioned correctly? • Are screen mode adjustments such as picture size set correctly? ViewSonic N3250w... -
Page 24: Limited Warranty
How long the warranty is effective: ViewSonic LCD TVs are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase. - Page 25 ViewSonic ®...
