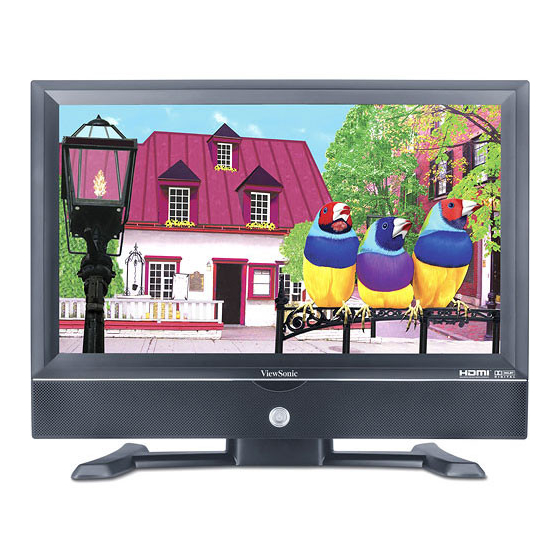

- Page 1 ViewSonic ® N3251w LCD TV - User Guide - Guide de l’utilisateur - Guía del usuario ViewSonic Model No. : VS11335-1M ®...
-
Page 2: Table Of Contents
TV Menu ... 19 Setup Menu ... 19 DTV Menu ... 21 VGA Menu ... 24 V-Chip Menu ... 24 PIP/POP ... 27 Other Information Specifications ... 29 Troubleshooting ... 30 Customer Support ... 31 Limited Warranty ... 32 ViewSonic N3251w... -
Page 3: Compliance Information
To assure continued FCC compliance, the user must use grounded power supply cord and the cables which are included with the equipment or specified. Also, any unauthorized changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. ViewSonic N3251w... -
Page 4: Important Safety Instructions
15. This product is only to perform the useful function of entertainment and visual display tasks are excluded. ViewSonic N3251w... -
Page 5: Copyright Information
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 6: Antenna Installation Instructions
LCD TV screen or ® case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 7: Getting Started
Getting Started Congratulations on your purchase of a ViewSonic Important! Save the original box and all packing material for future shipping needs. Package Contents Your LCD TV package includes: • LCD TV • Power Cord • VGA Cable • Quick Start Guide ViewSonic LCD TV. -
Page 8: Front View Of The Product
1. Press VOL+ and MENU buttons at the same time to lock power button, and press VOL+ and MENU buttons again to unlock it. 2. Press VOL- and VOL+ buttons at the same time to lock OSD menu, and press VOL- and VOL+ buttons again to unlock it. ViewSonic N3251w... -
Page 9: Rear View Of The Product
Connect this port to the HDMI output of A/V device. SPDIF Optical output Connect this port to the SPDIF input of A/V device. Headphone Jack Connect this port to your headphone. Power (AC input) Using power cord provided, connect to a power source. ViewSonic N3251w... -
Page 10: Remote Control
Remote Control ViewSonic N3251w... - Page 11 Adjust Channel UP/DOWN Select from preset Favorite Channels On Screen Display (OSD) menu ON/OFF Change the image size Toggle to enable/disable Picture in Picture/Picture Out of Picture function POP/PIP input source select Set V-Chip rating Switch between main screen and sub-screen N3251w...
-
Page 12: Installation
1) TV: Connect the LCD TV to TV antenna or set-top-box with 75-ohm coaxial cable. Preset the TV channels into memory with Auto Scan function when using an antenna or cable TV system without a cable connecter box (See page 19). ViewSonic RF Cable or Adapter (not supplied) N3251w... - Page 13 Connect Video/ Audio cables from compatible devices into the back panel of LCD TV. 1) With AV cable: 2) With S-Video cable: ViewSonic Antenna (not supplied) RCA A/V Cable VCR or DVD Player S-Video Cable (not supplied) Audio in Cable (not supplied) VCR or DVD Player N3251w...
-
Page 14: Connecting To External Stereo System To Listen To Lcd Tv Sound
Connect the audio output terminal of the LCD TV to audio in terminal of the stereo system (stereo system sold separately). ViewSonic YPbPr Cable (not supplied) Audio in Cable (not supplied) VCR or DVD Player VCR or DVD Player (DVD Player should have the HDMI output terminal) Audio in Cable (not supplied) Stereo system N3251w... -
Page 15: Connecting To The Headphone
Connect the VGA cable from VGA output of computer to the VGA terminal input of your LCD TV. VGA 15 Pin Cable 7. PC Audio In Connect the Audio cable (green) from audio output of your computer to the audio input terminal (green) of the LCD TV. ViewSonic PC Audio Connection (not supplied) N3251w... -
Page 16: Connecting With The Power Cord
Connect the power cord to the AC inlet on the back of your LCD TV, after all connections have been completed, and plug the other end of the power cord into a correctly grounded electrical outlet. AC wall socket ViewSonic Audio Cable (not supplied) A/V Device Stereo System N3251w... -
Page 17: Basic Operation
Modes, and Smart Picture Modes, depending on what input source it is in.) Main Window Input Channel TVBS Resolution NTSC Audio Type MONO Smart Sound Mode User Smart Picture Mode User ViewSonic (Program title.) Stereo 1080i H D (Program details.) RF2-1 N3251w... - Page 18 Repeatedly press SLEEP button to set the off timer. The function is used to automatically shut off the LCD TV after a preset period of time passed. There are several times for choice – OFF, 30min, 60min, 90min, or 120min. ViewSonic N3251w...
- Page 19 • Use ▲▼ to select the control you want to adjust. • When selecting the control with Press <Enter>, press ENTER to enable the function. • Press ◄► to adjust the settings. • Press MENU to exit from the OSD menu. ViewSonic N3251w...
-
Page 20: Osd Functions
• Audio Out: To control sound output ON/OFF from the RCA audio out connectors. Note: To adjust the Audio settings, Smart Sound must be set to the User mode. (Select through the Sound button on the remote control) ViewSonic N3251w... -
Page 21: Tv Menu
Cancel or exit without pressing OK. Setup Menu — To set up OSD window Setup Menu is active in all input sources. • Language: To select a OSD language from English, French or Spanish. • Parental: To set up parental control. ViewSonic N3251w... - Page 22 Aspect Ratio: To select image size between Normal, Full, Wide1, Wide2, Wide3, 4:3, 16:9, and No scale. • OSD Timeout: To setup the display time of OSD. (5, 15, 45, and 60 seconds) • Memory Recall: To restore the factory default settings. ViewSonic N3251w...
-
Page 23: Dtv Menu
SPDIF Type: To select the type of audio transfer file format. • Auto Scan: Press ENTER to start scanning DTV channels automatically. Press MENU at any time to cancel Auto Scan. • Manual Scan: To scan the DTV channels manually. Press ENTER and select Scan Mode with ◄►. ViewSonic N3251w... - Page 24 Press ENTER to start scanning, and press MENU at anytime to cancel scanning. • Channel Skip: To skip channels when viewing channels with CH ▲ and ▼. Press ENTER, and then use ENTER to check/uncheck the channel you want to skip. ViewSonic N3251w...
- Page 25 Font Color: To select a font color from Black, White, Green, Blue, Red, Cyan, Yellow, or Magenta. Font Opacity: To select font opacity from Solid, Translucent, or Transparent. Background Color: To select background color. Background Opacity: To select background opacity. Window Color: To select window color. Window Opacity: To select window opacity. ViewSonic N3251w...
-
Page 26: Vga Menu
Note: The factory default of the password is “0000”. If you have changed the password, please make sure you remember the new password, because you cannot recall the default setting of the password by any selection. Use ▲▼ to select your desired optional item, and press ENTER. ViewSonic N3251w... - Page 27 ViewSonic Restricted NC-17 No one 17 and under limited Adult audience only TV-PG Parental guidance suggested TV-14 Parents strongly cautioned: this program contains some material that is unsuitable for children under 14 years of age TV-MA Mature audience only N3251w...
- Page 28 CE_14 Viewers 14 years and older CE_18 Adult programming CF_13ANS This emission can not be appropriate to the children of less than 13 years CF_16ANS This emission is not appropriate for less than 16 years CF_18ANS This emission is reserved to the adults N3251w...
-
Page 29: Pip/Pop
2. Use ◄► to select the sub-input source and press ENTER to confirm. Note: To select the input source for main screen, press INPUT button. • SWAP: Press SWAP to exchange main screen to sub-screen, including video and sound. The function is available both in PIP and POP. ViewSonic POP Screen N3251w... - Page 30 PIP Position Select: Press P.POS to select the position of sub-screen. The function only acts on PIP. Note that the screen indexed with the pink frame is the screen you select to set up. Use ◄► to move the index between the main screen and the sub-screen. ViewSonic N3251w...
-
Page 31: Other Information
To 40,000 feet (12,000m) 807.7mm (W) x 626.6mm (H) x 242.4mm (D) 31.8’’ (W) x 24.7’’ (H) x 9.5’’ (D) 21.7 kg (47.7 Ib) UL, FCC-B (Doc-B), NOM, BEST-7 < 150 W (green LED) < 3 W (red LED) N3251w... -
Page 32: Troubleshooting
• CATV is connected improperly or not connected; please check all the CATV connections. • The cable TV service is interrupted; please contact your cable operator. Picture is cut off/with sidebar screen • Is the image positioned correctly? • Are screen mode adjustments such as picture size set correctly? ViewSonic N3251w... -
Page 33: Customer Support
For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number. Country/ Web Site Region United States www.viewsonic.com/support/ Canada www.viewsonic.com/support/ ViewSonic T=Telephone Email F=Fax T= (800) 688 6688 service.us@viewsonic.com F= (909) 468 1202 T= (866) 463 4775 service.ca@viewsonic.com N3251w... -
Page 34: Limited Warranty
How long the warranty is effective: ViewSonic LCD TVs are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase. - Page 35 ViewSonic ®...
