ROOM SERIES
Installation & Operation Instructions
PCB: CARRIER FAN
PRECAUTIONS
• DO NOT RUN THE WIRING IN ANY CONDUIT
WITH LINE VOLTAGE (24/120/230 VAC).
GENERAL INSTRUCTIONS
The Room sensor is a single point temperature
sensor that is designed for use with electronic
controllers in commercial heating and cooling
building management systems. These units will be
o ered in Room, Room with Setpoint, Room with
Override, and Room with Setpoint and Override.
MOUNTING INSTRUCTIONS
For optimal temperature measurement, follow
these tips:
• Do not install on external walls.
• Avoid air registers, di users, vents, and windows.
• Avoid con ned areas such as shelves, closed
cabinets, closets, and behind curtains.
• Eliminate and seal all wall and conduit penetrations.
Air migration from wall cavities may alter
temperature readings.
• A thermally-insulated backing should be used when tting to solid walls (concrete, steel, etc.). ACI part:
A/ROOM-FOAM-PAD
• Do not install near heat sources, eg: lamps, radiators, direct sunlight, copiers, chimney walls, walls
concealing hot-water pipes.
Take care when mounting. Check local code for mounting height requirements. Typical mounting heights are
48-60" (1.2-1.5 m) o the ground and at least 1.5' (0.5 m) from the adjacent wall. The sensor should be mounted
in an area where air circulation is well mixed and not blocked by obstructions.
*Reference FIGURE 2 (p. 2)
Separate the cover from the base. Attach the base directly to the wall or to a standard 2" x 4" junction box
using the (2) #6-32 x 1" screws provided. Refer to Wiring Instructions (p. 1-2) to make necessary
connections. Tighten the cover down, using the (2) 1/16" Allen screws located in the bottom of the housing.
A 1/16" Hex driver is needed to secure the cover to the base.
WIRING INSTRUCTIONS
ACI recommends 16 to 26 AWG twisted pair wires or shielded cable for all sensors. Signal wiring must be
run separate from low and high voltage wires (24/120/230 VAC). The number of wires needed depends on
the application. All wiring must comply with all local and National Electric Codes. After wiring, attach the
cover to the base by snapping the top of the cover on rst and then the bottom.
Automation Components, Inc.
2305 Pleasant View Road | Middleton, WI 53562
Phone: 1-888-967-5224 | Website: workaci.com

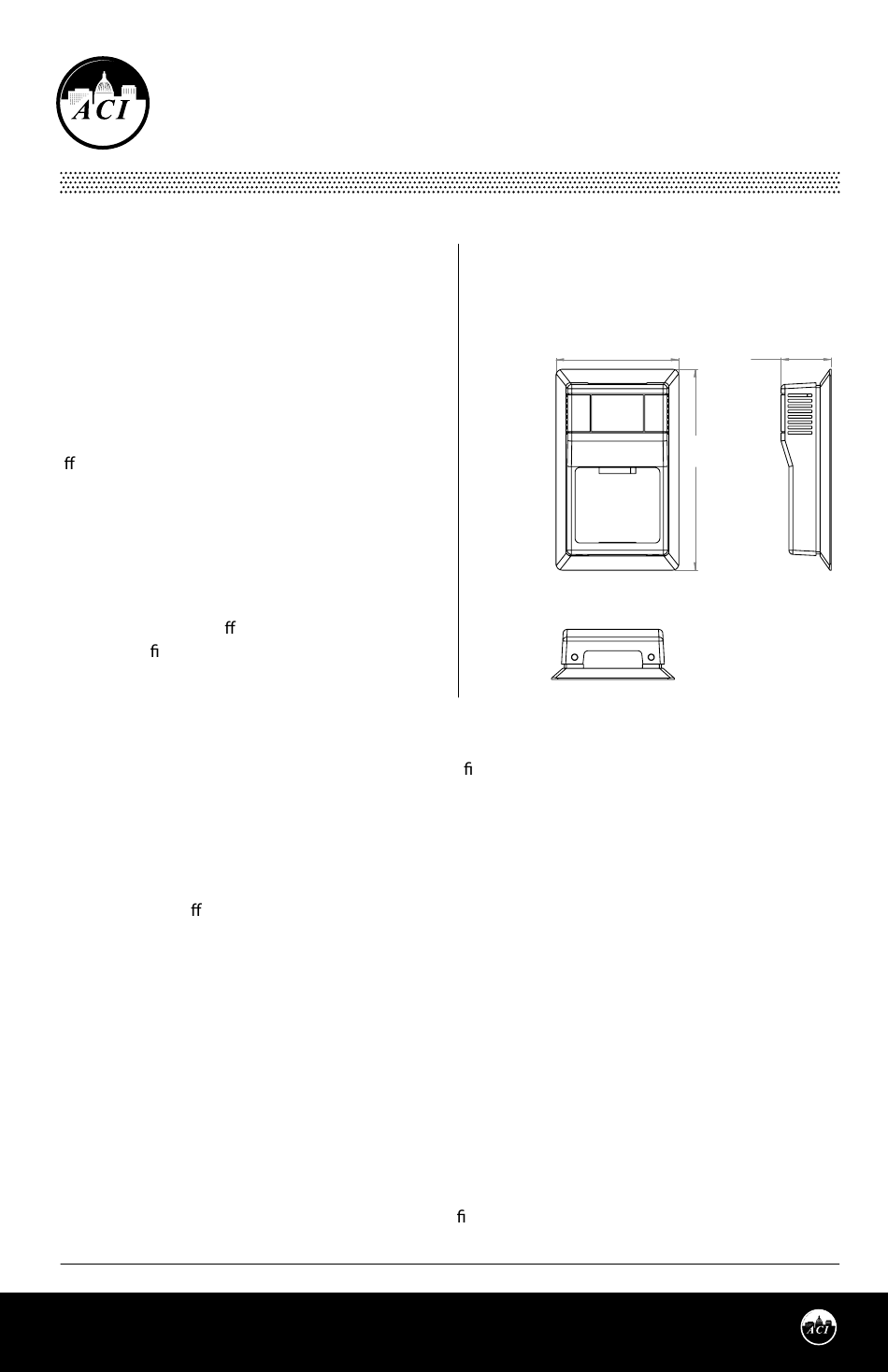

FIGURE 1: ROOM DIMENSIONS
ROOM, VERSION 1
[R]
2.75"
(69.85 mm)
FRONT
BOTTOM
Page 1
Phone: 1-888-967-5224
Website: workaci.com
1.12"
(28.55 mm)
4.50"
(114.30 mm)
RIGHT
Version: 5.0
I0000741
