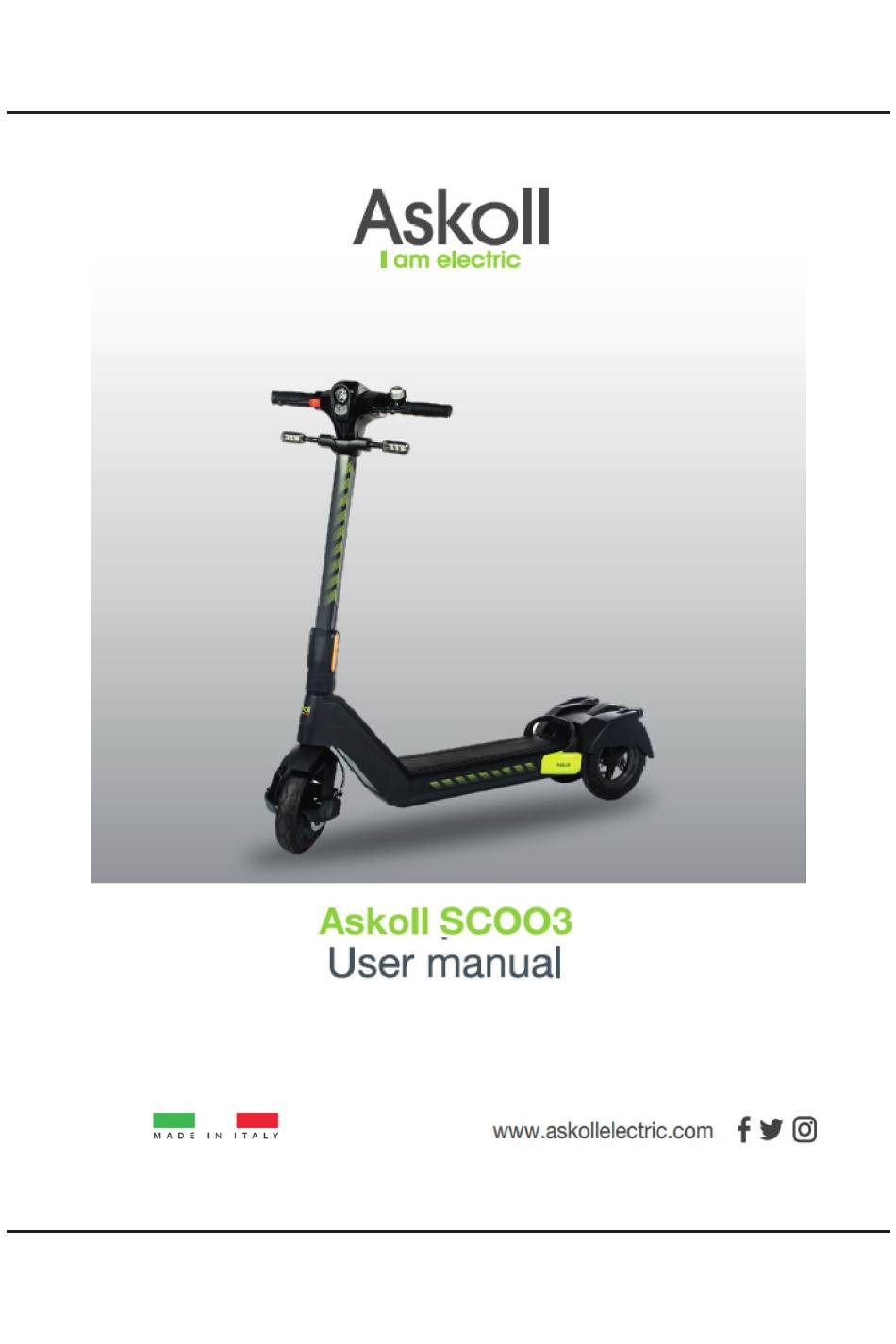

Askoll SCOO3 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCOO3 and is the answer not in the manual?

Questions and answers

Related Manuals for Askoll SCOO3

Summary of Contents for Askoll SCOO3

  • Page 2 If the vehicle is sold, it must be handed over to the new owner. Constant evolution in design, guaranteeing the safety and quality standards of Askoll vehicles, may mean that some of the informa- tion in this Owner’s Manual may differ from the vehicle in your possession. We are certain that you understand, therefore, that the...

  • Page 3: Table Of Contents

    3 - 4 IDENTIFICATION QUICK GUIDE COMMANDS AND INSTRUMENTS GENERAL VIEW OF THE VEHICLE POSITION OF CONTROLS AND INSTRUMENTS ASKOLL SCOO3 DASHBOARD LEFT-HAND DRIVE UNIT Rear brake control lever Direction indicator switch RIGHT-HAND DRIVE UNIT Rear brake control lever Throttle lever...
  • Page 4 SAFE DRIVING START-UP OPERATIONS Front and rear light operation Right and left brake lever operation Funzionamento leva acceleratore e avvio SCOO3 Pedestrian Function Mode Modalities of SCOO3 use How to prevent unexpected and improper use of the vehicle SELEZIONE FUNZIONI DISPLAYDISPLAY FUNCTION SELECTION...
  • Page 5 INDEX ORDINARY MAINTENANCE TABLE VEHICLE CLEANING ERROR CODE ERROR CODE TROUBLESHOOTING TECHNICAL ASSISTANCE TECHNICAL DATA 31-32-33 ASKOLL SCOO3 DATASHEET RESPONSIBILITY WARRANTY TRANSPORT, PACKAGING AND STORAGE SPARE PARTS DEMOLITION AND DISPOSAL EU DECLARATION OF CONFORMITY...

  • Page 6: General Information

    GENERAL INFORMATION SIMBOLOGY Within the manual, particularly important information is recalled that needs to be dwelt on more carefully. Each signal has a different symbol to make the content of the text that follows it clear and to facilitate the location of topics in the different areas. This symbol indicates particularly dangerous situations which, if not avoided, could result in death or serious injury.

  • Page 7: Purpose Of The Manual

    GENERAL INFORMATION SCOPE OF THE MANUAL This manual is an integral part of the ASKOLL SCOO3 unit and has been compiled by the manu- facturer in its original language (Italian) to provide all the information necessary for the proper and safe use of the vehicle, as well as the battery supplied with it, throughout their entire life cycle (from transport, delivery, installation, use and maintenance to disposal).

  • Page 8: Important Safety Warnings

    The company will not accept any liability arising from the misuse of the product or non-compliance with both the traffic regulations and the instructions in this manual. It is of fundamental importance for you to get to know the Askoll SCOO3 electric vehicle: read and understand this manual before first use.
  • Page 9 Periodically check that the parking brake is working properly. Before use, ensure that the electrical equipment of the Askoll SCOO3 is undamaged and functional. Contact an authorised workshop for maintenance on electrical con-...

  • Page 10: Identification

    Identification numbers are stamped on the chassis and should always be quoted in spare parts requests. It is advisable to check that the vehicle serial numbers correspond to those on the vehicle docu- ments. Type Veicolo: TE401 Position serial number Askoll SCOO3 Alteration of identification numbers may incur serious criminal penalties.

  • Page 11: Quick Guide

    When the vehicle starts to move forward, put both feet on the platform and press the accelerator. • To steer the Askoll SCOO3, tilt your body in the driving direction during a turn and slowly turn the handlebar. Turn and turn the handlebar slowly. •...

  • Page 12: Commands And Instruments

    COMMANDS AND INSTRUMENTS GENERAL VIEW OF ASKOLL SCOO3 Askoll SCOO3 electric vehicle Grips I . Rear fender L . Rear light Brake lever M . Rear direction indicators Headlight N . Footplate Front direction indicators O . Display Handlebar extension...

  • Page 13: Position Of Controls And Instruments

    COMMANDS AND INSTRUMENTS POSITION OF CONTROLS AND INSTRUMENTS ASKOLL SCOO3 PLANT A . Display B . Rear brake lever C . Direction indicator switch D . Rotating bell E . Integral brake lever (combined) F . Throttle lever...

  • Page 14: Left-Hand Drive Unit

    COMMANDS AND INSTRUMENTS LEFT-HAND DRIVE UNIT Left-hand brake lever combined braking The front brake lever is located on the left side of the handlebar, by operating it, combined integral braking of both the front wheel and both rear wheels is achieved Direction indicator switch Move the lever to the left to operate the left flashers.

  • Page 15: Right-Hand Drive Unit

    COMMANDS AND INSTRUMENTS RIGHT-HAND DRIVE UNIT Rear brake lever The rear brake lever is located on the right-hand side of the handlebar, it has the function of braking both rear wheels right + left, it also has the function of mechanical parking Throttle lever The throttle lever is located on the right-hand side of the handlebar,...

  • Page 16: Vehicle Ignition

    COMMANDS AND INSTRUMENTS Askoll SCOO3 ignition Press and hold the ignition button for a few seconds to start the vehicle INSTRUMENTATION A . Indicator lights B . Speedometer C . Digital Display D . Display Comand...

  • Page 17: Indicator Lights

    COMMANDS AND INSTRUMENTS INSTRUMENTATION Indicator lights Generic error Pedestrian mode Battery charge indicator Battery charge indicator The charge indicator displays the remaining remaining battery charge, allowing the user an the user an indicative estimate of battery autonomy.

  • Page 18: Generic Error

    SAFE DRIVING • Do not use the telephone or listen to music while driving the Askoll SCOO3. • Only drive if there is enough light to drive safely. safely. When driving in unfavourable light conditions, please remember to wear a reflective jacket.

  • Page 19: Start-Up Operations

    INTENDED USE OPERATIONS FOR START-UP To switch on the Askoll SCOO3, press and hold the power button on the bottom of the display for 4 seconds. The right lever has a locking mechanism for the braking system, to start the vehicle...

  • Page 20: Front And Rear Light Operation

    OPERATIONS FOR START-UP Front and rear light operation The front and rear lights are activated automatically when the Askoll SCOO3 is switched Operating both the left and right brake levers activa- tes the STOP light with intermittent function Operation Right brake lever and left brake lever...

  • Page 21: Funzionamento Leva Acceleratore E Avvio Scoo3

    INTENDED USE OPERATIONS FOR START-UP Askoll SCOO3 throttle lever and start-up operation In order to start the electric motor assistance it is necessary for the to reach a speed of 3 km/h, you must then give a slight forward push with...

  • Page 22: Modalities Of Scoo3 Use

    INTENDED USE HOW TO USE ASKOLL SCOO3 The electric vehicle may not be used by more than one person at the same time. Do not place heavy objects on the handlebars. Do not place heavy objects on the handlebars. Always circulate with both hands on the handlebars.

  • Page 23: How To Prevent Unexpected And Improper Use Of The Vehicle

    INTENDED USE How to prevent unexpected and improper use of Askoll SCOO3 To prevent unexpected or improper use of the Askoll SCOO3 always use the padlock provided supplied to lock the vehicle. For correct locking of the vehicle, pass the wire cable through one of...

  • Page 24: Selezione Funzioni Displaydisplay Function Selection

    INTENDED USE SELECTING DISPLAY FUNCTIONS Odometer data display mode 1. Speedometer: displays the instantaneous speed of Askoll SCOO3 3. Generic fault: displays the detected problem code, the tringolo icon lights up “Generic fault” and flashes the error number on the tachometer 4.

  • Page 25: Battery And Charging

    Battery management on the vehicle The TC108 battery is located inside the footrest compartment of Askoll SCOO3, to extract the battery you must open the compartment cover using the special manual key lock, located on the front of the steering...

  • Page 26: Battery And Charging

    BATTERY AND RECHARGING BATTERY Askoll SCOO3 battery recharge • Steady red LED battery charging • Steady green battery charge LED • Blue LED flashing low battery Connect the charger to the battery, then to the mains. • Green battery charger led fast flashing, battery charging.

  • Page 27: Warnings For Battery Management

    BATTERY AND RECHARGING BATTERY Indications when charging Askoll SCOO3 battery LED colour Meaning of LED flashing Battery state information RED LED flashing Electrical error frequent continuous RED LED flashing Battery under minimum voltage frequent moving* battery RED LED slow flashing continuo-...
  • Page 28 0%, this allows the batteries to be aligned correctly in the first period of use. If the Askoll SCOO3 is left with the engine switched off for a long period in a low temperatures (between 0 °C and +10 °C), charging times may be longer.

  • Page 29: Charge Percentage

    Check the charge maintenance every 2 months. After leaving the battery unused for a long period, recharge the battery to 100% before using the Askoll SCOO3. Disposal of used batteries At the end of its service life, a battery pack containing lithium ac- cumulators must be disposed of according to current regulations and cannot be thrown away as simple waste.

  • Page 30: Periodic Maintenance

    PERIODIC MAINTENANCE Front and rear lights The front and rear lights of the Askoll SCOO3 are of the LED type, do not require no maintenance or adjustments; if the LEDs are damaged, the entire light must be replaced. Front and rear brake pads...

  • Page 31: Front And Rear Lights

    Front disc brake attached vehicle fork rear wheels of the vehicle Askoll SCOO3 has three disc brakes, one on the front wheel front wheel and on both rear wheels, replace the brake discs when the surface thickness has fallen below 0.6mm compared to the nominal thickness in original.

  • Page 32: Front Tyre Replacement

    PERIODIC MAINTENANCE Askoll SCOO3 Front Tyre Replacement The ASKOLL SCOO3 electric vehicle uses solid rubber tyres, which should normally be replaced when tread wear visibly reduces the impressions on the tyre. Please refer to the maintenance table in this booklet.

  • Page 33: Rear Tyre Replacement

    PERIODIC MAINTENANCE Askoll SCOO3 Rear Tyre Replacement To remove the rear tyres, remove the rear mudguard and unscrew the fixing bolts, loosen the brake cable retainers so that the caliper is in the fully open position, then remove the wheels from the axle...

  • Page 34: Ordinary Maintenance Table

    Note: Do not clean the vehicle with alcohol, petrol, paraffin or other corrosive and volatile chemical solvents to avoid corrosive and volatile chemical solvents to avoid serious damage. Do not wash the Askoll SCOO3 with high-pressure water jets...

  • Page 35: Error Code

    Service Centre at the point of purchase, or at an authorised corto circuito ASKOLL workshop If several errors were present, they would appear sequentially TECHNICAL ASSISTANCE For technical assistance requests please contact the manufacturer ASKOLL EVA SPA Tel. +39 0444 930260 AfterSales@askoll.com www.askollelectric.com...

  • Page 36: Technical Data

    According to the legal provisions of the state where marketed Driving modes Drive + pedestrian mode (max. 6km/h) the motor power rating may vary according to the laws in force in the state where sold BATTERY Brand Askoll Type Lithium-ion TC108 Modality swappable Capacity Wh - mAh...
  • Page 37 TECHNICAL DATA TECHNICAL DATA SHEET LIGHTING Front Rear LED flashing Front and rear direction indicators Catarifrangente Front, lateral side, rear, approved DIMENSION Length 1220 mm Width 490 mm Height 1200 mm Full weight w/battery 28 kg Maximum load 110 kg GENERAL INFORMATION Technical charact.
  • Page 38 Licence plate holder Model vehicle SCOO3 ** Vehicle speed set in accordance with the legal provisions in force in the state where the vehicle is marketed *** The on-road range of the Askoll SCOO3 is strictly dependent on conditions use, which gradient...

  • Page 39: Responsibility

    *In Italy, the matter is currently governed by the law L 27/12/2019 N.160 WARRANTY Askoll SCOO3 is covered by a warranty on materials for a period of 36 months from the date on the sales receipt or invoice. The owner loses the right to the warranty in the event of incorrect installation or improper use of the vehicle, in the event of mo- difications not authorised by the manufacturer that alter the structure of the vehicle.

  • Page 40: Transport, Packaging And Storage

    SPARE PARTS Contact the dealer where you purchased the vehicle. ASKOLL EVA SPA Thanks to its logistics structure, it is able to minimise the deli- very time of spare parts. The manufacturer also guarantees high quality and perfor- mance for spare parts. The spare parts are subjected to numerous tests to ensure the same standards as the components originally installed on the product and have been developed and approved specifically for Askoll SCOO3.

  • Page 41: Demolition And Disposal

    DECLARATION OF CONFORMITY / CERTIFICATIONS The Askoll SCOO3 was designed in accordance with the applicable EU directives and therefore meets the requirements of the following directives: Description: Monopattino Type: TE401...
  • Page 42 NOTE...
  • Page 43 NOTE...
