9K-12K CONSOLE AIR HANDLER
FOR MULTI-ZONE & EXTREME HEAT SINGLE-ZONE SYSTEMS
REMOTE CONTROLLER
USER MANUAL
Models Covered:
ACiQ-09FM-HH-MD
ACiQ-12FM-HH-MD
IMPORTANT NOTE:
Thank you for purchasing our air conditioner. Please read this manual carefully
before operating your new air conditioning unit. Make sure to save this manual
for future reference.
VERSION DATE: 02-20-25
Advertisement
Table of Contents
Related Manuals for ACIQ RG10L4
Summary of Contents for ACIQ RG10L4

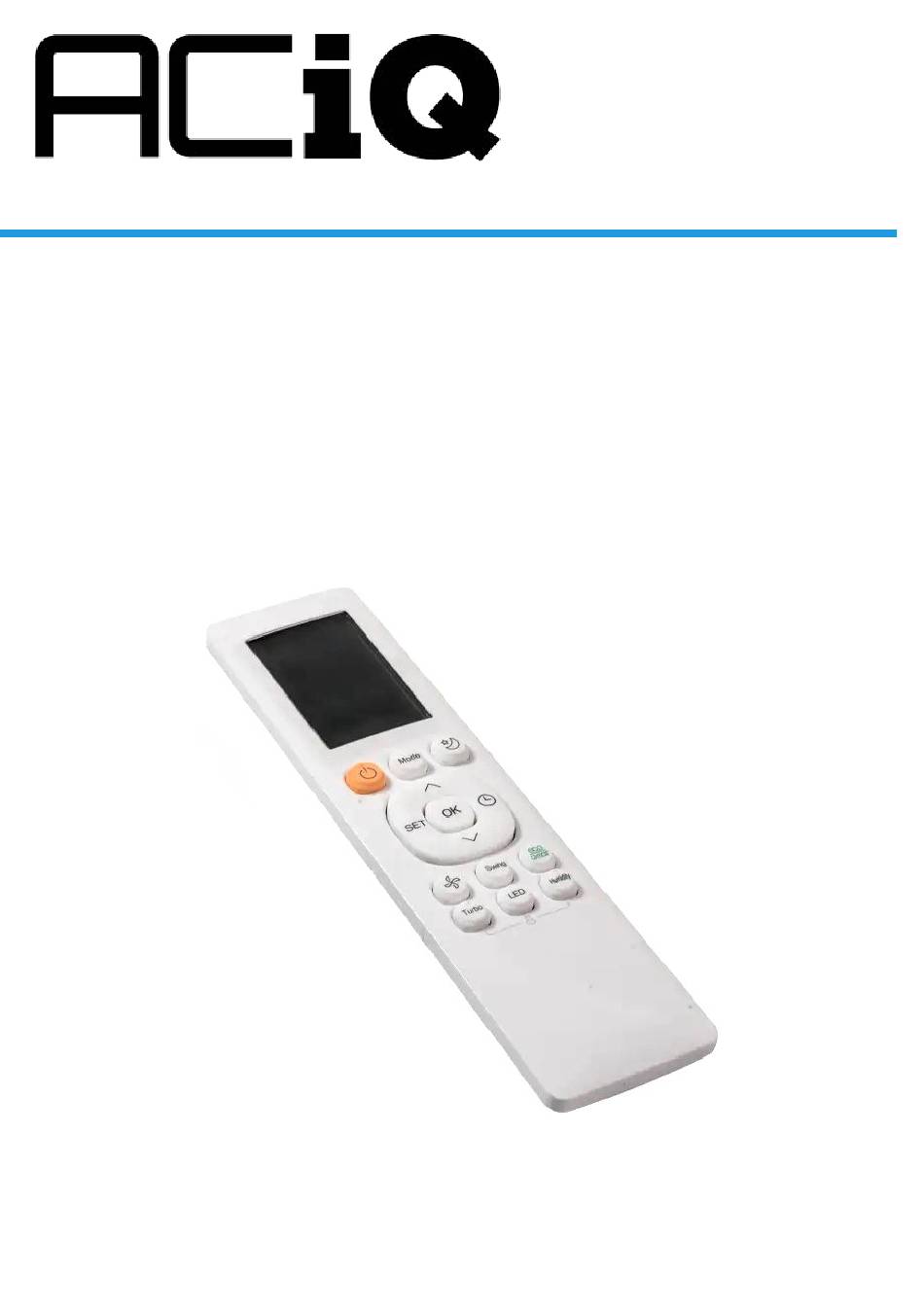

- Page 1 FOR MULTI-ZONE & EXTREME HEAT SINGLE-ZONE SYSTEMS REMOTE CONTROLLER USER MANUAL Models Covered: ACiQ-09FM-HH-MD ACiQ-12FM-HH-MD IMPORTANT NOTE: Thank you for purchasing our air conditioner. Please read this manual carefully before operating your new air conditioning unit. Make sure to save this manual for future reference.
-
Page 3: Table Of Contents
Table of Contents Remote Controller Specifications ............02 Handling the Remote Controller ............03 Buttons and Functions ..............04 Remote Screen Indicators ..............06 How to Use Basic Functions ............07 How to Use Advanced Functions ..........10... -
Page 4: Remote Controller Specifications
Remote Controller Specifications RG10L4(M2HS)/BGEFU1 3.0V( Dry batteries R03/LR03×2) maximum 8m (vertical distance ) -5°C~60°C(23°F~140°F) Quick Start Guide AUTO COOL HEAT FIT BATTERIES SELECT MODE SELECT TEMPERATURE AU-100% SELECT FAN SPEED POINT REMOTE TOWARD UNIT PRESS POWER BUTTON NOT SURE WHAT A FUNCTION DOES? Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner. -
Page 5: Handling The Remote Controller
Handling the Remote Controller Battery Performance Inserting and Replacing Batteries Your air conditioning unit may come with two For optimal product performance: batteries(some units). Put the batteries in the • Do not mix old and new batteries, or remote control before use. batteries of different brands. -
Page 6: Buttons And Functions
2 seconds to initiate vertical time. Keep pressing this button louver auto swing feature. more than 5 seconds in heating mode to active Super heat operation. To stop this feature, keep pressing this button more than 3 seconds. Model: RG10L4(M2HS)/BGEFU1... -
Page 7: Remote Screen Indicators
Remote Screen Indicators Information are displayed when the remote controller is power up. Active clean feature display Not applicable for this unit Fresh feature display Breeze Away display Sleep mode display Not applicable for this unit Follow me feature display Not applicable for this unit Wireless control feature display Not applicable for this unit... -
Page 8: How To Use Basic Functions
How to Use Basic Functions Basic operation ATTENTION! Before operation, please ensure the unit is plugged in and power is available. SETTING TEMPERATURE The operating temperature range for units is 16-30°C (60-86°F). You can increase or decrease the set temperature in 0.5°C (1°F) or 1°C (1°F) increments. - Page 9 DRY Mode (dehumidifying) 1. Press the MODE button to select DRY. 2. Set your desired temperature using the TEMP or TEMP button. 3. Press the ON/OFF button to start the unit. NOTE: FAN SPEED cannot be changed in DRY mode. FAN Mode Press the MODE button to select FAN mode.
-
Page 10: Setting The Timer
Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER button to initiate Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence. -
Page 11: How To Use Advanced Functions
How to Use Advanced Functions Swing function Press Swing button The horizontal louver will swing up and down Keep pressing this button more than 2 seconds, automatically when pressing Swing button. the vertical louver swing function is activated. Press again to make it stop. Airflow direction If continue to press the SWING button, five different airflow directions can be set. -
Page 12: Eco Operation
ECO/GEAR function Press this button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode ECO..Note:This function is only available under COOL mode. ECO operation: Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24 C/75 F, fan speed of Auto to save energy (only when the set temperature is less than 24 C/75 F). -
Page 13: Silence Function
Silence function Keep pressing button for more than 2 seconds to activate/disable Silence function. Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity. Press ON/OFF, Mode, Sleep, Turbo or Clean button while operating will cancel silence function. FP function Press this button 2 times during one second under HEAT Mode and setting temperature of 16 C/60 F. -
Page 14: Turbo Function
Turbo Function Press Turbo button When you select Turbo feature in COOL mode, the unit will blow cool air with strongest wind setting to jump-start the cooling process. When you select Turbo feature in HEAT mode, the unit will blow heat air with strongest wind setting to jump-start the heating process(some units). -
Page 15: Set Function
SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above. - Page 16 Any updates to the manual will be uploaded to the service website, please check for the latest version. Supplier's Declaration of Conformity Per FCC Part 2 Section 2.1077 Unique Identifier : (RG10L4(M2HS)/BGEFU1) Responsible Party – U.S. Contact Information Company name:1HVAC Energy, LLC. Street Address:2331 W STATE ROUTE 55 City, State ：TROY, OH Postal Code ：45373...
