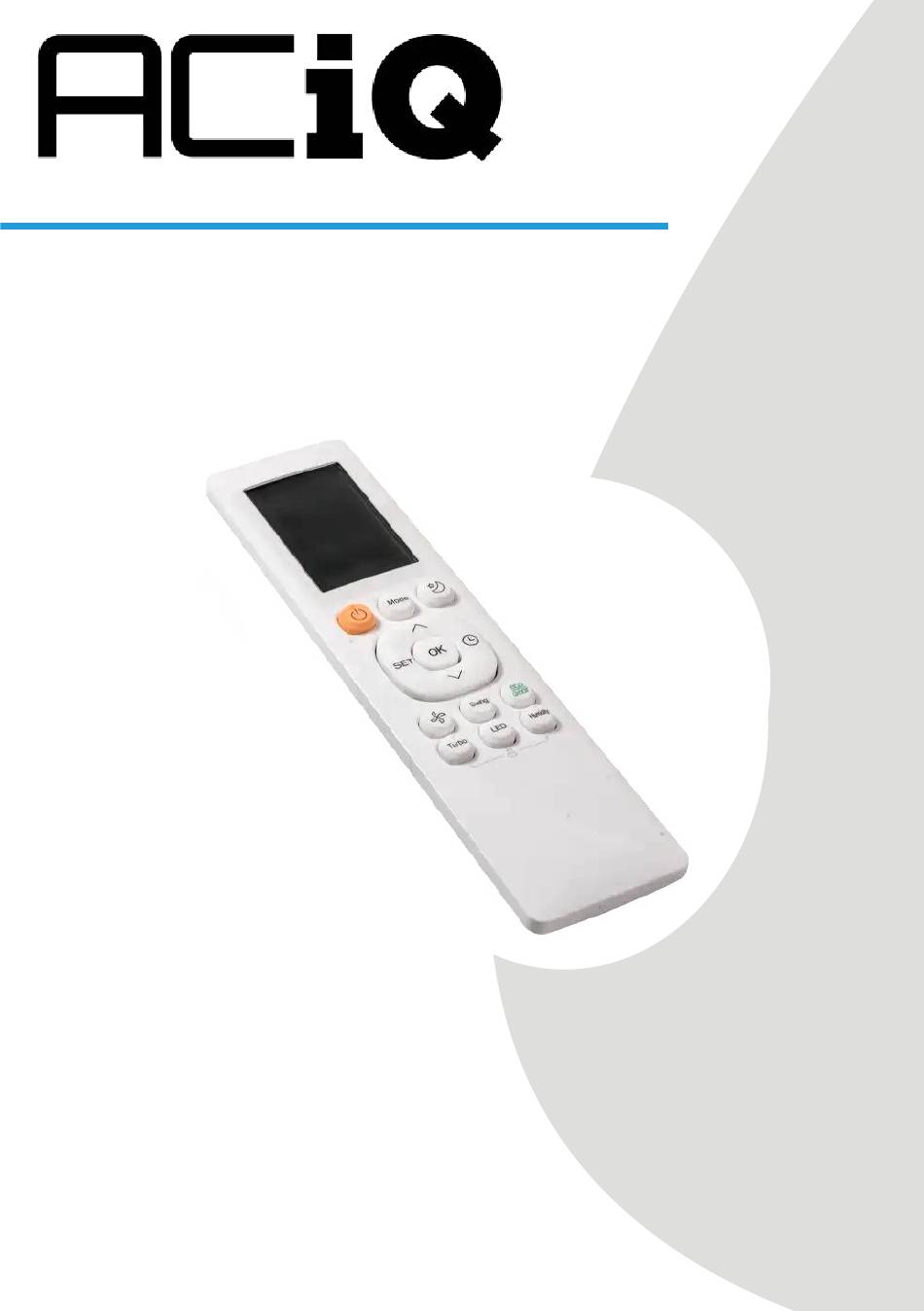

WALL-MOUNTED DUCTED AIR HANDLER

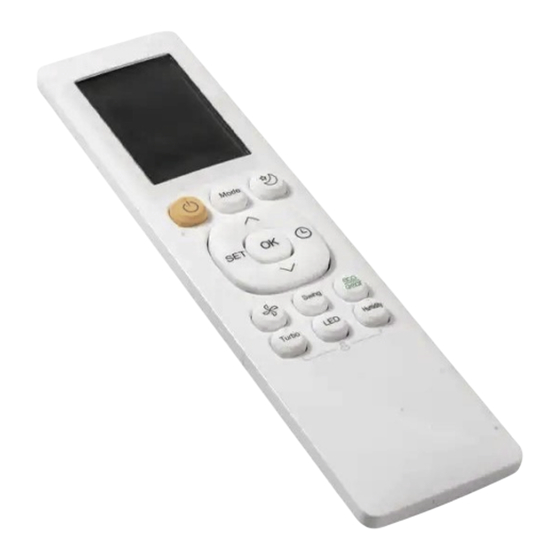

REMOTE CONTROLLER
OWNER'S MANUAL
Models Covered:
ACiQ-18W-WM
ACiQ-24W-WM
ACiQ-30W-WM
ACiQ-36W-WM
IMPORTANT NOTE:
Thank you for purchasing our air conditioner. Please read this manual
carefully before operating your new air conditioning unit. Make sure to save
this manual for future reference.
VERSION DATE: 08-29-24
Advertisement
Table of Contents
Related Manuals for ACIQ ACiQ-24W-WM
Summary of Contents for ACIQ ACiQ-24W-WM
- Page 1 WALL-MOUNTED DUCTED AIR HANDLER REMOTE CONTROLLER OWNER'S MANUAL Models Covered: ACiQ-18W-WM ACiQ-24W-WM ACiQ-30W-WM ACiQ-36W-WM IMPORTANT NOTE: Thank you for purchasing our air conditioner. Please read this manual carefully before operating your new air conditioning unit. Make sure to save this manual for future reference.
-
Page 2: Table Of Contents
Table of Contents Remote Controller Specifications ............02 Handling the Remote Controller ............03 Buttons and Functions ..............04 Remote Screen Indicators ..............08 How to Use Basic Functions ............09 How to Use Advanced Functions ..........11... -
Page 3: Remote Controller Specifications
Remote Controller Specifications RG10A(D2S)/BGEF, RG10A(D2S)/BGEFU1,RG10A1(D2S)/BGEF, RG10A2(D2S)/BGEFU1, RG10A2(D2S)/BGCEFU1, RG10A2(D2S)/BGCEF, RG10A10(D2S)/BGEF, RG10B(D2)/BGEF, RG10B1(D2)/BGEF, RG10B2(D2)/BGCEF,RG10B10(D2)/BGEF，RG10B10(D2)/BGCEF, RG10Y1(D2)/BGEF,RG10Y2(D2S)/BGEF 3.0V( Dry batteries R03/LR03×2) -5°C~60°C(23°F~140°F) NOTE: For models of RG10Y1 (D2)/BGEF,RG10Y2(D2S)/BGEF, If the unit is turned off under COOL, AUTO or DRY mode with the set temperature less than 24 C, the set temperature will be automatically set to 24 C when you turn on the unit again. -
Page 4: Handling The Remote Controller
Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. In Canada, it should comply with •... -
Page 5: Buttons And Functions
Buttons and Functions Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual. - Page 6 MODE ON/OFF Scrolls through operation modes Turns the unit on or off. as follows: AUTO COOL DRY HEAT FAN TEMP Increases temperature in NOTE: HEAT mode is not 1°C (1°F) increments. supported by the cooling only Max.
- Page 7 ON/OFF MODE Turns the unit on or off. Scrolls through operation modes TEMP as follows: AUTO COOL Increases temperature in DRY HEAT FAN 1°C (1°F) increments. NOTE: HEAT mode is not Max. temperature is supported by the cooling only 30°C (86°F).
- Page 8 MODE ON/OFF Turns the unit on or off. Scrolls through operation modes as follows: AUTO COOL TEMP DRY HEAT FAN Increases temperature in NOTE: HEAT mode is not 1°C (1°F) increments. supported by the cooling only Max.
-
Page 9: Remote Screen Indicators
Remote Screen Indicators Information are displayed when the remote controller is power up. Breeze Away display(some units) Active clean feature display Fresh/UV-C lamp feature display Sleep mode display Follow me feature display Wireless control feature display(some units) Transmission Indicator Low battery detection display(If flashes) Lights up when remote sends signal to indoor MODE display... -
Page 10: How To Use Basic Functions
How to Use Basic Functions ATTENTION Before operation, please ensure the unit is plugged in and power is available. AUTO Mode Select AUTO mode Set your desired temperature Turn on the air conditioner MODE NOTE: 1. In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT function based on the set temperature. -
Page 11: Setting The Timer
Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER button to initiate Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence. -
Page 12: How To Use Advanced Functions
How to Use Advanced Functions Swing function Press Swing button Swing Swing The horizontal louver will swing up and down Keep pressing this button more than 2 seconds, automatically when pressing Swing button. the vertical louver swing function is activated. Press again to make it stop. -
Page 13: Silence Function
ECO/GEAR function Press this button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode ECO..Note:This function is only available under COOL mode. ECO operation: Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24 C/75 F, fan speed of Auto to save energy (only when the set temperature is less than 24 C/75 F). -
Page 14: Turbo Function
FP function The unit will operate at high fan speed (while compressor on) with temperature automatically set to 8 C/46 F. Note: This function is for heat pump air conditioner only. Press this button 2 times during one second under HEAT Mode with setting temperature of 16 C/60 F or 20 C/68 F(for models of RG10A10(D2S)/BGEF, RG10B10(D2)/BGEF and RG10B10(D2)/BGCEF) to activate FP function. -
Page 15: Set Function
SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above. - Page 16 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. CR313-RG10(D2S+UV)-0301 16122000A77230...
