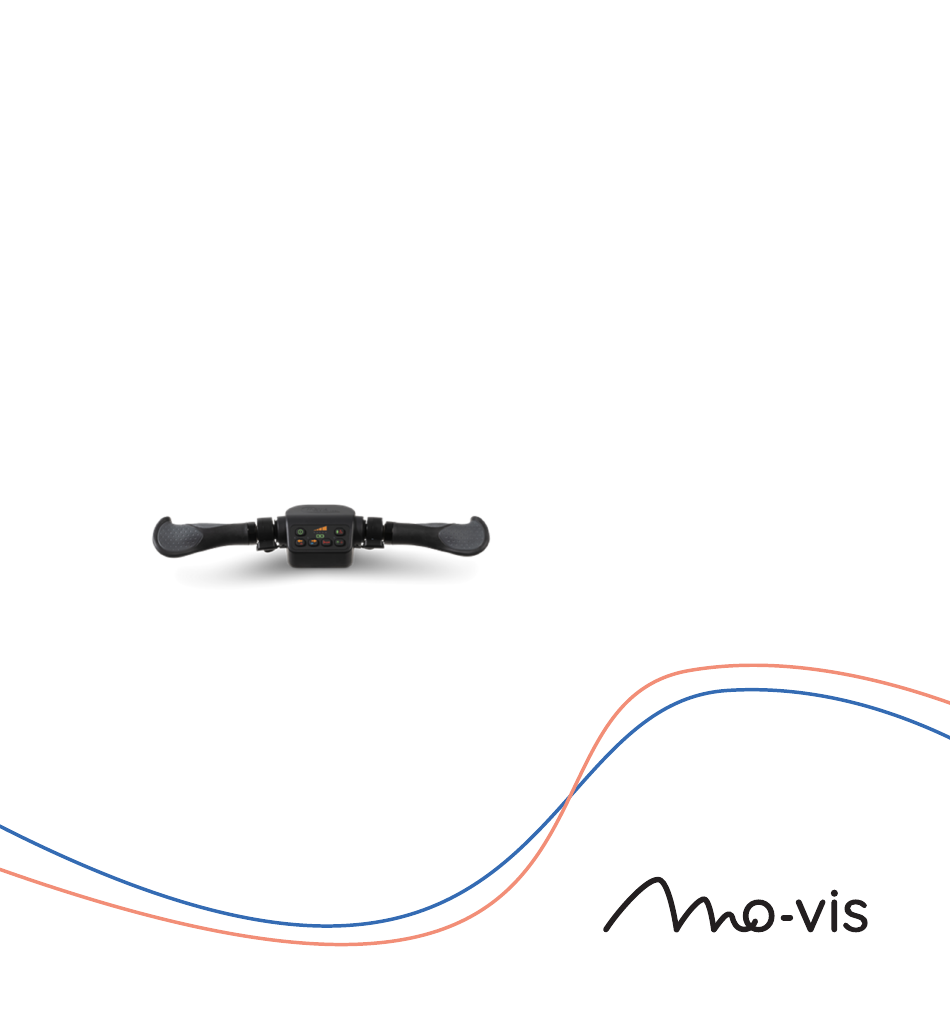

- Page 1 User manual Edition D-P015-61-70-M9-0700, August 2023 Scoot Control P015-61 Scoot Control R-net - P015-71 Scoot Control LiNX moving forward together...
- Page 2 Other languages ................. 7 C o n t e n t s About this manual ................8 User manual ................8 mo-vis bv ................... 8 User manual ..................10 Warning labels ................ 10 Support, scrapping & recycling ..........13 Limited liability ................ 14 Intended use ................
- Page 3 About this manual User manual Thank you for choosing a mo-vis product! This manual contains useful and important information about your device. Please read it carefully before use and store safely for future reference. Our team (or your authorized dealer) will be happy to answer your questions.
- Page 4 CH-REP: SKS Rehab AG, Im Wyden, 8762 Schwanden GL, Switzerland. UK Responsible Person: QServe Group UK, Ltd., 49 Greek Street, London, WID 4EG, UK. Scoot Control User manual...
- Page 5 User manual Warning labels Please read this manual, the safety instructions and warning texts carefully, in order to reduce the risks associated to the device. Our products are safe under normal and reasonably foreseeable operating conditions. NOTE: This symbol indicates general notes and information. CAUTION: This symbol indicates caution for a hazardous situation that, if not avoided, could result in minor or moderate injury.
- Page 6 identified. Batch code: indicates the manufacturer's batch code so that the batch or lot can be identified. Medical device: indicates that the item is a medical device. Date of manufacture: indicates the date when the medical device was manufactured. Serial number: indicates the manufacturer's serial number so that a specific medical device can be identified.
- Page 7 indicates that a medical device should not be used if the package has been damaged or opened and that the user should consult the instructions for use for additional information. CE label: indicates that the manufac- turer or importer affirms the good's conformity with European health, safety, and environmental protec- tion standards.
- Page 8 Always state the product code and device serial number when contacting us. This ensures you are provided with the correct information. Spare parts and accessories Contact mo-vis or your dealer for more information about spare parts and accessories. Scrapping & recycling CAUTION: For scrapping, adhere to your local waste legislation.
- Page 9 Limited liability mo-vis accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings and instructions in this manual. CAUTION: This product should only be installed by a qualified service engineer.
- Page 10 Safe driving WARNING: The on/off switch must be available to the user at all times. This allows to instantly stop the wheelchair in case of problems or an emergency. WARNING: In case the wheelchair responds in an unexpected way, the user must immediately release the Scoot Control or use the power on/ off switch.
- Page 11 Built in a compact housing, with a 3.5 mm stereo jack to connect an external actuator keypad • P015-61 Scoot Control R-net: actuator keypad should be compatible with the Curtiss-Wright CJSM2 resistor values • P015-71 Scoot Control LiNX: actuator keypad should be compatible with LiNX input control systems •...
- Page 12 Control panel: control the Scoot Control NOTE: The control panel is slightly different for the R-net and the LiNX version. Handlebar: rubber handle at either side to steer the wheelchair Left and right throttle: to move the power chair forward and/or backward Scoot Control User manual...
- Page 13 3.5 mm jack to connect an external keypad Built-in sounder: to be used as horn R-net or LiNX bus cable Horizontal movements of the handle bar will result in a steering action of the wheelchair (turning). Scoot Control User manual...
- Page 14 In combination with the thumb throttle it is possible to move the wheelchair in any direction. • Standard configuration: right throttle = forward, left throttle = backward • If both throttles are operated simultaneously and that would result in conflicting direction, the chair will stop driving WARNING: Do not hang things (e.g.
- Page 15 Control Panel R-net version The buttons have the following functions: BUTTON FUNCTION ACTION On / Off Switch the power chair on/off Left indicator Switch the left indicator on/off Right indicator Switch right indicator on/off Hold S2 for > 2 Hazard lights Switch hazard lights on/off seconds Hold S3 for >...
- Page 16 BUTTON FUNCTION ACTION seconds Horn Horn sounds as long as pressed Direction Switch direction of the throttles Speed setting Change the speed. The first click on S6 will show you the current speed setting. The next clicks will change the speed. Hold S6 for >...
- Page 17 D11 and D15 red, D13 flashes red, other LEDs are off: number of flashes indicates the fault (see Scoot Control Installation manual). NOTE: Only mo-vis faults are shown, R-net system faults are shown on the remote. Status • In focus: battery indicator •...
- Page 18 FUNCTION INFORMATION Both are orange when the lights are on and the direction indicator is off. Forward / reverse In standard configuration: Forward = green Backward = orange No focus Stand-by Flash green / orange (depending on direc- tion of throttle) Control Panel LiNX version Scoot Control User manual...
- Page 19 The buttons have the following functions: BUTTON FUNCTION ACTION On / Off If the wheelchair is off when S1 is pressed, the system will turn on with the attendant in charge. If the wheelchair is on when S1 is pressed, the system will hand over control to the attendant.
- Page 20 D11 and D15 red, D13 flashes red, other LEDs are off: number of flashes indicates the fault (see Scoot Control Installation manual). NOTE: Only mo-vis faults are shown, LiNX system faults are shown on the remote. Status • In focus: speed setting •...
- Page 21 FUNCTION INFORMATION Right indicator/ Green flash when right indicator is on. Lights Solid green when lights are on. D16 + Hazard lights Both flash green when hazard lights are Forward / reverse In standard configuration: Forward = green Backward = orange No focus Stand-by Flash green / orange (depending on direc-...
- Page 22 PART NUMBER FUNCTION INFORMATION Keypad Button R-net external Curtiss- tion Manual CJSM2 Wright CJSM2 com- patible Actuator Key- P016-99 Actuator pad to the Scoot Con- Keypad Paddle R-net trol R-net (P015-61) CJSM2 to control the actu- ators of the power P016-88 Actuator chair.
- Page 23 PART NUMBER FUNCTION INFORMATION Dimensions on page M015-70 Scoot Con- Dedicated mount- Available together with trol bracket set ing part for the Scoot Scoot Control as P015-65 Control Scoot Control R-net bundle or P015-75 Scoot Control LiNX bundle. Dimensions on page M015-71 Scoot Con- Dedicated mount- Available together with...
- Page 24 PART NUMBER FUNCTION INFORMATION Dimensions on page P015-51 Scoot Right throttle Control Throttle R Assembly P015-52 Scoot Con- Left throttle trol Throttle L Assem- P015-53 Scoot Con- Right and left throttle trol Throttle Set Scoot Control User manual...
- Page 25 Contact mo-vis or your dealer for more information about spare parts and accessories. Qualifications CAUTION: Only a qualified service engineer may install the device. CAUTION: An incorrect programming of the wheelchair or device electronics, may cause damage to the devices or injury to the user.
- Page 26 CAUTION: Do not immerse in water or use excessive amounts of liquid. CAUTION: Do not apply additional lubricants to the moving parts. CAUTION: Pay special attention to the cleanliness of the throttles. Dirt and liquids could lead to reduced functionality of the Scoot Control. Warnings and limitations NOTE: This product complies with the limit values for Electromagnetic...
- Page 27 Dimensions Scoot Control 450 x 100 x 55 mm - 17.72 x 3.94 x 2.17 in (WxDxH) Mounting Brackets • M015-70 Scoot Control bracket set • M015-71 Scoot Control bracket set short Scoot Control User manual...
- Page 28 Scoot Control User manual...
- Page 29 Scoot Control User manual...
- Page 30 . Biebuyckstraat 15D . 9850 Deinze - Belgium www.mo-vis.com . contact@mo-vis.com . +32 9 335 28 60 Go to our website for more information on our products or share your experience with us via email.
