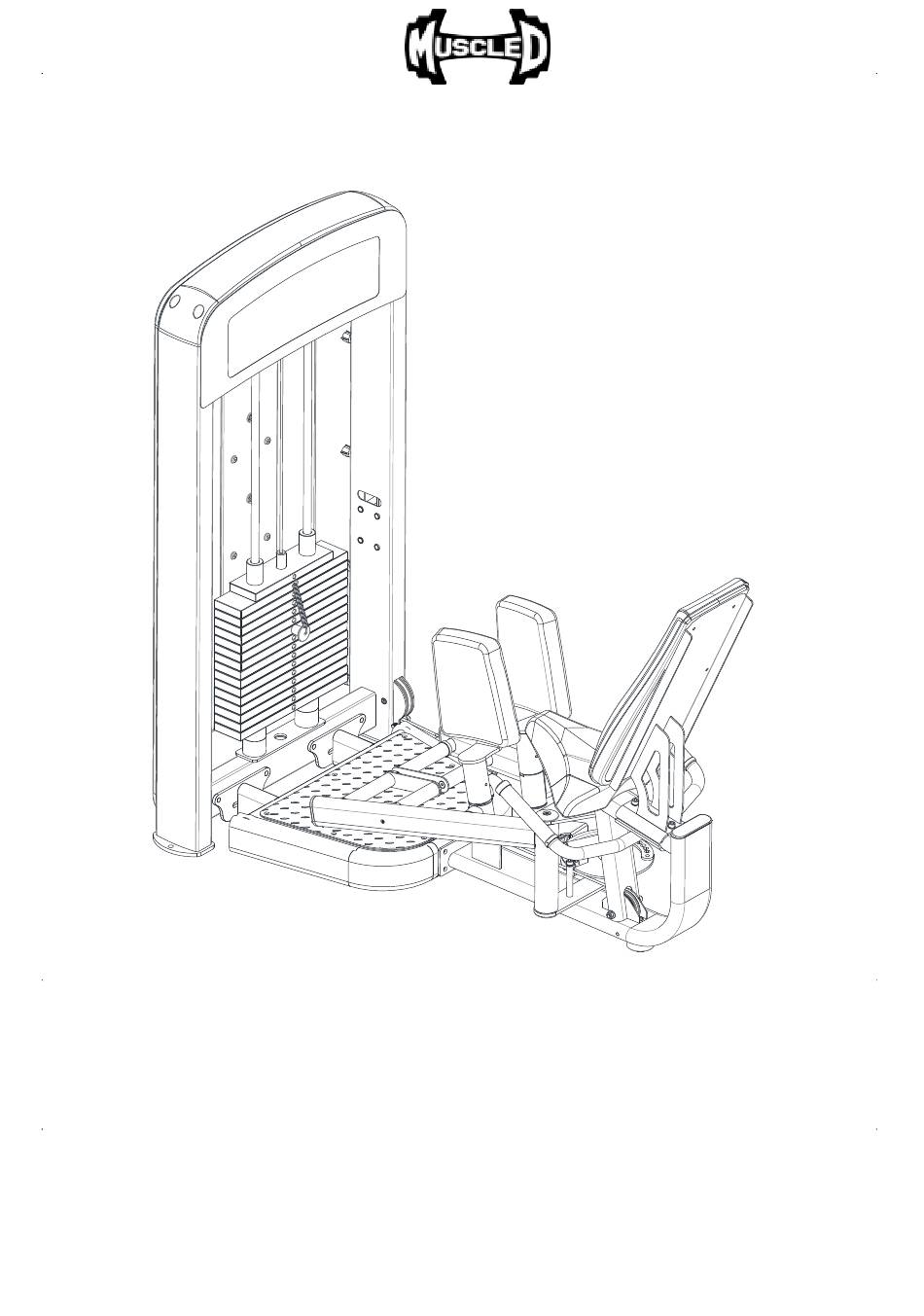

- Page 1 ELITE INNER OUTER THIGH (S-E-IOT) WWW.MUSCLEDFIT.COM 1/10...
- Page 2 Table of Contents 01/ Safety instructions 02/ Installation steps diagram and checklist 03/ Product description 04/ Product specifications 05/ Maintenance guide 2/10...
- Page 3 01/ Safety Instructions: Thank you for choosing our company's product. Proper use of the trainer ensures your safety and convenience. Before using the trainer, please carefully read the following: 1. Before using this product, carefully read all user manuals and strictly follow the instructions provided.
- Page 4 02/Installation Steps 1） Installation Step One Completed Image Installation Checklist Name Spec Qty. Foot Pedal Main Frame Fixed Tube Φ12 Flat Washer Φ10 Flat Washer Φ12 Spring Washer Φ10 Spring Washer Hex Socket Cylinder Head Bolt M12*25 M10*30 4 Hex Socket Cylinder Head Bolt 4/10...
- Page 5 2) Installation Step Two Installation Checklist Completed Image Name Spec Qty. Spacer ∮25.5*∮40*t3 Pull Pin 14AB Limit Stop 14AC Cam Plate 14AD Left Leg Frame 14AE Right Leg Frame 14AF Leg Pad Fixing Tube 14AQ Leg Pad Fixed Tube Set φ38*φ25.5*t5 Aluminum Cap ∮60*Φ10.5*8.84...
- Page 6 3) Installation Step Three Installation Checklist Completed Image Name Spec Linkage Shaft ∮22*177.05*M12*1.75 14AK Support Tube 16*t2.5*87.5 14AJ Clip Plate 450*494.28*T2 Nylon Lock Nut Flat Washer φ12 Flat Washer φ10 Spring Washer φ10 Hex Socket Bolt M10*25 Hex Socket Bolt M12*40 Hex Socket Bolt M10*110...
- Page 7 4) Installation Step Four Completed Image Installation Checklist Name Spec Back Pad Tube Set Armrest Tube Set Lock Nut Flat Washer φ10 Hex Bolt M10*60 7/10...
- Page 8 5) Installation Step Five Installation Checklist Completed Image Name Spec Flat Washer φ8 Hex Socket Bolt M8*25 Seat Cushion 383.48*324.19*83.57 Leg Swing Pad 300*245*T63.5 Back Pad 669*354*63 8/10...
- Page 9 6) Installation Step Six Pulley Assembly Diagram 9/10...
- Page 10 03/Product Description: This machine is indoor fitness equipment designed for aerobic cardiovascular exercise, primarily focusing on improving cardiovascular function while also assisting in muscle training. It targets various muscle groups such as the thighs and calves, aiming to enhance strength and aesthetics. Illustrated with functional diagrams, it provides clear instructions on how to correctly use the equipment and exercise different muscles, making it easy to grasp.
