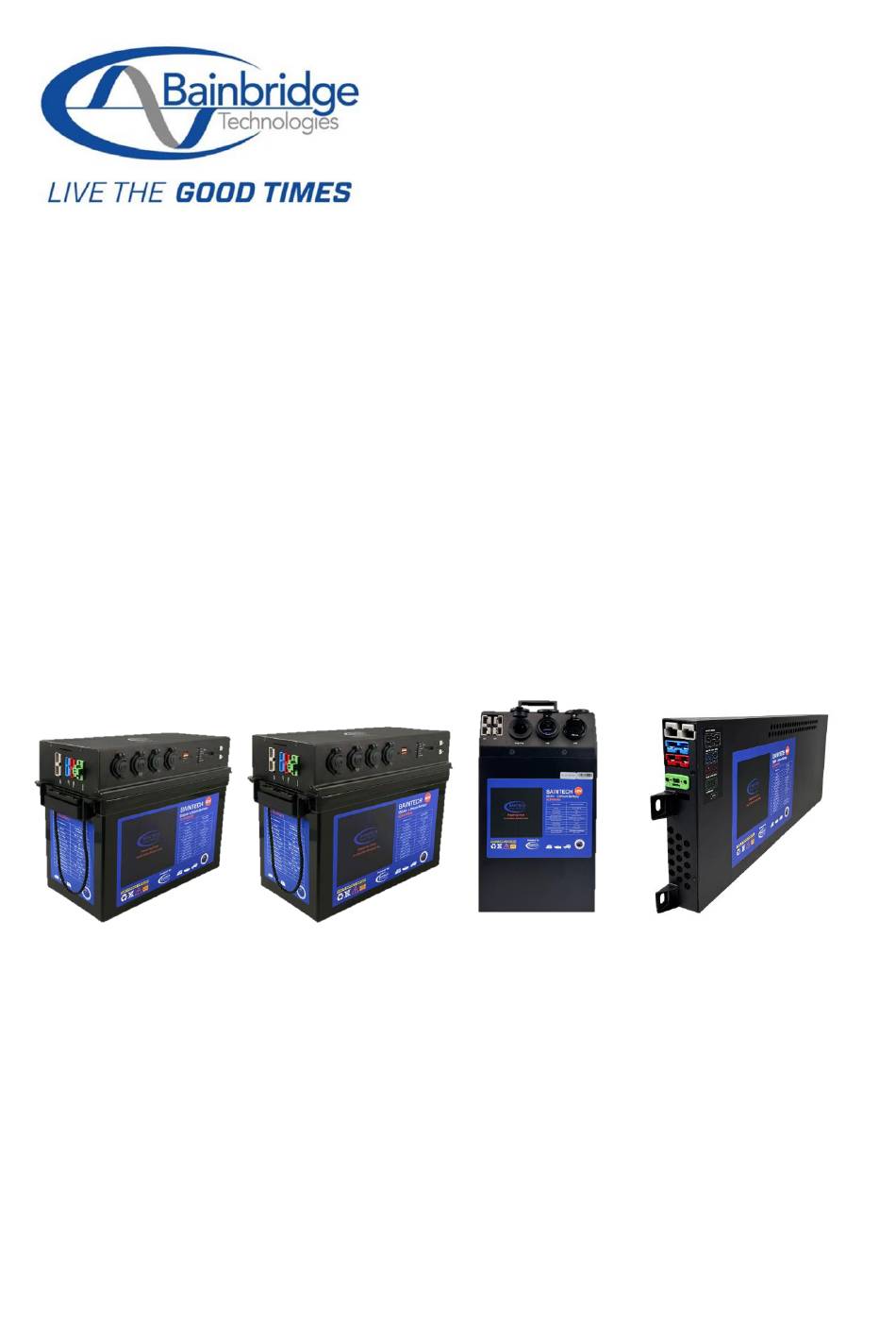

Installation & User Guide
For Power Top & Slimline Family
Thank you for choosing Baintech Power Products!
Always follow basic safety precautions when using electrical appliances. Read all
instructions carefully. Please keep this instruction manual for easy reference.
Models
BT80A-BTCH10
BT150A-POWERTOP
BT200A-POWERTOP
BTBLUESLIM110-DC40
Advertisement
Table of Contents
Related Manuals for Baintech BT80A-BTCH10
Summary of Contents for Baintech BT80A-BTCH10
- Page 1 Installation & User Guide For Power Top & Slimline Family Thank you for choosing Baintech Power Products! Always follow basic safety precautions when using electrical appliances. Read all instructions carefully. Please keep this instruction manual for easy reference. Models BT80A-BTCH10...
-
Page 2: Safety Instructions
BAINTECH offer these general guidelines; however, you should seek BAINTECH advice or that of a qualified electrical tradesperson if you are in doubt 2. Safety Instructions This battery contains lithium iron phosphate (LFP) cells. - Page 3 3. Installation & User Guide The Lithium Battery comes in a variety of sizes with 80Ah being the portable version and the 150Ah/200Ah being the standard size, both available with convenient plugs to provide power for a variety of purposes. Like all electronic devices you need to treat your appliance carefully and not expose to excessive temperatures, water, dirt or undue rough handling.
- Page 4 The BT80A - BTCH10 comes with 2x50A GREY Anderson Plugs that can be used as input/output for Charging the battery or running loads from the battery in comparison to the single 120A Grey Anderson connector on the BT150A/BT200A – POWERTOP model. The BT150A/BT200A–POWERTOP model features a BLUE Anderson terminal for inbuilt DC-...
- Page 5 Anderson Terminal can be connected to SOLAR Blankets or PV Panels to charge the Battery or to power connected loads when the vehicle is stationary directly under the sun. DO NOT plug in a DC source exceeding 50V and 40A in the Anderson Terminal as it can lead to permanently damaging your Battery.
- Page 6 − Ignition Wire Terminal for inbuilt DC-DC charger to provide charge to the Battery while the vehicle ignition is ON FOR BT80A-BTCH10 LITHIUM BATTERY ONLY − 2-way Bi-Directional Anderson Plug (GREY) for Input and Output Applications with Input and Output Range : 50A Max −...
-
Page 7: Troubleshooting & Faqs
Extra capacity ensures lower DOD, extended life and a higher financial return on your investment. BAINTECH batteries have a cycle life of 5,000 at 50% and 3,000 at 80% DOD. 4. Troubleshooting / FAQs 1. - Page 8 everything is plugged in and ready to go turn the wall unit on first and then turn the Power Top on. Do keep the Battery fully charged to maintain battery at optimum capacity. Repeated deep cycling (deeply discharging the battery) reduces battery life and DAMAGES the internal cells of the Battery and...
-
Page 9: Specifications
5. Specifications BT150A-POWERTOP Specifications: Nominal Voltage: 12.8V • Rated Capacity: 150Ah • Energy: 1920Wh • Resistance: ≤30mΩ • Efficiency: ≥98% • Cycle Life: >3000 cycles @ 1C, 80% DOD • Self-Discharge: <5% per month • Cell Configuration: 4S/1P • Continuous Discharge Current: 200A •... - Page 10 Recommended Charge Current: 75A • Maximum Charge Current: 200A • BMS Charge Cut-off Voltage: 14.8V • Compatible Power Sources: Alternator: DC 11.5V – DC 16V, Max 40A • Solar: DC 11.5V – DC 50V, Max 40A • Additional Features: Ignition: Fully charged/Solar/Alternator •...
- Page 11 Solar: DC 11.5V – DC 50V, Max 40A • Additional Features: Ignition: Fully charged/Solar/Alternator • Protection Features: Overvoltage, Undervoltage, Overcurrent • Alarm Information: Voltage, Current, SOC • BT80A-BTCH10 Specifications: Nominal Voltage: 12.8V • Rated Capacity: 80AH • Energy: 1024Wh • Resistance: ≤60mΩ...
- Page 12 Recommended Reconnect Voltage: 10.8V • Short Circuit Protection: Anderson SOA (blue), Anderson 50A (red), • Anderson 120A (grey), CigaSocket (x2), Engle Socket (x1), USB-C (x2), USB-A QC3.0 (x2), USB-C PD3.0 Wiring Terminal: 2P • Display: LED Indicators, Display Screen • Temperature Parameters: Discharge Temperature: -20°C to 60°C •...
-
Page 13: Warranty Information
End-User. Refer to the terms and conditions for detailed coverage. https://baintech.com.au/terms-and-conditions/ 7. Contact Us • 1224 Lytton Road, Hemmant, QLD 4174 • sales@baintech.com.au • 1300 224 683 • www.baintech.com.au...
