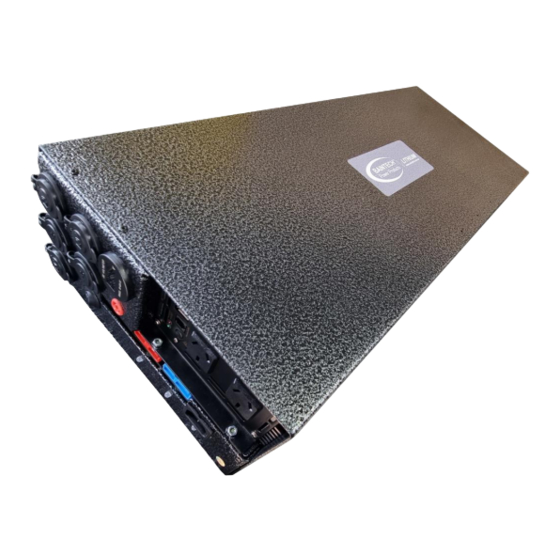

- Page 1 Installation & User Guide Tradie Pack (TP) Range Models: BTLITH-TP110 BTLITH-TP110-24 BTLITH-TP220 TradiePack - User Guide v1.3...
-
Page 2: Table Of Contents
Installation & User Guide TP Range Contents ........................................0 Introduction ................................. 3 Do’s and Don’ts ................................4 Ensure the battery is physically secure ........................4 Do not penetrate the battery enclosure ........................4 Maintain an acceptable temperature range ........................ 4 Avoid repeated shock and vibration .......................... - Page 3 Installation & User Guide TP Range Version History 1) Initial Release 1.1) Spelling and Grammar corrections, DC-DC fuse rating correction, general tidy up 1.2) Addition of Victron SmartShunt/SmartBMV configuration and guidance 1.3) BMV Settings updated: Battery starts synchronized – Off. TradiePack - User Guide v1.3...
-
Page 4: Introduction
As with all batteries, you should consider the mechanical and environmental conditions that you intend to operate the battery in to maximise overall performance and achieve the longest battery life. Baintech offer these general guidelines; however, you should seek Baintech advice or that of a qualified electrical tradesperson if you are in doubt. -
Page 5: Do's And Don'ts
Alternatively, use strapping and clamping to secure the battery in place. Maintain an acceptable temperature range Like all batteries, Baintech batteries operate and perform the best, as well as last the longest, in a cool and stable temperature environment of between 10 C and 25 C. -
Page 6: Avoid Repeated Shock And Vibration
If you are unsure how to install the battery, seek advice from Baintech or a suitably qualified electrical tradesperson. Check to ensure the connecting Anderson plugs are correctly wired (positive and negative) and do not attempt to mismatch Anderson colours when connecting. -
Page 7: Longevity & Depth Of Discharge
Extra capacity ensures lower DoD, extended life and a higher financial return on your investment. Baintech batteries have a cycle life of 5,000 at 50% and 2,000 at 80% DOD. 4.0 Battery Management System Your battery comes with an integrated Battery Management System (BMS). -
Page 8: Installation
Installation & User Guide TP Range 5.0 Installation It is recommended that the TradiePack battery is installed by a professional auto electrician. Stowage The TradiePack battery is likely to be stowed in a car, RV or 4WD or as a portable battery for camping. An important part of the battery installation is securely fixing it down or safely stowing it away during transport so that it does not become a projectile in an accident. -
Page 9: Mounting Orientation
Installation & User Guide TP Range Mounting orientation The TradiePack battery can be mounted flat or on its side. Do not mount the battery on it side with the voltmeter upside-down. In this configuration, the internal cells are upside down which is against the manufacturer’s recommendations as shown in the figure below. -
Page 10: Connecting Dc Loads And Chargers
Installation & User Guide TP Range Connecting DC loads and chargers BTLITH-TP110 and BTLITH110-24 The BTLITH-TP110 and BTLITH-TP110-24 models are equipped with 2 convenient grey Anderson plug connectors, one accessible from the front and one on the back of the battery as shown in Figure 4 . Both can be used as input and outputs for charging and running loads up to 100A each. -
Page 11: Btlith-Tp220
Installation & User Guide TP Range BTLITH-TP220 The BTLITH-TP220 model contains 4 convenient grey Anderson plug connectors, two accessible from the front and two on the back of the battery as shown in Figure 5 . These can be used as input and outputs for charging and running loads up to 50A each. -
Page 12: Connecting To The Integrated Dc-Dc Charger
Installation & User Guide TP Range Connecting to the integrated DC-DC charger The blue connector is reserved for a 11V to 18V DC input, to make use of the internal DC-DC charger. The DC-DC charger is rated for 20A for the BTLITH-TP110 and 40A for the BTLITH-TP220 from a vehicle alternator or start battery. -
Page 13: Tuning The Dc-Dc Charger
Installation & User Guide TP Range Tuning the DC-DC Charger As you look at the 20A DC-DC charger, there is an LED and 2 rotary switches on the side face of the battery (N/A on BTLITH-TP110-24 models) NOTE - The BTLITH-TP220 has two separate 20A chargers that must be identically configured to ensure full 40A charging capability. -
Page 14: Connection Procedure
Installation & User Guide TP Range Connection Procedure After connecting the DC source via the blue Anderson plug, the vehicle engine can be started. The green LED status light should illuminate if the battery is charging. The rotary switches will require adjusting depending on the alternator type. -
Page 15: Ignition Trigger Input
Installation & User Guide TP Range Ignition Trigger Input The Ignition Trigger Input, a blue or red plug on the front face of the battery, can be used to only charge the TradiePack when an ignition feed is live. This will ensure that you starter battery doesn’t drain unnecessarily when the vehicle is not in use. -
Page 16: Auxiliary Dc Loads
Installation & User Guide TP Range Auxiliary DC loads It’s possible to connect smaller auxiliary loads to the Tradie Pack via the cigarette and USB outlets on the front of the unit. Some of these outputs are switched (highlighted red in Figure 10 ) and protected by a 20A breaker at the rear (highlighted red in Figure 11 ). -
Page 17: Connecting A Solar Input
Installation & User Guide TP Range Connecting a Solar Input The TradiePack can accept unregulated solar voltage via the red Anderson connectors on both the front and rear of the unit. The solar array connected to the TradiePack should not exceed 75V open circuit rating or have a short circuit rating of more than 15A. -
Page 18: Ac Output
Installation & User Guide TP Range AC Output The TradiePack has an integrated inverter, capable of supplying 1200W (BTLITH-TP110 & BTLITH- TP110-24) or 2200W (BTLITH-TP220) of AC power. The inverter has two AU/NZ Type I standard outlets, each with a max of 10A. Parameter BTLITH-TP110 BTLITH-TP220... -
Page 19: User Guide
Installation & User Guide TP Range 6.0 User Guide Once the battery is securely installed and electrically connected it will automatically be available for use. The internal BMS will actively ensure the battery is always protected and operating safely. The battery requires no user interface or intervention under normal conditions. -
Page 20: Smart Shunt
Installation & User Guide TP Range Discharge Curve: Lithium vs Lead Acid 100% Depth of Discharge (DoD) Lead Acid Voltage (v) Lithium Voltage (V) Figure 15: Voltage Curve Lead Acid vs Lithium The TradiePack battery voltages below are a useful guide: 1. - Page 21 Installation & User Guide TP Range Figure 16: Screenshot of the Victron Connect app Figure 17: SmartBMV on the BTLITH-TP220 TradiePack - User Guide v1.3...
-
Page 22: Reconfiguring The Smartshunt/Smartbmv
Installation & User Guide TP Range Reconfiguring the SmartShunt/SmartBMV Occasionally, the SmartShunt or SmartBMV configuration is lost. This is usually due to a prolonged period without power. To reconfigure the SmartShunt or SmartBMV, connect to it by using the “Victron Connect” app and follow these steps: 1. - Page 23 Installation & User Guide TP Range 2. Configure each parameter as follows: BTLITH-TP110: 110Ah Battery capacity BTLITH-TP110-24: 110Ah BTLITH-TP220: 220Ah Charged voltage 13.8V Discharge floor Tail current Charged detection 3 minutes time Peukert exponent 1.05 Charge efficiency factor Current threshold 0.10A Time-to-go averaging 3 minutes...
-
Page 24: Specifications
Installation & User Guide TP Range 7.0 Specifications BTLITH-TP110 BTLITH-TP110-24 Battery Voltage 12 V Capacity 110 Ah Max discharge/charge rate 100 A Dimensions (L x W x D) 708 x 265 x 151 mm Weight 23.6 kg 25.4 kg 11V-18V in, 20 A output 18V-35V in, 30 A output DC Charger with ignition trigger feed...
