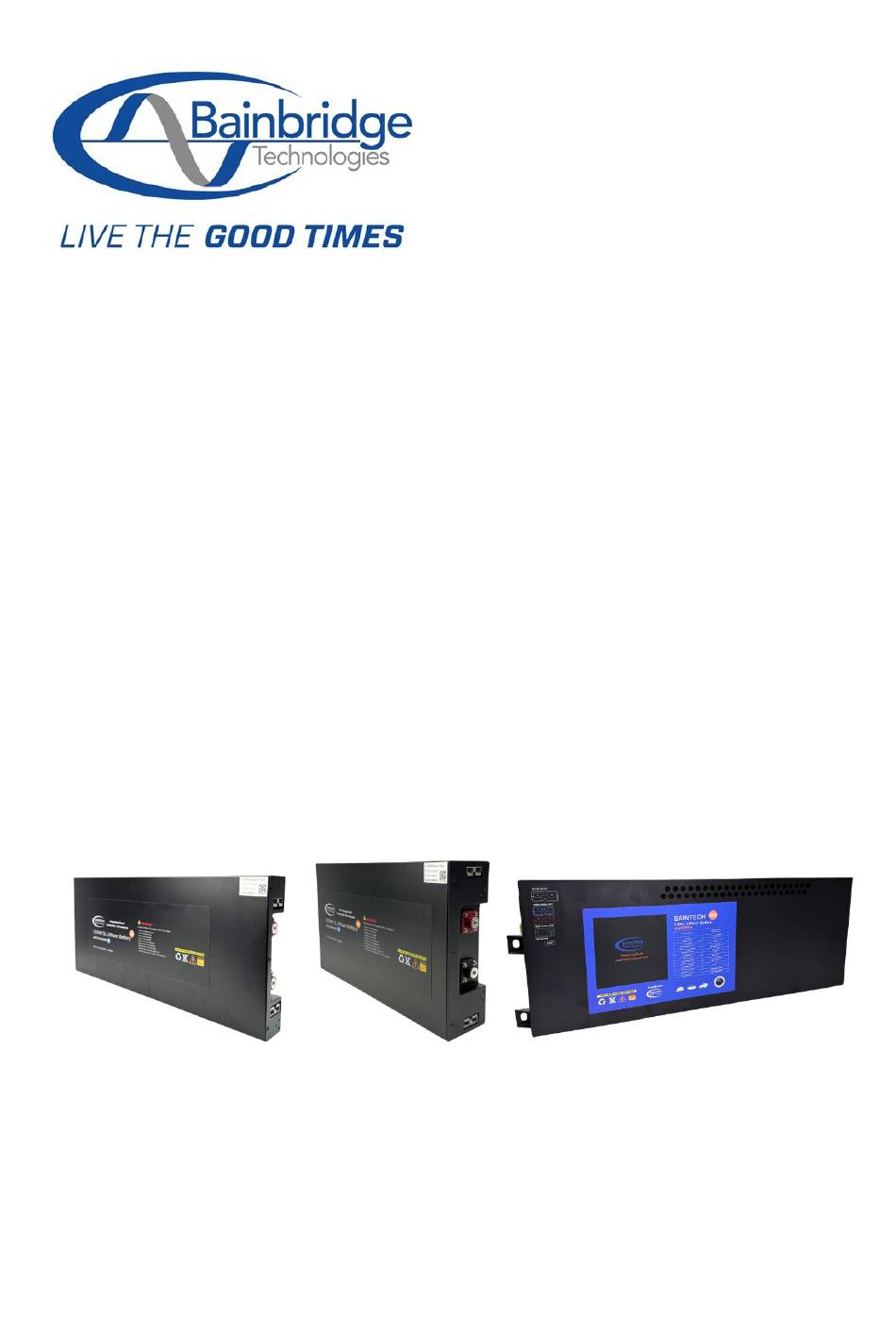

- Page 1 Installation & User Guide Slimline (SL) Range Models: BTLP12V110-100SL BTLP12V150-200SL BTBLUESLIM110-DC40 Slimline Lithium Battery User Guide 2024 - 1 - Baintech.com.au...
- Page 2 As with all batteries, you should consider the mechanical and environmental conditions that you intend to operate the battery in to maximise overall performance and achieve the longest battery life. BAINTECH offer these general guidelines; however, you should seek BAINTECH advice or that of a qualified electrical tradesperson if you are in doubt.
-
Page 3: Do's And Don'ts
2.3 Maintain an acceptable temperature range Like all batteries, BAINTECH batteries operate and perform the best, as well as last the longest, in a cool and stable temperature environment of between 10 C and 25 C. - Page 4 If you are unsure how to install the battery, seek advice from BAINTECH or a suitably qualified electrical tradesperson. Slimline Lithium Battery User Guide 2024...
-
Page 5: Battery Management System
Extra capacity ensures lower DOD, extended life and a higher financial return on your investment. BAINTECH batteries have a cycle life of 5,000 at 50% and 3,000 at 80% DOD. 4.0 Battery Management System Your battery comes with a Battery Management System (BMS) mounted internally. -
Page 6: Installation
Figure 2C – Behind a seat Dual Cab UTE Figure 2D – Under the floor of MUX As with all battery installations, ensure it is securely strapped down or secured in place before heading out on the road. Slimline Lithium Battery User Guide 2024 - 6 - Baintech.com.au... - Page 7 3. Below 13V Voc the battery is low, and should be charged to promote a long lifespan. 4. Below 12V Voc the battery is close to empty, and should be charged straight away; Low Voltage Disconnect (LVD) is set at ~10.5 Slimline Lithium Battery User Guide 2024 - 7 - Baintech.com.au...
-
Page 8: Specifications
Charge Temperature 0～+45℃ Storage Temperature Range 0～+45℃ Battery High Temperature Protection 60℃ Case dimension (L*W*H) – 465mm x 270mm x 90mm (without bracket) 495mm x 270mm x 90mm (with bracket) Slimline Lithium Battery User Guide 2024 - 8 - Baintech.com.au... - Page 9 Discharge Temperature -20～+65℃ Charge Temperature 0～+45℃ Storage Temperature Range 0～+45℃ Battery High Temperature Protection 60℃ Case dimension (L*W*H) – 635 x 230 x 50mm(without brackets) 685 x 230 x 50mm(with brackets) Slimline Lithium Battery User Guide 2024 - 9 - Baintech.com.au...
- Page 10 Installation & User Guide 7.0 Contact Us § 1224 Lytton Road, Hemmant, QLD 4174 sales@baintech.com.au § § 1300 224 683 § www.baintech.com.au Slimline Lithium Battery User Guide 2024 - 10 - Baintech.com.au...
