Noctua NH-U14S Manual

INTRODUCTION

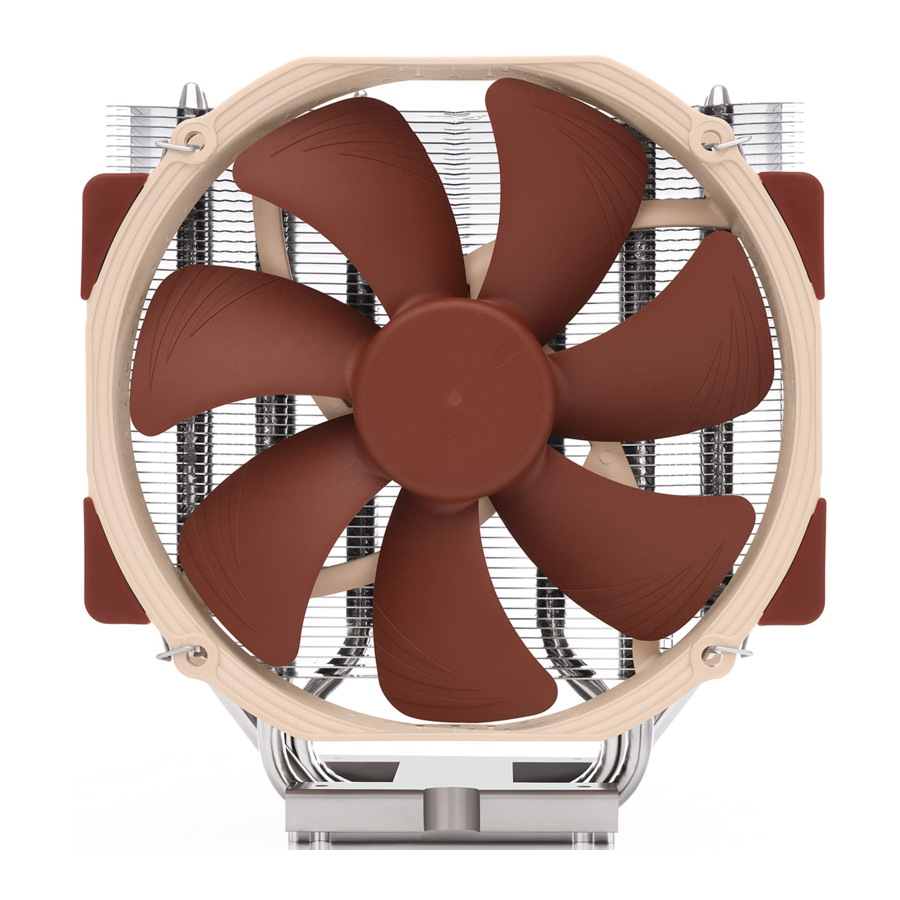

The NH-U14S is the first 140mm model in Noctua's award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
Enjoy your NH-U14S!

This manual will guide you through the installation process of the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility centre on our website (ncc.noctua.at) and verify that the cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufficient clearance for the cooler and that there are no compatibility issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make contact with the VGA card, other PCIe cards, motherboard heatsinks or any other components.

Noctua cannot be held responsible for any damage or losses caused by compatibility issues.

Should you encounter any difficulties, please check the FAQs on our website (www.noctua.at/faqs) and don't hesitate to contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our website: www.noctua.at/manuals

LGA1700, LGA1200 & LGA115x

Required mounting parts:

1. Removing the motherboard
   If you would like to use the cooler on an assembled system and your case does not have a cut-out at the rear side of the motherboard tray, you must first remove the motherboard from the case in order to be able to install the supplied backplate.
2. Setting up the backplate
   First, identify the side of the backplate that should face the motherboard (marked with caution signs). Then choose the appropriate hole spacing for your socket and insert the four bolts into the backplate from the opposite side (marked with model name, SecuFirm2™ branding and numbers for hole spacing) at the appropriate position.


Use hole position 1 for LGA1200/115x (LGA1150, LGA1151, LGA1155, LGA1156) and hole position 2 for LGA1700 (LGA17xx family):

Fix the bolts using the NM-ICS1 clip-on spacers. Note that 2 extra clip-on spacers are supplied in case any are lost or damaged when removing the bolts at a later point.

3. Attaching the backplate


The supplied backplate will install over the motherboard's stock backplate, so the motherboard's stock backplate must not be taken off.

Place the backplate on the rear side of the motherboard so that the bolts protrude through the mounting holes.

4. Installing the mounting bars
   Please first choose the correct set of plastic spacers and the correct set of holes on the mounting bars according to whether you are using an LGA1200/LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) or an LGA1700 (LGA17xx family) socket motherboard.
   Use the black NM-IPS1 plastic spacers for LGA1200/ LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and the blue NM-IPS3 spacers for LGA1700 (LGA17xx family).


Use hole position 1 for LGA1200/115x (LGA1150, LGA1151, LGA1155, LGA1156) and hole position 2 for LGA1700 (LGA17xx family):

Make sure to use the correct hole position on both ends of the NM-IMB3 mounting bars so that they will not be misaligned.

Put the plastic spacers onto the bolts of the backplate, then add the mounting bars.

Choose the alignment of the mounting bars according to the desired final orientation of the cooler:

Make sure that the curved sides of the mounting bars are pointing outwards.

Fix the mounting bars using the four NM-ITS1 thumb screws.

Gently tighten the screws until they stop, but do not use excessive force (max. torque 0.6 Nm).

5. Applying the thermal paste
   If there are residual traces of thermal paste or thermal pads on your CPU, please clean them off first. Then apply the supplied NT-H1 thermal paste onto the CPU as shown in the following images. For LGA1700 (LGA17xx family), apply 5 small dots; 4 dots with ~2mm diameter near the corners plus 1 dot with 3-4mm diameter in the centre:


For LGA1200/115x (LGA1150, LGA1151, LGA1155, LGA1156) apply a single 4-5mm dot in the centre:

Applying too much thermal paste will lower heat conductivity and cooling performance!

6. Fastening the heatsink to the CPU

   Please first take off the fan as well as the protection cover at the bottom side of the heatsink.


Then put the heatsink onto the CPU and screw it to the screw threads of the mounting bars. Perform 2-3 turns on each screw, then repeat until both are fully tightened.

Gently tighten the screws until they stop, but do not use excessive force (max. torque 0.6 Nm).

7. Fan setup
   Reattach the fan to the heatsink using the supplied steel clips:




Connect the fan to the motherboard's CPU fan header.

Depending on your CPU and the temperature inside the case, you may interconnect the supplied NA-RC7 Low- Noise Adaptor (L.N.A.) in order to further reduce the fan's operating noise.

When using the L.N.A., check the temperature of your CPU using appropriate software (e.g. the respective applications of your motherboard manufacturer), in order to evade automatic throttling of the CPU due to the increased temperature. If the cooling performance is insufficient, please increase case ventilation or remove the L.N.A.

Adding a second fan
The NH-U14S includes an extra set of fan clips and an extra set of thicker anti-vibration pads for installing a second NF-A15 fan in push/pull mode in order to further improve cooling performance.

Please use the thicker anti-vibration pads on the rear NF- A15 fan for improved acoustics if space allows. The y-cable supplied with the retail NF-A15 fan can be used to control the speed of both fans via the same motherboard fan header.

Please note that while the NF-A15 fan included with the NH-U14S runs at 1500rpm, Noctua recommends using the standard 1200rpm retail version as a rear fan in push/ pull mode as the combination of 1500rpm at the front and 1200rpm at the rear will provide the best balance of performance and acoustics.

If you would like to run both fans at the same speed, please use the supplied Low-Noise Adaptor on the front fan to reduce the speed to 1200rpm.

1. Remove standard spacers on rear fan


2. Install thick spacers on rear fan



Clip position for thick spacers:

Clip position for standard spacers:

While Noctua recommends using an NF-A15 fan for best results in dual fan mode, the extra set of fan clips can also be used to install most other fans. In this case, please put the supplied self-adhesive anti-vibration strips onto the heatsink to avoid vibrations being transmitted to the cooler.

LGA20xx

Required mounting parts:

1. Installing the mounting bars
   First screw the NM-IBT2 bolts into the screw threads of the LGA20xx socket frame.


Then put the NM-IMB3 mounting bars onto the bolts.

Choose the alignment of the mounting bars according to the desired final orientation of the cooler:

Make sure that the curved sides of the mounting bars are pointing outwards.

Fix the mounting bars using the four NM-ITS1 thumb screws.

Gently tighten the screws until they stop, but do not use excessive force (max. torque 0.6 Nm).

2. Applying the thermal paste
   If there are residual traces of thermal paste or thermal pads on your CPU, please clean them off first.
   Then press a small drop with 4-5mm diameter of NT-H1 thermal paste onto the centre of the heatspreader.


Applying too much thermal paste will lower heat conductivity and cooling performance!

3. Fastening the heatsink to the CPU
   Please refer to step 6 of the LGA1700, LGA1200 & LGA115x installation manual.
4. Fan Setup
   Please refer to step 7 of the LGA1700, LGA1200 & LGA115x installation manual.

AMD (AM4 & AM5)

Required mounting parts:

1. Removing the stock retention module − putting the backplate in place
   If your motherboard comes with a pre-installed CPU cooler retention module, please first remove it by unscrewing it from the backplate. The SecuFirm2™ mounting system will install directly to the stock backplate, so please keep it in place.


If your motherboard does not come with a pre-installed CPU cooler retention module, the AMD stock backplate should be included with the motherboard accessories. Please put the backplate on the rear side of the motherboard so that the screw threads of the backplate stick through the mounting holes of the motherboard as shown below. If your motherboard does not include a stock backplate, please contact our Noctua service team at support@noctua.at.

2. Attaching the mounting bars
   First put the plastic spacers onto the screw threads of the backplate, then fix the NM-AMB7 mounting bars using the four NM-ALS1 long screws.


Make sure that the curved sides of the mounting bars are pointing outwards.

Gently tighten the screws until they stop, but do not use excessive force (max. torque 0.6 Nm).

3. Applying the thermal paste
   If there are residual traces of thermal paste or thermal pads on your CPU, please clean them off first.
   Apply 5 small dots; 4 small dots with ~2mm diameter near the corners plus 1 dot with 3-4mm diameter in the centre:


Applying too much thermal paste will lower heat conductivity and cooling performance!

4. Fastening the heatsink to the CPU

   Please first take off the fan as well as the protection cover at the bottom side of the heatsink.


Then put the heatsink onto the CPU and screw it to the screw threads of the mounting bars.

Perform 2-3 turns on each screw, then repeat until both are fully tightened.

Gently tighten the screws until they stop, but do not use excessive force (max. torque 0.6 Nm).

1. Fan setup
   Reattach the fan to the heatsink using the supplied fan clips:




Connect the fan to the motherboard's CPU fan header. Depending on your CPU and the temperature inside the case, you may interconnect the supplied NA-RC7 Low-Noise Adaptor (L.N.A.) in order to further reduce the fan's operating noise.

When using the L.N.A., check the temperature of your CPU using appropriate software (e.g. the respective applications of your motherboard manufacturer), in order to evade automatic throttling of the CPU due to the increased temperature. If the cooling performance is insufficient, please increase case ventilation or remove the L.N.A.

Adding a second fan
The NH-U14S includes an extra set of fan clips and an extra set of thicker anti-vibration pads for installing a second NF-A15 fan in push/pull mode in order to further improve cooling performance. Please use the thicker anti-vibration pads on the rear NF-A15 fan for improved acoustics if space allows. The y-cable supplied with the retail NF-A15 PWM fan can be used to control the speed of both fans via the same motherboard fan header.

Please note that while the NF-A15 fan included with the NH-U14S runs at 1500rpm, Noctua recommends using the standard 1200rpm retail version as a rear fan in push/pull mode as the combination of 1500rpm at the front and 1200rpm at the rear will provide the best balance of performance and acoustics. If you would like to run both fans at the same speed, please use the supplied Low-Noise Adaptor on the front fan to reduce the speed to 1200rpm.

1. Remove standard pads on rear fan


2. Install thick pads on rear fan



Clip position for thick pads:

Clip position for standard pads:

While Noctua recommends using an NF-A15 fan for best results in dual fan mode, the extra set of fan clips can also be used to install most other fans. The fan clips support:

• Round frame 140mm fans with 120mm mounting (105mm hole spacing) such as the NF-A15 PWM or the NF-P14r redux models
• Standard 120mm fans (105mm hole spacing) such as the NF-A12x25, NF-F12 or NF-P12 redux models

Transporting your system

As it is not possible to reliably calculate or control the forces that act upon a system during transport (e.g. in shipping), we generally recommend, for safety reasons, taking the cooler off.

Noctua cannot be held responsible for any damage that may arise due to excessive stress during transport if you keep the heatsink installed.

Warranty, support and FAQs

Even with high-grade products and strict quality control, the possibility of defects cannot be eliminated entirely. Therefore, we aim at providing the highest possible level of reliability and convenience by offering a warranty period of 6 years and direct, fast and straightforward RMA service.

. Should you encounter any problems with your NH-U14S, please don't hesitate to contact our support team (support@noctua.at).

Please also consult the FAQ section on our website: www.noctua.at/faqs
