NICOR Prime Chime Plus Mini Installation Instructions

WARNING - RISK OF SHOCK
Attention: The PRMC divider must be properly installed before product installation in order to meet UL and NEC requirements. Divider
must be no further than .063" (1.6mm) from the back of the box to keep wiring isolated on each side. Failure to properly install the divider
can lead to a shock hazard.
1. This fixture is to be installed by only a qualified electrician.
2. This fixture is to be used at 120V AC/60Hz power supply only.
3. This fixture is designed for use in a circuit protected by a fuse or circuit breaker.
4. Turn off the power supply at the fuse or circuit breaker box before you install this fixture.
5. Turn off the power supply again when you perform maintenance.
6. Double check all connections to be sure they are all tight and correct.
7. Operation environment: to be installed indoors under dry and ventilated environment. It should NOT be installed damp locations or
environment with high temperature. Installation of this fixture should be kept away from other electrical devices.

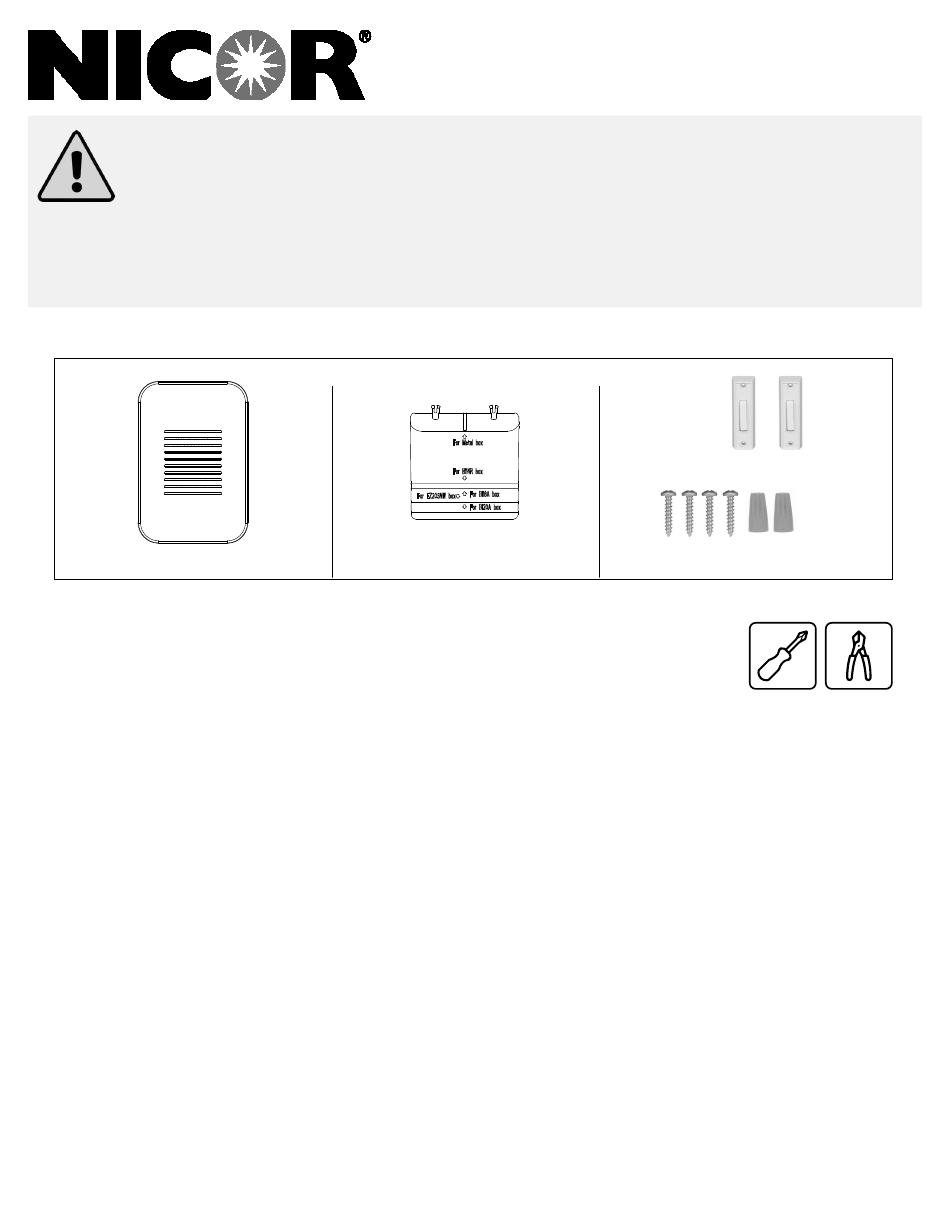

What's In The Box
One (1) Prime Chime Plus Mini
Tools Needed
The Prime Chime Plus Mini requires very few tools for installation. A screwdriver and a pair of wire cutters will be
required to install the chime.
Junction Box
This unit is able to fit in a single gang junction box with a minimum volume of 18 in
Daisy Chain Compatibility Note
The PRMC can be daisy chained with up to nine other PRMC units (maximum 10 total).
Video Doorbell Compatibility Notes
For all video doorbells:
• To ensure proper operation of the PRMC, no more than two video doorbells should be attached (Front Door and Back Door)
• Make sure the video doorbell is fully charged prior to installation. Low battery levels may cause abnormal performance of the PRMC.
• Wiring must not exceed the following: 70' from doorbell to first unit. 400' total length if installing more than one PRMC
• A "power" or "diode" kit should not be installed when using the NICOR PRMC. The NICOR unit is designed to provide the proper
voltage for compatible video doorbells.
For Ring, Alarm.com and other video doorbells:
• Set the "chime type" to mechanical chime, not digital chime.
For Ring video doorbells
• Adjust the "Ring tone length" in the App to 2 seconds to avoid multiple chime cycles (see Ring instructions for details).
NICOR LLC 2200 Midtown Place NE, Albuquerque, NM 87107 P: 800.821.6283 F: 800.892.8393 www.nicorlighting.com February 11, 2025 8:37 AM PRMC ii Page 1 of 4
One (1) Universal Divider Plate
Prime Chime Plus Mini
INSTALLATION INSTRUCTIONS
Two (2) Lighted Doorbell Button
One (1) Hardware Pack
3
PRMC
Model:
