Kingyield BPW2 Manual

Digital blood pressure monitors
Hide thumbs Also See for BPW2:

Advertisement

Quick Links

Download this manual

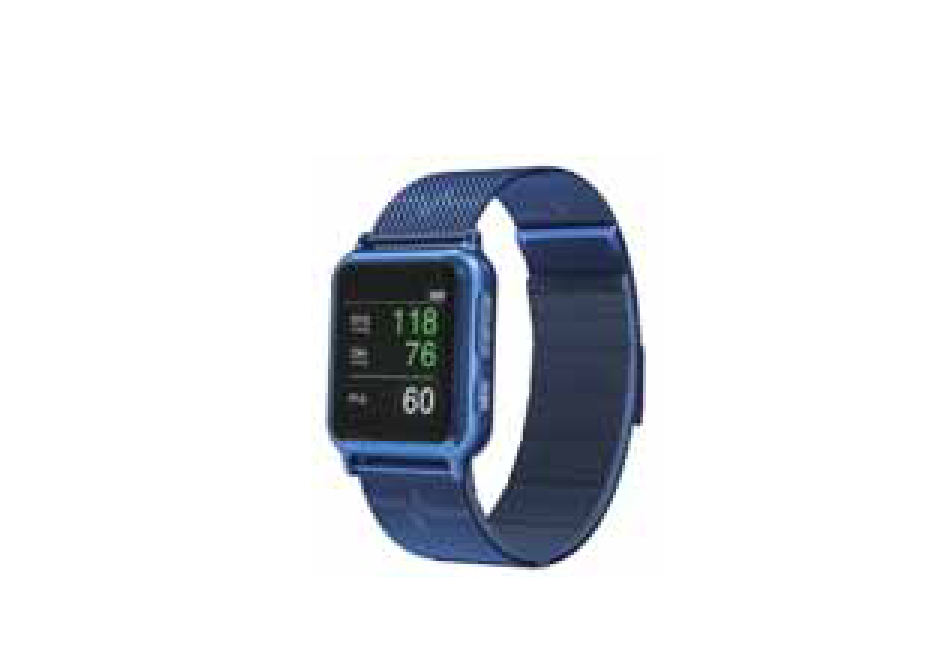

Shenzhen Kingyield Technology Co., Ltd.
Digital Blood Pressure Monitors
Item No.: BPW2
Not following this instruction manual may result in
inaccurate measurement results.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BPW2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kingyield BPW2

Summary of Contents for Kingyield BPW2

  • Page 1 Shenzhen Kingyield Technology Co., Ltd. Digital Blood Pressure Monitors Item No.: BPW2 Not following this instruction manual may result in inaccurate measurement results.

  • Page 2: Table Of Contents

    Contents 1. Before Using the Device....................1 1.1 Device Description .....................1 1.2 Intended Use......................2 1.3 Important Safety Information and Precautions ...........2-8 1.4 About Blood Pressure...................9 1.5 Cybersecurity informations and recommendations......10-11 2. Know Your Device......................12 3. Instruction for Use of device..................13 3.1 Before Taking a Measurement.................13 3.2 Correct wearing and measuring precaution..........14-16 3.3 Take a Measurement..................16 3.4 Use Memory-Recall..................17-19...

  • Page 3: Before Using The Device

    1. Before Using the Device 1.1 Device Description Bluetooth Digital Blood Pressure Monitors, BPW2 is a fully automatic non-invasive Digital Blood Pressure Monitors which measures systolic and diastolic blood pressure and heart rate of adult population using the oscillometric method during inflating @ 3~8mmHg/second from about 30mmHg by inflating a cuff on the wrist.

  • Page 4: Intended Use

    1.2 Intended Use This Digital Blood Pressure Monitors is intended to be used to measure blood pressure (systolic and diastolic) and heart rate from the wrist by using the oscillometric method. The device is intended for using in only adult population, not applied to the other populations such as neonatal baby.
  • Page 5 WARNING • Do not use this device over a wound, as this can cause further injury. • Too frequent measurements can cause injury due to blood flow interference. • This device possible cause improper result due to external interference, such as acceleration during transport or transport in general.
  • Page 6 WARNING • Use of this device adjacent to or stacked with other device should be avoided because it could result in improper operation. • This electrical medical equipment requires specific precautions regarding electromagnetic compatibility. It must be installed and used according to the electromagnetic information.
  • Page 7 WARNING normally, the patient can use it normally; stop using it when it is abnormal. • The expected service life of the product is 3 years, and the storage period is consistent with the service life. • According to the arm circumference, patients should use the appropriate cuff, and pay attention to the position of the cuff band.
  • Page 8 WARNING personnel repair the equipment parts repaired by maintenance personnel designated by the manufacturer. • The product shall not be used under visible conditions (such as magnetic field, pressure, thermal combustible source, etc.) and needs to be used away from these conditions. •...
  • Page 9 WARNING • Warning and treatment for the following conditions: Do not wrap the hose around the neck to avoid neck pulling; do not remove the screws to prevent inhalation or swallowing of the battery; the skin may have allergic reaction to teachable rings; do not wear the rings for a long time to avoid skin irritation.
  • Page 10 WARNING long-term damage to the limb due to patient's blood circulation due to the operation of the photometer; • Please read the warnings carefully before use and follow the recommendations, otherwise it may cause physical harm. The instruction manual contains reference technical instructions. Caution! Re of batteries by untrained personnel causes hazards (e.

  • Page 11: About Blood Pressure

    1.4 About Blood Pressure BLOOD PRESSURE INDICATOR CHART (World Health Organization (WHO) Blood Pressure Indicator) Severe hypertension Moderate hypertension Mild hypertension Normal systolic value Normal blood pressure Optimal blood pressure (target value) Diastolic Blood Pressure (mmHg) *Consult Your Physician...

  • Page 12: Cybersecurity Informations And Recommendations

    When systolic and diastolic pressures fall into different categories, the higher pressure determines color code. Blood pressure measurements determined with this device are equivalent to those obtained by a trained observer using the cuff/stethoscope auscultatory method, within the limits prescribed by European Society of Hypertension International Protocol revision2010 for the validation of blood pressure measuring devices in adults.
  • Page 13 1.5.3. Personal data are stored in a Healthcare data host (with network connection) located in China. For the security of your data, do not share your Smartphone/tablet with your app logged in. Data are transferred from your device to the Healthcare data host under a secured protocol.

  • Page 14: Know Your Device

    2. Know Your Device DIAGRAM START/STOP Display Wrist Cuff Wristband USB magnetic suction charging port...

  • Page 15: Instruction For Use Of Device

    3. Instruction for Use of device 3.1 Before Taking a Measurement • For most accurate results, measurements should be taken in the same circumstances and at the same time every day. • The device can be applied to either wrist, but preferably the left. Use the same wrist for each measurement.

  • Page 16: Correct Wearing And Measuring Precaution

    • Patients should have a 5-minute stop before the first measurement • If consecutive measurements are desired, allow 5 minutes between uses to allow blood to flow through the arm normally. • This device is used to monitor blood pressure. However, it cannot treat or prevent high blood pressure.
  • Page 17 Not too tight, not too loose, cuff is natural extension. One or two fingers should easily slide between the wristband and your wrist. Styloid process of ulna...

  • Page 18: Take A Measurement

    3.2.3 Note • Comfortably seated • Legs uncrossed • Feet flat on the floor • Back and arm supported, • Keep the device at the same level as your heart. • Relax as much as possible and not talk during the measurement. 3.3 Take a Measurement 3.3.1 Press “START/STOP ”...

  • Page 19: Use Memory-Recall

    Symbols “ ” on screen will increase and cuff will begin to inflate. Do not move, activate arm muscles, or talk during measurement. Measurement can be stopped at anytime by pressing “START/STOP". 3.3.3 When measurement is complete, the cuff deflates automatically and the systolic pressure, diastolic pressure, and pulse rate will display on screen.
  • Page 20 3.4.2 Press and release “MEM” button again, and the device will display the average of your three most recent measurements, indicated on screen as MEM AVG (Measurement Average). 3.4.3 Press “MEM” button again to see the most recent measurement. Press “MEM” button repeatedly to scroll towards the oldest measurement.

  • Page 21: Set

    3.4.4 Press and hold “MEM” button every time, you will scroll towards the older measurements at the rate of number 10. 3.5 Set Press and hold the “MEM” button for 4~6 seconds, then enter the SET menu; Press “MEM” button, cursor move among menu bar; ■Press “MEM”...
  • Page 22 NOTE: symbol tBPM display on screen while you select “ON”. ■ Press “MEM” button to move cursor to “2 tBPM intervals” then press “START/STOP” to enter, and press any button to exit. ■ Press “MEM” button to move cursor to “3 clearing the MEM”...

  • Page 23: Instruction For Use Of App

    ■ Press “MEM” button to move cursor to “4 Bluetooth Addr.” then press “START/STOP” to enter, press any button to exit C4:17:B0:82- BF:6C ■ Press “MEM” button to move cursor to “5 exit” then press “START/STOP” to exit. 4. Instruction for Use of App 4.1 Download application •...

  • Page 24: User Guide

    4.2 User guide 4.2.1 Launch the KingHealth app 4.2.2 Check and update the App KingHealth to assure the latest version to be used 4.2.3 Register •Click “Register”; •Input "Email address" •Click “Confirm” to register a new account ; 4.2.4 Login •Input “Email address”;...
  • Page 25 •Click the device Bluetooth address you are going to bind. Bluetooth unbinding； •Click “My device” under binding status; •Click the new device Bluetooth address you are going to bind, and the connected one will be unbound. Note: A collateral device can bind only one BPW2 device at a time.
  • Page 26 4.2.6 Operation of KingHealth 4.2.6.1 Measuring •The measurements are automatically sent to the app via Bluetooth 4.0 once the measurements have been taken. 4.2.6.2 Displaying trend graphs •Click “Trend” to display the trend graphs 4.2.7 Profile •Click “My” to go to the profile menu. You can change your profile information.

  • Page 27: Cleaning And Maintenance

    5 Cleaning and Maintenance • For regular maintenance, the device only needs to be wiped gently with a soft, dry cloth while it is not being used. Never immerse the device or any components in water. • Do not carry out repairs of any kind yourself. If a defect occurs, please contact your local authorized distributor.
  • Page 28 Symbol Cause Correction Check if the cuff is leaking. wearing is Maintenance may be needed too loose if leaking. Wrap the cuff properly. body motion Do not move your arm and body, interference and keep quiet. wearing is Wrap the cuff properly. too tight Wearing is not Wrap the cuff properly.

  • Page 29: Emc Declaration

    address Bluetooth Please bind the collateral for binding device and the device C4:17:B0:82- BF:6C The battery voltage Please charge in time. is too low. charging mode. In the process of charging 7. EMC Declaration Guidance and Manufacturer’s Declaration - Electromagnetic Immunity the device is intended for use in the electromagnetic environment specified below.
  • Page 30 Electromagnetic Immunity Test Compliance Environment - Guidance The device uses RF energy only for RF emissions its internal function. Therefore, its RF Group 1 CISPR 11 emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions Class B CISPR 11...
  • Page 31 Immunity Electromagnetic IEC 60601 Compliance Environment - Guidance Test Level Test Level ± 8 kV ± 8 kV Floors should be wood, Electrostatic contact contact concrete, or ceramic tile. If discharge (ESD) ± 2 kV, ± 2 kV, floors are covered with IEC 61000-4-2 ±...
  • Page 32 NOTE: UT is the a.c. mains voltage prior to application of the test level. Portable RF communications 10V/m 10V/m equipment (including 80MHz to 80MHz to peripherals such as antenna 2.7GHz 2.7GHz cables and external antennas) Radiated RF should be used no closer than IEC 61000-4-3 30 cm (12 inches)to any part 9V/m,...

  • Page 33: Fcc Compliance

    8. FCC Compliance This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to this device not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 34 These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance to the Instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

  • Page 35: Specifications

    9. Specifications Model No. BPW2 TFT display Measuring Principle Oscillometric Method Measurable Circumference 13.5~21.5cm(5.3''~8.5'') of Wrist Electric Shock Protection Internal power supply appliance type BF CUFF pressure 0 to 299 mmHg Blood pressure 30 to 230 mmHg Measurement range 40 to180 Pulses/min Pulse measurement ±0.4 kPa ( ±3 mmHg )
  • Page 36 Power Source Built-in 3.7V Li-ion Polymer Battery which should be charged by a charger of 500mA or more Charger Magnetic suction charger Bluetooth Bluetooth 4.0(data transmission), Frequency range:2.4GHz(2402 – 2480MHz),Modulation: GFSK, Effective radiated power:＜20dBm Gross Weight Approx. 54g Device Life 3 Years Operating Temperature...

  • Page 37: Calibration And Service

    To improve performance, these specifications are subject to change without notice. Disposal of the device, accessories and packaging shall be carried out in accordance with national and local regulations for proper handling of waste. 10. Calibration and Service The accuracy of this Digital Blood Pressure Monitors has been carefully tested and is designed for a long service life.

  • Page 38: Warranty Information

    11. Warranty Information ■ The device is warrantied to be free of manufacturing defects in workmanship and materials for a period of one year from the date listed on the purchase record, when used in accordance with the instructions provided with the device. ■...
  • Page 39 ■ Please note warranty does not cover damage caused by,including but not limited to: misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repair or modification; improper use of electrical/power supply; dropped product; failure to follow required maintenance and safe-keeping;...

  • Page 40: Symbols Use

    12. Symbols Use SYMBOLS USED IN THIS INSTRUCTION MANUAL Indicates a potentially hazardous situation which, if WARNING not avoided, could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury CAUTION to the user or patient or damage to the equipment or other property.
  • Page 41 Bulletin board number Moisture Protection IP22 of Germany lane 0197 European representative name: ShangHai International Holding Corp. GmbH (Europe) Address: Eiffestrasse 80, 20537 Hamburg Germany Shenzhen Kingyield Technology Co.,Ltd. No.301, Bldg 1, Cuigang Industrial Zone 3,  Huaide Community, Fuyong Street,  Baoan District, Shenzhen,  China. 518103 DR-BPW2-04 Website: http://www.kingyield.com VER:A00 Software version:BPW5CN-KYD20220214V1...
