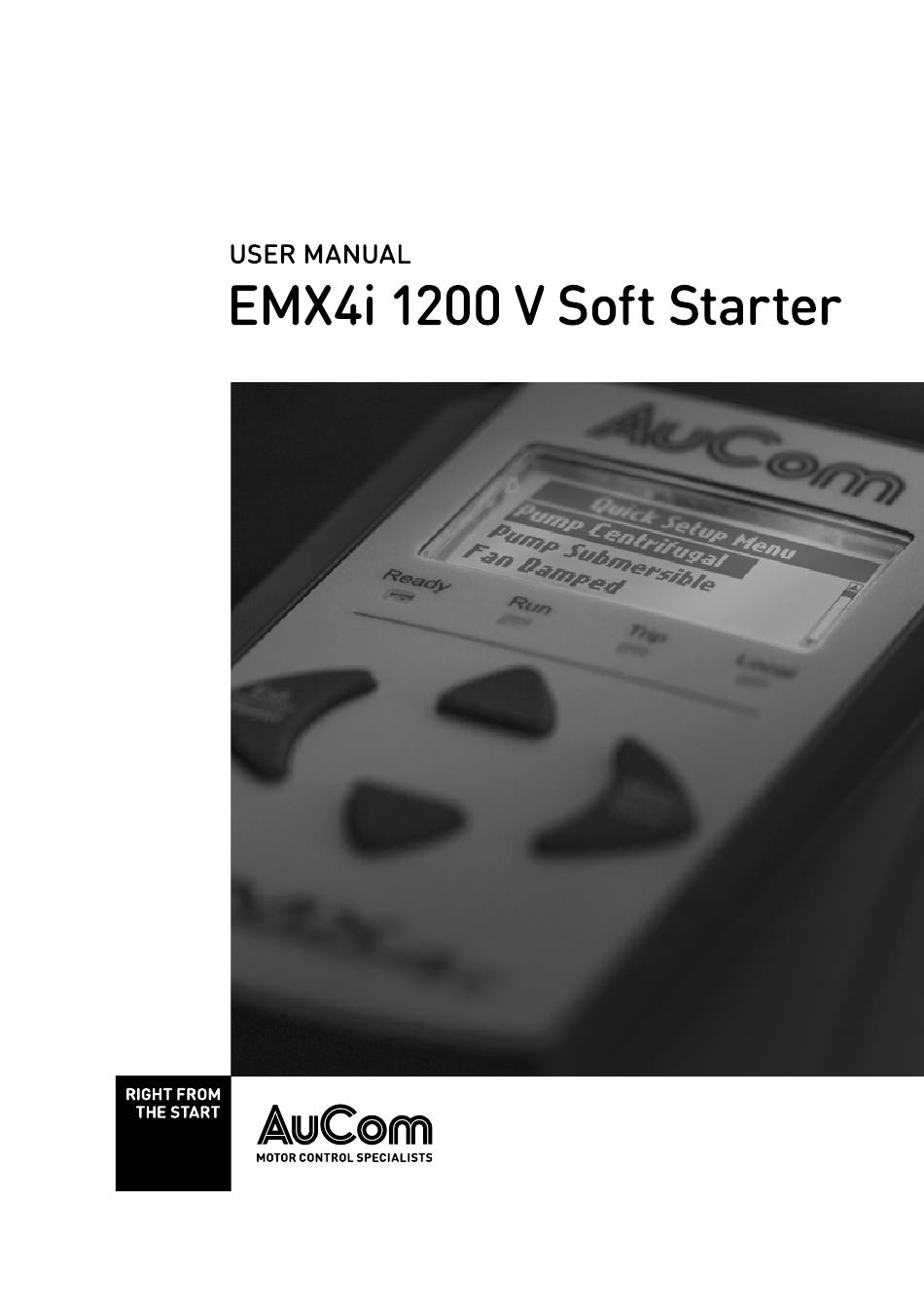

AuCom 0202E User Manual

Emx4i 1200v soft starter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0202E and is the answer not in the manual?

Questions and answers

Related Manuals for AuCom 0202E

Summary of Contents for AuCom 0202E

  • Page 2: Table Of Contents

    Contents About this manual ......................4 Disclaimer ........................... 4 Caution statements ......................5 Electrical shock risk ......................5 Unexpected operation ......................5 System design ........................7 Overview ..........................7 Feature list .......................... 7 Model code .......................... 8 Model selection ........................8 Current ratings........................
  • Page 3 5.12 Software versions ......................32 5.13 Thermistor reset ........................ 32 5.14 Reset thermal model ......................32 Logs ..........................33 Event log ........................... 33 Counters..........................33 QR code ..........................33 Keypad and feedback ...................... 34 The keypad ........................34 Remote keypad ......................... 34 Lighten/darken the display ....................
  • Page 4 9.20 41 Calibrate 4-20mA ......................84 Troubleshooting ......................85 10.1 Protection responses ......................85 10.2 Trip messages ........................85 10.3 General faults ........................91...

  • Page 5: About This Manual

    About this manual 1200V soft starter About this manual WARNING Indicates a hazard that may cause personal injury or death. CAUTION Indicates a hazard that may damage the equipment or installation. NOTE Provides helpful information. Disclaimer The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is subject to change at any time and without prior notice.

  • Page 6: Caution Statements

    1200V soft starter Caution statements Caution statements Caution statements cannot cover every potential cause of equipment damage but can highlight common causes of damage. It is the installer's responsibility to read and understand all instructions in this manual prior to installing, operating or maintaining the equipment, to follow good electrical practice including applying appropriate personal protective equipment and to seek advice before operating this equipment in a manner other than as described in this manual.
  • Page 7 Caution statements 1200V soft starter WARNING – STARTER MAY START OR STOP UNEXPECTEDLY The soft starter will respond to control commands from various sources, and could start or stop unexpectedly. Always disconnect the soft starter from mains voltage before accessing the starter or load. WARNING –...

  • Page 8: System Design

    1200V soft starter System design System design Overview The soft starter is designed to operate as part of a system including other components. • A bypass switching device (contactor or vacuum circuit breaker) is required in all installations. • A main switching device (contactor or circuit breaker) is required in all installations. This can be located in the soft starter panel or the upstream feeder panel.

  • Page 9: Model Code

    System design 1200V soft starter Model code 0 2 0 2 E – V 1 2 – C 1 Control voltage C1 = 110~120 VAC or 220~240 VAC C2 = 24 VAC/VDC Mains voltage V12 = 1200 VAC Bypass E = external bypass required Nominal current rating Model selection Starter sizing...

  • Page 10: Current Ratings

    IEC ratings All ratings are calculated at altitude of 1000 metres and ambient temperature of 40 ºC. • In-line installation, bypassed Model 3.0-10:1790 3.5-15:1785 4.0-10:1790 4.0-20:1780 5.0-5:1795 0202E 0287E 0387E 0564E 0629E 0857E 1092E 1092 • Inside delta installation, bypassed Model 3.0-10:1790...

  • Page 11: Dimensions And Weights

    System design 1200V soft starter Dimensions and weights Depth Weight Width Height mm (inch) mm (inch) Model (inch) (lb) 0202E 0287E (136.7) 0387E 0564E (17.3) (5.7) (7.1) (26.1) (23.0) (12.0) 63.5 0629E (140.0) 0857E 66.5 1092E (146.6) Clearance requirements Between starters Solid surfaces >...

  • Page 12: Main Contactor

    1200V soft starter System design Main contactor A main contactor or circuit breaker should be installed with the soft starter. • A main contactor is recommended to protect the soft starter from voltage disturbances on the network, while stopped. Select a contactor with an AC3 rating greater than or equal to the full load current rating of the connected motor.

  • Page 13: Capacitive Surge Arrestors

    System design 1200V soft starter Main switching device Bypass switching device PFC capacitor contactor 3.11 Capacitive surge arrestors Capacitive surge arrestors are not compatible for use with soft starters. Using capacitive surge arrestors for motor protection may damage the soft starter. CAUTION Capacitive surge arrestors may be mounted in the motor termination box.

  • Page 14: Short Circuit Protection Devices (Scpd)

    SCRs. When selecting semiconductor fuses, use the I t values in the table. Contact your local supplier for further information. Model Nominal Rating (A) SCR I t (A 0202E 220000 0287E 0387E 720000 0564E 0629E 0857E 2420000...

  • Page 15: Accessories

    System design 1200V soft starter CAUTION The soft starter must not be used as a switch. The power circuit must be designed so that whenever voltage is available at the input side of the soft starter, the starter can pass it through to the motor. 3.14 Accessories Expansion cards The soft starter offers expansion cards for users requiring additional inputs and outputs or...

  • Page 16: Specifications

    1200V soft starter System design 3.15 Specifications Supply Mains voltage (L1, L2, L3) xxxxX-V1 ................1200 VAC (± 10%/-20%) Control voltage (A1, A2, A3) xxxxX-xx-C1 (A1, A2) ........110~120 VAC (+10%/-15%), 600 mA xxxxX-xx-C1 (A2, A3) ........220~240 VAC (+10%/-15%), 600 mA xxxxX-xx-C2 (A1, A2) .............

  • Page 17: Disposal Instructions

    System design 1200V soft starter Certification CE ......................EN 60947-4-2 3.16 Disposal instructions Equipment containing electrical components may not be disposed of together with domestic waste. It must be collected separately as electrical and electronic waste according to local and currently valid legislation.

  • Page 18: Installation

    1200V soft starter Installation Installation WARNING Do not apply mains voltage to the starter until all wiring is complete. WARNING Always apply control voltage before (or with) mains voltage. Command source The soft starter can be started and stopped via the digital inputs, remote keypad, communication network, smart card or scheduled auto-start/stop.

  • Page 19: Inputs

    Installation 1200V soft starter Inputs CAUTION The control inputs are powered by the soft starter. Do not apply external voltage to the control input terminals. NOTE Cables to the control inputs must be segregated from mains voltage and motor cabling. Input terminals B4 B5 10 11 12 13 14 1521 22...

  • Page 20: Programmable Inputs

    1200V soft starter Installation Reset/starter disable The reset input (10, 11) is normally closed by default. The soft starter will not perform a start if the reset input is open. The display will show "Not Ready". If the reset input opens while the soft starter is running, the starter will remove power and allow the motor to coast to stop.

  • Page 21: Outputs

    Installation 1200V soft starter Outputs Output terminals B4 B5 10 11 12 13 14 15 21 22 B4 B5 10 11 12 13 14 15 21 22 33 34 41 42 44 53 54 03 04 33 34 41 42 44 53 54 21, 22 Analog output 33, 34...

  • Page 22: Programmable Outputs

    1200V soft starter Installation Soft starter installed with main contactor Soft starter installed with a shunt relay and circuit breaker 1/L1 2/T1 1/L1 2/T1 3/L2 4/T2 3/L2 4/T2 5/L3 6/T3 5/L3 6/T3 Fuses Circuit breaker Main contactor CAUTION Some electronic contactor coils are not suitable for direct switching with PCB mount relays.

  • Page 23: Control Voltage

    Installation 1200V soft starter Control voltage • xxxxX-xx-C1 (110~120 VAC): A1, A2 • xxxxX-xx-C1 (220~240 VAC): A2, A3 • xxxxX-xx-C2 (24 VAC/VDC): A1, A2 Install supplementary or branch overcurrent protection on the control circuit supply (A1, A2, A3), in accordance with the electrical code applicable at the installation location. Power terminations Use only M10 high tensile grade 8.8 threaded fasteners for all terminations.

  • Page 24: External Bypass Contactor

    1200V soft starter Installation External bypass contactor The soft starter has dedicated bypass terminals, which allow the soft starter's protection and monitoring functions to work even when the soft starter is externally bypassed. Use the bypass contactor output (03, 04) to control the external bypass. NOTE For V12 (1200 VAC) soft starters, always set parameter 20G External Bypass to 'Enable'.

  • Page 25: Earth Terminations

    Installation 1200V soft starter 1/L1 2/T1 U1(1) U2(4) 3/L2 4/T2 V1(2) V2(5) W1(3) W2(6) 5/L3 6/T3 Main contactor Bypass contactor (external) Fuses or circuit breaker 33, 34 Main contactor output 03, 04 Bypass contactor output Earth terminations The soft starter has earth terminals on each side of the starter, near the top back corner. Either earth point may be used.
  • Page 26 1200V soft starter Installation 1/L1 2/T1 3/L2 4/T2 5/L3 6/T3 (L/+) 21948.A Three-phase supply Main contactor Motor Bypass contactor (external) Control voltage (soft starter) Fuses or circuit breaker Digital inputs 10, 11 (S1) Reset Motor thermistor input 11, 12 (S2) Start/Stop Relay outputs 13, 14 Programmable input A...

  • Page 27: Quick Setup

    Installation 1200V soft starter 4.11 Quick setup The Quick Setup Menu makes it easy to configure the soft starter for common applications. The starter guides you through the most common installation parameters, and suggests a typical setting for the application. You can adjust each parameter to suit your exact requirements.

  • Page 28: Setup Tools

    1200V soft starter Setup tools Setup tools Setup Tools includes options to load or save parameters to a backup file, set the starter's network address, check the status of the inputs and outputs, reset the thermal models or test operation using the run simulation. To access the Setup Tools, press MENU/ENTER to open the menu then select Setup Tools.

  • Page 29: Load/Save Settings

    Setup tools 1200V soft starter Run Simulation 3. Apply a start command from the selected command Pre-Start Checks source. The soft starter simulates its pre-start checks MENU to Continue and closes the main contactor relay. The Run LED flashes. Run Simulation NOTE ATTENTION! If mains voltage is connected, an error message is...

  • Page 30: Usb Save And Load

    1200V soft starter Setup tools USB save and load The USB save and load menu lets you: • Save parameter settings and all event log entries to an external file (CSV format) • Save parameter settings to an external file (proprietary format) •...

  • Page 31: Auto-Start/Stop

    Setup tools 1200V soft starter Auto-start/stop The starter can be configured to automatically start and/or stop the motor at a particular time, or run it in cycles of a specified duration. The Auto-Start/Stop option in Setup Tools gives quick access to the auto-start/stop parameters.

  • Page 32: Digital I/O State

    1200V soft starter Setup tools When the action has been completed, the screen will briefly display a confirmation message, then return to the previous menu level. NOTE The network address can also be set using parameters 12H~12S. NOTE To configure the soft starter for use with other communication protocols, use parameters 12A~12G.

  • Page 33: Software Versions

    Setup tools 1200V soft starter 5.12 Software versions The software versions screen reports the version of each software component in the starter: • user interface • motor control • remote keypad (if connected) • parameter list • bootloader • expansion card (if fitted) NOTE Updated software, including alternative languages, can be loaded into the starter via the USB port if required.

  • Page 34: Logs

    1200V soft starter Logs Logs The Logs Menu provides information on events, trips and starter performance. To access the Logs Menu on the local keypad, press MENU/ENTER to open the menu then select Logs. On the remote keypad, press LOGS. Event log The event log stores details of the starter's most recent trips, warnings, and operations (including starts, stops and configuration changes).

  • Page 35: Keypad And Feedback

    Keypad and feedback 1200V soft starter Keypad and feedback The keypad Local keypad Remote keypad (if installed) Ready Trip Local Four-line display for status and programming details. Status LEDs Menu navigation buttons: RESET/EXIT: Exit the menu or parameter, or cancel a parameter change. On the local keypad, this button also resets a trip.

  • Page 36: Lighten/Darken The Display

    1200V soft starter Keypad and feedback NOTE If parameter 1A Command Source is set to Remote Keypad, removing the remote keypad will cause a trip. Lighten/darken the display The backlight on the display can be adjusted: • to lighten the display, hold down the RESET/EXIT button and press the •...
  • Page 37 Keypad and feedback 1200V soft starter Starter status screen 69.0 A Motor running current Running Starter status 69.0 A 415 V Parameter 10H User Parameter 1 and parameter 10I User Parameter 2 Current The current screen shows real-time line current on each phase. Phase Currents 000.0A 000.0A...

  • Page 38: Operation

    1200V soft starter Operation Operation Start, stop and reset commands The soft starter can be started and stopped via the digital inputs, remote keypad, communication network, smart card or scheduled auto-start/stop. The command source can be set via the setup tools, or using parameter 1A Command Source. •...

  • Page 39: Powerthrough

    Operation 1200V soft starter PowerThrough PowerThrough allows the soft starter to control the motor even if the soft starter is damaged on one phase. The soft starter will use two-phase control techniques to soft start and soft stop the motor. PowerThrough does not support adaptive control soft starting or soft stopping.

  • Page 40: Typical Control Methods

    1200V soft starter Operation • Parameter 7C Input A Trip Delay: sets a delay between the input activating and the soft starter tripping. • Parameter 7D Input A Initial Delay: sets a delay before the soft starter monitors the state of the input, after the start signal. For example, a delay may be required to allow time for pipeline pressure to build up.

  • Page 41: Soft Start Methods

    Operation 1200V soft starter Application Start Mode Stop Mode Pump - Hydraulic Constant Current Coast To Stop Pump - positive Adaptive Control Adaptive Control displacement (Const. accel.) (Const. decel.) Adaptive Control Adaptive Control Pump - submersible (Early accel.) (Late decel.) Saw - bandsaw Constant Current Coast To Stop...
  • Page 42 1200V soft starter Operation 700% 1: Initial Current (parameter 2C) 600% 2: Start Ramp Time (parameter 2B) 500% 3: Current Limit (parameter 2D) 400% 4: Full voltage current 300% 200% 100% Time Constant current with kickstart Kickstart provides a short boost of extra torque at the beginning of a start, and can be used in conjunction with current ramp or constant current starting.
  • Page 43 Operation 1200V soft starter 1: Initial Current (parameter 2C) 2: Current Limit (parameter 2D) 3: Start Ramp Time (parameter 2B) 4: Full voltage 5: Motor 1 current 6: Motor 2 current Time Adaptive control for starting In an adaptive control soft start, the soft starter adjusts the current in order to start the motor within a specified time and using a selected acceleration profile.

  • Page 44: Stop Methods

    1200V soft starter Operation Stop methods Coast to stop Coast to stop lets the motor slow at its natural rate, with no control from the soft starter. The time required to stop will depend on the type of load. Timed voltage ramp soft stop Timed voltage ramp stopping reduces the voltage to the motor gradually over a defined time.
  • Page 45 Operation 1200V soft starter Adaptive Stop Profile (parameter 2K): 100% 1. Early Deceleration 2. Constant Deceleration 3. Late Deceleration 4. Stop Time (parameter 2J) Time Adaptive Control is ideal for pumping applications, where it can minimise the damaging effects of fluid hammer. We recommend testing the three profiles to identify the best profile for the application.
  • Page 46 1200V soft starter Operation 100% 1: Stop Time (parameter 2J) 2: Brake Time (parameter 2P) 3: Coast to stop time Time Parameter settings: • Parameter 2I Stop Mode: set to 'DC Brake'. • Parameter 2J Stop Time: This is the total braking time (1) and must be set sufficiently longer than the brake time (parameter 2P) to allow the pre-braking stage to reduce motor speed to approximately 70%.

  • Page 47: Pump Clean

    Operation 1200V soft starter Three-phase supply Line contactor (Run) Motor terminals Line contactor (Brake) Relay output A Zero speed sensor K1/K2 coil supply Programmable input A 8.10 Pump clean The starter can perform a pump clean function before soft starting the motor. This can help dislodge debris from the impeller.

  • Page 48: Reverse Direction Operation

    1200V soft starter Operation Reverse Torque (parameter 11A) Pump Stop Time (parameter 11F) Reverse Time (parameter 11B) Cleaning cycle Forward Current Limit (parameter Pump Clean Cycles (parameter 11C) 11G) Forward Time (parameter 11D) Programmed soft start 8.11 Reverse direction operation The starter can control a reversing contactor, to operate the motor in reverse direction.

  • Page 49: Jog Operation

    Operation 1200V soft starter Three-phase supply Forward run contactor Motor terminals Reversing contactor Programmable input A (set = Reverse Direction) Relay output A (set = Reversing Contactor) K1/K2 coil supply 8.12 Jog operation Jog runs the motor at reduced speed, to allow alignment of the load or to assist servicing. The motor can be jogged in either forward or reverse direction.

  • Page 50: Secondary Motor Set

    1200V soft starter Operation Unsupported option Replacement behaviour Adaptive control start The starter performs a constant current start. Adaptive control stop If parameter 2J Stop Time is set >0 seconds, the starter performs a TVR soft stop. If parameter 2J is set to 0 seconds the starter performs a coast to stop.

  • Page 51: Programmable Parameters

    Programmable parameters 1200V soft starter Programmable parameters Main menu The main menu lets you view and change programmable parameters that control how the soft starter operates. To open the main menu, press MENU/ENTER then scroll to Main Menu and press MENU/ENTER again.
  • Page 52 1200V soft starter Programmable parameters Parameter Group Default Setting Kickstart Level 500% Jog Torque TVR Soft Stop Stop Mode Stop Time 00:00 (mm:ss) Adaptive Stop Profile Constant Deceleration Adaptive Control Gain Multi Pump Single Pump 00:00 (mm:ss) Start Delay DC Brake Torque DC Brake Time 00:01 (mm:ss) Brake Current Limit...
  • Page 53 Programmable parameters 1200V soft starter Parameter Group Default Setting Tuesday Start Time 00:00 (hh:mm) Tuesday Stop Time 00:00 (hh:mm) Start/Stop Disable Wednesday Mode Wednesday Start Time 00:00 (hh:mm) Wednesday Stop Time 00:00 (hh:mm) Thursday Mode Start/Stop Disable Thursday Start Time 00:00 (hh:mm) 00:00 (hh:mm) Thursday Stop Time...
  • Page 54 1200V soft starter Programmable parameters Parameter Group Default Setting Input A Trip Soft Trip and Log Input B Trip Soft Trip and Log Soft Trip and Log Network Communications Remote Keypad Fault Soft Trip and Log Frequency Soft Trip and Log Phase Sequence Soft Trip and Log Motor Overtemperature...
  • Page 55 Programmable parameters 1200V soft starter Parameter Group Default Setting Graph Minimum Adjustment Current Calibration 100% Read & Write Adjustment Lock User Parameter 1 Current User Parameter 2 Motor Voltage User Parameter 3 Mains Frequency User Parameter 4 Motor pf Motor Power User Parameter 5 User Parameter 6 Motor Temperature (%)
  • Page 56 1200V soft starter Programmable parameters Parameter Group Default Setting Model Rating Model dependent Screen Timeout 1 minute Auto-detect Motor Connection External Bypass Disable Shunt Trip Mode Disable Pump Input Configuration None Pressure Sensor Type Pressure Units Pressure at 4 mA Pressure at 20 mA Flow Sensor Type None...

  • Page 57: Motor Details

    Programmable parameters 1200V soft starter Parameter Group Default Setting Depth Response Delay 00:00:500 (mm:ss:ms) Thermal Protection Temperature Sensor Type None Temperature Trip Level Pump Trip Action Pressure Sensor Soft Trip and Log Flow Sensor Soft Trip and Log Depth Sensor Soft Trip and Log High Pressure Soft Trip and Log...

  • Page 58: Motor Start/Stop

    1200V soft starter Programmable parameters Description: Selects the command source for controlling the soft starter. 1B – Motor Full Load Current Range: Model dependent Description: Matches the starter to the connected motor's full load current. Set to the full load current (FLC) rating shown on the motor nameplate. 1C –...
  • Page 59 Programmable parameters 1200V soft starter 2B – Start Ramp Time Range: 0:01 - 3:00 (minutes:seconds) Default: 10 seconds Description: Sets the total start time for an Adaptive Control start or the ramp time for current ramp starting (from the initial current to the current limit). 2C –...
  • Page 60 1200V soft starter Programmable parameters 2I – Stop Mode Options: Coast To Stop TVR Soft Stop (default) Adaptive Control DC Brake Soft Brake Description: Selects the stop mode. 2J – Stop Time Range: Default: 0:00 - 4:00 (minutes:seconds) 0 second Description: Sets the time for soft stopping the motor using timed voltage ramp or Adaptive Control.

  • Page 61: Motor Start/Stop-2

    Programmable parameters 1200V soft starter 2R – Soft Brake Delay Range: 400 - 2000 milliseconds Default: 400 milliseconds Description: Sets the time the soft starter will wait after a stop signal is received, before it begins to supply braking current to the motor. Set to allow time for K1 and K2 to switch.
  • Page 62 1200V soft starter Programmable parameters 3G – Adaptive Start Profile-2 Options: Early Acceleration Constant Acceleration (default) Late Acceleration Description: Selects which profile the soft starter will use for an Adaptive Control soft start. 3H – Kickstart Time-2 Range: Default: 0 – 2000 milliseconds 0000 milliseconds Description: Sets the kickstart duration.

  • Page 63: Auto-Start/Stop

    Programmable parameters 1200V soft starter 3O – Multi Pump-2 Options: Single Pump (default) Manifold Pump Description: Adjusts the performance of adaptive control to suit installations with multiple pumps connected to a common outlet manifold. 3P – Start Delay-2 Range: 0:00 - 60:00 (minutes:seconds) Default: 0 second Description: Sets a delay after the starter receives a start command, before it starts the...
  • Page 64 1200V soft starter Programmable parameters 4D – Sunday Mode Options: Start/Stop Disable Disables auto-start/stop control. Any times scheduled (default) in parameters 4E or 4F will be ignored. Start Only Enable Enables auto-start control. Any auto-stop times scheduled in parameter 4F will be ignored. Stop Only Enable Enables auto-stop control.
  • Page 65 Programmable parameters 1200V soft starter 4N – Wednesday Start Time Range: 00:00 - 23:59 Default: 00:00 Description: Sets the auto-start time for Wednesday (24 hour format). 4O – Wednesday Stop Time Range: 00:00 - 23:59 Default: 00:00 Description: Sets the auto-stop time for Wednesday (24 hour format). 4P –...

  • Page 66: Protection Levels

    1200V soft starter Programmable parameters 5 Protection Levels 5A – Current Imbalance Range: 10% - 50% Default: Description: Sets the trip point for current imbalance protection. 5B – Current Imbalance Delay Range: Default: 0:00 - 4:00 (minutes:seconds) 3 seconds Description: Slows the soft starter's response to current imbalance, avoiding trips due to momentary fluctuations.
  • Page 67 Programmable parameters 1200V soft starter 5J – Overvoltage Delay Range: 0:01 - 1:00 (minutes:seconds) Default: 1 second Description: Slows the soft starter's response to overvoltage, avoiding trips due to momentary fluctuations. 5K – Underpower Range: 10% -120% Default: Description: Sets the trip point for underpower protection. Set as required. 5L –...

  • Page 68: Protection Action

    1200V soft starter Programmable parameters input terminals and trips if the actual sequence does not match the selected option. CAUTION When using DC brake, the mains supply must be connected to the soft starter (input terminals L1, L2, L3) in positive phase sequence and parameter 5R Phase Sequence must be set to Positive Only.
  • Page 69 Programmable parameters 1200V soft starter 6D – Undercurrent Options: Soft Trip and Log (default) Warn and Log Soft Trip and Reset Log Only Trip Starter Trip + Shunt Relay Trip and Reset Description: Selects the soft starter's response to the protection event. 6E –...
  • Page 70 1200V soft starter Programmable parameters 6K – Input A Trip Options: Soft Trip and Log (default) Warn and Log Soft Trip and Reset Log Only Trip Starter Trip + Shunt Relay Trip and Reset Description: Selects the soft starter's response to the protection event. 6L –...

  • Page 71: Inputs

    Programmable parameters 1200V soft starter 6Q – Motor Overtemperature Options: Soft Trip and Log (default) Warn and Log Soft Trip and Reset Log Only Trip Starter Trip + Shunt Relay Trip and Reset Description: Selects the soft starter's response to the protection event. 6R –...
  • Page 72 1200V soft starter Programmable parameters Zero Speed Sensor An open circuit across 13, 14 indicates to the soft starter that the motor has reached a standstill. The soft starter requires a normally open zero speed sensor. Motor Set Select A closed circuit across 13, 14 instructs the starter to use the secondary motor configuration for the next start/stop cycle.
  • Page 73 Programmable parameters 1200V soft starter 7H – Input B Initial Delay Range: 00:00 - 30:00 (minutes:seconds) Default: 0 second Description: Sets a delay before an input trip can occur. The initial delay is counted from the time a start command is received. The state of the input is ignored until the initial delay has elapsed.

  • Page 74: Relay Outputs

    1200V soft starter Programmable parameters 9.12 8 Relay Outputs 8A – Relay A Function Options: Relay A is not used. Ready The relay is closed when the starter is in Ready state. Run (default) The Run output closes when the soft start is complete (when the starting current falls below 120% of the programmed motor full load current) and remains closed until the beginning of a stop (either soft stop or...
  • Page 75 Programmable parameters 1200V soft starter Description: Selects the function of Relay B (normally open). See parameter 8A Relay A Function. 8E – Relay B On Delay Range: 0:00 - 5:00 (minutes:seconds) Default: 0 second Description: Sets the delay for closing Relay B. 8F –...

  • Page 76: Analog Output

    1200V soft starter Programmable parameters 9.13 9 Analog Output 9A – Analog Output A Options: Current (% FLC) Current as a percentage of motor full load current. (default) Motor Temperature The motor's temperature, calculated by the thermal model. Motor pf Motor power factor, measured by the soft starter.

  • Page 77: Display

    Programmable parameters 1200V soft starter 9.14 10 Display 10A – Language Options: English (default) Português Chinese Français Español Italiano Deutsch Russian Description: Selects which language the keypad will use to display messages and feedback. 10B – Temperature Scale Options: Celsius (default) Fahrenheit Description: Selects whether the soft starter will display temperatures in degrees Celsius or Fahrenheit.
  • Page 78 1200V soft starter Programmable parameters 10H – User Parameter 1 Options: Blank Displays no data in the selected area, allowing long messages to be shown without overlapping. Current (default) Average rms current across all three phases Motor Voltage Average rms voltage across all three phases. P1 Voltage Phase 1 voltage.

  • Page 79: Pump Clean

    Programmable parameters 1200V soft starter 10J – User Parameter 3 Options: See parameter 10H User Parameter 1 for details. Default: Mains Frequency Description: Selects which information will be displayed on the programmable monitoring screen. 10K – User Parameter 4 Options: See parameter 10H User Parameter 1 for details.

  • Page 80: Communications Card

    1200V soft starter Programmable parameters 11G – Pump Clean Cycles Range: 1 – 5 Default: Description: Sets how many times the soft starter will repeat the pump clean cycle. 9.16 12 Communications Card 12A – Modbus Address Range: 1 - 254 Default: Description: Sets the Modbus RTU network address for the soft starter.
  • Page 81 Programmable parameters 1200V soft starter 12I – Gateway Address 2 Range: 0 - 255 Default: Description: Sets the second component of the network gateway address. 12J – Gateway Address 3 Range: Default: 0 - 255 Description: Sets the third component of the network gateway address. 12K –...

  • Page 82: Advanced

    1200V soft starter Programmable parameters 12R – Subnet Mask 3 Range: 0 - 255 Default: Description: Sets the third component of the network subnet mask, for Ethernet communications. 12S – Subnet Mask 4 Range: 0 - 255 Default: Description: Sets the fourth component of the network subnet mask, for Ethernet communications.
  • Page 83 Programmable parameters 1200V soft starter 20D – Model Rating Range: Model dependent Description: The soft starter’s internal model reference, as shown on the silver label on the side of the unit [1]. NOTE This parameter can only be adjusted by authorised servicing agents. 20E –...

  • Page 84: Smart Card Parameters

    1200V soft starter Programmable parameters • Current at Stop • Internal fault • Current Read Err Lx • Motor connection • EEPROM fail • SCR Itsm • Firing Fail Px • VZC Fail Px • Instantaneous overcurrent 9.18 30 Smart Card Parameters Parameter groups 30 and higher are only visible if a smart card is installed and is supported by the soft starter.

  • Page 85: Calibrate 4-20Ma

    Programmable parameters 1200V soft starter 9.20 41 Calibrate 4-20mA 41A – 4 mA Calibration Range: 90% - 110% Default: 100% Description: Calibrates the analog output at 4 mA. 41B – 20 mA Calibration Range: Default: 90% - 110% 100% Description: Calibrates the analog output at 20 mA.

  • Page 86: Troubleshooting

    1200V soft starter Troubleshooting Troubleshooting 10.1 Protection responses When a protection condition is detected, the soft starter will write this to the event log and may also trip or issue a warning. The soft starter's response depends on the Protection Action setting (parameter group 6).
  • Page 87 Troubleshooting 1200V soft starter Display Possible cause/Suggested solution EEPROM fail An error occurred loading data from the EEPROM to RAM when the keypad powered up. If the problem persists, contact your local distributor. Related parameters: None Excess start Excess start time trip can occur in the following conditions: time •...

  • Page 88: Internal Fault

    1200V soft starter Troubleshooting Display Possible cause/Suggested solution Heatsink Check that bypass contactors are operating. • overtemperature • Check that cooling fans are operating (if fitted). • If mounted in an enclosure, check if ventilation is adequate. • The soft starter must be mounted vertically. Related parameters: None High Flow The flow sensor connected to the smart card has activated high flow...
  • Page 89 Troubleshooting 1200V soft starter Display Possible cause/Suggested solution Low Control The soft starter has detected a drop in the internal control voltage. Volts • Check the external control supply (A1, A2, A3) and reset the starter. • If the external control supply is stable, contact your local supplier for advice.
  • Page 90 1200V soft starter Troubleshooting Display Possible cause/Suggested solution Motor thermistor The motor thermistor input has been enabled and: • The resistance at the thermistor input has exceeded 3.6 kΩ for more than one second. • The motor winding has overheated. Identify the cause of the overheating and allow the motor to cool before restarting.
  • Page 91 Troubleshooting 1200V soft starter Display Possible cause/Suggested solution Phase sequence The phase sequence on the soft starter's input terminals (L1, L2, L3) is not valid. Check the phase sequence on L1, L2, L3 and ensure the setting in parameter 5R is suitable for the installation. Related parameters: 5R, 6P Power loss This trip is not adjustable.

  • Page 92: General Faults

    1200V soft starter Troubleshooting Display Possible cause/Suggested solution Undercurrent The motor has experienced a sharp drop in current, caused by loss of load. Causes can include broken components (shafts, belts or couplings), or a pump running dry. Related parameters: 5C, 5D, 6D Underpower The motor has experienced a sharp drop in power, caused by loss of load.
  • Page 93 Troubleshooting 1200V soft starter Symptom Probable Cause The soft starter does not The soft starter may be waiting for the restart delay to • respond to a start command elapse. The length of the restart delay is controlled by from either the keypad or parameter 5P Restart Delay.
  • Page 94 1200V soft starter Troubleshooting Symptom Probable Cause After selecting Adaptive The first Adaptive Control start is actually 'Constant • Control the motor used an Current' so that the starter can learn from the motor ordinary start and/or the characteristics. Subsequent starts use Adaptive Control. second start was different to the first.

This manual is also suitable for:
