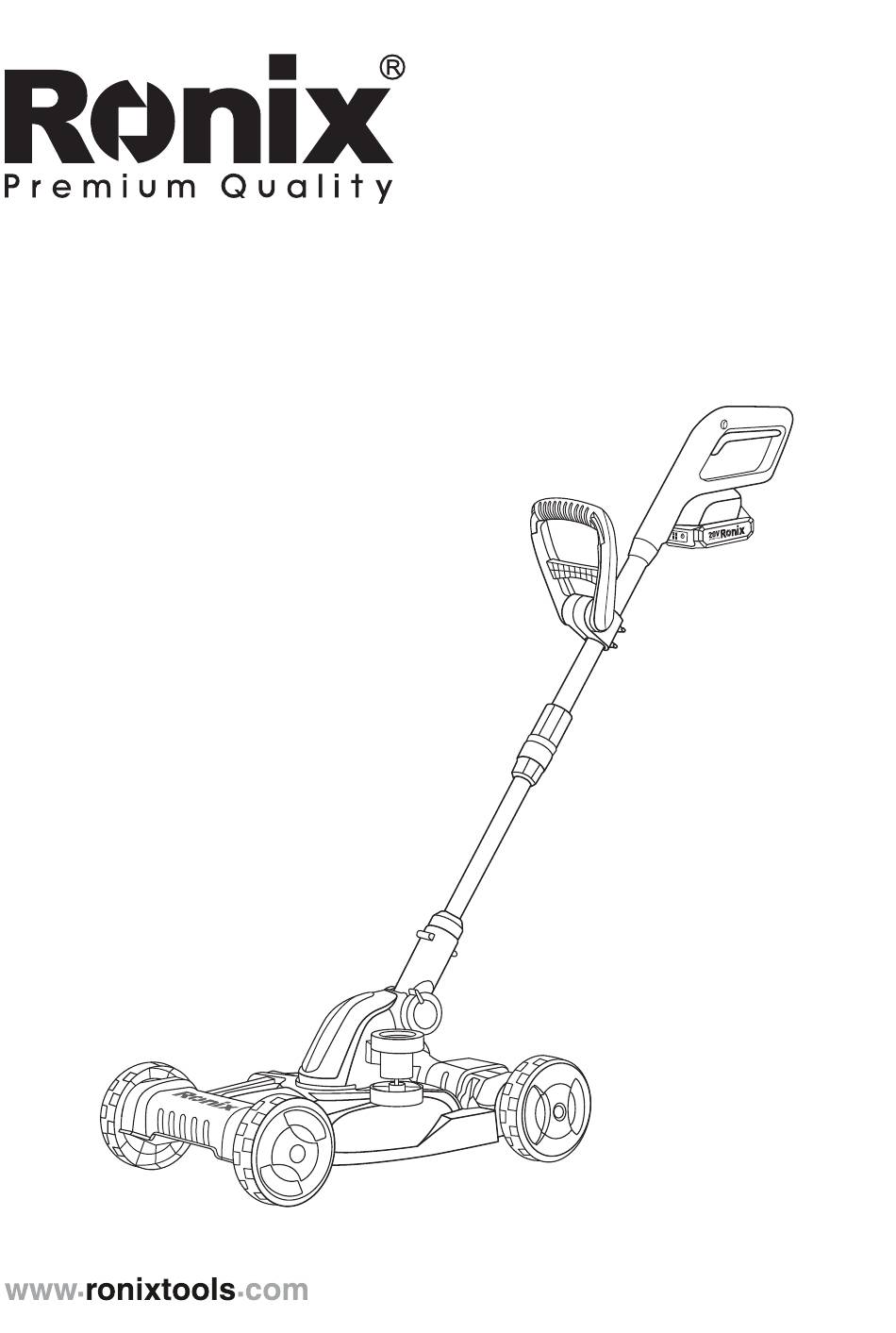

- Page 1 MULTI GRASS TRIMMER 20V 8662...
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS 8662 Model Battery Chemistry lithium Battery Voltage Battery Capacity 4.0Ah No-load Speed 6500RPM Cutting Width 300mm Telescopic tube 220mm Running Time 30min Net Weight 4.6Kg(without battery and charger) 6.6Kg(with 2pcs 4.0Ah Battery and Gross Weight 1pc 4.0A charger) Battery 4.0Ah: 2pcs... -
Page 4: Parts List
PARTS LIST MULTI GRASS TRIMMER 20V... - Page 5 1- Safety lock-off 2- On/Off switch 3- Handle adjustment button 4- Additional handles 5- Height adjustment (union nut) 6- Edge guide 7- Cutting assembly 8- Guard hood 9- Line cutter 10- Locking button for long handle tilt 11- Side wheel 12- Adjustment position of motor rotation 13- Battery mount 14- Cordless grass trimmers...
-
Page 6: Safety Information
DANGER! When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete original operating instructions and safety information with due care. Keep these operating instructions in a safe place so that the information is available at all times. -
Page 7: Intended Use
Read the operating instructions! Keep other persons away! Protect from the damp. Guaranteed sound power level INTENDED USE The equipment is designed for cutting lawns and small areas of grass in private and hobby gardens. Equipment designed for use in private and hobby gardens is regarded as unsuitable for use in public facilities, parks and sports centers, along roadways, or in agriculture and forestry. -
Page 8: Residual Risks
suitable to be used for estimating in advance the strain on the user caused by the vibration. CAUTION! Depending on how you use the device, the actual vibration emissions can vary from the values listed above. Take appropriate measures to protect yourself against vibration stress. Take the entire work sequence into consideration including times at which the device is not working under load or is switched off. -
Page 9: Before Using The Equipment
period or is not properly guided and maintained. 3- Injury and damage to property caused by flying parts. 4- Cut injuries if no suitable safety clothing is used. BEFORE USING THE EQUIPMENT 5.1- Fitting the guard hood: Push the guard hood (Item 8) onto the motor housing. - Page 10 5.4- Adjusting the angle of tilt of the long handle: Turn the Locking button for long handle tilt to the unlocked position for adjusting the angle of tilt (Item 10). Now you can set the long handle to the required angle of tilt. To fix the angle of tilt, Turn the Locking button for long handle tilt to the locked position.
-
Page 11: Charging The Battery
CHARGING THE BATTERY 1- Take the battery pack out of the equipment. To do so, press the push lock button (Item C). 2- Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Insert the power plug of the charger into the socket outlet. - Page 12 battery charge level indicator (Item B) shows the charge status of the battery using 4 LEDs. All 4 LEDs are lit: The battery is fully charged. 3 or 2 or 1 LED(s) are lit: The battery has an adequate remaining charge. 1 LED flashes: The battery is empty, recharge the battery.
-
Page 13: Adjusting The Cutting Height
DANGER! Start up the equipment only when it is fully assembled. 5.8 Fitting the grass trimmer to the trimmer cart: Insert the motor head into the guide (Item 16a) on the trimmer cart. Press the grass trimmer at an angle to the rear. The guard hood (Item 8) will latch in the trimmer cart lock (Item 16b). -
Page 14: Operation
accessible. Pull back the axles and place them in the same notch on both sides (notch D = 35mm cutting height, notch E = 55 mm cutting height). For a uniform cutting height, you must place both axles in the same notch. - Page 15 30° USING THE GRASS TRIMMER AS AN EDGE TRIMMER To cut the edges of lawns alongside e.g., flower beds (vertical cutting), the grass trimmer can be converted into a lawn edge trimmer. The lock (Item 12) latches in the angle of tilt adjustment (Item 12a). While holding the angle of tilt adjustment (Item 12a) in place, pull the long handle upwards out of the lock and turn it 90°counter-clockwise until it latches home.
-
Page 16: Cleaning & Maintenance
90° USING WITH A TRIMMER CART - Push the equipment. - Ensure that the safe distance established by the long handle between the trimmer cart and the user is always maintained. - For safety reasons the lawn mower is not allowed to be used on inclines of more than 15 degrees. -
Page 17: Maintenance
and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure. - We recommend that you clean the equipment immediately after you use it. - Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents;... -
Page 18: Charger Indicator
- As far as possible, use the original packaging for transporting the equipment. FAULTS The equipment does not work: Check that the battery is charged and whether the charger is working. If the equipment will not work in spite of the voltage supply being OK, please send it to the customer service.Only trimmer cart: Check whether the cutting unit in the trimmer cart can rotate freely. - Page 19 The battery is charged and ready for use. The unit then changes over to gentle charging mode until the battery is fully charged. To do this, leave the rechargeable battery on the charger for approx. 15 minutes longer. Action: Take the battery pack out of the charger. Disconnect the charger from the mains supply.
