Summary of Contents for Ronix 8921

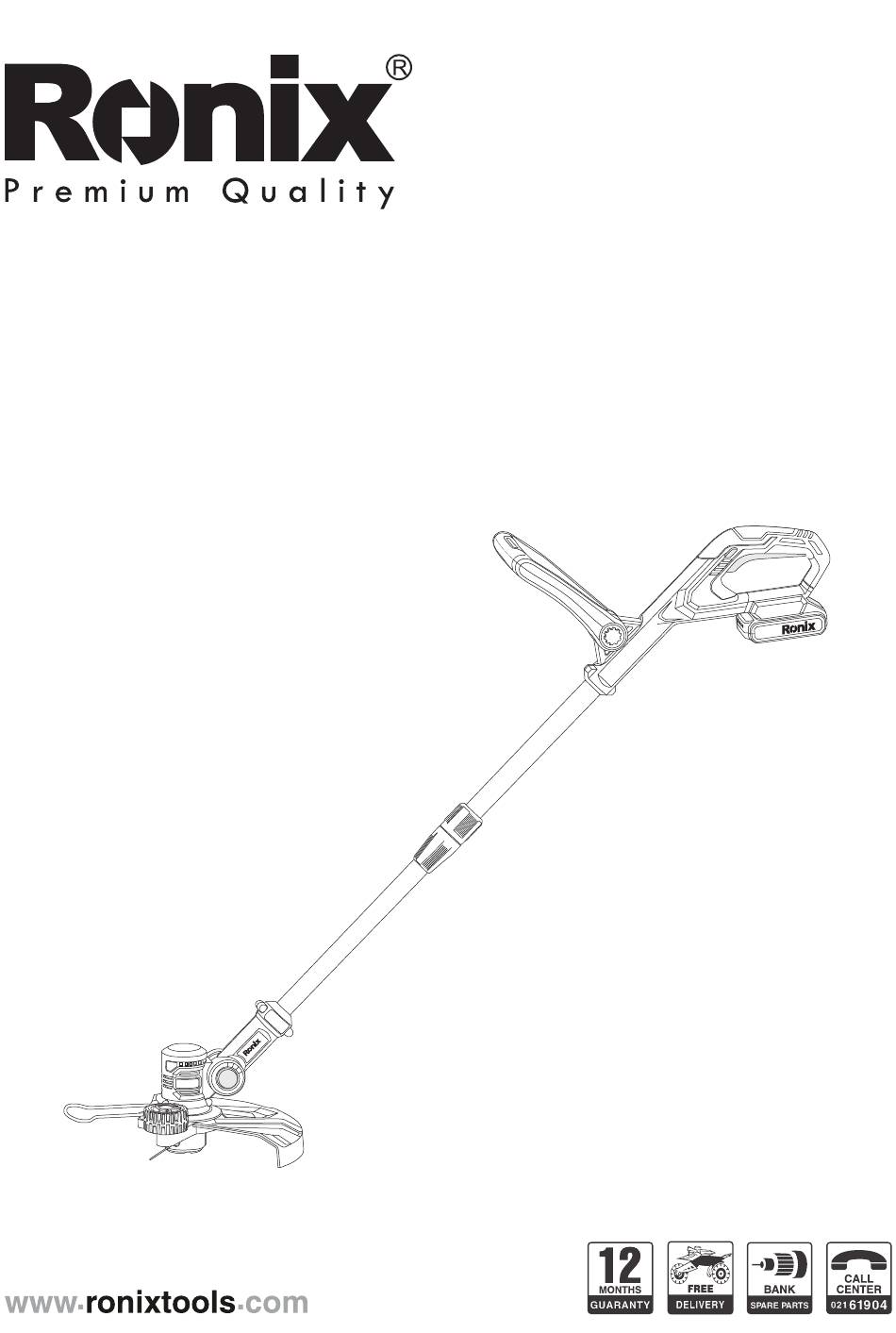

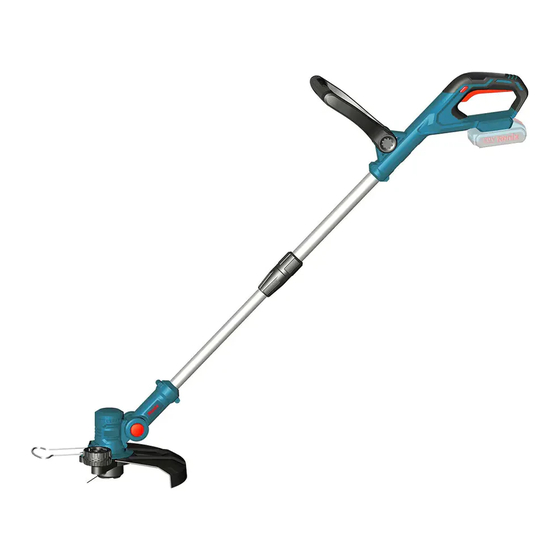

- Page 1 20V GRASS TRIMMER 8921...
-
Page 3: Specification
Charging time Machine Weight 1.8kg Safety guard:1 - Flower guard:1 - Charger:0 - Battery Accessories pack: 0 THIS PRODUCT DOES NOT INCLUDE BATTERIES OR CHARGER USABLE BATTERIES FOR 8921 Ronix Model No. Product 8990 20V battery pack, 2.0Ah Li-ion battery 8991 20V battery pack, 4.0Ah Li-ion battery... -
Page 4: Part List
PART LIST Reas Handle Lock Auxiliary Handle off Button On/Off Battery Switch Pack Telescopic Tube Edger /Trimming Support Wheels Flower Guard Guard WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. FOR ALL APPLIANCES 1) Avoid Dangerous Environment - Don’t use appliances in damp or wet locations. - Page 5 caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair. 5) Use Safety Glasses - Always use face or dust mask if operation is dusty. 6) Use Right Appliance - Do not use appliance for any job except that for which it is intended.
- Page 6 safety measures reduce the risk ofstarting the appliance accidentally. 3. Recharge only with the charger speci fied by the manufacturer .A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 4.
-
Page 7: Safety Warnings For Battery Pack
2. Keep hands and feet away from cutting area. 3. Do not use heavier lines than recommended in this manual. 4. Do not use line materials of other types – for example, metal wire, rope, and the like. SAFETY WARNINGS FOR BATTERY PACK a) Do not dismantle, open or shred battery pack. - Page 8 n) Battery pack need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment man- ual for proper charging instructions. o) Do not leave battery pack on prolonged charge when not in use. p) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
-
Page 9: Assembling The Safety Guard
Edging Trimming Lock Unlock Make sure the battery is removed prior to changing accessories. WARNING! Any other accessory or attachment may increase the risk of injury. ASSEMBLY ASSEMBLING THE SAFETY GUARD Push the locking knobs and install the auxiliary handle in place. USER MANUAL... -
Page 10: Operation
Installing and Removing the Batter Pack Your Battery Pack is UNCHARGED and it must be fully charged once before it is used. Checking the Battery Condition OPERATION SAFETY ON/OFF SWITCH WARNING! The cutting head continues to rotate after the trimmer has been switched off;... -
Page 11: Adjusting The Auxiliary Handle
ADJUSTING THE SHAFT ADJUSTING THE AUXILIARY HANDLE USING THE FLOWER GUARD TRIMMING Adjusting the Trimmer Head USER MANUAL... - Page 12 EDGING MAIN HANDLE ROTATION “Secure the lower housing and guard in place (using your foot or hand). Pull up on the telescopic shaft and turn clockwise 90 degrees. Release, and the shaft will automatically lock into edging mode.” 90º CHANGING THE TOOL INTO THE EDGING MODE EDGING GRASS TRIMMER...
- Page 13 MANUALLY FEEDING THE LINE REPLACING THE TRIMMER SPOOL MANUALLY WINDING THE LINE USER MANUAL...
-
Page 14: Maintenance
OPERATION INSTRUCTIONS 1. Automatic line feed system When initially switching on the trimmer, a small length of line is fed out. Each time the tool is started from rest it will advance about 0.25 inches of trimmer line. A ‘clattering’ noise will be heard when the lines hit the Line Cutter. DO NOT BE ALARMED. -
Page 15: Troubleshooting
are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry room temperature location. Keep the motor ventilation slots clean. Keep all working controls free of dust. FOR BATTERY TOOLS The ambient temperature range for the use and storage of tool and bat- tery is 0 oC-45oC.
Need help?
Do you have a question about the 8921 and is the answer not in the manual?
Questions and answers
Как снять катушку для замены лески, в руководстве не разобрались
To remove the spool for line replacement on Ronix part number 8921, follow these steps:
1. Disconnect the battery from the tool.
2. Refer to Figures K1, K2, and K3 for spool fitting/removal guidance.
3. Pull the spool cover off the trimmer head.
4. Remove the spool from the housing.
5. If winding new line, take about 10 ft (3 m) of line, insert 5/8 inch (15 mm) into the spool holes, and wind in the direction of the arrows.
6. Leave about 4 inches (100 mm) unwound and place it into the cleat.
7. Ensure the line is neatly coiled before reinstalling the spool.
Always ensure the battery is disconnected before maintenance.
This answer is automatically generated
