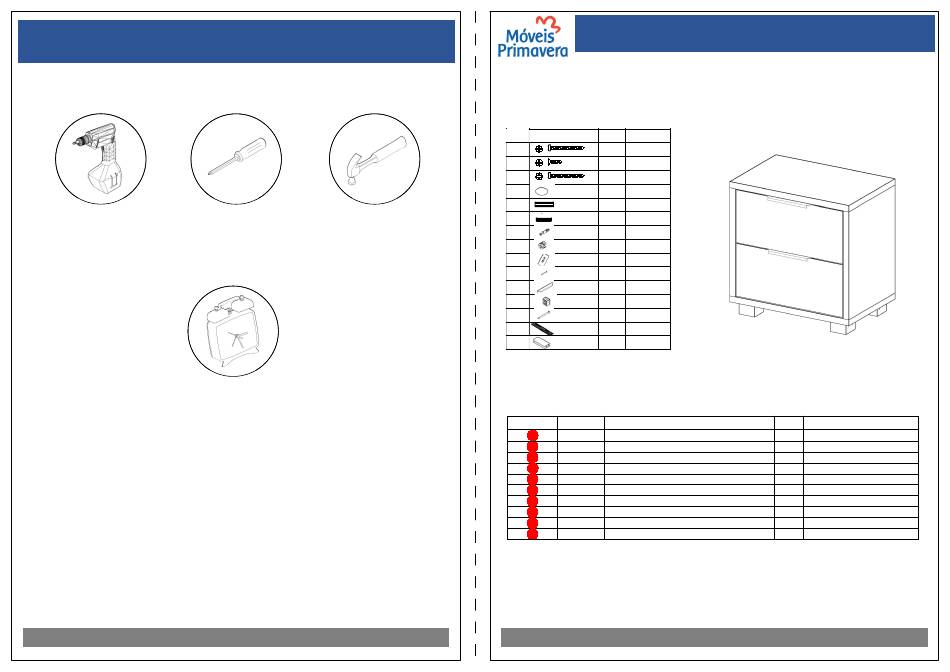

Moveis Primavera VISAGE VS902A Assembly Instructions

MANUFACTURER'S TIPS
NECESSARY TOOLS:
ELECTRIC SCREWDRIVER MANUAL SCREWDRIVER
ASSEMBLY TIME:
ASSEMBLY TIPS:
A - SEPARATE AND IDENTIFY THE PARTS AS PER THE ASSEMBLY INSTRUCTIONS.
B - IF THE UNIT IS TO BE ASSEMBLED LYING DOWN, DO SO WITH IT FACING UPWARDS, RESTING ON
THE CARDBOARD. TURN THE UNIT AROUND TO INSTALL THE BACK BOARD.
C -
REMEMBER, IF THE BACK BOARD IS NOT INSTALLED CORRECTLY, THE UNIT WILL NOT ALIGN
PROPERLY.
D -
FOR A BETTER FINISH, DON'T FORGET TO PUT THE LIDS ON THE SCREWS
PRODUCT CARE:
A -
USE A SLIGHTLY DAMPENED CLOTH TO CLEAN THE UNIT.
B -
AVOID LEAVING THE UNIT IN THE SUN, AS THIS WILL WEAR OUT THE PAINTWORK.
C -
DON'T LET THE UNIT COME INTO CONTACT WITH WATER.
ATTENTION: FOLLOW THESE ASSEMBLY INSTRUCTIONS CAREFULLY
HAMMER
30 MINUTES
.
.
Assembly instructions
NIGHTSTAND VISAGE - 2 DRAWER - VS902A - ONIX / TERRACOTA
Dimensions: Height: 0.54 - Width: 0.54 - Depth: 0.36
Fittings Qty Code
A
04 255
FLAT HEAD SCREW 4 X 40
B
20 252
FLAT SCREW 3.5 X 14
C 08 471
FLAT HEAD SCREW 5,5X50
D
08 16325
HOLE COVER
STICKER ONIX
E
PEG 08 266
8 X 30
F PEG
04 372
6 X 30
G MINIFIX
12 2773
PIN
H MINIFIX 12 2774
CAM
I
TUBE 01 2783
OF GLUE
J NAIL
40 263
10 X 10
K
02 15438
STYLE CURVE
L
PLASTIC 04 37549
SOCKET
M NAIL 08 264
13 X 15
N
METALIC 2930
02
SLIDE 300MM
O
H PROFILE 4935
01
505MM GREY
Description
Code
Part
Tophead onix
37533
01
Backboard onix
02 37548
Left sideboard onix
37536
03
Right sideboard onix
37535
04
Draw terracota
37546
05
37538 onix draw sideboard
06
onix draw rearboard
37539
07
37540 Draw bottom stylized Primavera
08
37541 Bottomboard stylized Primavera
09
37547 Set of fittings
10
ATTENTION: FOLLOW THESE ASSEMBLY INSTRUCTIONS CAREFULLY
Qty. Dimension parts :
01 540X355X25 mm
01 540X355X25 mm
01 450X355X25 mm
01 450X355X25 mm
02 482X218X15 mm
04 300X145X15 mm
02 434X97X15 mm
02 464X305X03 mm
02 530X242X03 mm
