4 x O‐Line wall mounting kit Part Number ASF20021
Each 4 x O‐Line wall mounting kit comprises the following parts:

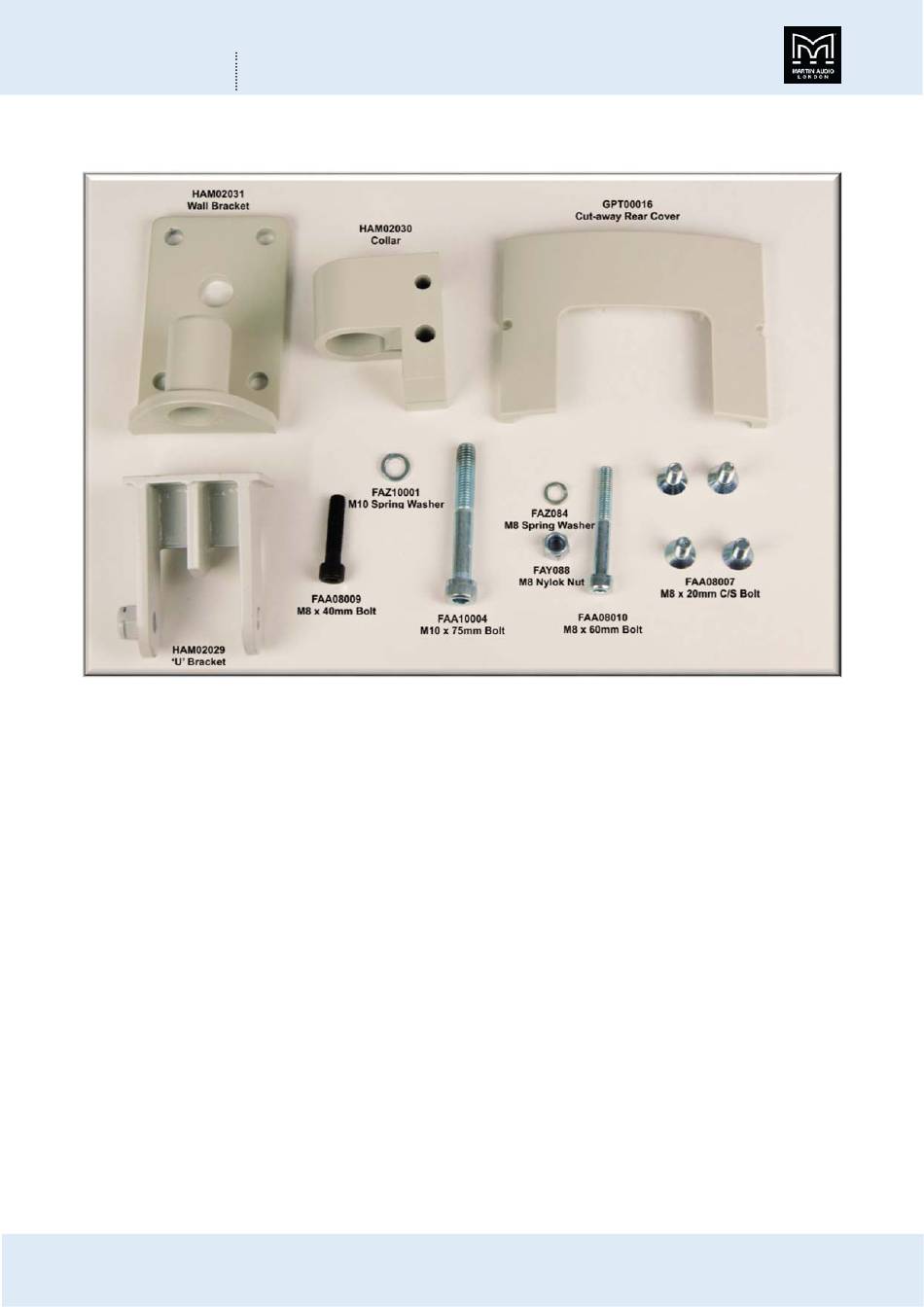

ASF20021 4 x O‐Line wall mounting kit
The 4‐module wall mount kit comprises a wall bracket which can be fixed in place in a first fix. A U‐Bracket and collar are attached
to the bottom of the array. A cut‐away cover fits around the mounting bracket in place of the bottom rear cover on the array.
The array is fitted to the wall bracket and vertical adjustment is made with an M8 bolt.
