Summary of Contents for Amewi ATXB8

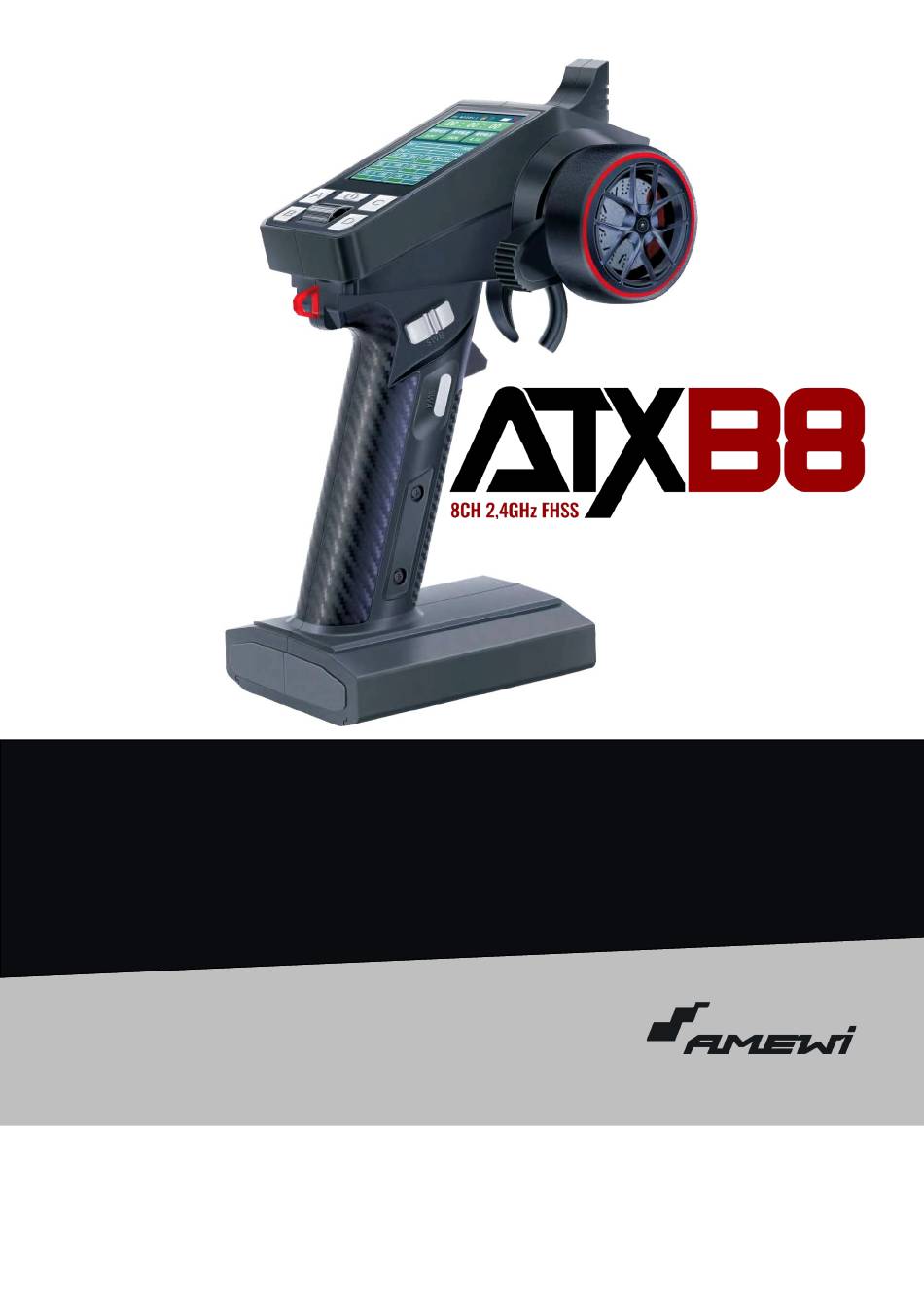

  • Page 1 ATXB8 8-KANAL FERNSTEUERUNG 28388 JUST REMOTE-CONTROLLED BEDIENUNGSANLEITUNG OPERATION MANUAL...
  • Page 3 Welcome to AMEWI The Amewi Trade GmbH is an international import- and wholesale company for R/C models, toys and creative items, located in Borchen near Paderborn, Germany. Our product range includes over 10,000 items. Above all, this includes remote-controlled car, helicopter, boat, and tank models as well as a wide range of accessories and all necessary spare parts.
  • Page 4: Sicherheits- Und Gefahrenhinweise

    This product has been manufactured according to actual technical standards. The product is matching the requirements of the existing European and national guidelines. The Declaration of Conformity has been proofed. AMEWI Trade GmbH declares that this product is matching the basic requirements and remaining regulations of the guideline 2014/53/EU {RED). The declarations and documents are stored at the manufacturer and can be requested and applied there.
  • Page 5 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 BATTERY NOTICE & DISPOSAL HINWEISE ZU BATTERIEN & ENTSORGUNG / Batterien / Akkus gehören nicht in Kinderhände. Ein Wechsel der Batterien oder Akkus ist nur durch einen Erwachsenen durchzuführen. Niemals Akkus mit Trockenbatterien mischen. Niemals volle mit halbleeren Akkus/Batterien mischen. Niemals Akkus verschiedener Kapazitäten mischen.
  • Page 6 DISPOSAL ENTSORGUNGSHINWEISE / Die Firma AMEWI Trade GmbH ist unter der Batt-Reg.-Nr. DE 77735153 sowie der WEEE-Reg.-Nr. 93834722 bei der Stiftung EAR angemeldet und recycelt alle gebrauchten elektronischen Bauteile ordnungsgemäß. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß...
  • Page 7 Vielen Dank für den Kauf der Amewi ATXB8 Fernsteuerung. Bitte lesen Sie die Bedienungsanleitung aufmerksam durch und bewahren Sie sie für spätere Fragen auf. Thank you for purchasing the Amewi ATXB8 remote-control. Please read the instruction manual carefully and keep it for future reference.
  • Page 8 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 PRECAUTIONS VOSICHTSMASSNAHMEN / Bitte lesen Sie die folgenden Sicherheitsinformationen bevor Sie das Modell benutzen. Bitte nutzen Sie das System nicht bei Regen, Schnee oder Gewitter. Wenn Flüssigkeit in die Elektronik eindringt, kann diese irreparabel beschädigt werden.
  • Page 9: Technische Daten

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 SPEZIFICATIONS TECHNISCHE DATEN / Modell ATXB8 Model Geeignet für Auto/Boot/Panzer Car/Boat/Tank Suitable for Kanäle Channel RF-Bereich 2,4GHz ISM RF Range RF-Leistung ≈160-300mA RF Power Modulation GFSK Modulation Spreizspektrum FHSS Spread spectrum Reaktionsgeschwindigkeit PWM ≤ 20ms...
  • Page 10: Display Und Bedienfeld

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 DISPLAY AND OPERATION PANEL DISPLAY UND BEDIENFELD / Timer Signalstärke / Signal strength Modellakkuspannung Senderspannung Model battery voltage Transmitter voltage Kanal 1 / Kanal 2 / Kanal 3 / Kanal 4 / Kanal 5 /...
  • Page 11 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 Methode 2: A. Fernsteuerung und Empfänger sind beide an. B. Drücken Sie den Bindeknopf am Empfänger. C. Rufen Sie das Menü zum Abgleich der Fernsteuerungscodes auf, um die Verbindung herzustellen. The remote control and receiver can be connected to each other in two ways.
  • Page 12 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 KANALMENÜ / CHANNEL MENU PHASE: Jeder Kanal der Fernsteuerung kann über die Reverse Einstellungen umgekehrt werden. RANGE: Der maximale und minimale Weg kann für jeden Kanal festgelegt werden. FINE TUNING: Der Neutrale Punkt jedes Kanals kann getrimmt werden.
  • Page 13 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 FAIL SAFE Die Fail Safe Funktion kann für jeden Kanal separat eingestellt werden. The fail-safe function can be set separately for each channel. COACH MODE LEHRER/SCHÜLER MODUS / Die Fernsteuerung ist mit einem Type-C Datenkabel ausgestattet. Zwei Fernsteuerungen desselben Typs können miteinander verbunden werden, um die Lehrer/Schüler Funktion zu aktivieren.
  • Page 14 BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 The remote control can be operated with AA batteries, an 18650-lithium cell and a 2S LiPo rechargeable battery. Despite reverse polarity protection, always ensure correct polarity when inserting/connecting the batteries/rechargeable battery. If the batteries/rechargeable battery are low, the indicator light flashes. Please replace the batteries or charge the rechargeable battery as soon as possible.
  • Page 15: System Setup

    BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL ATXB8 Gain adjustment: Setting the sensitivity of the gyro. The value can be set as required. The larger the value, the higher the sensitivity. Direction adjustment: Check the gyro function by turning the vehicle left and right in the air. If the gyro is working correctly, the wheels will steer against the direction of rotation.
