Summary of Contents for Amewi ATX6
- Page 1 ATX6 DIGITAL 6-CHANNEL RC-SYSTEM INSTRUCTION MANUAL Technical updates and additional programming examples available at http://amxracing.de...
-
Page 2: Introduction And Service
ATX-6 is a professional 6 channels transmitter, sells with receiver which with gyro integrated and HV servo supported. ATX6, work with FHSS spread spectrum and 67 channels pseudo frequency sequence hopping, both transmitter and receiver use industrial chip ensure superior anti-interference ability both at the same frequency band and different frequency band and anti-sparks interference ability. -
Page 3: Safety Notice And Warnings
If inevitable will run in the wet weather (such as game), please be sure to use plastic bags or waterproof cloth to cover your transmitter, please don't run if there is lightning! ATX6... -
Page 4: Table Of Contents
3.2.1 Receiver Installation and Binding …………………………………………………………………………………………………………7 3.2.2 Working Mode ………………………………………………………..…………………………………………………………………………….7 3.2.3 How to Turn On Gyro Function …………..………………………………………………………………………………………………..7 4. ATX6 Functions …………………………………………………………………………………………………………………………………………………………9 4.1 Display when Power Switch Turned on ……………………………………………………………………………………………………………9 4.2 Language Select „LANGUAGE“ …………….…………………………………………………………………………………………………………10 4.3 Model Select „MODEL“ …………………………………………………………………………………………………………………………………….10 4.4 End Point Adjuster „EPA“... -
Page 5: Pistol Grip Control System

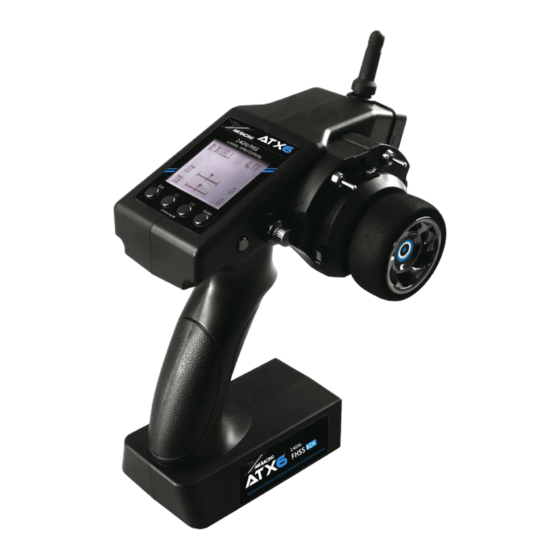

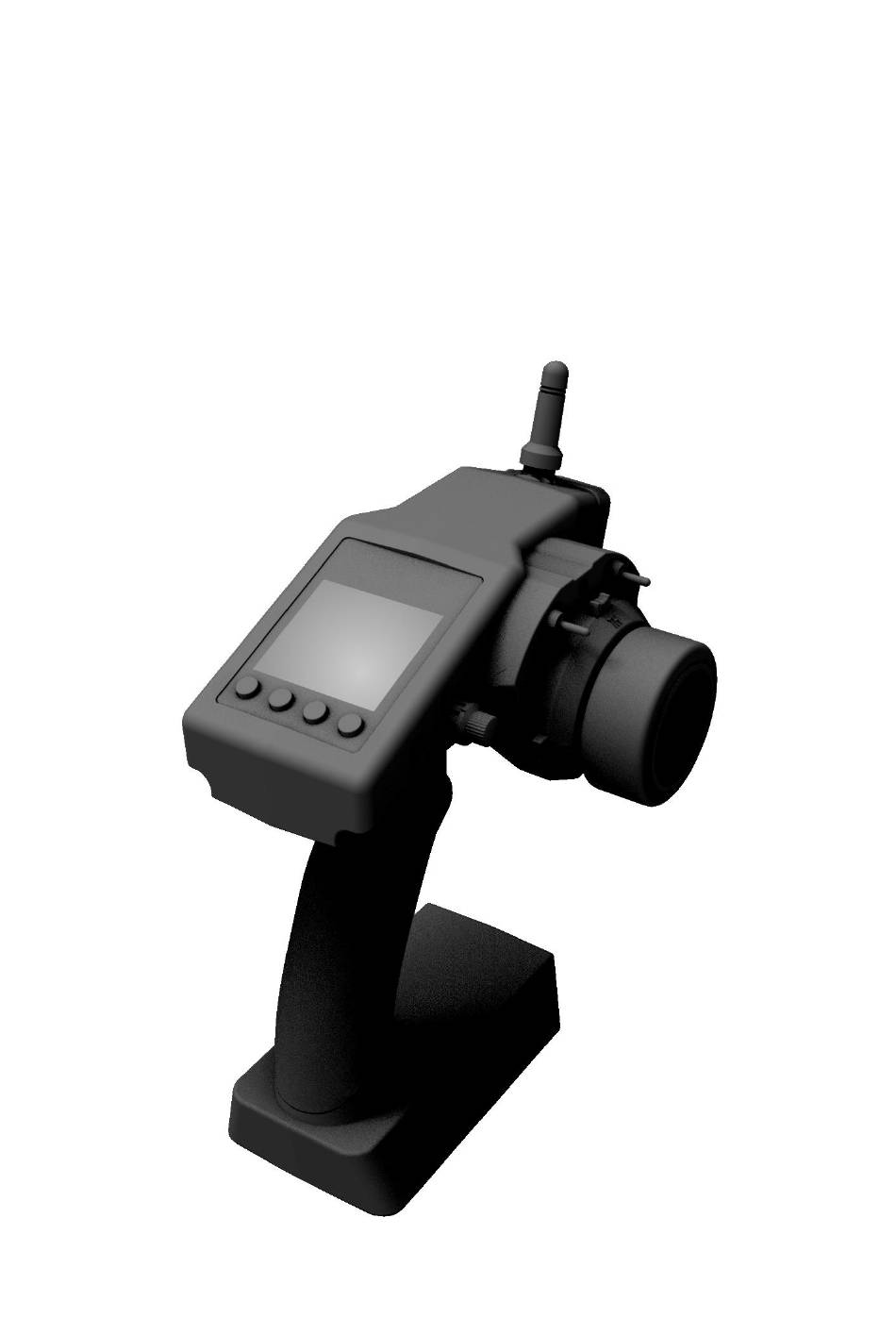

3. PISTOL GRIP CONTROL SYSTEM ATX6, Transmitter with STM32F103RB Chip, receiver RX6FG with 32-Bit Industrial chip. 12ms only form transmitter to the receiver, thus provide control synchronous and perfect performance. FHSS and 67 channels pseudo random frequency sequence hopping makes the ATX6 have superior anti-interference ability both at the same frequency band and different frequency bands. -
Page 6: Transmitter
LCD Screen: 128x64 Resolution LCD Backlight Transmitter operating Voltage: 4,8 – 15,0V Transmitter Batterie: 4AA 1,5V or 2-4S Lithium battery Transmitter operating current: 80-120mA RF-Power: < 20dbm Low voltage alarm: lower than 4,6V, can be set when using 2-4S Lithium battery. Receiver: RX6F, RX6FG ATX6... -
Page 7: Receiver
3.2 Receiver ATX6 sells with RX6FG, 2.4GHz 6 channels receiver, gyro integrated and HV servo supported. Specification: Size: 35x20x13mm Channels: 6 Modulation mode: GFSK Spread Spectrum: FHSS Antenna length: 210mm Control distance: more than 400m Power supply: 4,8-15V. 4x AA batteries 1,5V or 2-4S Lithium battery Frequency: 2,4GHz ISM Band (2400MHz ~ 2483,5) MHz Channel resolution: 4096, regular jitter 0,5µs... -
Page 8: Receiver Installation And Binding
EP cars, different connection will make different direction, the gyro is ensured to be enable forward. Gyro reverse Same as a plane has reverse, car kit gyro has reverse as well. Only right set reverse gyro can act to correct. ATX6... - Page 9 After all the above steps finished, turn off the transmitter and then power it on, now the program functions to assure it under control of transmitter with a right connection. ATX6...
-
Page 10: Atx6 Functions
4. ATX6 Functions 4.1 Display when Power Switch Turned On LCD-Screen When you power on the transmitter RC6GS, LCD screen shows Model Name, Transmitter Name, Battery Voltage, Steering Trim, Throttle Trim. Model Name: The system can store the data for 10 models, model name will show on the LCD when you power on the transmitter. -
Page 11: Language Select "Language
(4) Press “Enter” button, the desired language is selected, and return to the initial screen automatically. 4.3 Model Select "MODEL" ATX6 can store model memories for ten models. Use this function to call a new model. (1) Access the function menu (By pressing “Exit” and “Enter” buttons simultaneously and holding them down for one second), press “Enter”... -
Page 12: Steering Exp "Stexp
Initial value: 0% 0% ~ -100%: Sensitivity around neutral position is low, getting higher when approaching ends. 0%: Sensitivity around the neutral and ends position is equal 0%~ + 100%: Sensitivity around neutral position is high, getting lower when approaching ends ATX6... -
Page 13: Steering Speed "Stspd
This function makes the throttle high side and brake side direction servo operation quicker or milder. It has no effect on the servo maximum operation amount. For the high side, selection from among three kinds of curves (CRV/VTR/EXP) is also possible. The curve can be divided into: Five dots throttle curve adjustment, Single point adjustment, Exponential ATX6... - Page 14 From the graph you will clearly see the changes you have made on TG.P and RATE. Adjustment method for EXP curve Setup items MODE: EXP turn on or turn off RATE: EXP rate Adjustment range MODEL: OFF/ON RATE: -100 ~ 0 ~ +100 ATX6...
-
Page 15: Throttle Speed „Thspd
Throttle servo (amp) operation is delayed so that the drive wheels will not spin even if the throttle trigger is operated more than necessary. This delay function is not performed when the throttle trigger is returned and at brake operation. OFF: Speed1 or speed2 can be selected. OFF means shut down the throttle speed function ATX6... - Page 16 Use “(-)” or “(+)” button to adjust the value. (Note: In the interface of adjusting the value, return to the initial value (the initial value of LOW and HIGH is “100”, the initial value of TGP1 is “30”) by ATX6...
-
Page 17: Brake „A.b.s
DTY (Cycle duty ratio): Sets the proportion of the time the brakes are applied and the time the brakes are released by pulse operation. The ratio can be set to +3 ~ 0 ~ -3 in 7steps. STM (Steering mixing): Sets ABS operation ON/OFF according to the steering operation range. ATX6... - Page 18 Press “Enter” button, the adjusted value stops blinking, now the value has been set. - Sets the throttle trigger position at which the A.B.S. function is performed. The number is the 100 display with the full brake position made 100%. Operation point (TGP) 0 ~ 100 Initial value: 30 ATX6...
- Page 19 When steering mixing is set and steering operation enters the set range, "*" is displayed in front of the number. When mixing is OFF, the A.B.S function can operate over the entire steering range. When ending setting, return to the initial screen by pressing “Exit” button twice. ATX6...
-
Page 20: Throttle Acceleration "Accel
"0%": No acceleration "100%": Maximum acceleration (Brake side maximum steering angle) Brake side acceleration amount (BRAK) Brake side acceleration amount (BRAK) 0% ~ 100% Initial value: 0% When ending setting, return to the initial screen by pressing “Exit” button twice. ATX6... -
Page 21: Idle-Up "Idlup
ST: -100 ~ 0 ~ +100 TH: -100 ~ 0 ~ +100 CH3: -100 ~ 0 ~ +100 CH4: -100 ~ 0 ~ +100 CH5: -100 ~ 0 ~ +100 CH6: -100 ~ 0 ~ +100 Initial value: 0 ATX6... -
Page 22: Servo Reverse „Rev
4.14 Steering Dual Rate/Throttle Dual Rate "D/R ” Dual Rate The steering left and right servo travels are adjusted simultaneously. When you want to increase the servo travel, adjust the + side. When you want to decrease the servo travel, adjust the - side. ATX6... -
Page 23: Atl Function „Atl
(Note: In the interface of adjusting the value, return to the initial value "100%" by pressing “(-)” and “(+)” buttons simultaneously for about 1 second.) Press “Enter” button, the adjusted value stops blinking, now the value has been set. (4) When ending setting, return to the initial screen by pressing “Exit” button twice. ATX6... -
Page 24: Programmable Mixes "Pmix
(Note: In the interface of adjusting the value, return to the initial value "0" by pressing “(-)” and “(+)” buttons simultaneously for about 1 second.) Press “Enter” key, the adjusted value stops blinking, the selected mixing amount has been adjusted. (4) Right, brake or down side mixing amount adjustment. ATX6... -
Page 25: Channel 3 Position „Aux
SW (LOCK), SW (TACT) or VR (RATE) Channel 4 Position (POSI) SW (LOCK), SW (TACT) or VR (RATE) Channel 5 Position (POSI) SW (LOCK), SW (TACT) or VR (RATE) Channel 5 Position (POSI) SW (LOCK), SW (TACT) or VR (RATE) ATX6... -
Page 26: Model Name „Name
“VR” or “SW”. Press “Enter” button, the adjusted value stops blinking, now the value has been set. If you use the ATX6 to control RC Crawler, you can setup each channel as below. CH1 is Steering CH2 is Throttle... -
Page 27: Gyro Sensitivity
(4) Press the button key “Enter”, the value stops flashing, now the value of SERVO is set. (5) THROTTLE is to set by the trigger. CH3 is to set by VR controller. CH4 is to set by the button switch. ATX6... -
Page 28: Reset Function „Reset
CAUTION: Resetting the current model memory will permanently erase ALL programming information for that model. The data cannot be recovered. Do not reset the model unless you are certain you want to clear- out that memory and start from scratch. ATX6... - Page 29 AMXRacing Service Center All Information and Downloads you will find at amxracing.de amxracing.de We hope you enjoy your ATX6 ATX6...
