MODEL
RXTA24AAVJU
RXTA36AAVJU
RXTA48AAVJU
RXTA60AAVJU
Please visit http://www.daikinac.com/content/resources/manuals for the most current version of
Operation manual. In the event of conflicting information, the online contents are to be used.
Veuillez visiter http://www.daikinac.com/content/resources/manuals pour obtenir la version la plus
récente du Manuel d'utilisation. En cas de conflit d'informations, le contenu en ligne est à privilégier.
Visite http://www.daikinac.com/content/resources/manuals para obtener la versión en español del
Manual de operación. En caso de información contradictoria, se utilizarán los contenidos en línea.
Advertisement
Related Manuals for Daikin VRV S RXTA24AAVJU
Summary of Contents for Daikin VRV S RXTA24AAVJU

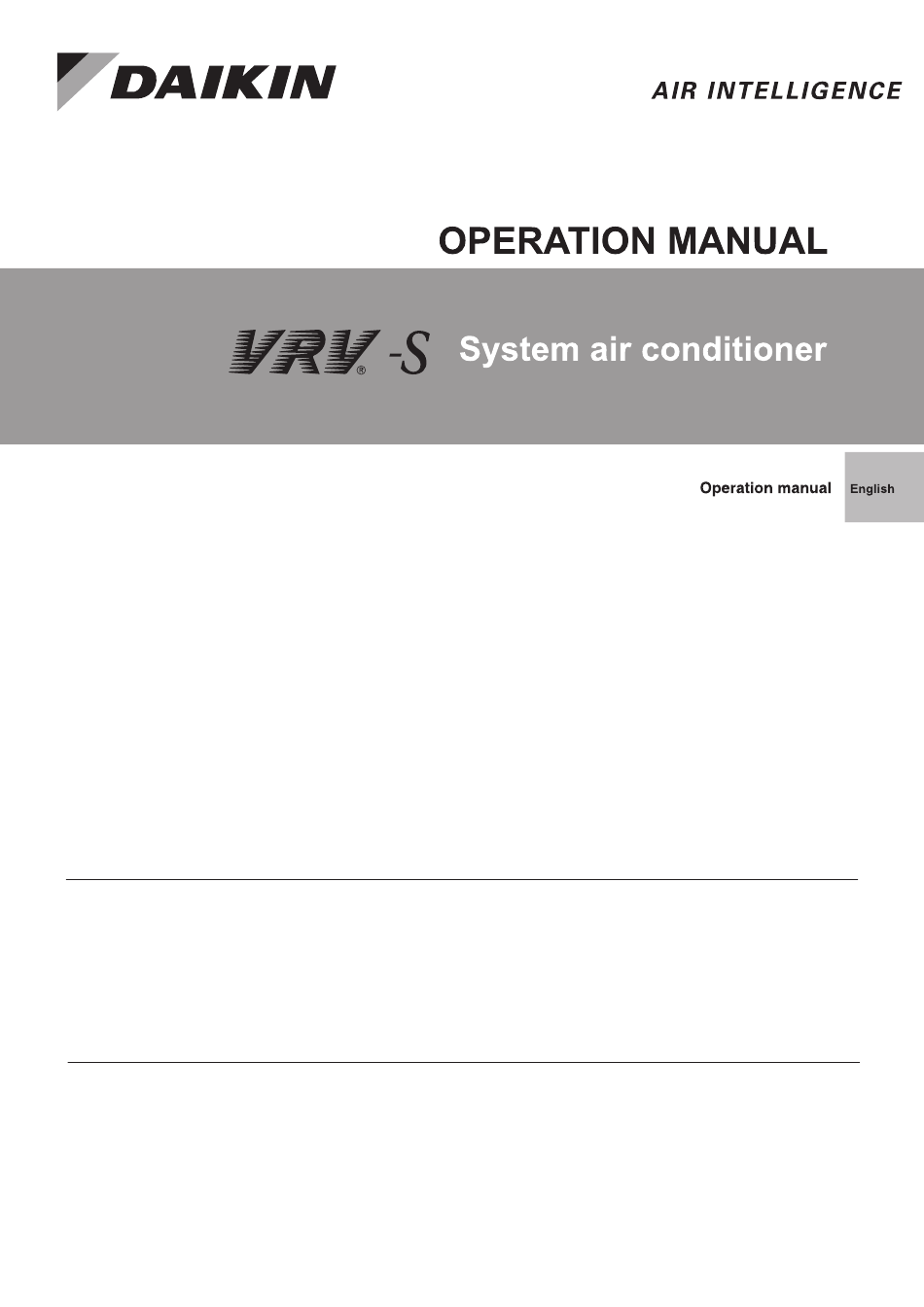

- Page 1 MODEL RXTA24AAVJU RXTA36AAVJU RXTA48AAVJU RXTA60AAVJU Please visit http://www.daikinac.com/content/resources/manuals for the most current version of Operation manual. In the event of conflicting information, the online contents are to be used. Veuillez visiter http://www.daikinac.com/content/resources/manuals pour obtenir la version la plus récente du Manuel d’utilisation. En cas de conflit d’informations, le contenu en ligne est à privilégier. Visite http://www.daikinac.com/content/resources/manuals para obtener la versión en español del Manual de operación.
-
Page 3: Safety Considerations
Read the precautions in this manual leakage, electric shock, and fire. Only use accessories made carefully before operating the unit. by Daikin that are specifically designed for use with the equipment and have them installed by a professional. Refrigerant • Contact your dealer to move and reinstall the air This appliance is filled with R32. - Page 4 • Check the unit foundation for damage on a continuous • Do not place objects in direct proximity of the outdoor basis, especially if it has been in use for a long time. If unit. Do not let leaves and other debris accumulate left in a damaged condition the unit may fall and could around the unit.
- Page 5 • Make sure that there are no obstacles close to the [Place of Installation] outdoor unit. Obstacles close to the outdoor unit may • Make sure that the air conditioner is located in a drop the performance of the outdoor unit or increase the operating sound of the outdoor unit.
-
Page 6: Table Of Contents
VRV-S System air conditioner Operation manual Contents Safety Considerations ..........[i] [ii] [iii] Specifications ............... 2 What to do before Operation ..........3 Operation Range ..............3 Name and Function of Each Switch and Display ....Operation Procedure ............Maintenance ................. 6 Reference Information ............ -
Page 7: Specifications
Model name RXTA60AAVJU RXTA24AAVJU RXTA36AAVJU RXTA48AAVJU Power supply Phase — SINGLE SINGLE SINGLE SINGLE Frequency Voltage 208/230 208/230 208/230 208/230 Cooling nominal capacity Btu/h 24,000 36,000 48,000 60,000 Heating nominal capacity Btu/h 27,000 40,000 52,000 60,000 Dimensions inch 34-1/4 × 43-5/16 × 18-1/8 (mm) H×W×D (870 ×... -
Page 8: What To Do Before Operation
What to do before Operation This operation manual is for the following system with standard control. Before initiating operation, contact your local dealer for the operation that corresponds to your system type. If your installation has a customized control system, ask your local dealer for the operation that corresponds to your system. Outdoor unit Cool/heat Selector Operation Range... -
Page 9: Name And Function Of Each Switch And Display
Name and Function of Each Switch and Display Cool/Heat Selector • When the Cool/Heat selector remote controller is installed, the remote controller connected to the indoor unit cannot be used to switch between cooling and heating operation. <Cool/Heat selector> 1. Fan only/air conditioning selector switch •... - Page 10 Dry Mode Preparation • For equipment protection purposes, apply power to the outdoor unit at least 6 hours before starting the operation of the system. • The dry mode may not be selected if the remote controller is master controlled and the system is not already in the cooling mode of operation (see the following section).
-
Page 11: Maintenance
Maintenance Reset Filter Indicator Operation • When it is time to clean or replace the filter, one of the following messages will appear on the bottom of the basic screen. Cool Set to Cool “Time to clean filter” “Time to clean filter & element” Time to clean filter “Time to clean element”... -
Page 12: Reference Information
Reference Information Error Code Display Contact your local dealer in the following cases Operation • If an error occurs, either one of the following items will flash in the basic screen. Cool “Error: Press Menu button” Set to Cool * The operation lamp will flash. -
Page 13: Optimum Operation
Optimum Operation Observe the following precautions to ensure the system operates properly. • Prevent direct sunlight from entering a room during cooling operation by using curtains or blinds. • Do not leave doors and windows open. If the doors and windows remain open, air will flow out of your room causing a decrease in the cooling or heating effect. -
Page 14: Following Issues Do Not Mean System Malfunction
Following Issues Do Not Mean System Malfunction The system does not operate • The air conditioner does not start immediately when restarting or changing the operation mode. If the operation lamp lights, the system is in normal condition. To prevent overloading of the compressor motor, the air conditioner starts 5 minutes after it is turned ON again in case it was turned OFF just before. - Page 15 White mist comes out of the unit Indoor unit • When humidity is high during cooling operation. If the interior of indoor unit is extremely contaminated, the temperature distribution inside a room becomes uneven. It is necessary to clean the interior of the indoor unit.
-
Page 16: Trouble Shooting
Hot air is emitted even though the unit is stopped • Hot air can be felt when the unit is stopped. Several different indoor units are being run on the same system, so if another unit is running, some refrigerant will still flow through the unit. Does not cool very well •... -
Page 17: After-Sales Service
• Check the fan speed setting on your remote controller. Refer to the Operation Manual of the remote controller. • Check for open doors or windows. Shut doors and windows to prevent wind from coming in. • Check if there are too many occupants in the room during cooling operation. •... - Page 18 • Table 1 “Inspection Cycle” and “Maintenance Cycle” Lists Name of Main Part Inspection Cycle Maintenance Cycle [replacements and/or repairs] Compressor 20,000 hours Electric motor (fan, damper, etc.) 20,000 hours Printed circuit boards 25,000 hours Heat exchanger 5 years Sensor (thermistor, etc.) 5 years 1 year Remote controller and switches...
- Page 19 Moving and discarding the unit This unit uses chlorofluorocarbon. Contact your local dealer for discarding this unit since it is required by law to collect, transport and discard the refrigerant in accordance with “chlorofluorocarbon collection and destruction” law. Where to call For after-sales service, etc., consult with your local dealer.
- Page 20 Daikin Texas Technology Park, 19001 Kermier Road, Waller, TX, 77484, U.S.A. 3P778927-1C EM24A002A (2501)
