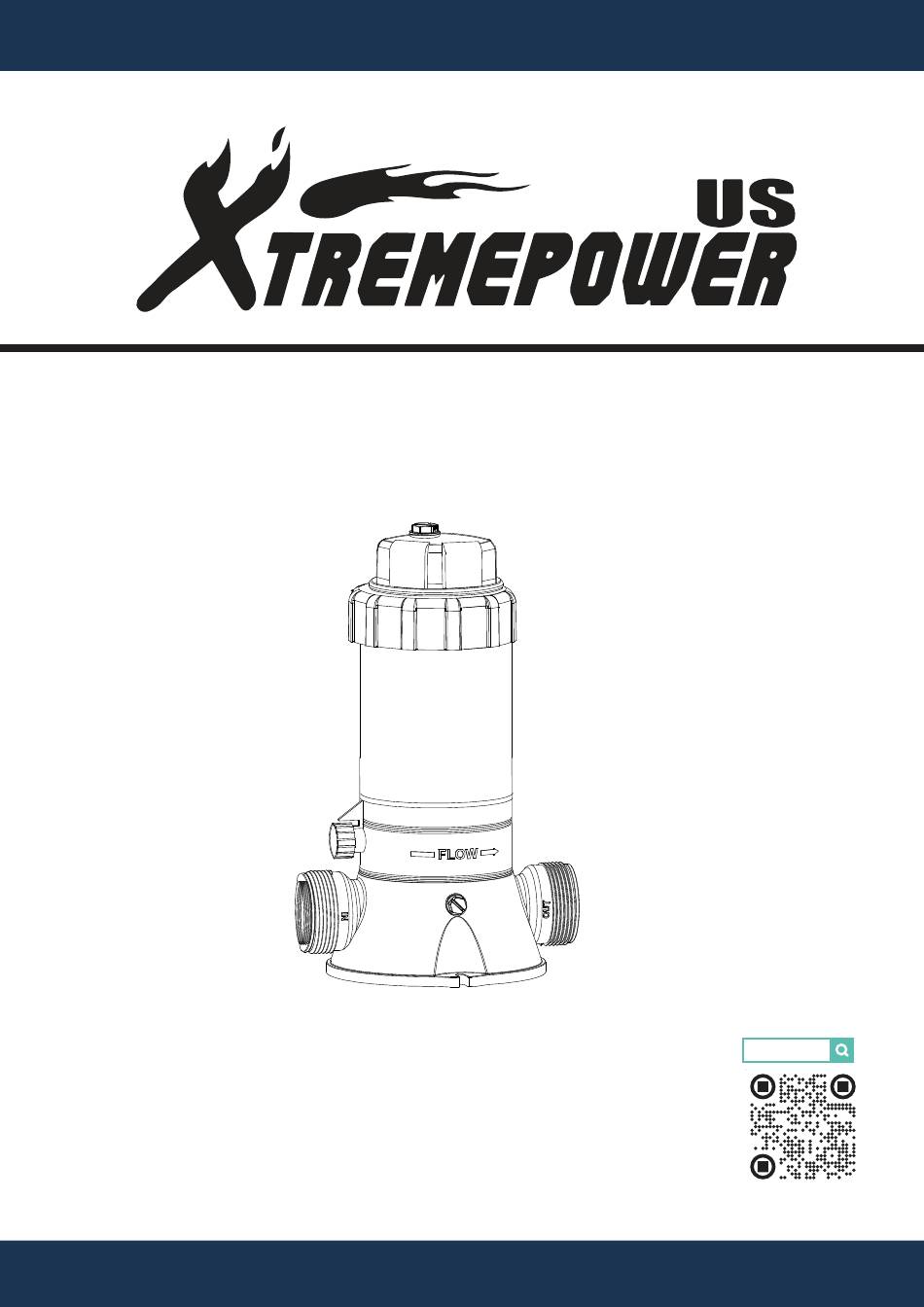

- Page 1 AUTOMATIC CHLORINE FEEDER SKU: 90157 INLINE WITH CONTROL VALVE ASSEMBLY AND USER’S GUIDE 90157 IMPORTANT Review the instruction manual thoroughly before operating the machine. Keep it for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS Legends and Symbols OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION PRODUCT OVERVIEW INSTALLATION CHLORINE FEEDER CONNECTION PLUMBING LINE CONNECTION OPERATION GENERAL USAGE REFILL INSTRUCTIONS MAINTENANCE O-RING REPLACEMENT FLOW CONTROL VALVE HANDLE REMOVAL WINTERIZING VACUUMING LUBRICATION REPLACEMENT PARTS... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This guide provides instructions for installing and using the SPA AUTOMATIC CHLORINE FEEDER. If you have any questions about the equipment, please contact XtremepowerUS. This guide contains important information about safely installing and operating this product. After installation, make sure to share this information with the owner/operator or leave it with them for their reference. - Page 5 IMPORTANT SAFETY INSTRUCTIONS DANGER • Improper Use: Misusing this equipment or not following instructions can cause serious harm or damage. • Chemical Mixing: Never mix different chemicals in the feeder. WARNING • Strongly Advised: Ensure individuals are properly trained before operating or servicing this equipment.
-
Page 6: Overview (Product Information)
OVERVIEW (PRODUCT INFORMATION) PRODUCT INTRODUCTION XtremepowerUS Automatic Chlorine Feeder with Flow Control Valve is the perfect addition to any pool maintenance setup. Engineered for efficiency and ease of use, it boasts a substantial 9 lbs capacity, reducing the need for frequent chlorine top-ups. The precision of the integrated flow control valve ensures the right amount of chlorine is released, keeping pool water pristine and swim-ready. -
Page 7: Installation
INSTALLATION INSTALLATION NOTE • The AUTOMATIC CHLORINE FEEDER should be permanently installed in the pool's return water line. • Install the chlorine feeder downstream of the heater. If no heater is present, install it after the filter. This prevents potential damage to the heater or filter from concentrated chlorine. •... -
Page 8: Plumbing Line Connection
INSTALLATION CHLORINE FEEDER CONNECTION (CONTINUED) • Apply Teflon tape to the Check Valve's larger male thread and fasten securely to the Chlorine Feeder's outlet. • Attach the inlet Fitting Adapter to the Chlorine Feeder's inlet with Teflon tape on its thread. •... -
Page 9: Operation
OPERATION OPERATION GENERAL USAGE • Balance and condition pool/spa water before Chlorine Feeder use. • Maintain chlorine residual between 1.0 to 1.5 ppm. • Monitor and adjust chlorine daily via the dial valve. • Account for varying chlorine demand due to usage, temperature, and sunlight. •... -
Page 10: Maintenance
MAINTENANCE MAINTENANCE O-RING REPLACEMENT • Follow initial 5 steps from the Refilling Instructions. • Use replacement O-Ring (Part# 65431036080), ensuring Slip Washers are properly placed on the Cover stem. • If a refill is necessary, proceed with the final 3 steps of the Refilling Instructions. FLOW CONTROL VALVE HANDLE REMOVAL •... -
Page 11: Replacement Parts
REPLACEMENT PARTS REPLACEMENT PARTS PARTS DIAGRAM ITEM PART NUMBER DESCRIPTION 647016803080 COVER CAP 647016802000 COVER 65431036080 O-RING 88601004 DRAIN PLUG W/GASKET 647016875000 CONTROL VALVE ASSEMBLY... -
Page 12: Disclaimer
DISCLAIMER DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY The manufacturer and/or distributor have provided the parts list and assembly diagram in this manual for reference purposes only. They do not make any representation or warranty to the buyer that they are qualified to make repairs to the product or replace any parts of the product. In fact, the manufacturer and/or distributor expressly state that all repairs and parts replacements should be undertaken by certified and licensed technicians, and not by the buyer.
