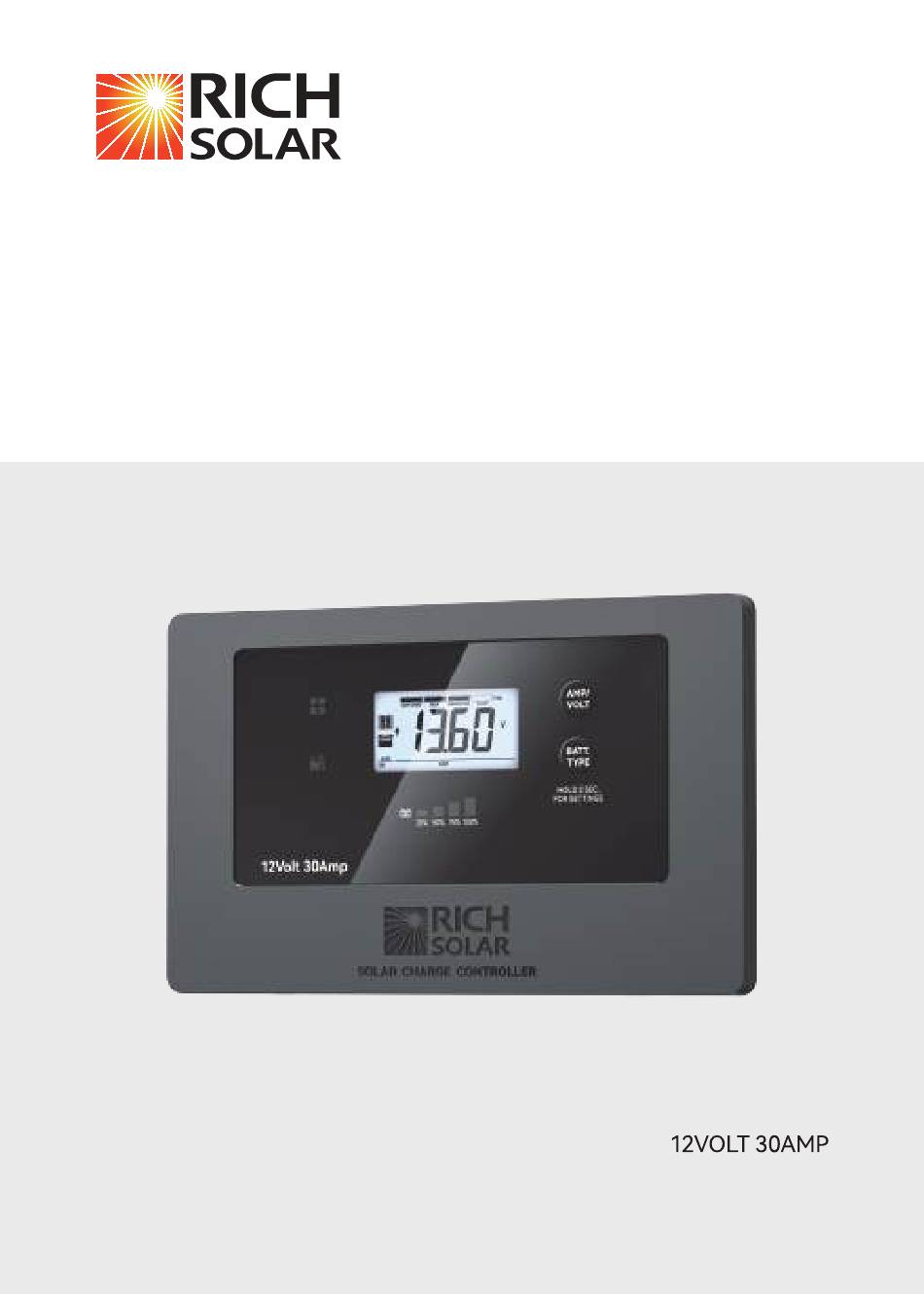

- Page 1 30A PWM SOLAR CHARGE CONTROLLER USER MANUAL MODEL: RS-PWM30PF THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR THE SOLAR CHARGE CONTROLLER. PLEASE READ THIS MANUAL AND FOLLOW THE INSTRUCTIONS EXACTLY.
- Page 3 (keep your receipt). This is a standard version of RICH SOLAR PWM controller 12V 30A Rated for 12V solar panel (Max. 25V) Rated maximum output current of 30Amp...
- Page 4 Risk of explosive gases: working in vicinity of a lead-acid battery is dangerous. Explosive gases develop during normal battery operation. Be certain there is enough ventilation to release the gases. It is important that each time before using or connecting your solar controller, always read this manual and follow the instruction exactly.
- Page 5 - Automatically activates Lithium battery against BMS protection - Compatible with most rechargeable lead-acid batteries, including Flooded (WET), AGM, GEL, Calcium and Lithium batteries - Designed to meet CE standards and comply with EMC and FCC regulations...
- Page 6 The quickest and easiest way to mount the unit is to remove the front cover and tap screws supplied to secure it to a flat surface.
- Page 7 Before using this mounting method, make sure there is sufficient depth behind the controller or in the cavity (refer to diagram below). 144.0mm 5.7in 6.2in 158.0mm...
- Page 8 Refer to the wiring diagram below, please cover the solar panel before con- necting cables. TEMP. BATTERY SENSOR REMOTE DISPLAY...
- Page 9 Please check your battery manufacturer’s specifications to select correct battery type. The unit provides 6 types of batteries for selection: LiFePO4, LTO, Gel, AGM, WET (conventional lead-acid), and Calcium battery. Press and hold the BATTERY TYPE BUTTON for 3 seconds to enter battery type selection mode.
- Page 10 The LCD also can be treated as an independent voltage meter or thermometer. A voltage less than 11.5V indicates that the battery is discharged and needs re-charging.
- Page 11 Absorption Charge- Constant voltage charging occurs when the battery reaches over 85% capacity. For lead-acid batteries, LiFePO4 batteries, and LTO batteries, full charging will complete after the absorption stage. The absorption voltage levels are 14.4V for LiFePO4 batteries and 14.0V for LTO batteries. Equalizing Charge*- Only for WET or Calcium battery type, when the battery is deeply drained below 10V or every 28 days cycle, it will automatically run this stage to bring the internal cells as an equal state and fully complement the...
- Page 12 Bulk Charging (Charged Capacity <25%) Bulk Charging (Charged Capacity <50%) Bulk Charging (Charged Capacity <75%)
- Page 14 Solar Good, Battery Over 149℉...
- Page 17 Bulk charging Absorption charging voltage at 25°C / 77℉ --Gel battery --AGM battery (default setting) --WET battery --Calcium battery...
- Page 18 Equalization charging voltage 25°C / 77℉ Float voltage (GEL, WET, Calcium, AGM battery) at 25°C / 77℉...
- Page 19 Restart voltage for lead-acid battery -20~50°C -4~122℉ 65°C 149℉...
- Page 20 #8 AWG stranded- 5 mm2 Up to 17 in-lb (0.2N·m)
