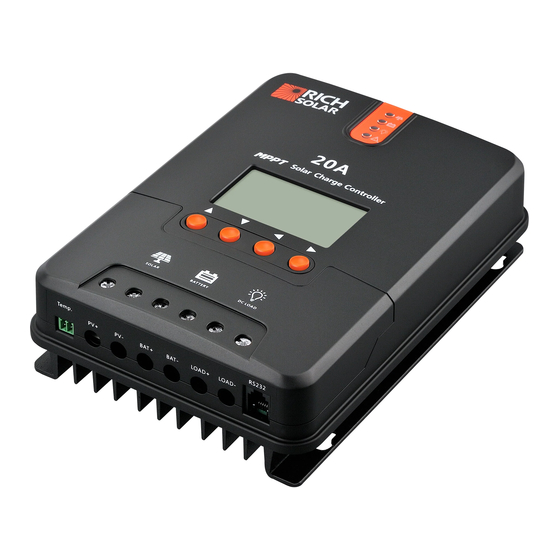

- Page 1 Solar Charge and Discharge Controller User Manual Maximum Power Point Tracking (MPPT) Series RS-MPPT20 RS-MPPT30 RS-MPPT40 1-800-831-9889 support@richsolar.com www.richsolar.com 4066 Mission Blvd, Montclair, CA 91763 United States...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS Safety Instructions: As this controller deals with voltages that exceed the top limit for human safety, do not operate it before reading this manual carefully and completing safety operation training. The controller has no internal components that need maintenance or service, thus do not attempt to disassemble or repair the controller. -
Page 3: Specification
1. SPECIFICATION 2. PRODUCT INTRODUCTION / SPECIFICATION -2.3 Exterior and Interfaces RS232 ① RS-MPPT20 RS-MPPT30 RS-MPPT40 ② ③ ④ ⑦ ⑤ ⑥ / PRODUCT INTRODUCTION -2.1 Product Overview Definition Transmitting terminal TX This product can keep monitoring the solar panel's generating power and tracking the highest voltage and current values (VI) in real time, enabling the system to charge the battery in maximum power. - Page 4 2. PRODUCT INTRODUCTION 2. PRODUCT INTRODUCTION -2.5 Charging Stages Introduction Compared with conventional PWM controllers, the MPPT controller can make the most of the solar panel's max. power and therefore provide larger charging current. Generally speaking, the latter can raise the energy utilization ratio by 15% to 20% in contrast with the former. As one of the charging stages, MPPT can not be used alone, but has to be used together with boost charging, floating charging, equalizing charging, etc.
-
Page 5: Product Installation
3. PRODUCT INSTALLATION 3. PRODUCT INSTALLATION -3.2 Wiring Specifications > Equalizing charging Wiring and installation methods must comply with national and local electrical specifications. The wiring specifications of the battery and loads must be selected according to rated currents, and see the following table for wiring specifications: Warning: risk of explosion! In equalizing charging, an open lead-acid battery can produce explosive gas, therefore the battery chamber shall have good Battery wire... -
Page 6: Product Operation And Display
3. PRODUCT INSTALLATION 4. PRODUCT OPERATION AND DISPLAY / PRODUCT OPERATION AND DISPLAY -4.1 LED Indicators PV array indicator Indicating the controller's current charging mode. Indicating the battery's current state. BAT indicator Indicating the loads' On/ Off and state. LOAD indicator Indicating whether the controller is functioning normally. - Page 7 4. PRODUCT OPERATION AND DISPLAY 4. PRODUCT OPERATION AND DISPLAY -4.2 Key Operations 4.3.2 Main interface Page up; increase the parameter value in setting Main monitoring page Component voltage Charging current Down Page down; decrease the parameter value in setting Return to previous menu (exit without saving) Enter into sub-menu;...
-
Page 8: Product Protection Function And System Maintenance
4. PRODUCT OPERATION AND DISPLAY 5. PRODUCT PROTECTION FUNCTION AND SYSTEM MAINTENANCE / PRODUCT PROTECTION FUNCTION AND SYSTEM MAINTENANCE 4.4.2 Load mode adjustment Users can adjust the load mode as needed on their own, and the default mode is debugging mode (see "load modes -5.1 Protection Functions introduction"). -
Page 9: Product Specification Parameters
5. PRODUCT PROTECTION FUNCTION AND SYSTEM MAINTENANCE 6. PRODUCT SPECIFICATION PARAMETERS -5.3 Abnormality Display and Warnings -6.2 Battery Type Default Parameters (parameters set in monitor software) Error Description LED indicationk display Parameters cross-reference table for different types of batteries No abnormality ERROR indicator off Battery over-discharge BAT indicator flashing slowly ERROR indicator steady on... -
Page 10: Conversion Efficiency Curve
7. CONVERSION EFFICIENCY CURVE 8. PRODUCT DIMENSIONS / CONVERSION EFFICIENCY CURVE / PRODUCT DIMENSIONS -7.1 12V System Conversion Efficiency MPPT 12V conversion efficiency (12V battery) 20 Vmp 40 Vmp 60 Vmp 75 Vmp Φ Φ 4X 4 4X 10 RS-MPPT30/RS-MPPT40 550 525 425 400 350 300...
